Wiper/Washer System Schematics (Power, Ground, and Components)

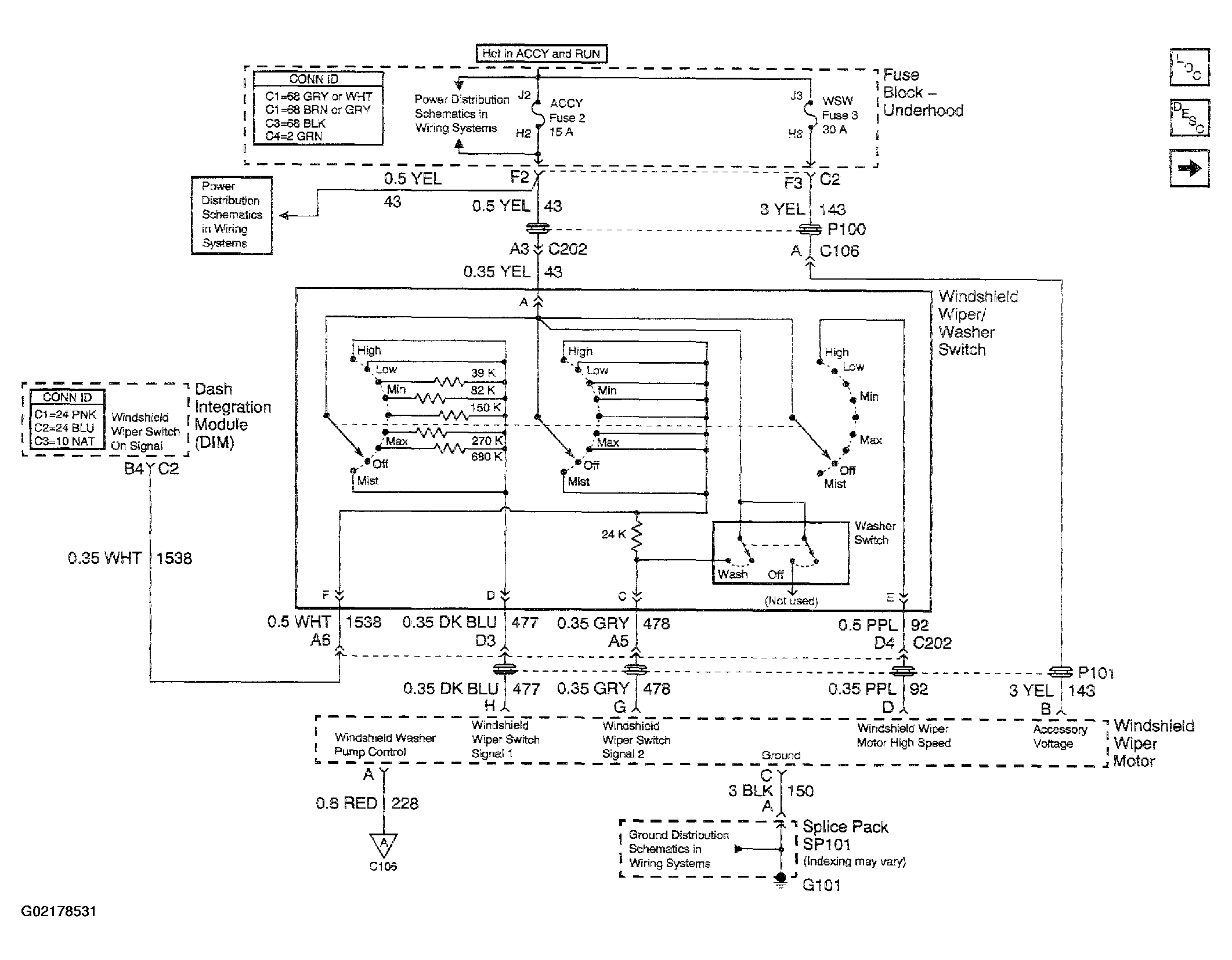

Fig 1: Wiper/Washer System Schematics (Power, Ground & Components)
G02178531Courtesy of GENERAL MOTORS CORP.
