Installation Procedure

  1. Install the memory seat module (4) to the seat cushion frame.
  2. Install the new rivets (3) to the memory seat module (4) in order to secure the memory seat module to the seat cushion frame.

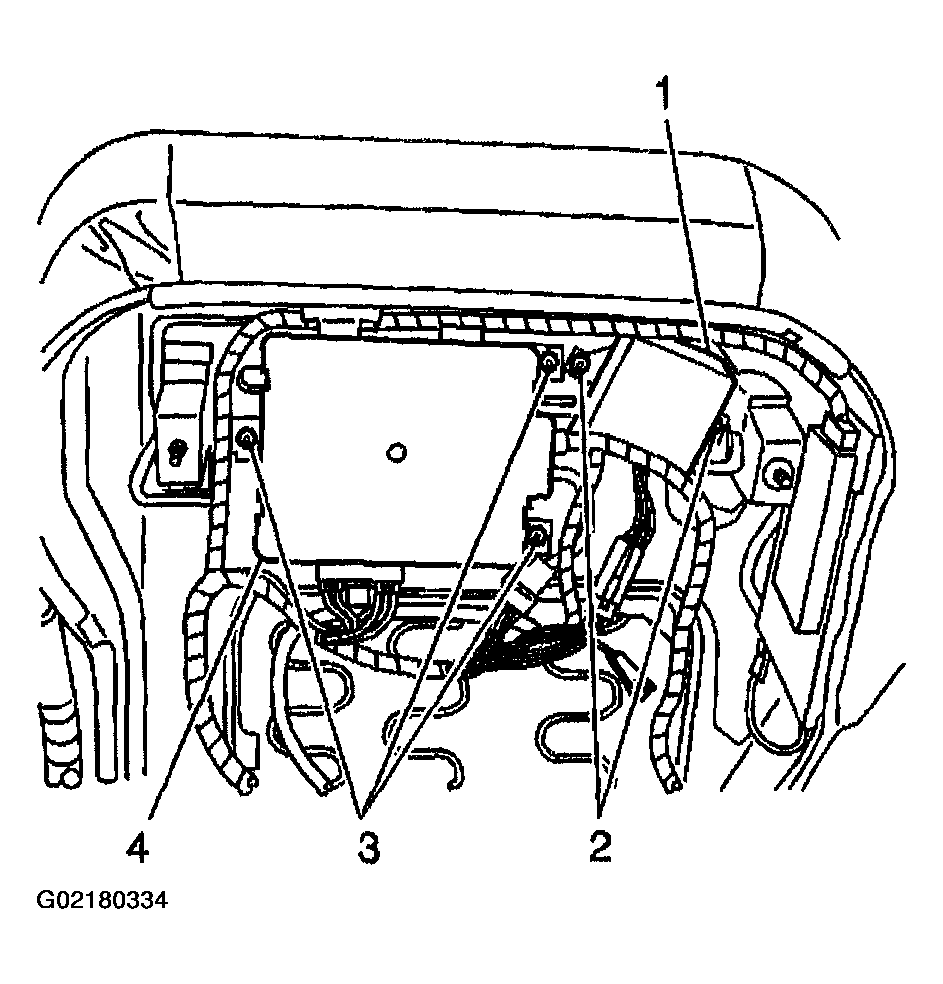

    Fig 1: Locating Memory Seat Module Rivets
    G02180334Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the memory seat module.
  4. Connect the heated seat cushion cover electrical connectors and the wire hold down clips which were removed during disassembly.

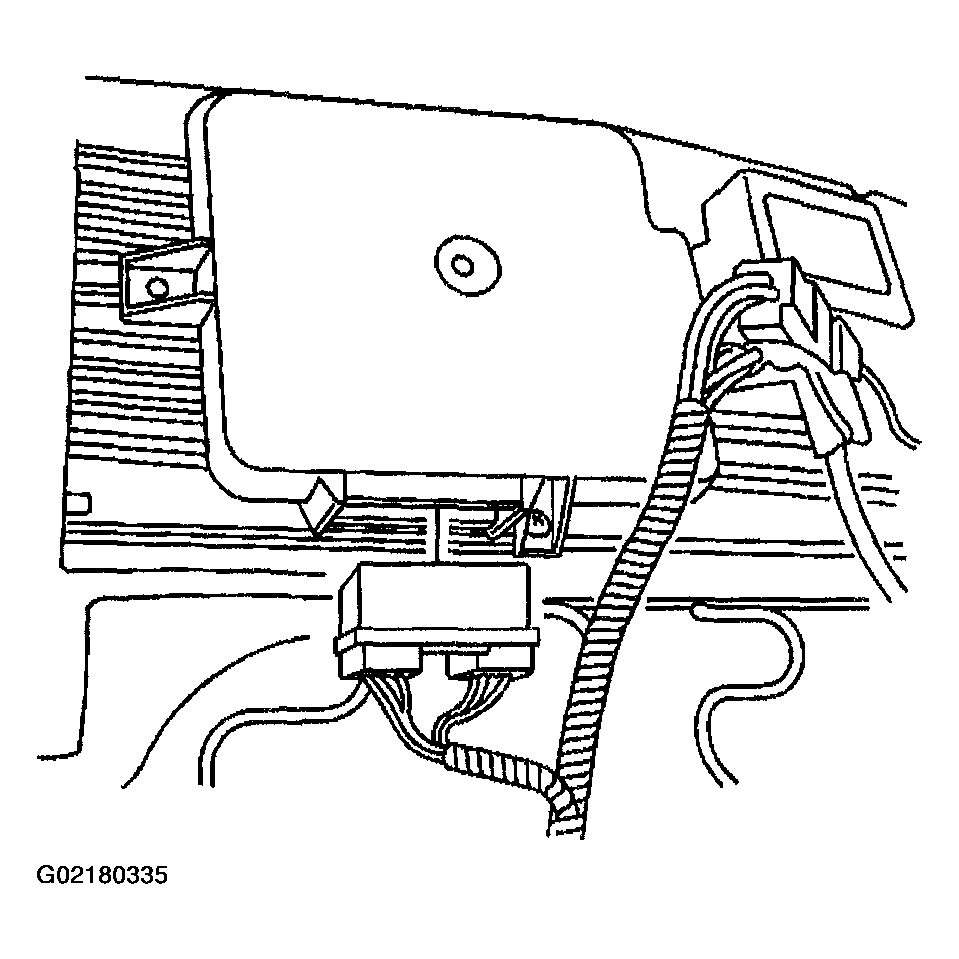

    Fig 2: Connecting Electrical Connector To Memory Seat Module
    G02180335Courtesy of GENERAL MOTORS CORP.
  5. Remove the protective cover from the seat riser.
  6. Install the seat cushion assembly (1) to the seat riser.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the fasteners (2) to the seat cushion assembly (1).

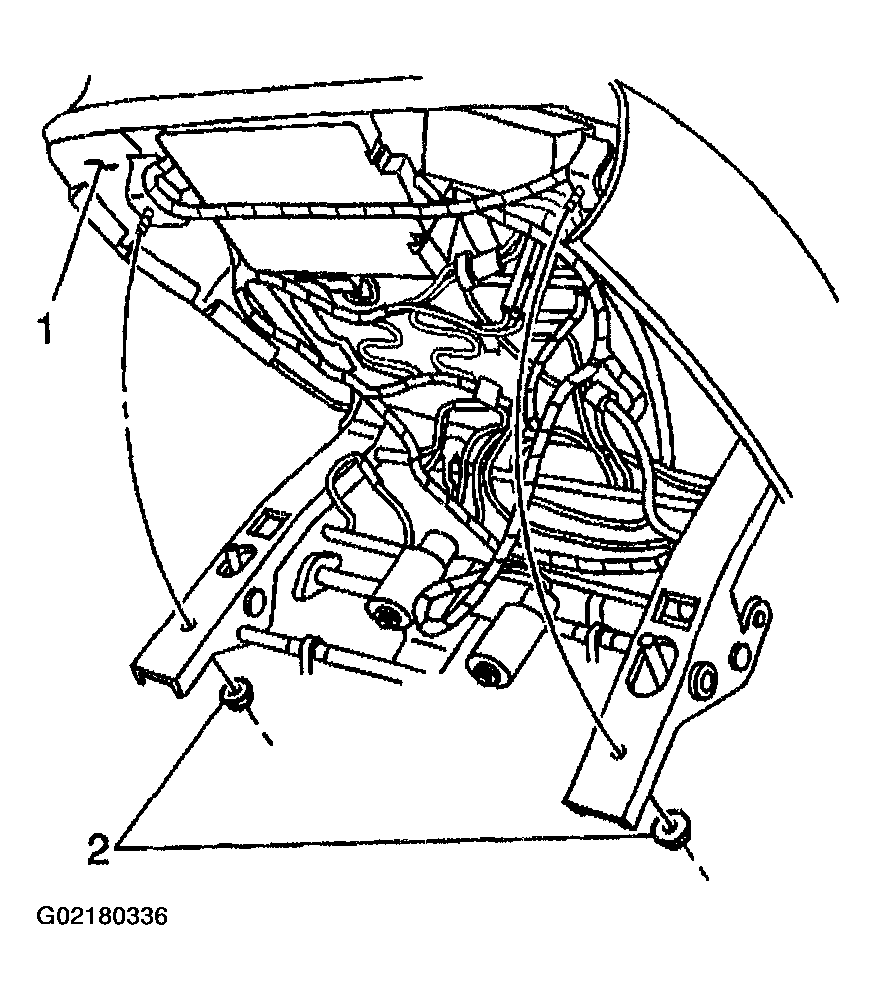

    Fig 3: Installing Fasteners To Seat Cushion Assembly
    G02180336Courtesy of GENERAL MOTORS CORP.
  8. Adjust the front seat assembly up and forward in order to access the fasteners (1) at the rear of the front seat cushion assembly
  9. Install the front seat cushion assembly rear fasteners (1) to the seat cushion assembly.

    Tighten

    Tighten the seat cushion assembly fasteners to 9 N.m (80 lb in).

  10. Angle the front seat cushion up, in order to access the front seat cushion assembly fasteners.

    Tighten

    Tighten the seat cushion assembly fasteners to 9 N.m (80 lb in).

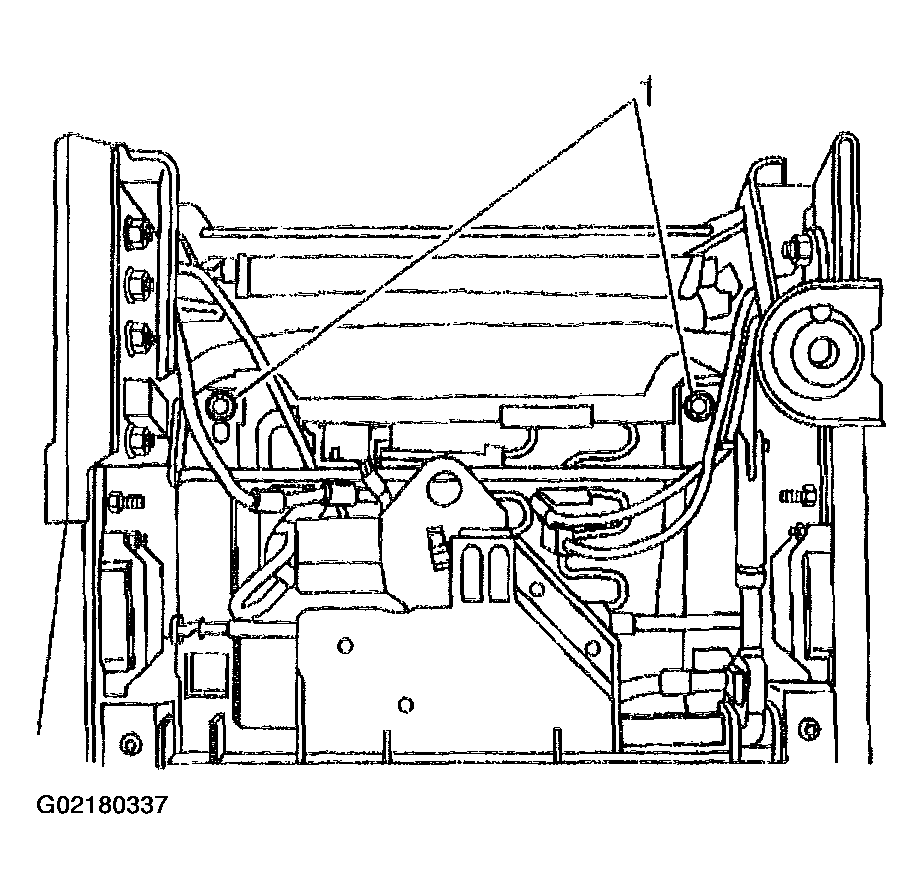

    Fig 4: Locating Front Seat Cushion Assembly Rear Fasteners
    G02180337Courtesy of GENERAL MOTORS CORP.
  11. Enable the SIR System. Refer to ZONE 7 or ZONE 9 in Air Bag Restraint Systems.
