Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR System. Refer to ZONE 7 or ZONE 9 in Air Bag Restraint Systems.
  2. Adjust the front seat assembly up and forward in order to access the fasteners (1) at the rear of the front seat cushion assembly
  3. Remove the front seat cushion assembly fasteners (1), at the rear of the seat cushion.

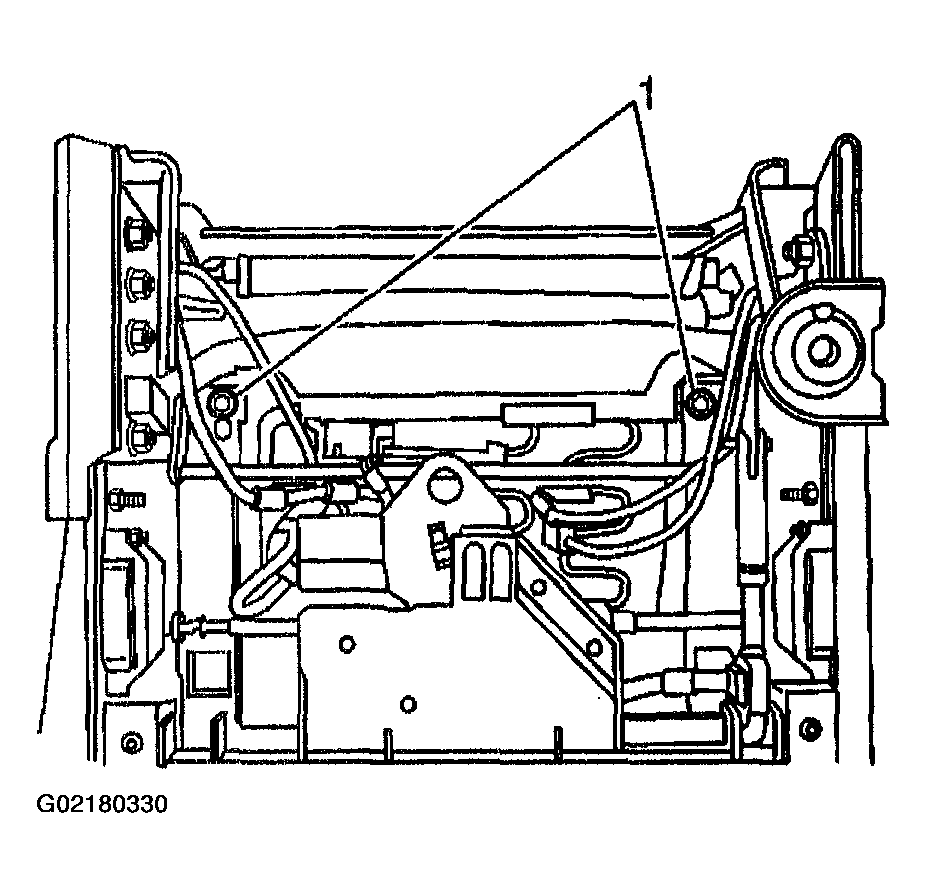

    Fig 1: Locating Front Seat Cushion Assembly Fasteners
    G02180330Courtesy of GENERAL MOTORS CORP.
  4. Adjust the front seat assembly to the rear of the vehicle.
  5. Angle the front seat cushion (1) up, in order to access the front seat cushion assembly fasteners (2).
  6. Remove the front seat cushion assembly fasteners (2).
  7. Lift the front seat cushion assembly (1) away from the seat riser.
    IMPORTANT: The heated seat cushion cover connectors and several wire hold down clips will need to be removed in order to position the seat cushion against the seat back.
  8. Position the seat cushion assembly (1) against the seat back, in order to access the memory seat module rivets and the electrical connector.

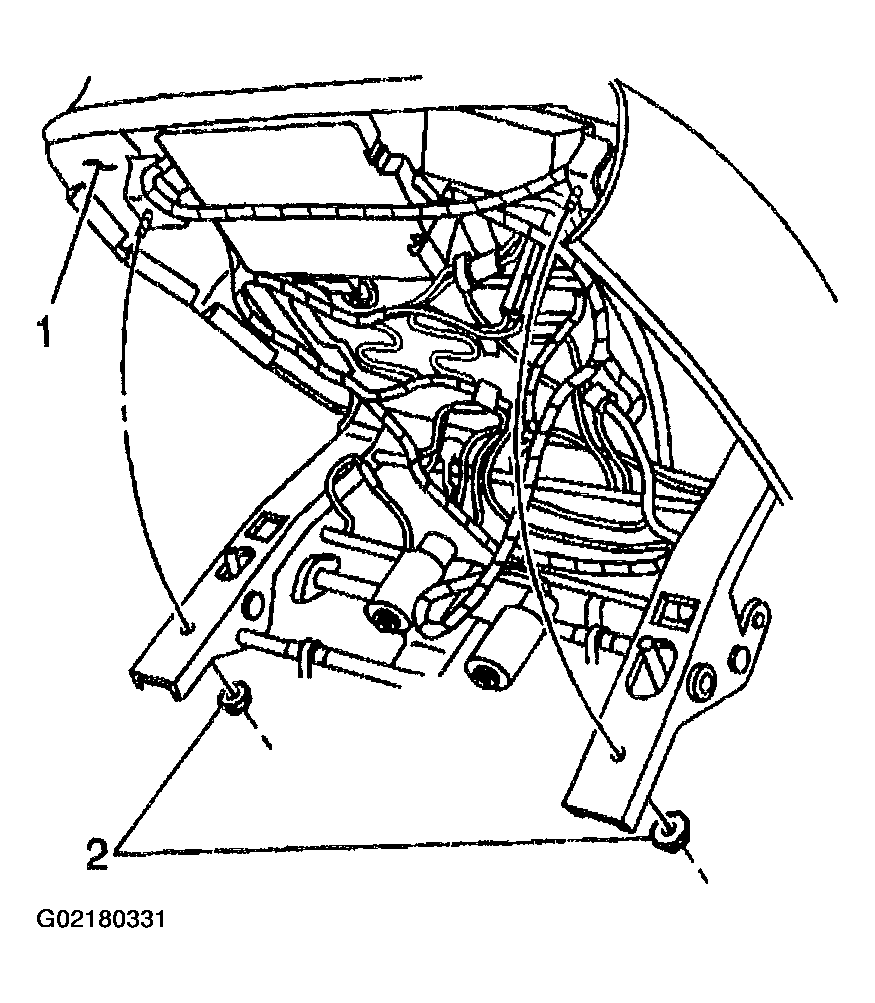

    Fig 2: Removing Front Seat Cushion Assembly Fasteners
    G02180331Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the memory seat module electrical connector.

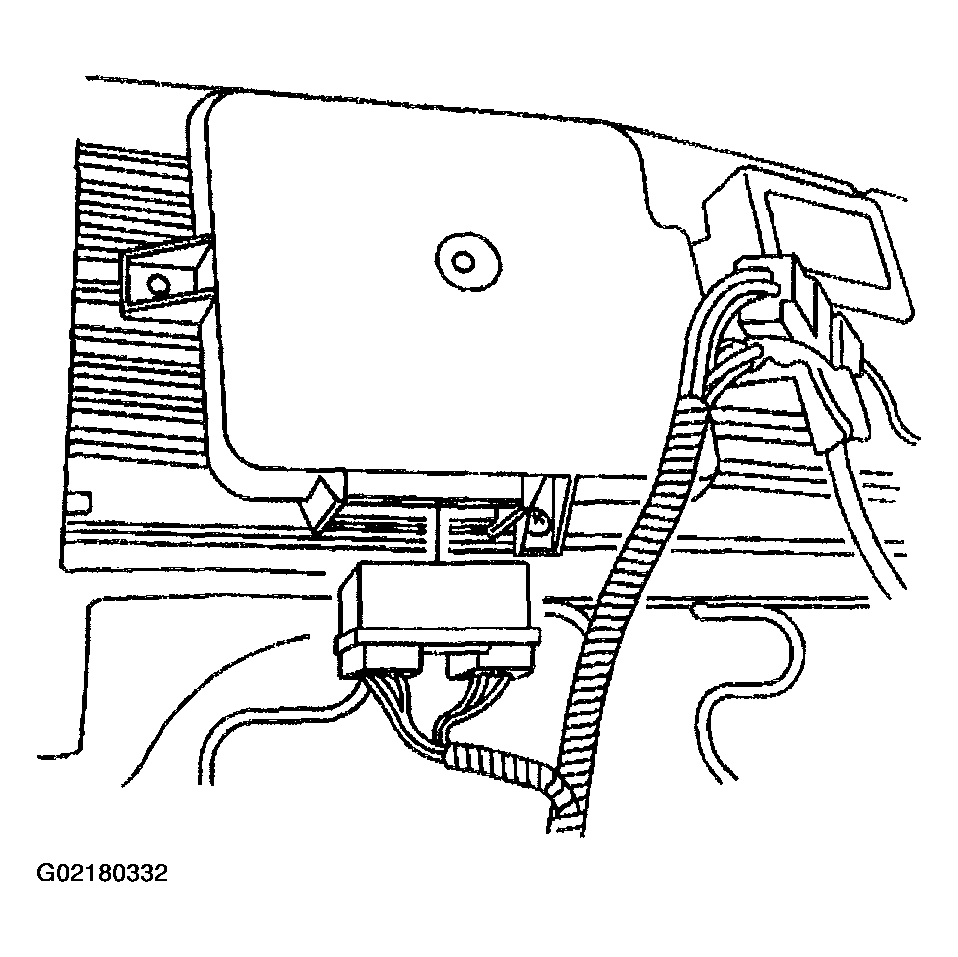

    Fig 3: Disconnecting Memory Seat Module Electrical Connector
    G02180332Courtesy of GENERAL MOTORS CORP.
    CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal injury.
    IMPORTANT: Cover the seat motors and cables in order to avoid metal shavings in the mechanism.
  10. Drill out the rivets (3) retaining the memory seat module (4) to the seat cushion frame.

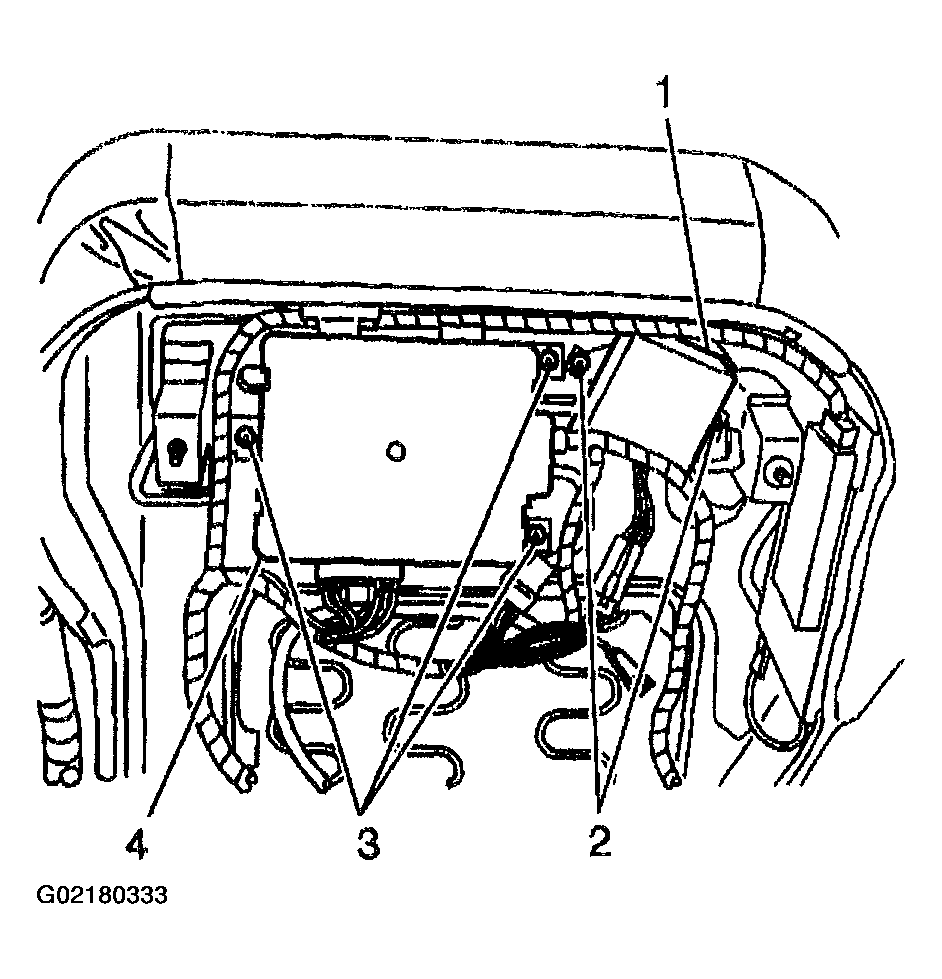

    Fig 4: Locating Memory Seat Module Rivets
    G02180333Courtesy of GENERAL MOTORS CORP.
  11. Remove the memory seat module (4).
