Right Cylinder Head Front Face Thread Repair Specifications

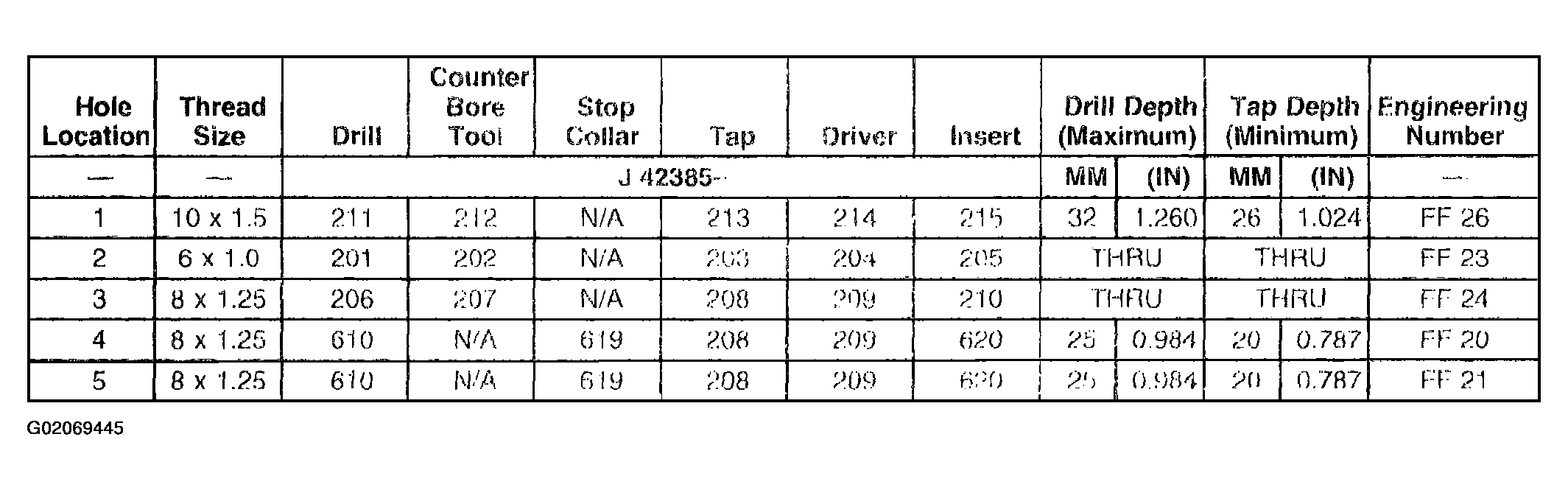

Fig 1: Right Cylinder Head Front Face Thread Repair Specifications
G02069445Courtesy of GENERAL MOTORS CORP.
