Driver Door Module (DDM) Connector End View C2

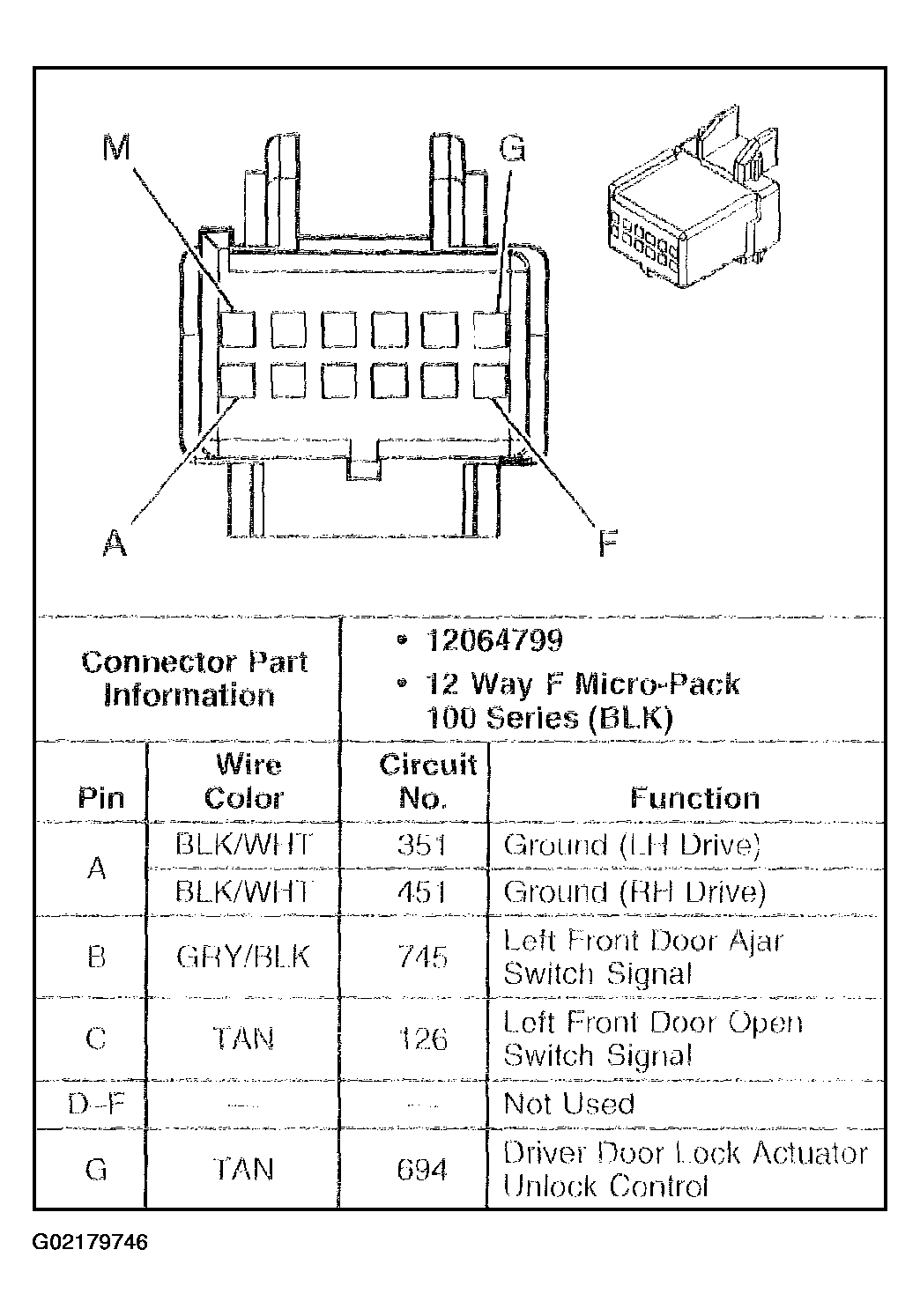

Fig 1: Driver Door Module (DDM) C2 (1 Of 2)
G02179746Courtesy of GENERAL MOTORS CORP.

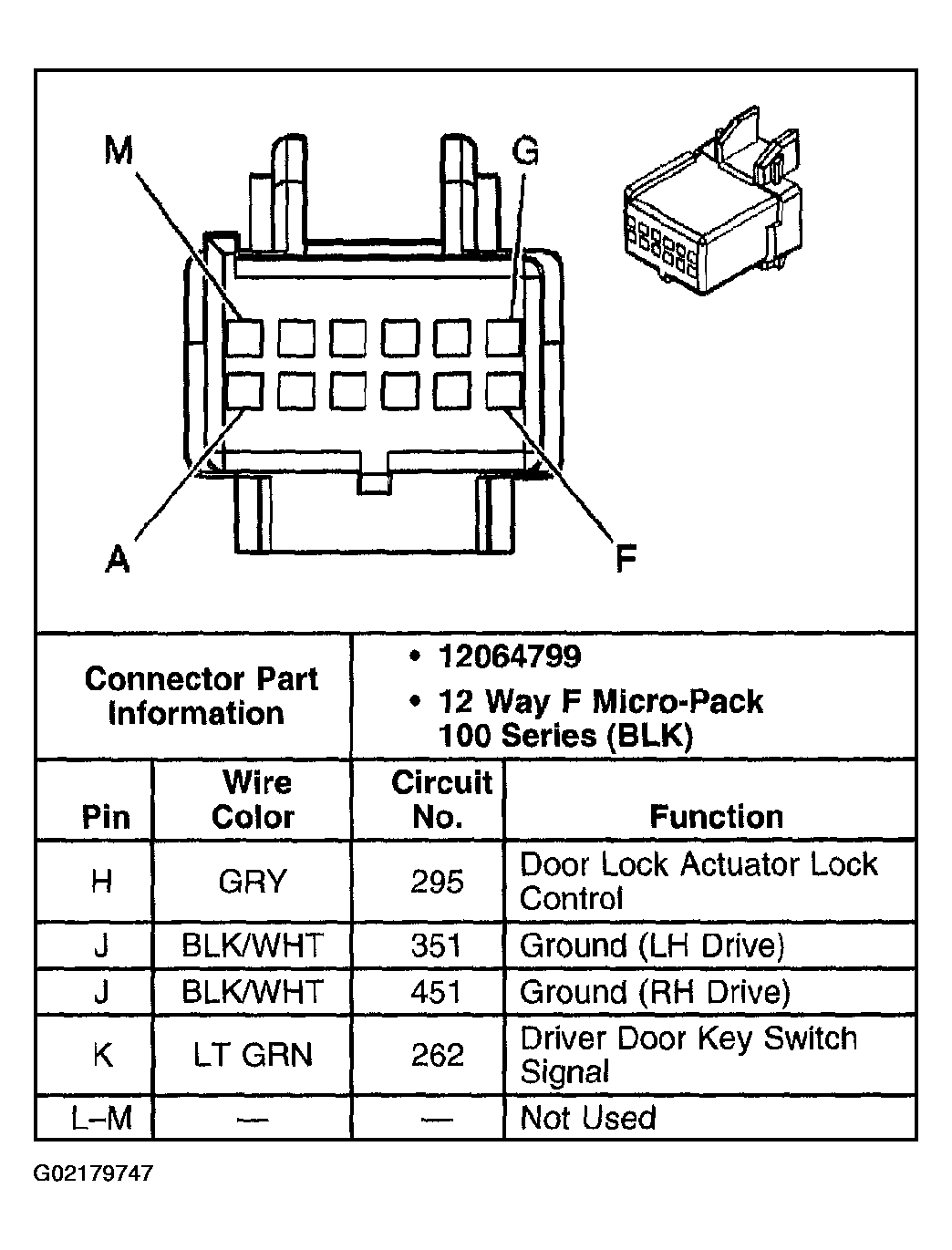

Fig 2: Driver Door Module (DDM) C2 (2 Of 2)
G02179747Courtesy of GENERAL MOTORS CORP.
