Memory Seat Module (MSM) Connector End View C1

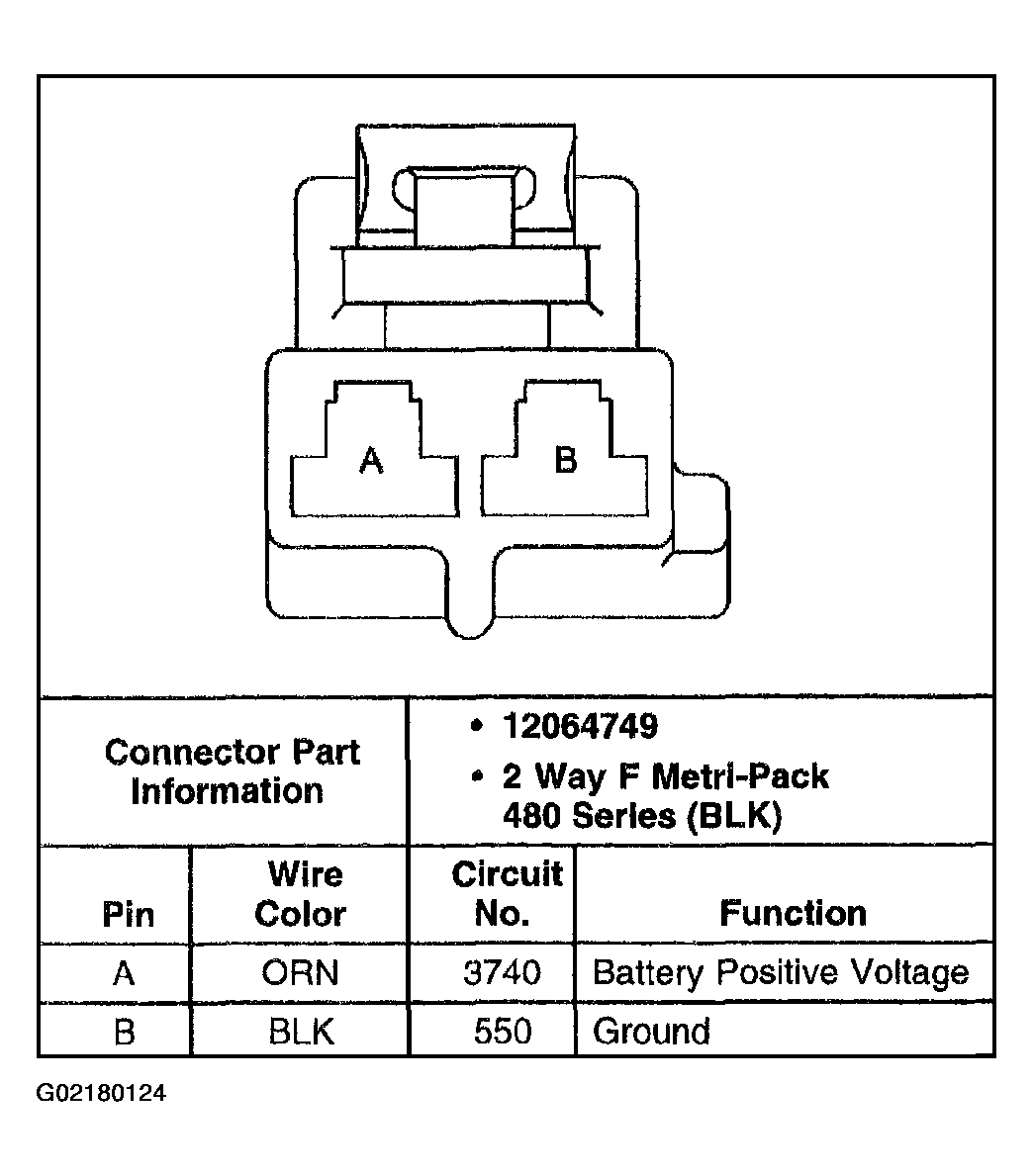

Fig 1: Memory Seat Module (MSM) C1
Courtesy of GENERAL MOTORS CORP.
