Automatic Level Control (ALC) System Sub-System

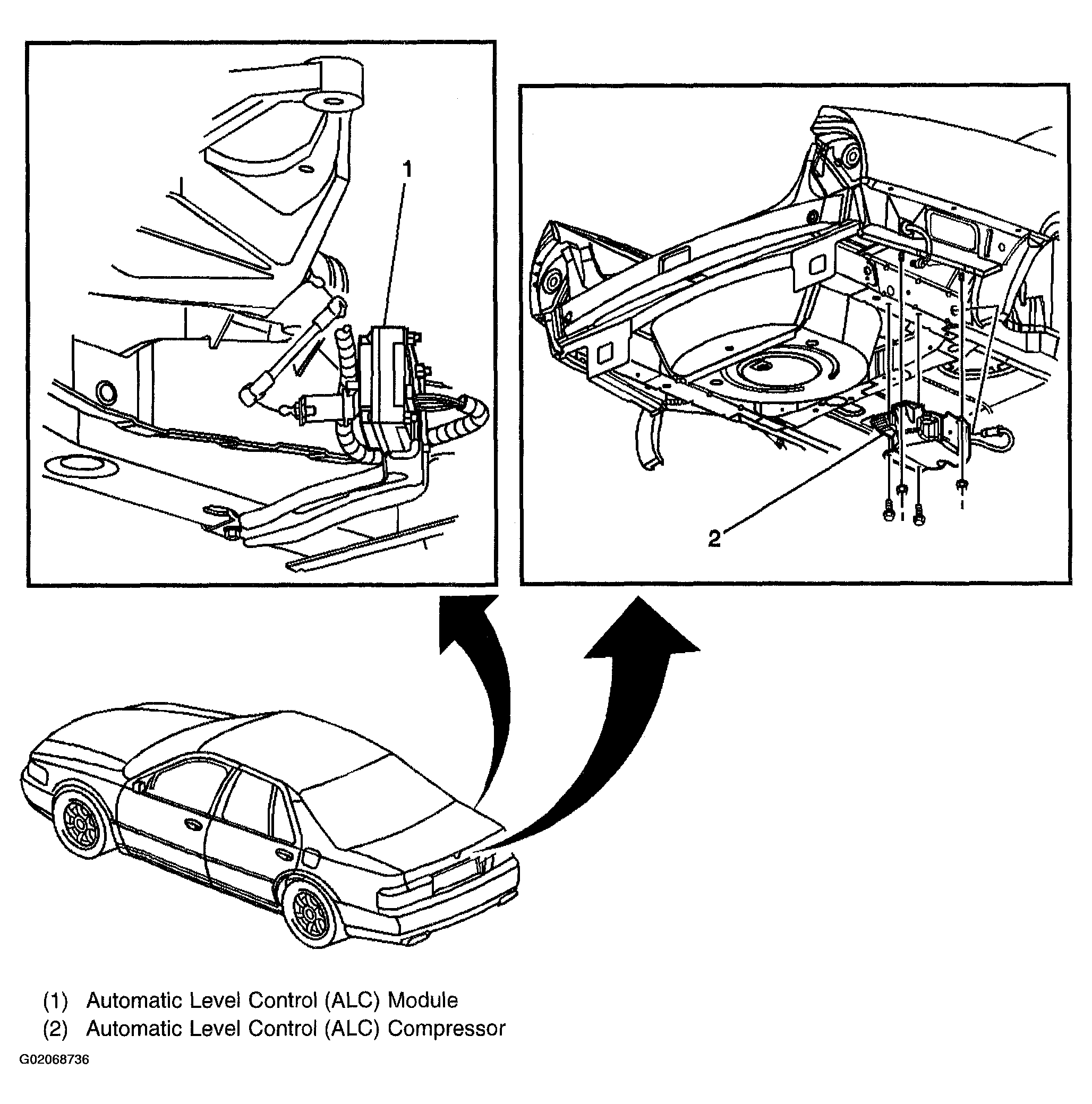

Fig 1: Automatic Level Control (ALC) System Sub-System Component View
G02068736Courtesy of GENERAL MOTORS CORP.
