Installation Procedure

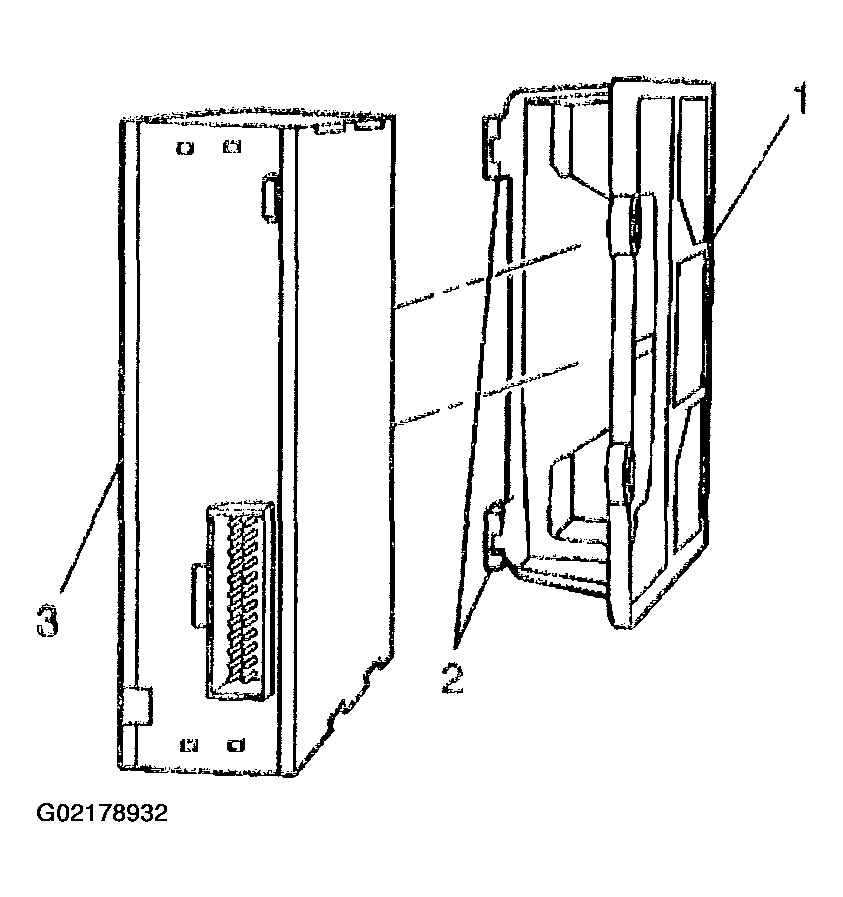

Slide the cellular telephone module (3) into the mounting bracket (1), until an audible click is heard, indicating the cellular telephone module (3) is secured in the mounting bracket (2).

Fig 1: Installing Cellular Telephone Module Into Mounting Bracket
Courtesy of GENERAL MOTORS CORP.

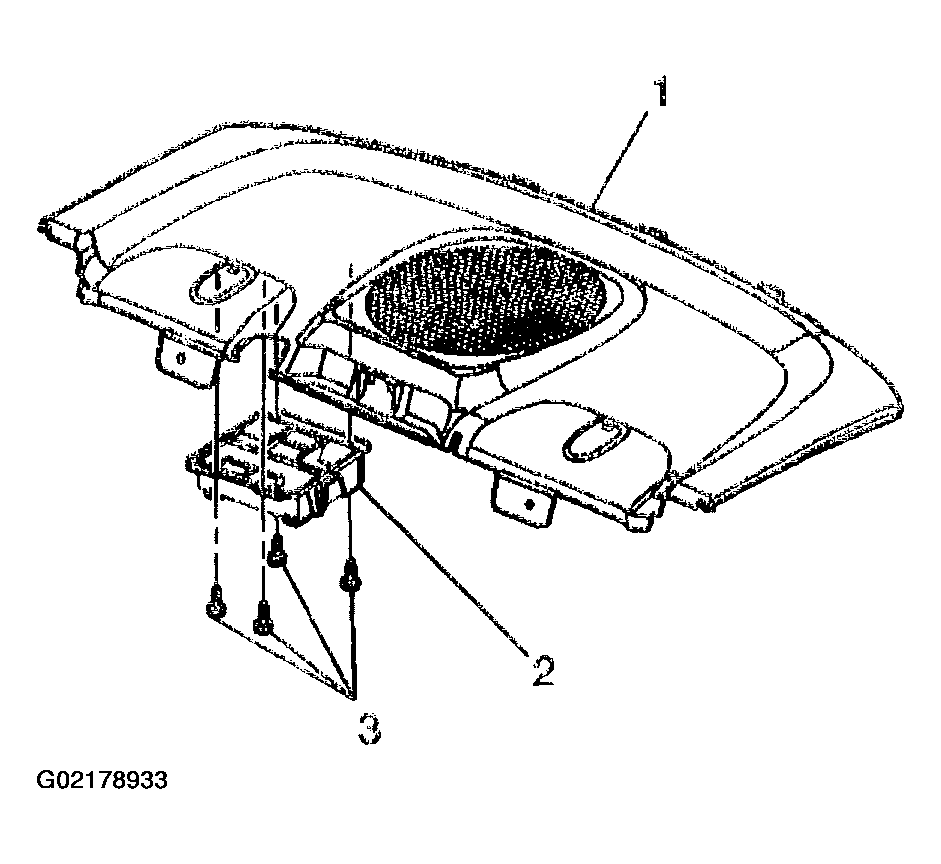

Install the cellular telephone module and mounting bracket assembly (2) to the rear shelf trim panel (1).
Install the cellular telephone module mounting bracket fasteners (3).

Fig 2: Installing Cellular Telephone Module & Mounting Bracket Assembly Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector.
Install the rear compartment trim. Refer to BODY REAR END in Body Rear End.
