Traction Control Switch

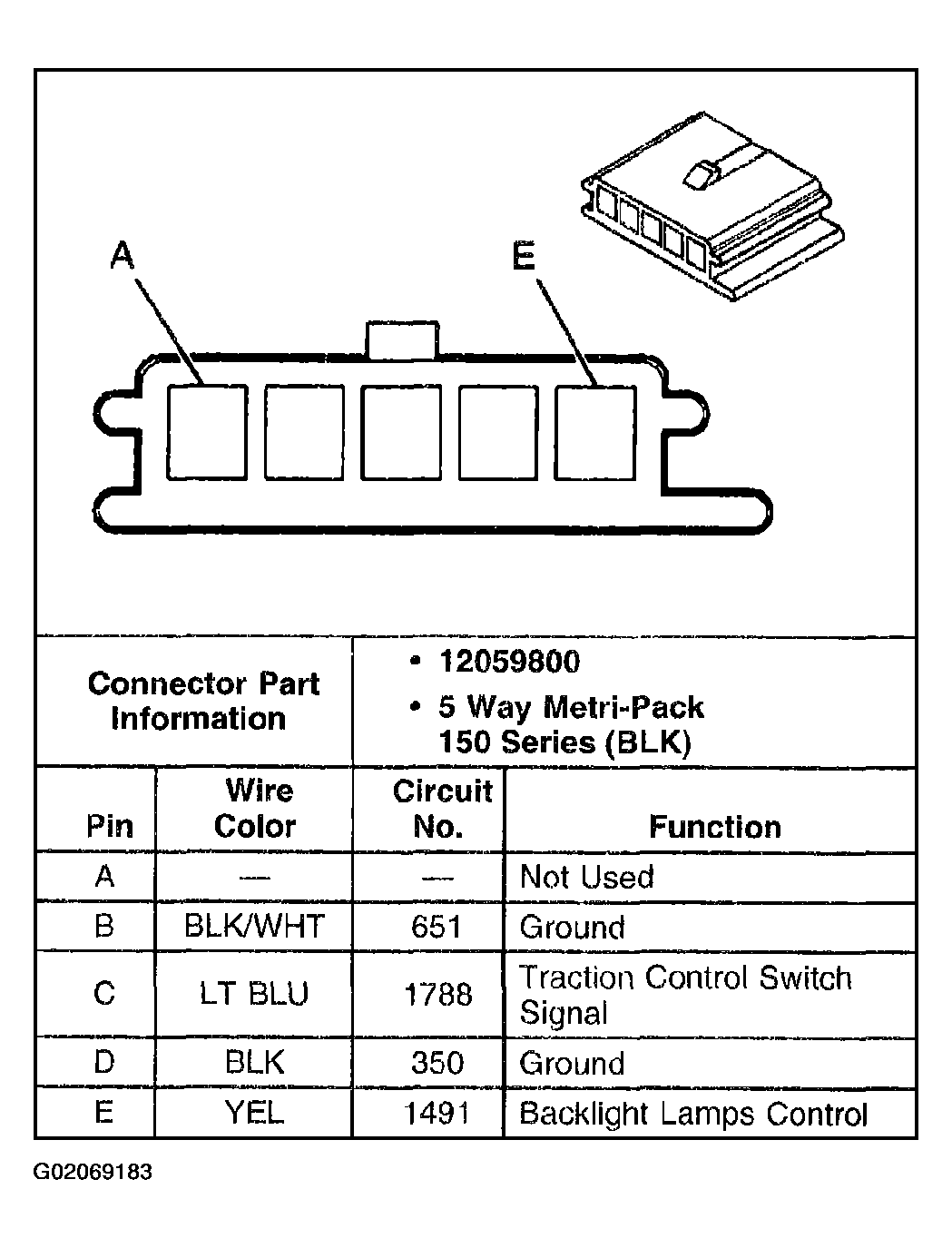

Fig 1: Identifying Traction Control Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
