Data Link Communications Connector End Views
WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

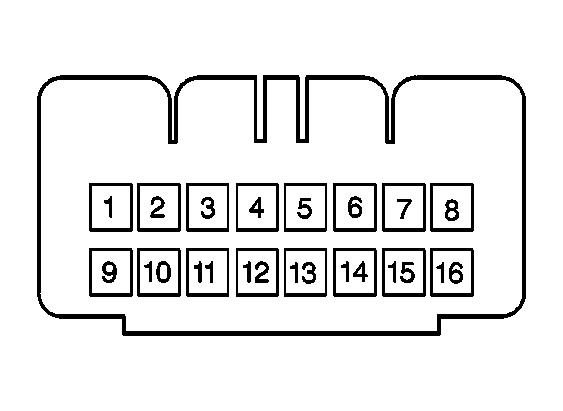

Data Link Connector (DLC) Connector End View
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used |
| 2 | PPL | 1807 | Class 2 Serial Data (Primary) |
| 3 | - | - | Not Used |
| 4 | BLK | 450 | Ground |
| 5 | BLK/WHT | 351 | Ground |
| 6-15 | - | - | Not Used |
| 16 | ORN | 3640 | Battery Positive Voltage |
