Body Control System Schematics

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

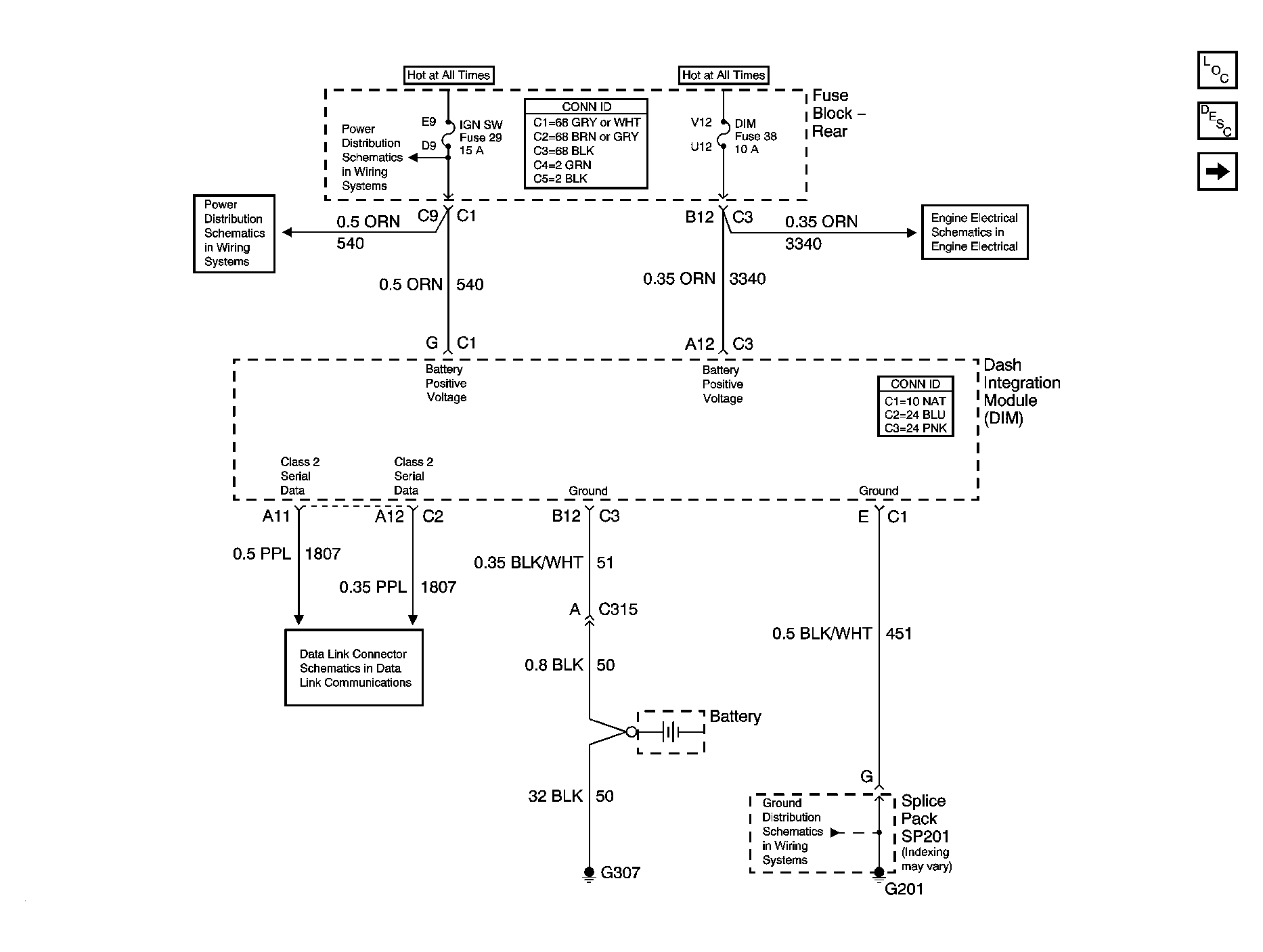

Fig 1: DIM Power And Ground Schematic

Courtesy of GENERAL MOTORS CORP.

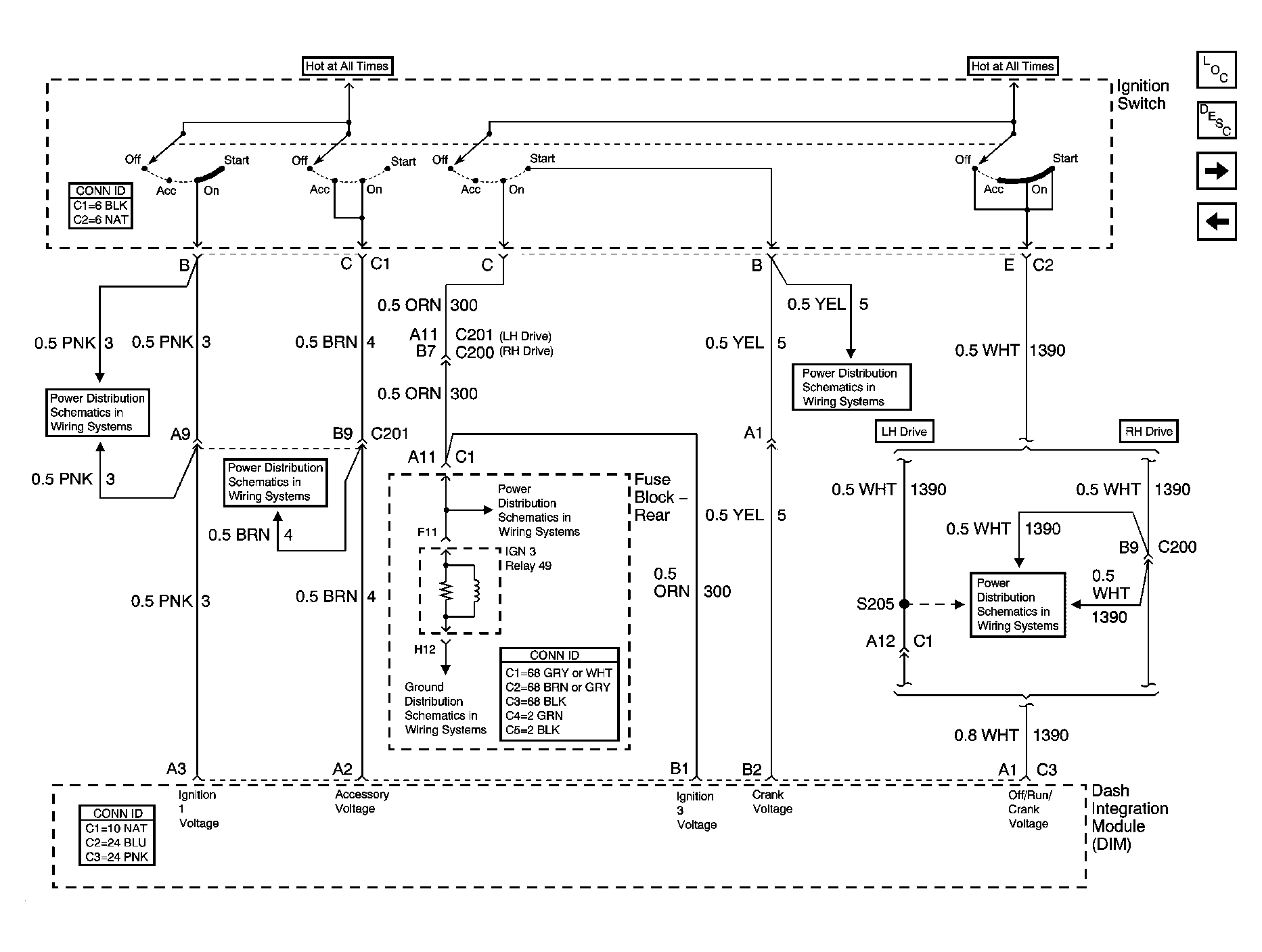

Fig 2: DIM Ignition Inputs Schematic

Courtesy of GENERAL MOTORS CORP.

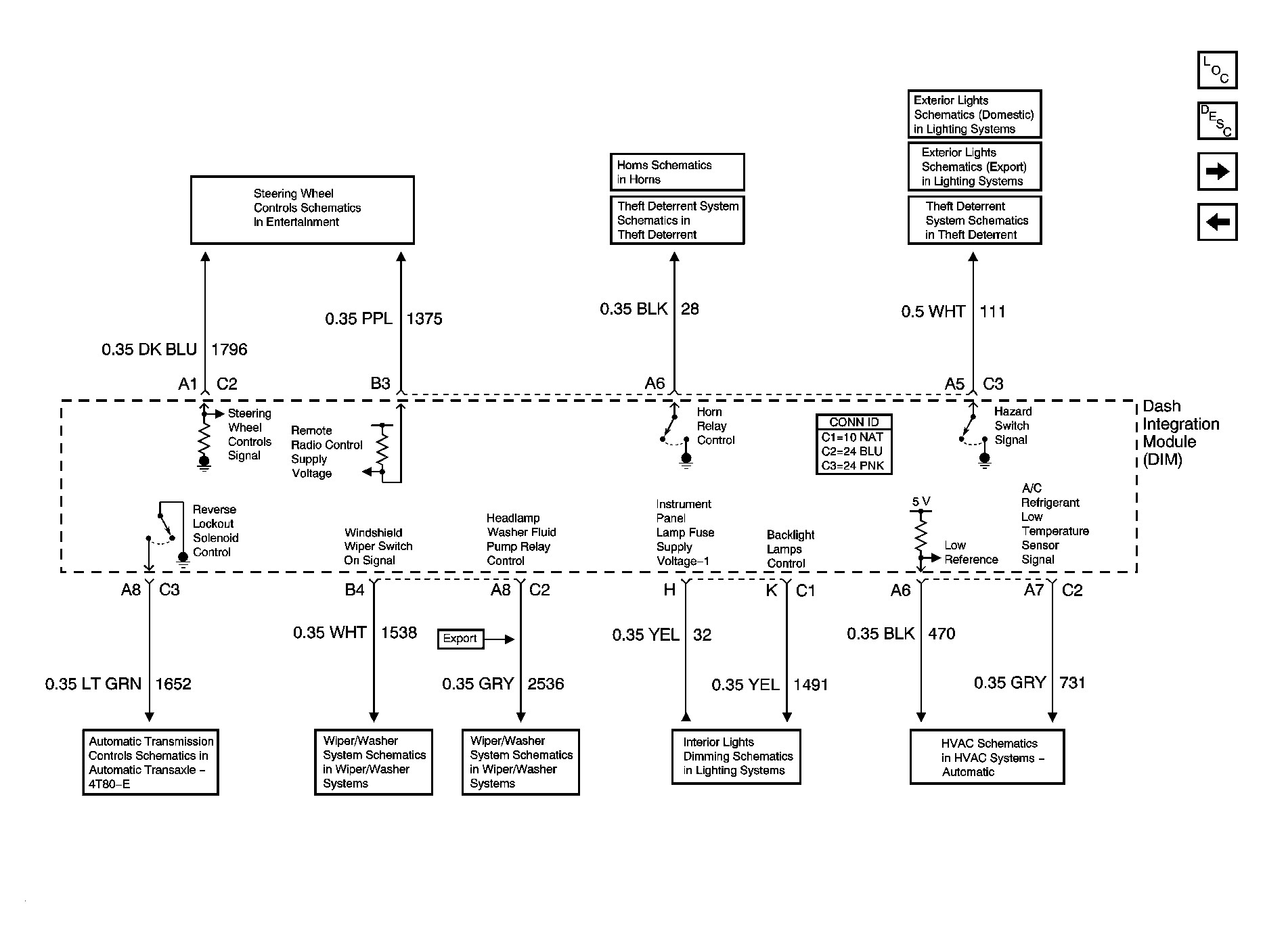

Fig 3: DIM Inputs/Outputs (1 Of 2) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: DIM Inputs/Outputs (2 Of 2) Schematic

Courtesy of GENERAL MOTORS CORP.

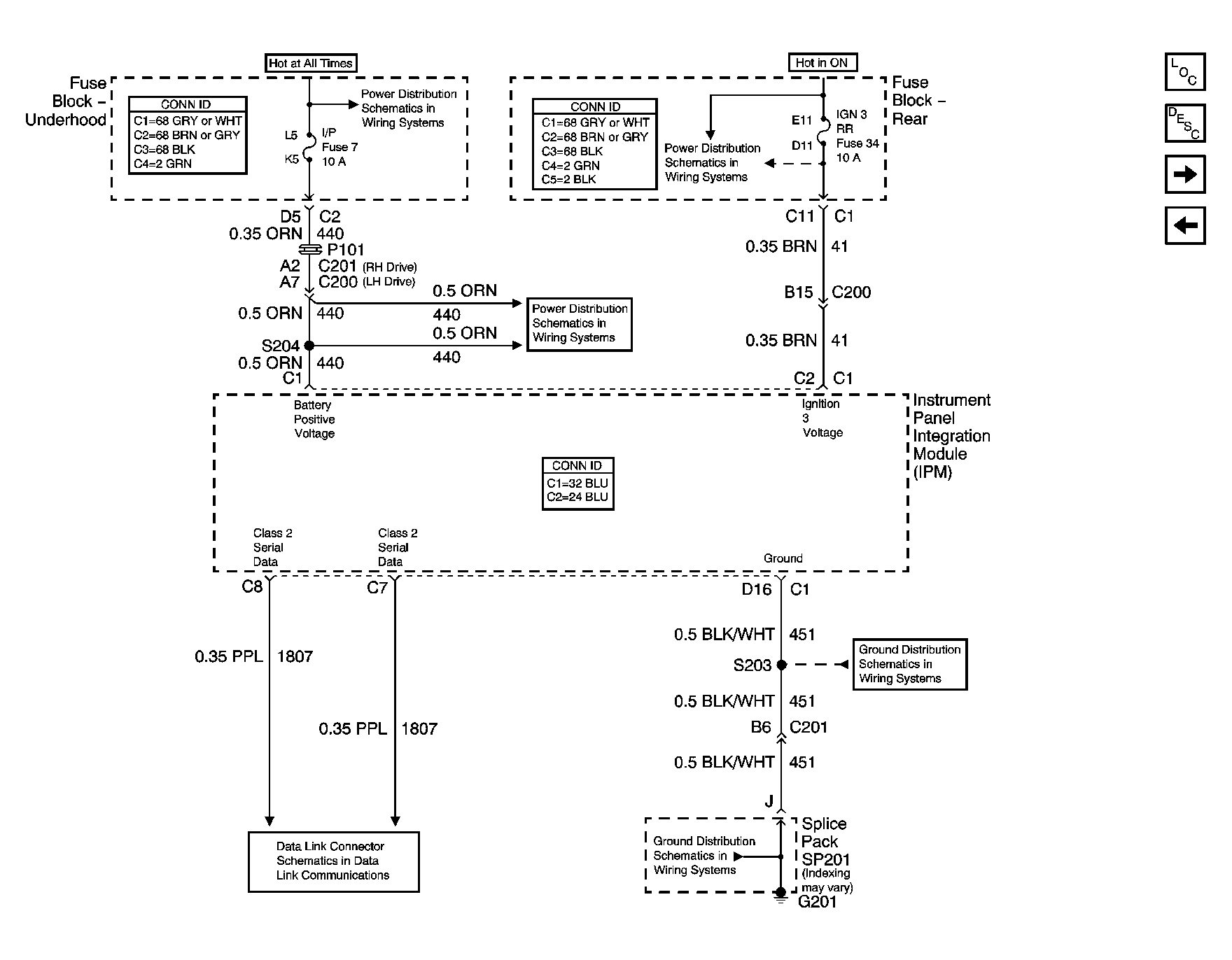

Fig 5: IPM Power And Ground Schematic

Courtesy of GENERAL MOTORS CORP.

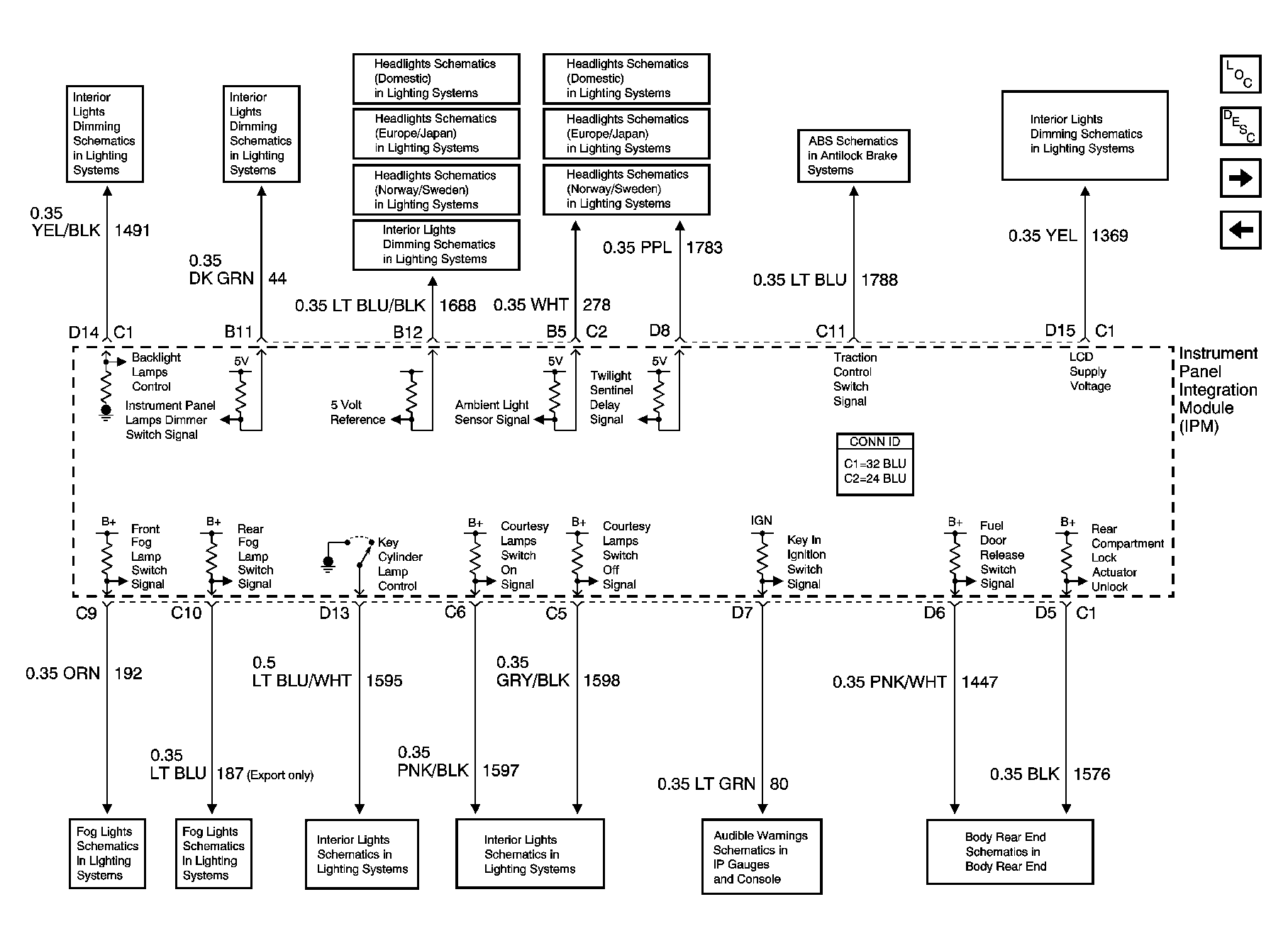

Fig 6: IPM Inputs/Outputs (1 Of 2) Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: IPM Inputs/Outputs (2 Of 2) Schematic

Courtesy of GENERAL MOTORS CORP.

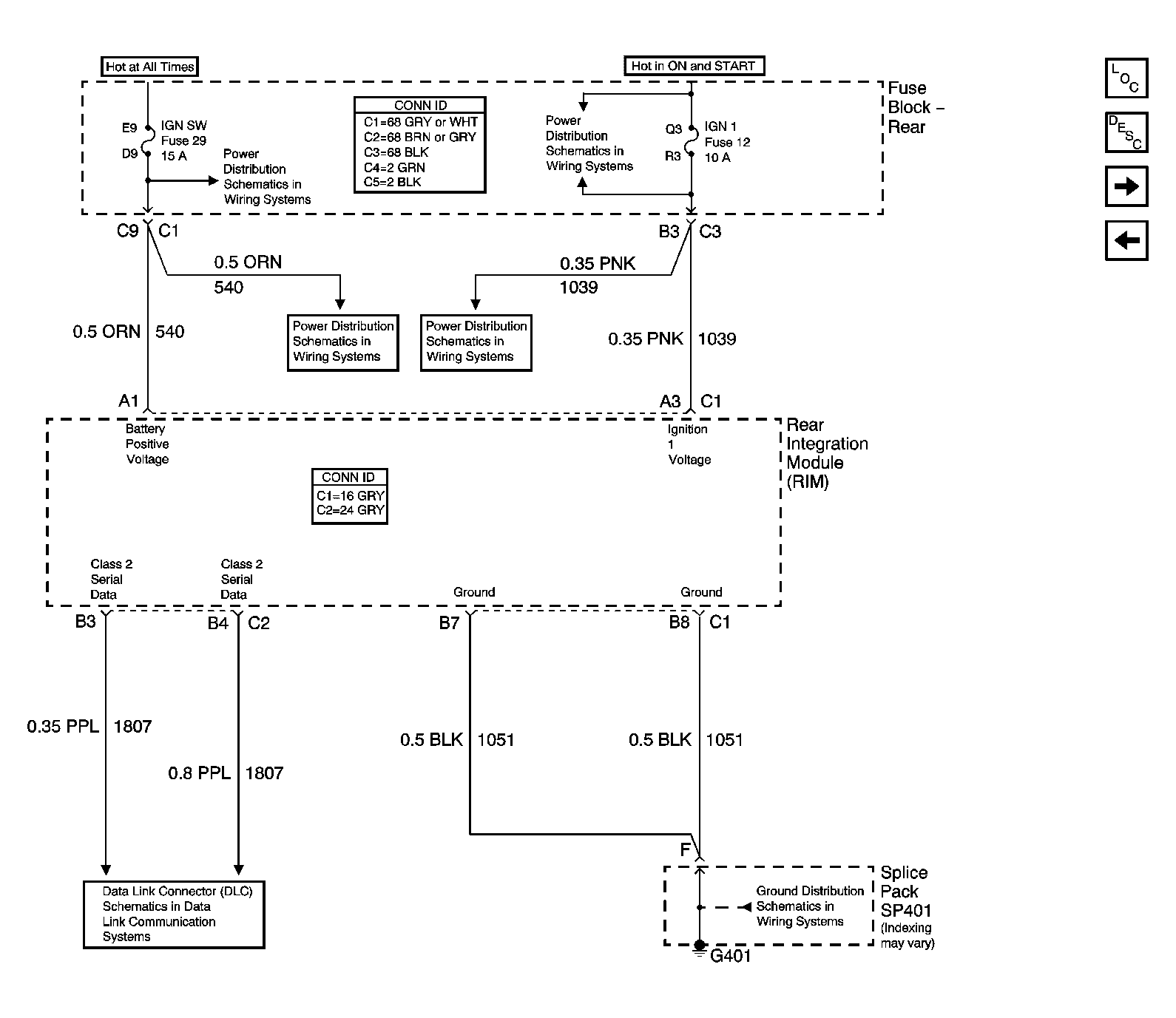

Fig 8: RIM Power And Ground Schematic

Courtesy of GENERAL MOTORS CORP.

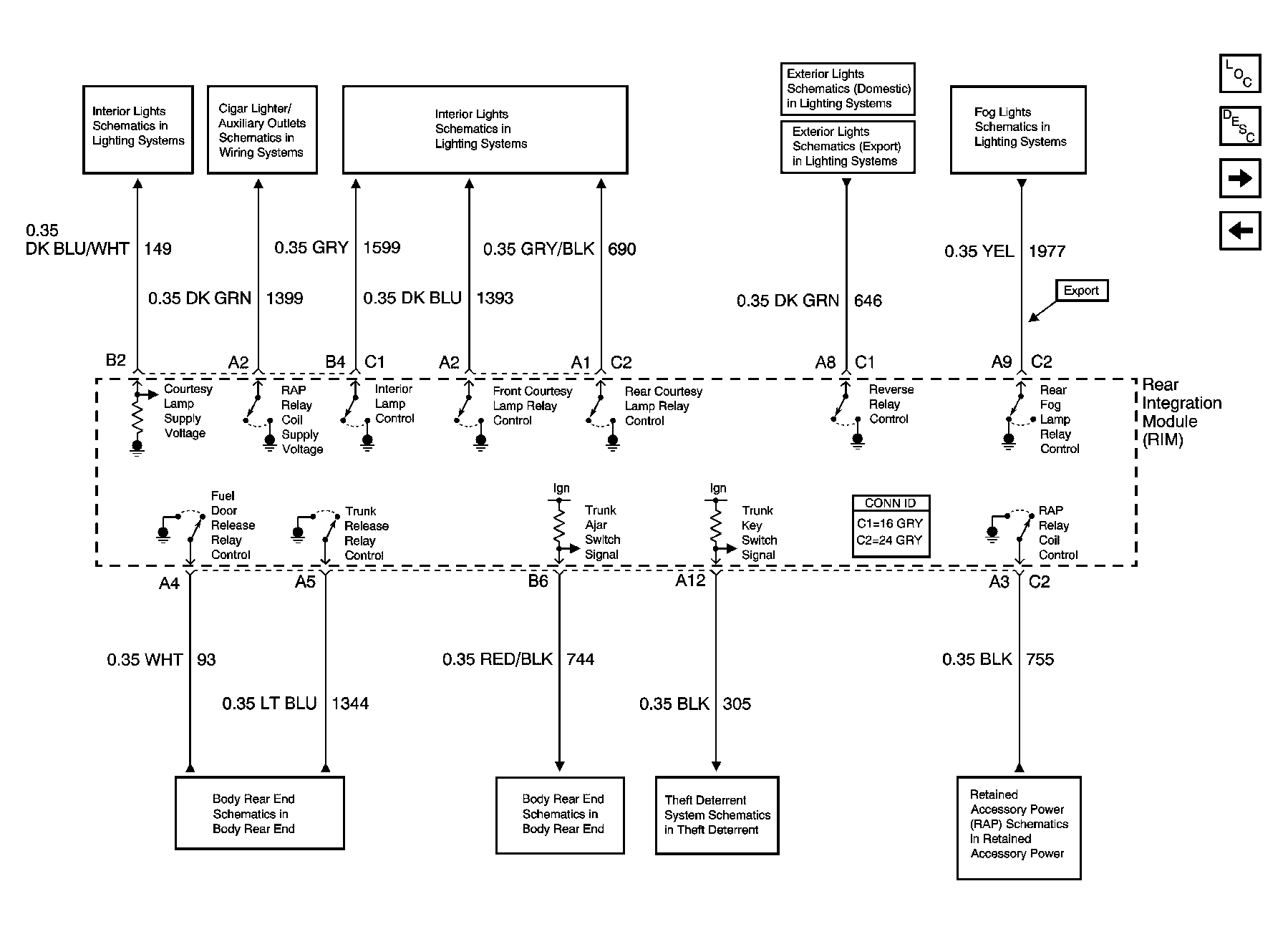

Fig 9: RIM Inputs/Outputs (1 Of 2) Schematic

Courtesy of GENERAL MOTORS CORP.

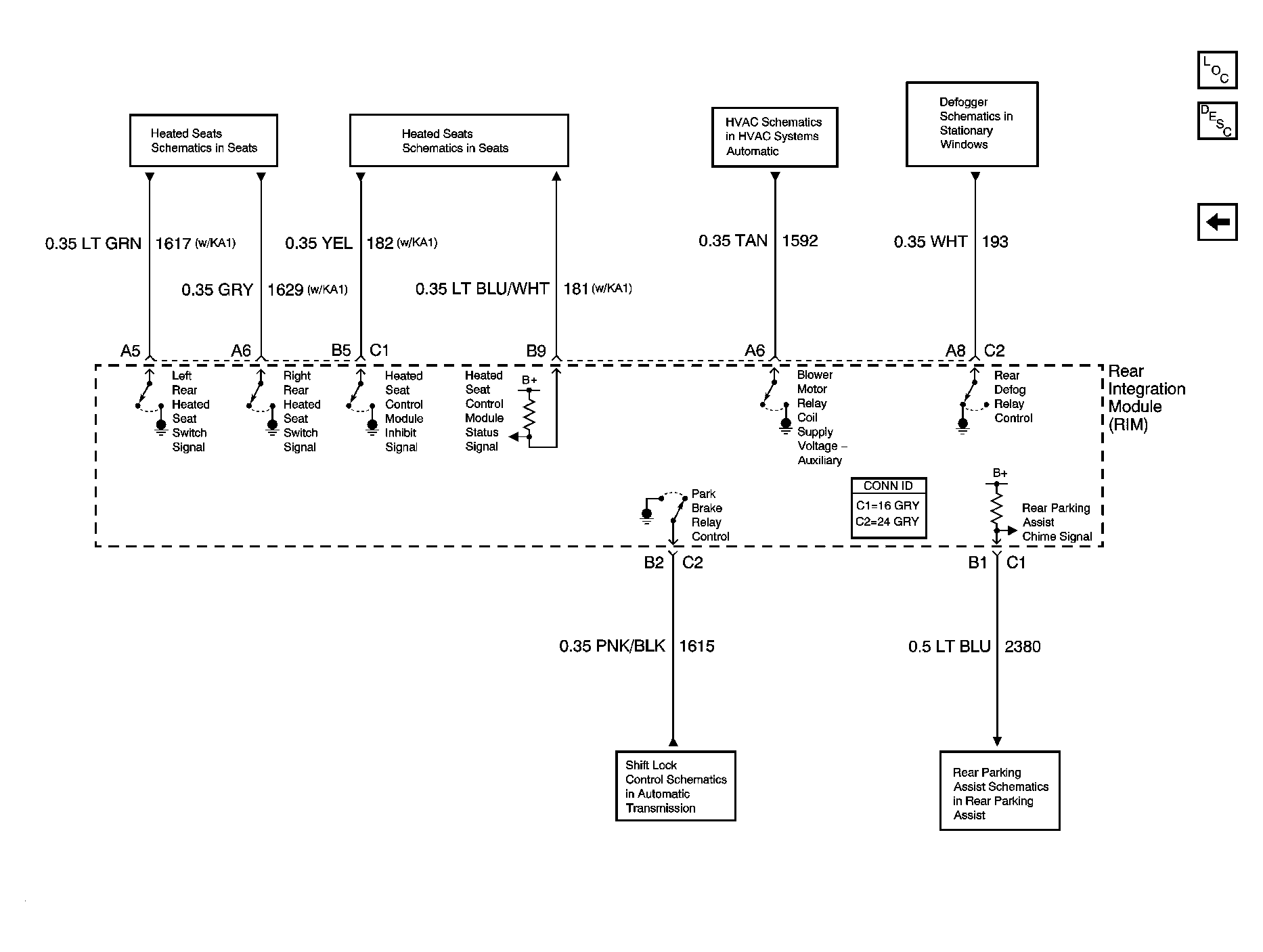

Fig 10: RIM Inputs/Outputs (2 Of 2) Schematic

Courtesy of GENERAL MOTORS CORP.
