Power Steering Pump Components

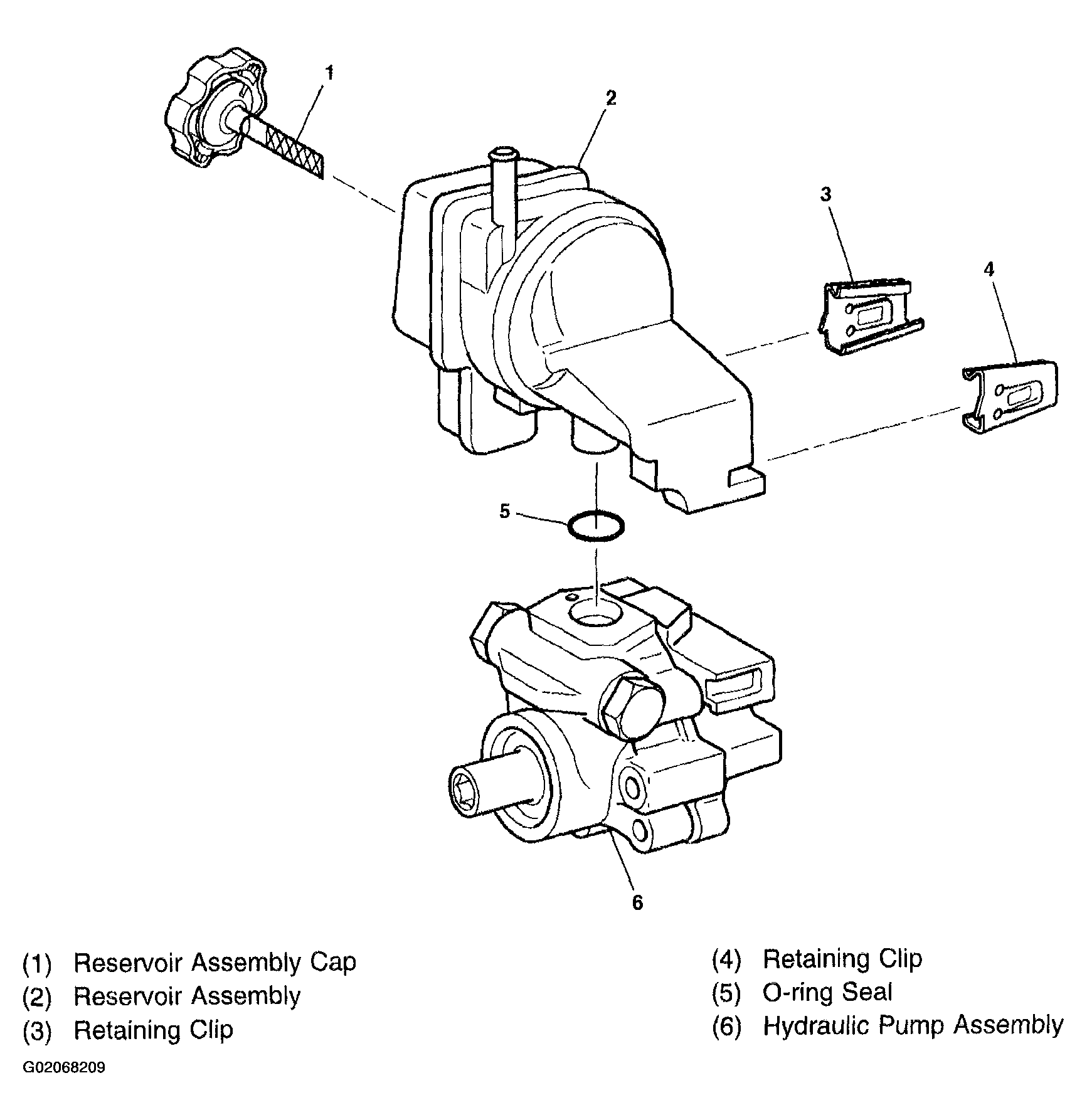

Fig 1: Power Steering Pump Components Disassembled View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
