Control Module References

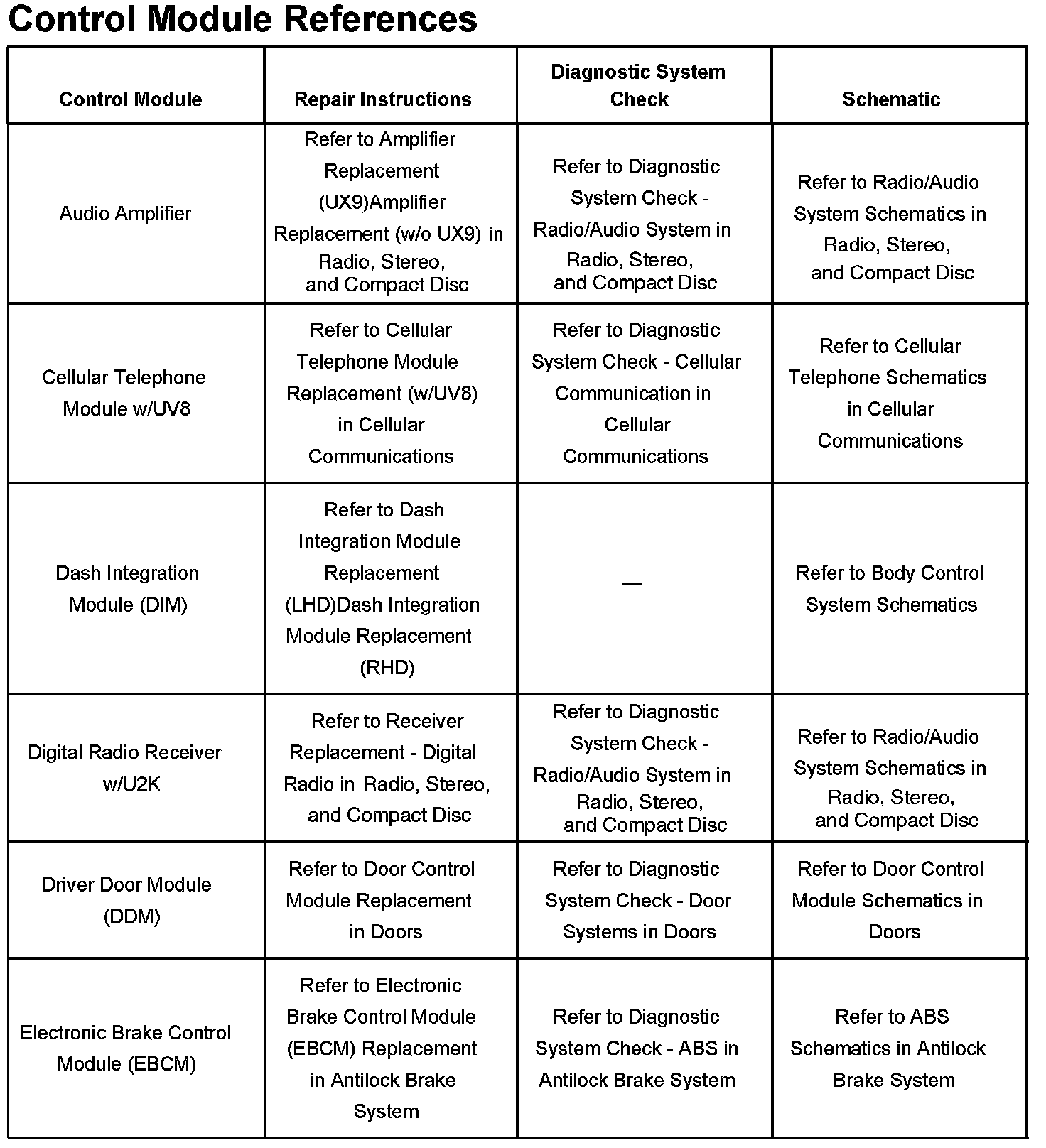

Control Module References Part 1:

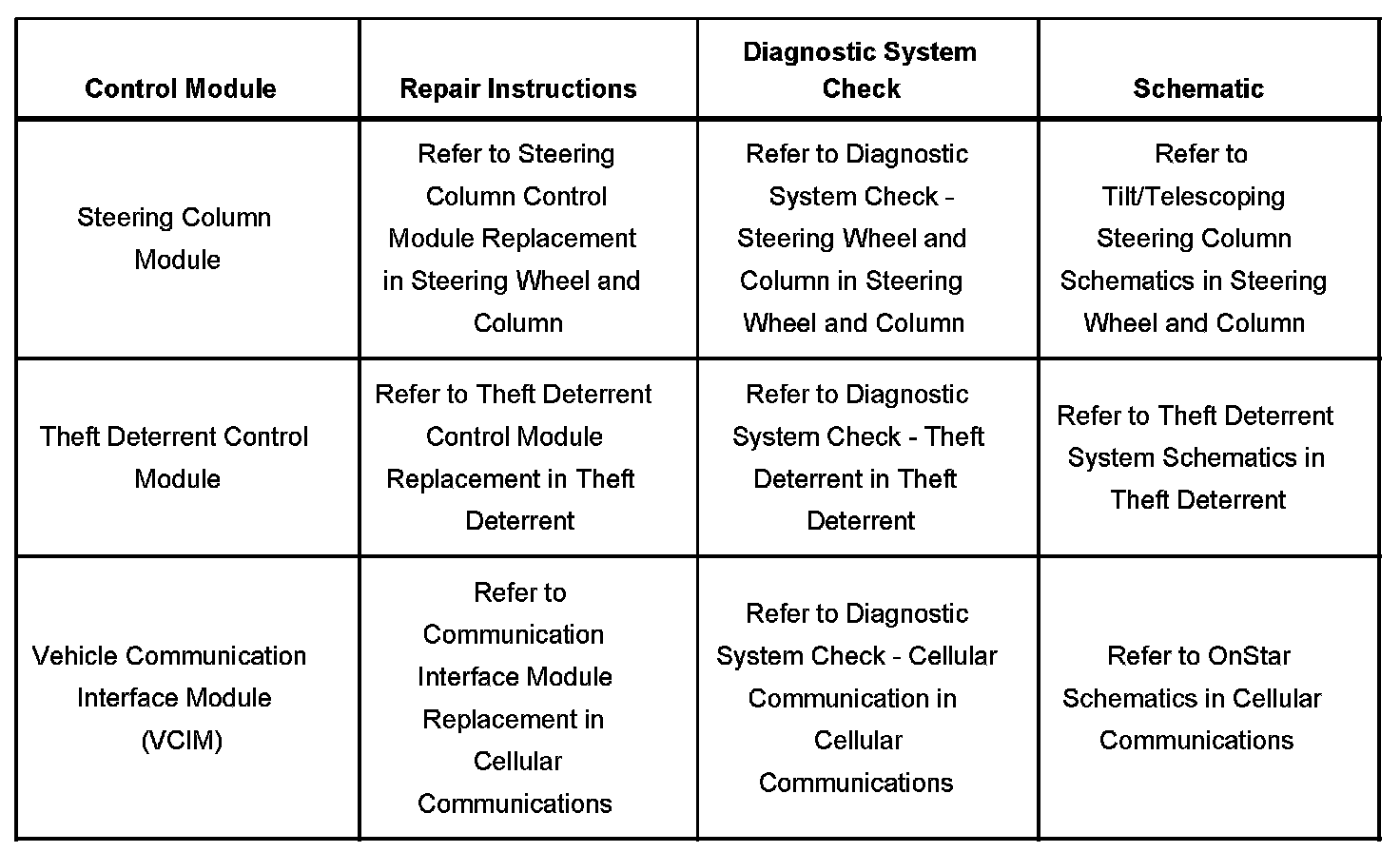

Control Module References Part 2:

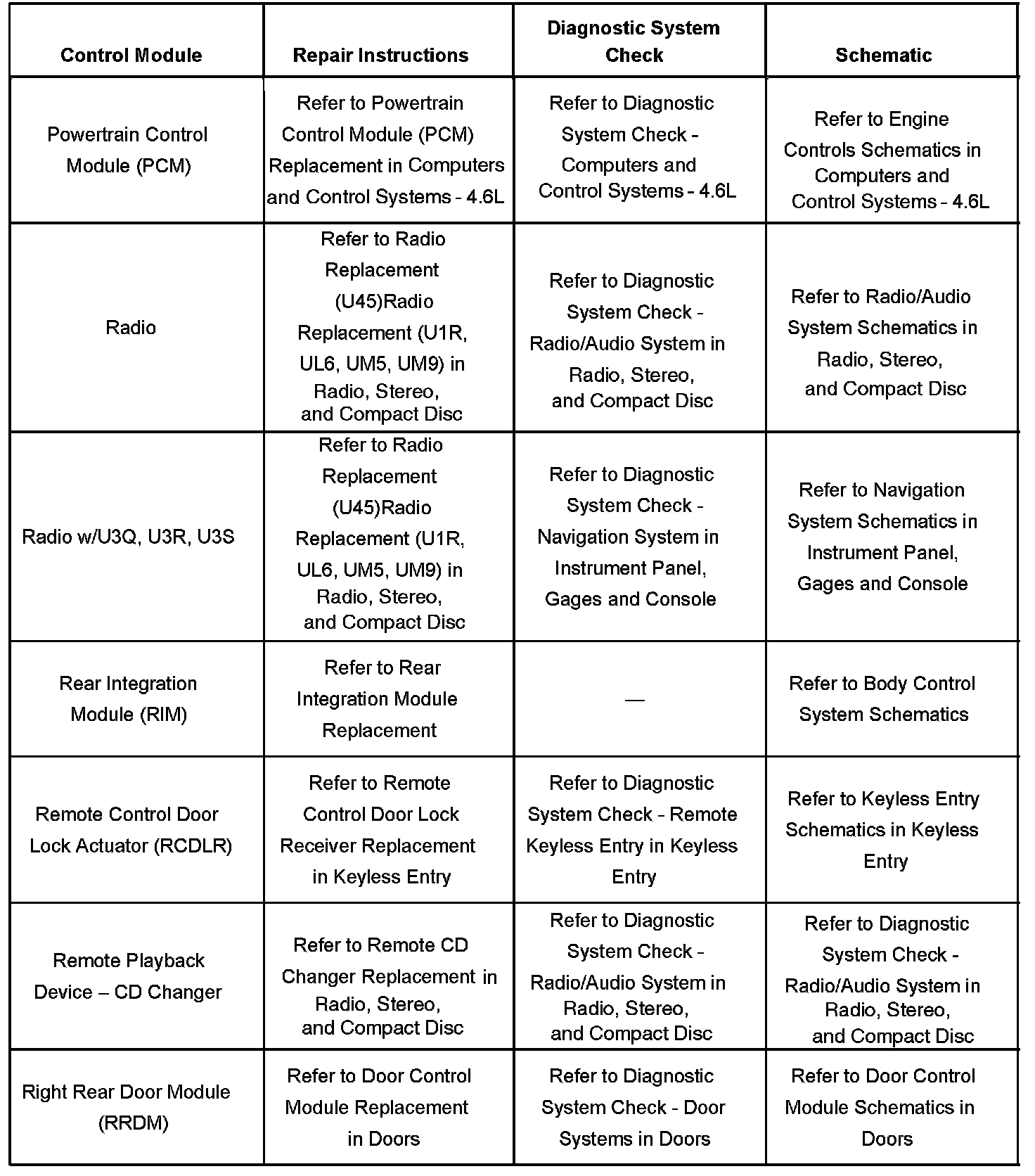

Control Module References Part 3:

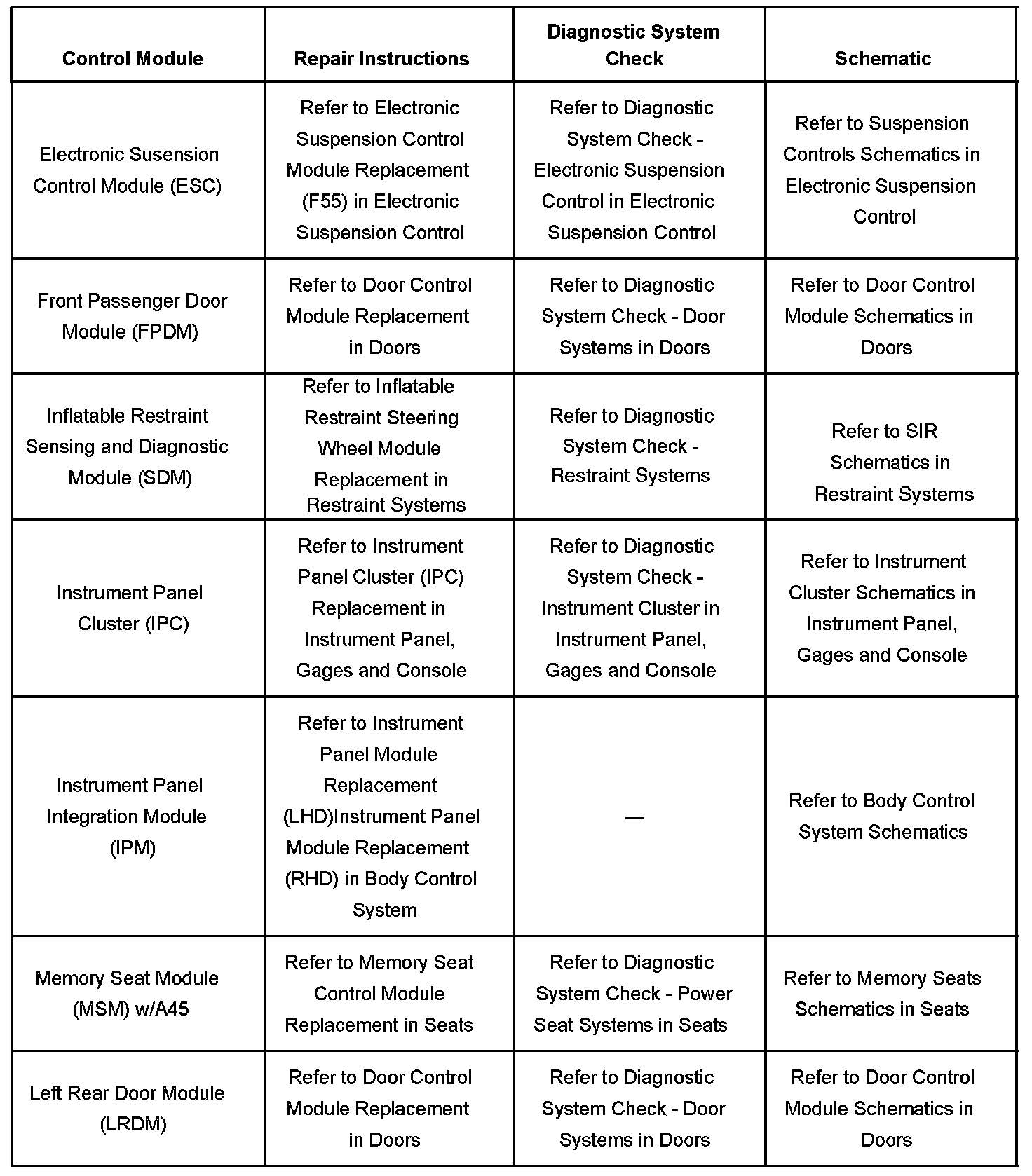

Control Module References Part 4:
