Door Control Module Replacement

DOOR CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE




1. Remove the door trim panel.

IMPORTANT: This vehicle is equipped with express up, torque sensitive window on the front door windows.
When the battery or the power has been removed from the front door module, the front door module will need to be reprogrammed after power is restored and all repairs are completed.

2. Disconnect the electrical connectors.

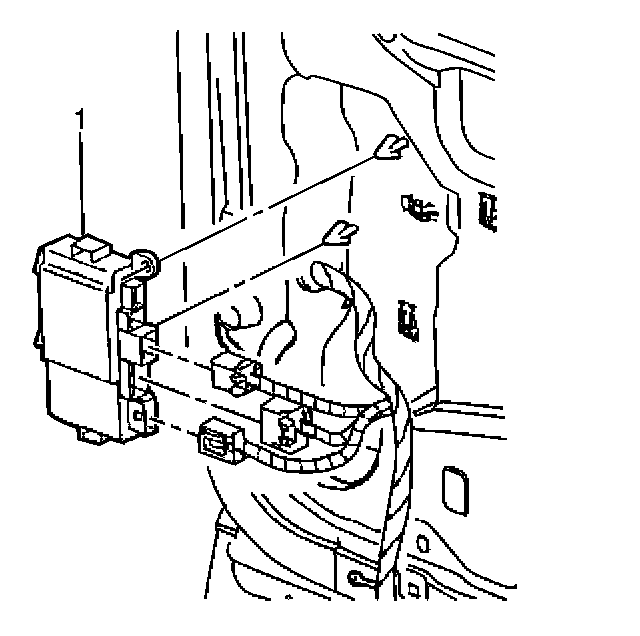

3. Remove the door module (1) by releasing the tabs on the top and the bottom.

INSTALLATION PROCEDURE




1. Snap the door module (1) to the tabs on the water deflector.
2. Connect the electrical connectors.
3. Install the door trim panel.
4. Reprogram the front door module. Programming and Relearning
