Dash Integration Module (DIM) C2

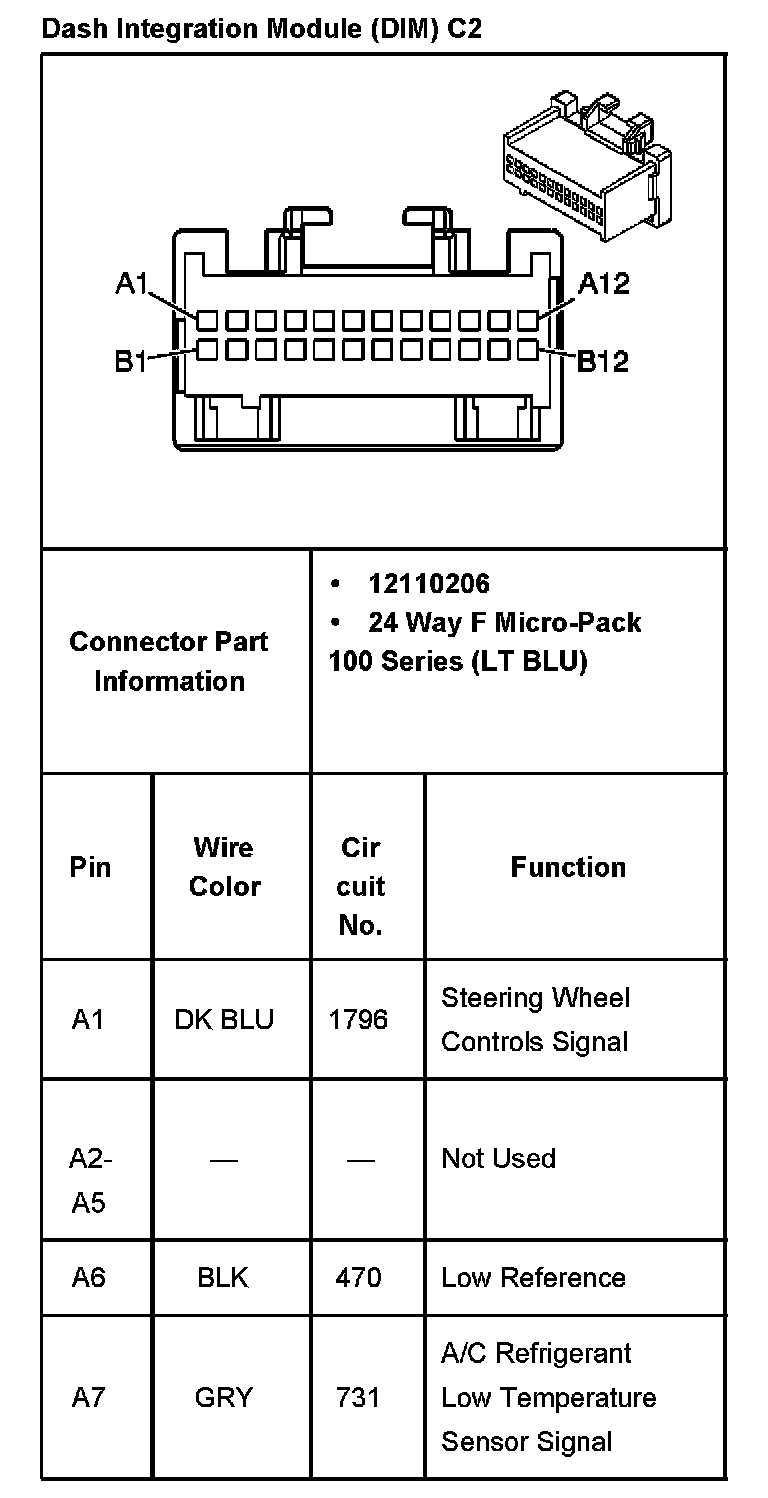

Dash Integration Module (DIM) C2 Part 1:

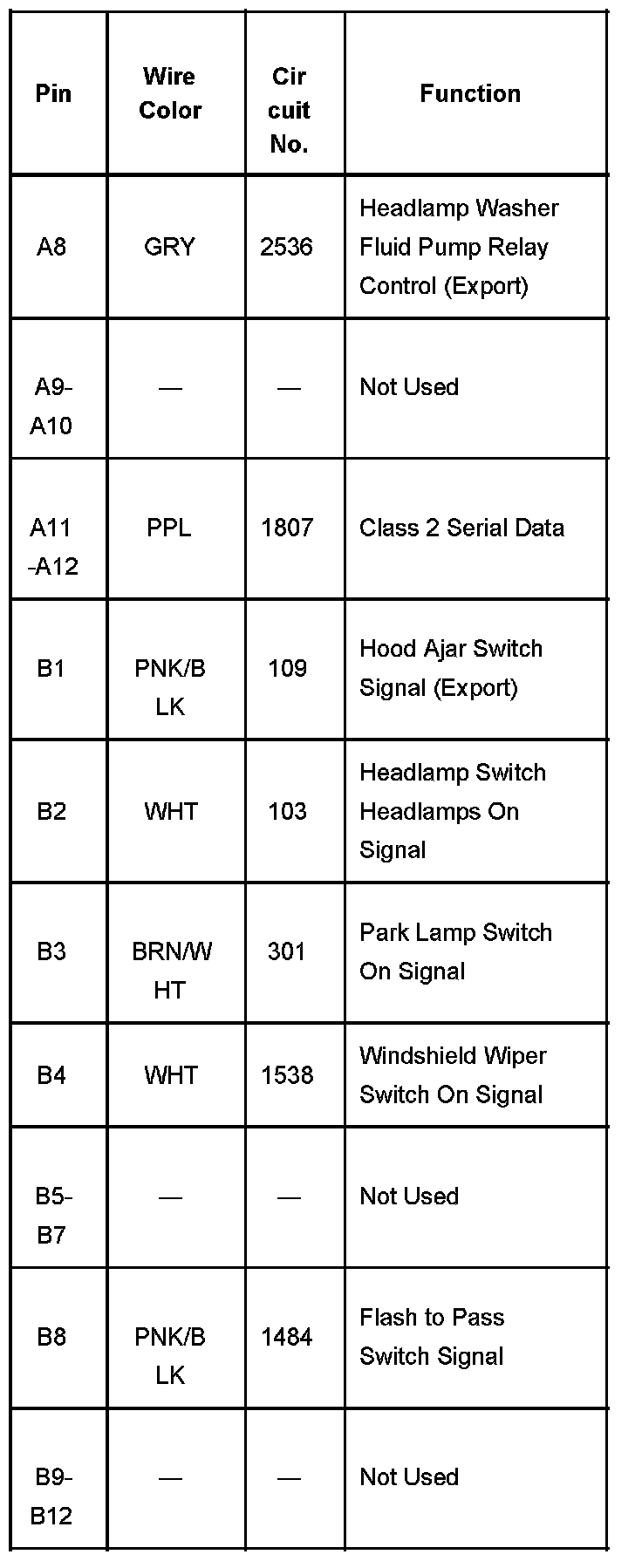

Dash Integration Module (DIM) C2 Part 2:
