Instrument Panel Integration Module (IPM)

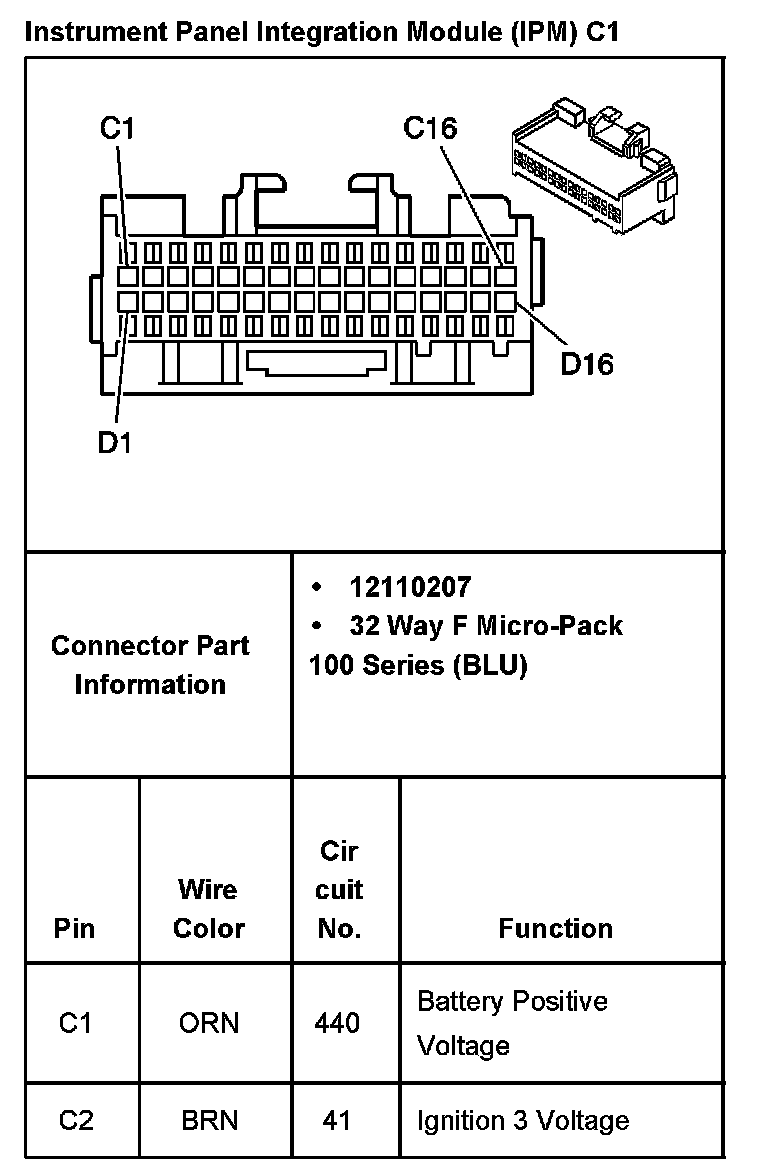

Instrument Panel Integration Module (IPM) C1 Part 1:

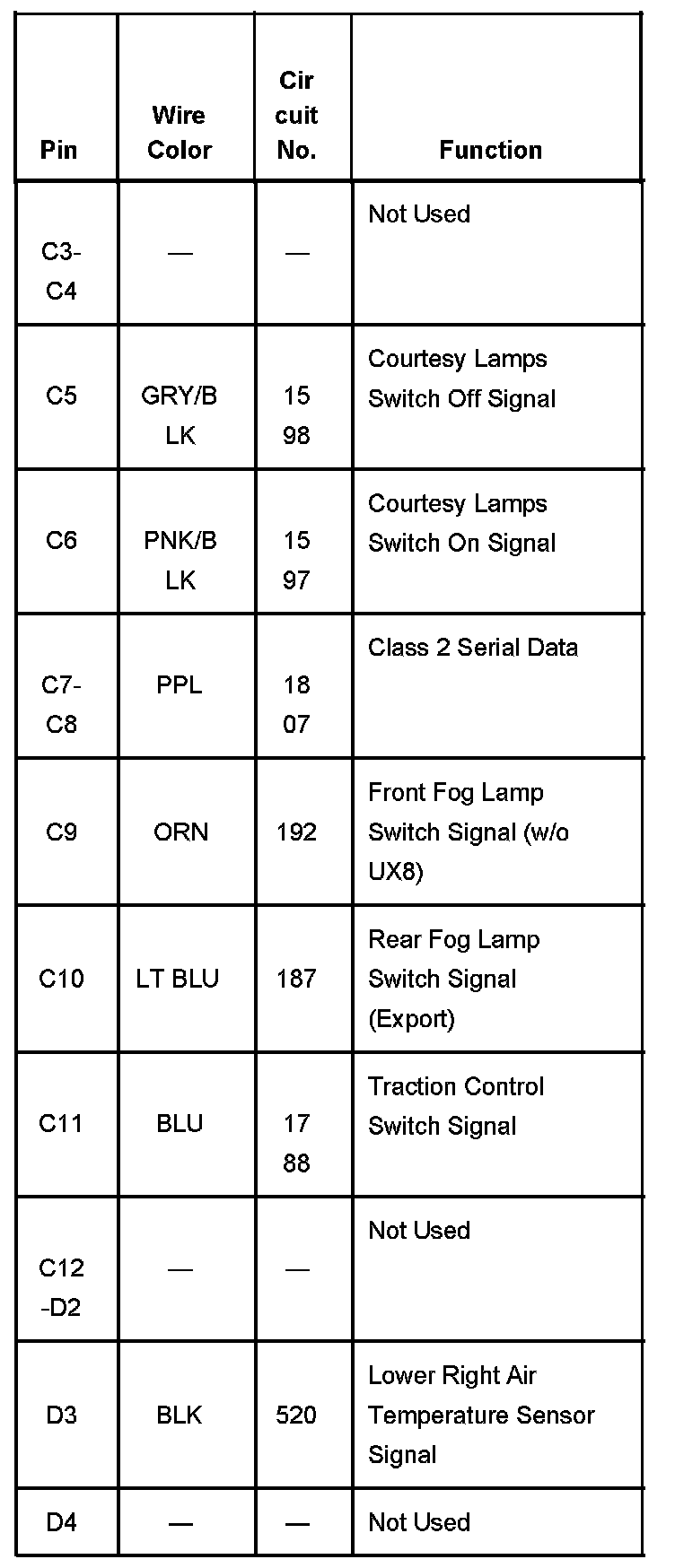

Instrument Panel Integration Module (IPM) C1 Part 2:

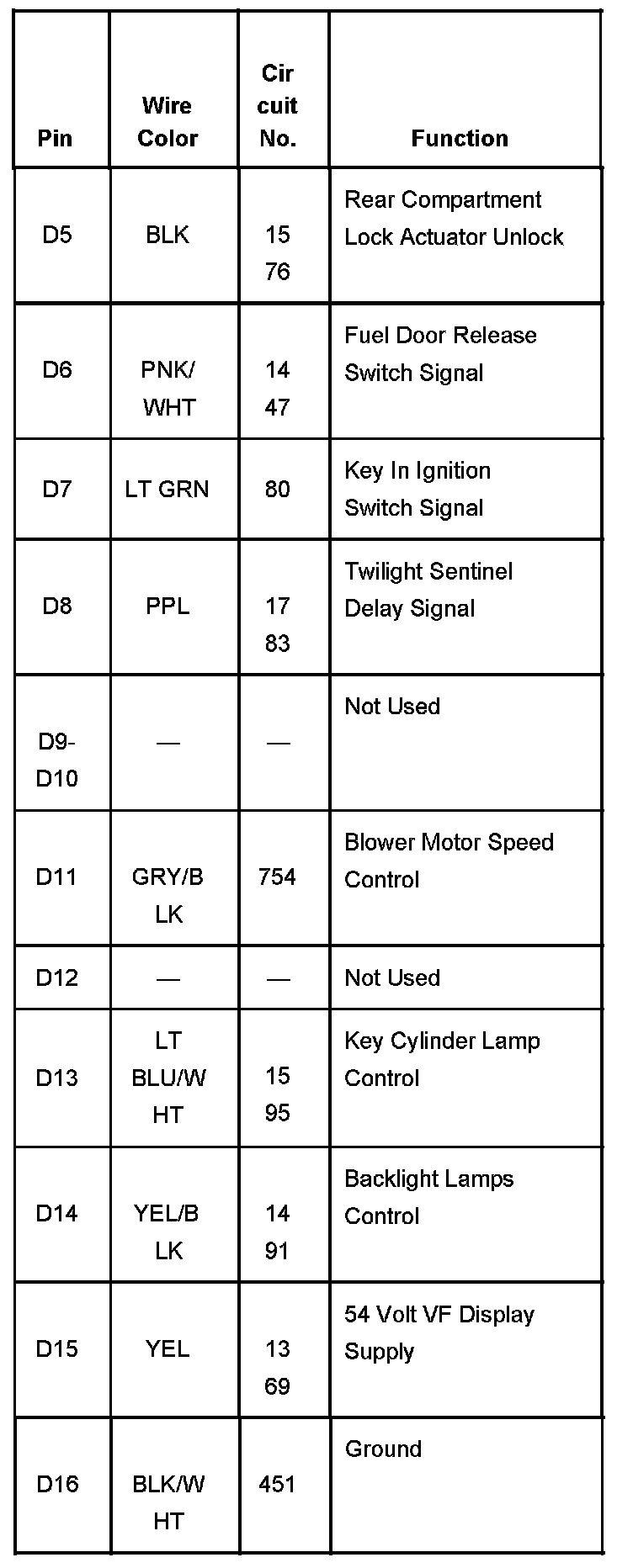

Instrument Panel Integration Module (IPM) C1 Part 3:

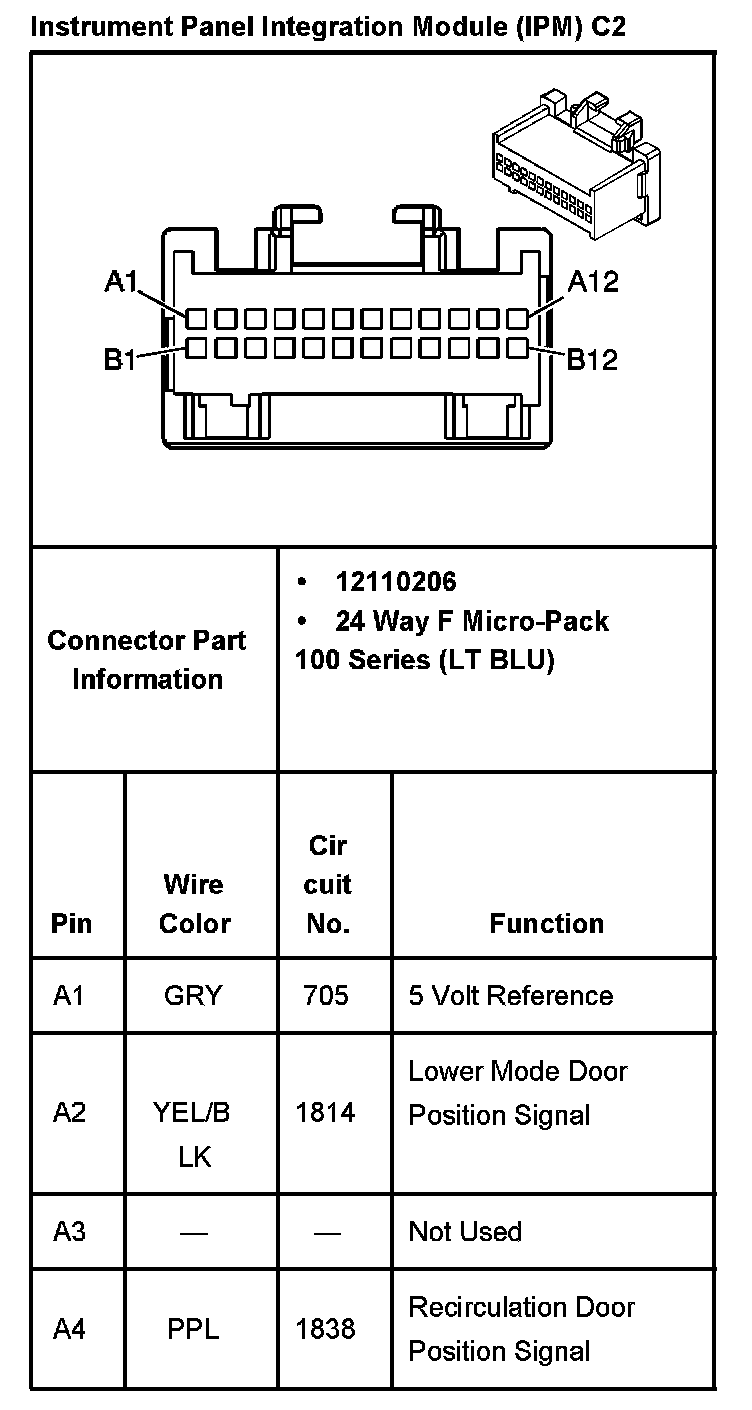

Instrument Panel Integration Module (IPM) C2 Part 1:

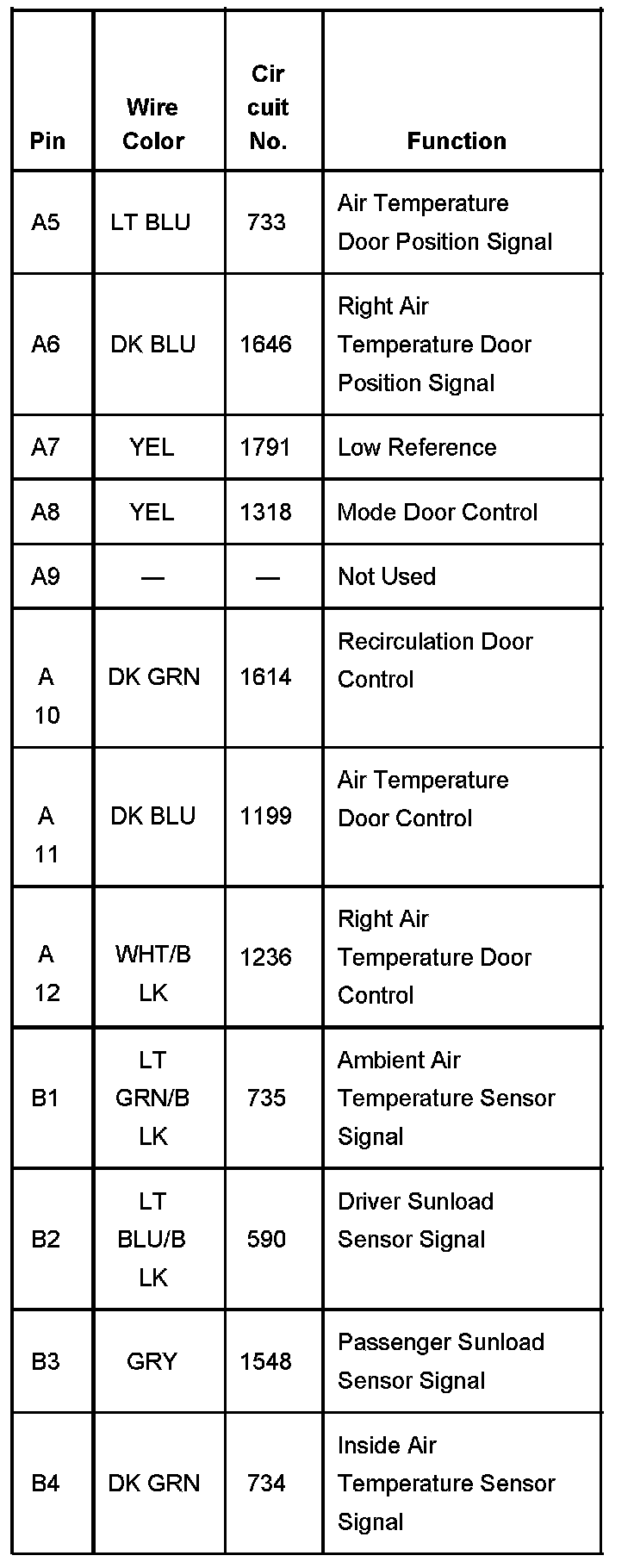

Instrument Panel Integration Module (IPM) C2 Part 2:

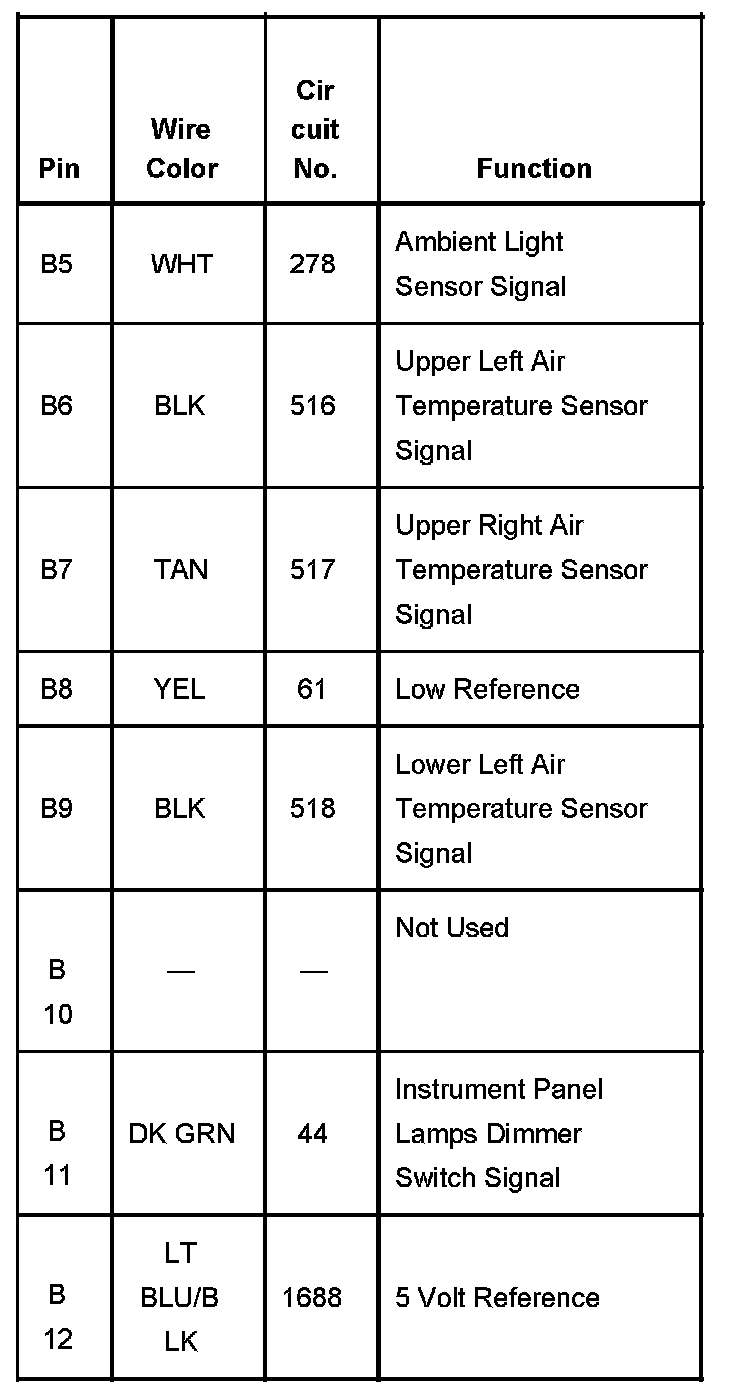

Instrument Panel Integration Module (IPM) C2 Part 3:
