Electronic Brake Control Module

ABS Connector End Views

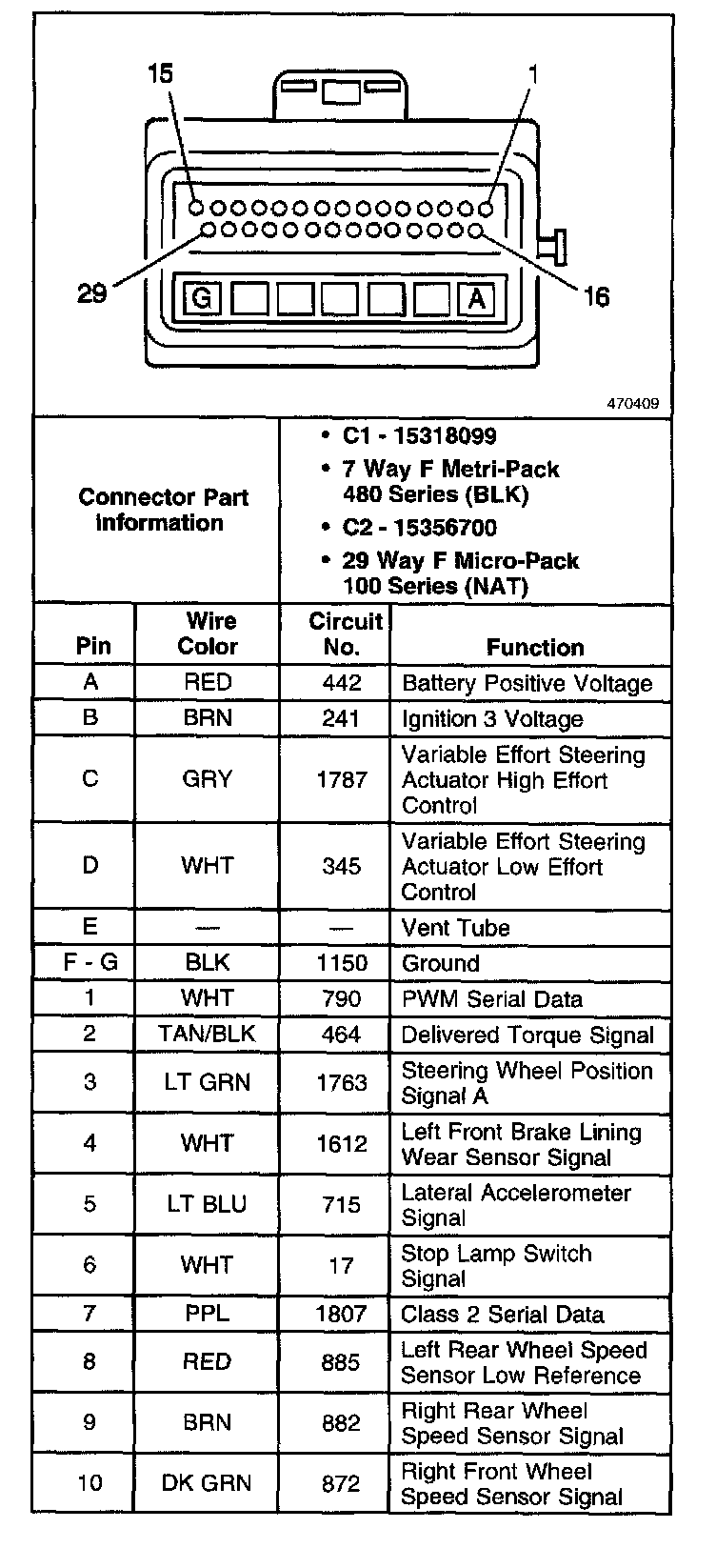

Part 1 of 2

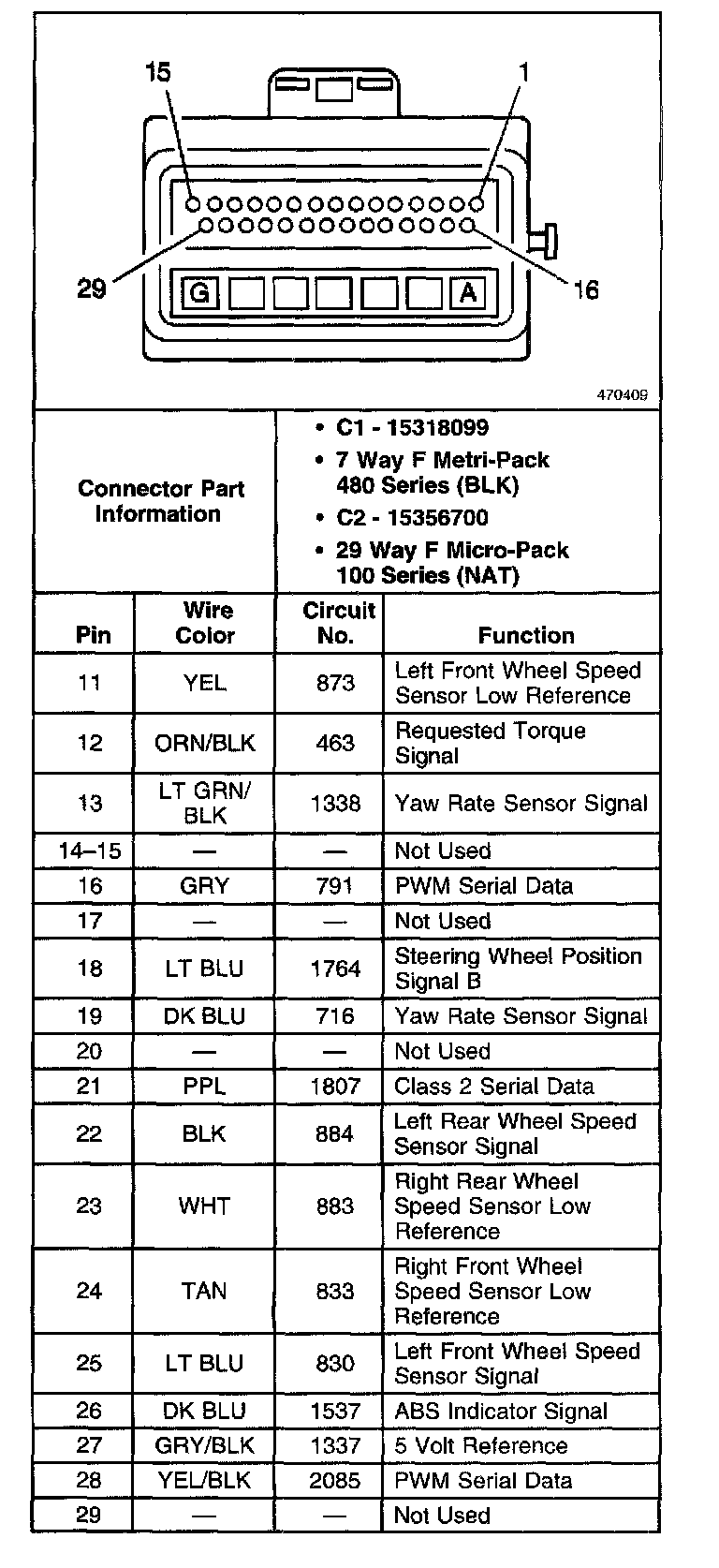

Part 2 of 2

Electronic Brake Control Module (EBCM)
