Ignition Control Module

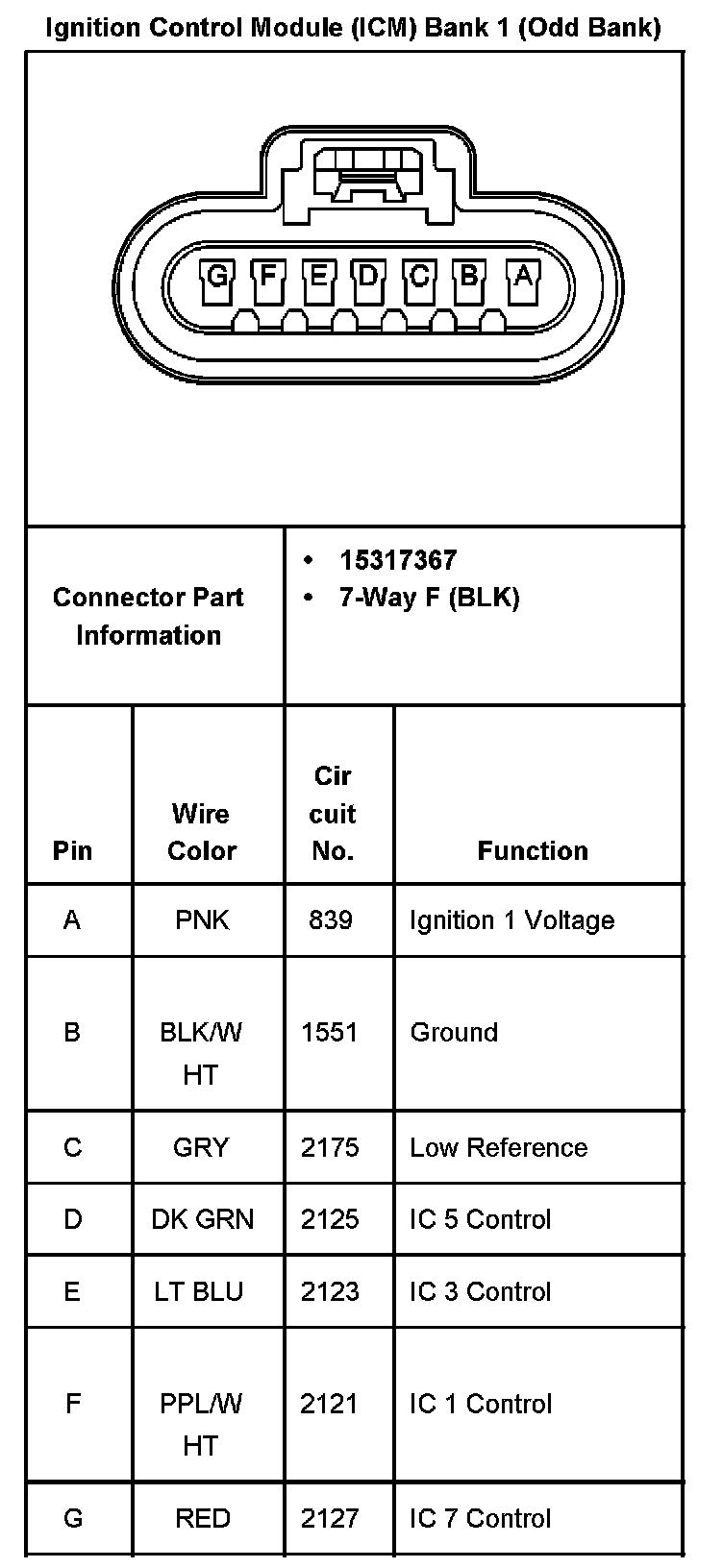

Ignition Control Module (ICM) Bank 1 (Odd Bank):

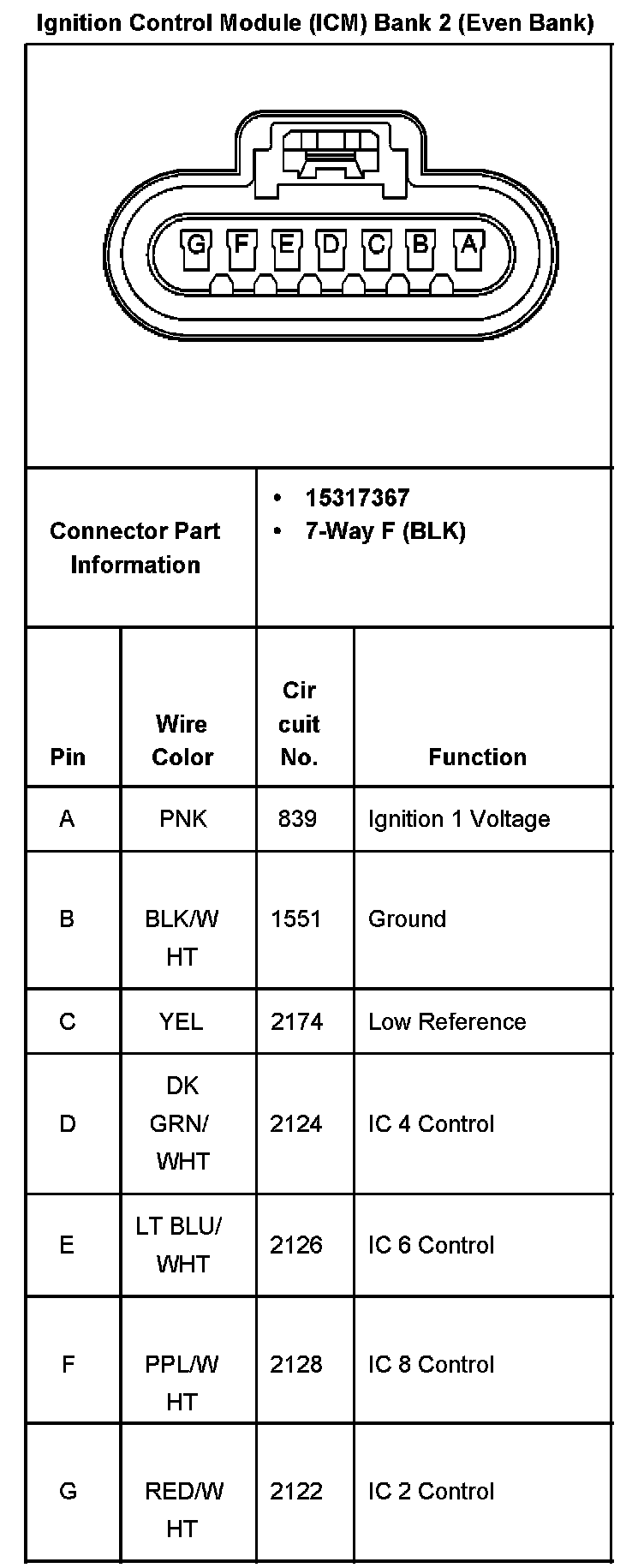

Ignition Control Module (ICM) Bank 2 (Even Bank):
