HVAC Control Module Replacement - Auxiliary

HVAC CONTROL MODULE REPLACEMENT - AUXILIARY

REMOVAL PROCEDURE

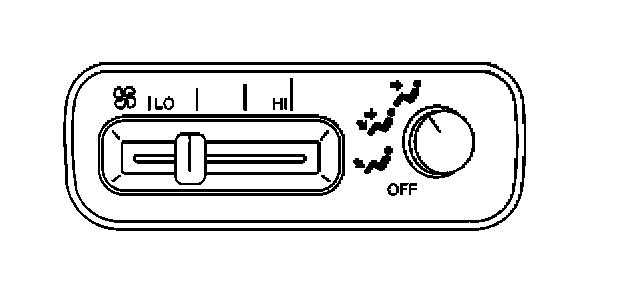

1. Using a flat bladed tool, carefully pry out on the top of the rear HVAC control.

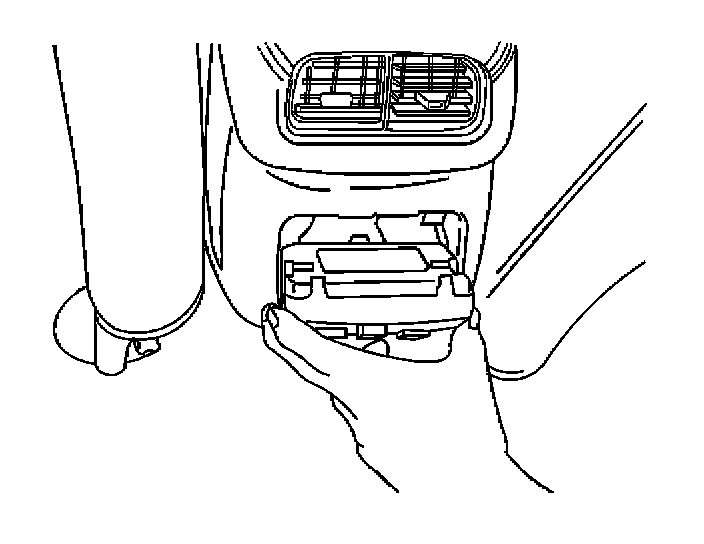

2. Remove the rear HVAC control from the center console/seat.

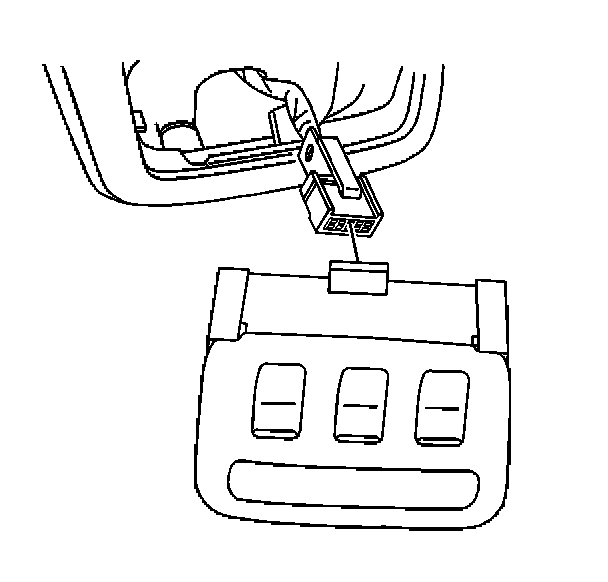

3. Disconnect the electrical connector.
4. Remove the rear HVAC control from the vehicle.

INSTALLATION PROCEDURE




1. Connect the rear HVAC control electrical connector.




2. Install the control in the console bottom first.
3. Push in at the top of the rear HVAC control in order to engage the control in the console/seat.
