Coolant Temperature Sensor/Switch (For Computer): Locations

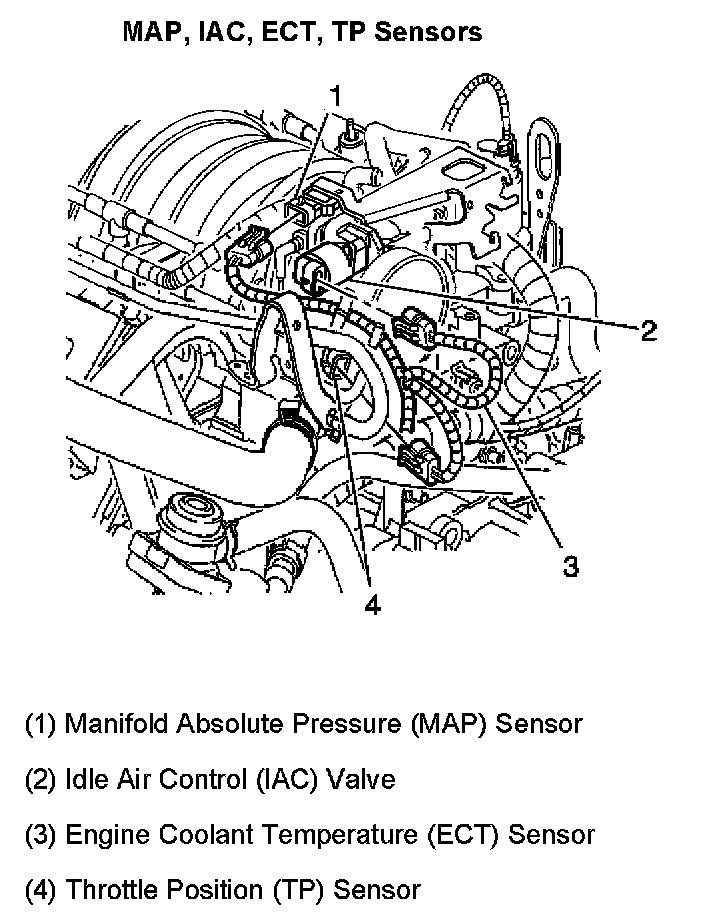

MAP, IAC, ECT, TP Sensors:

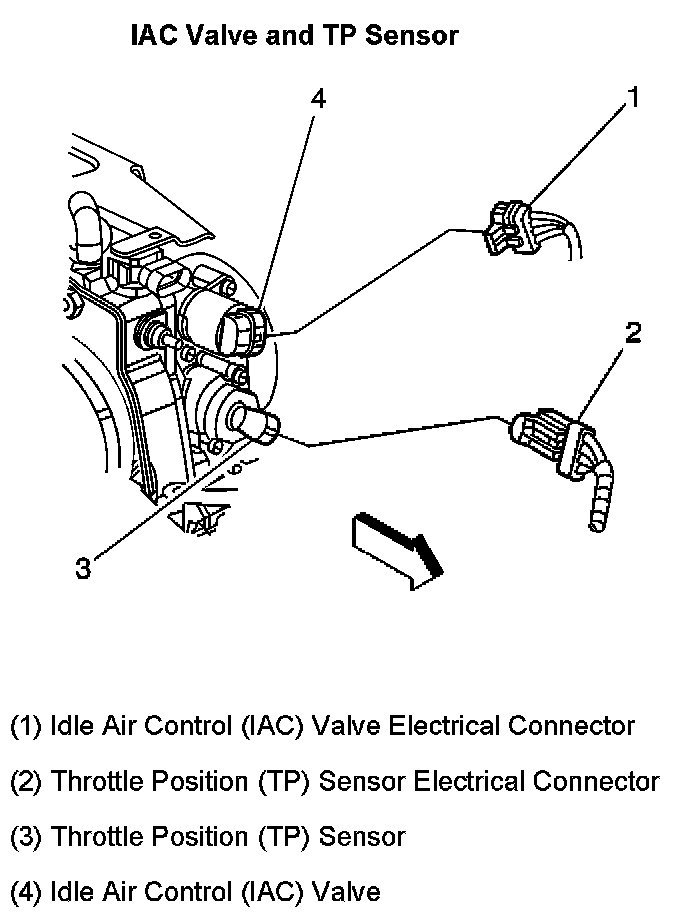

IAC Valve And TP Sensor:

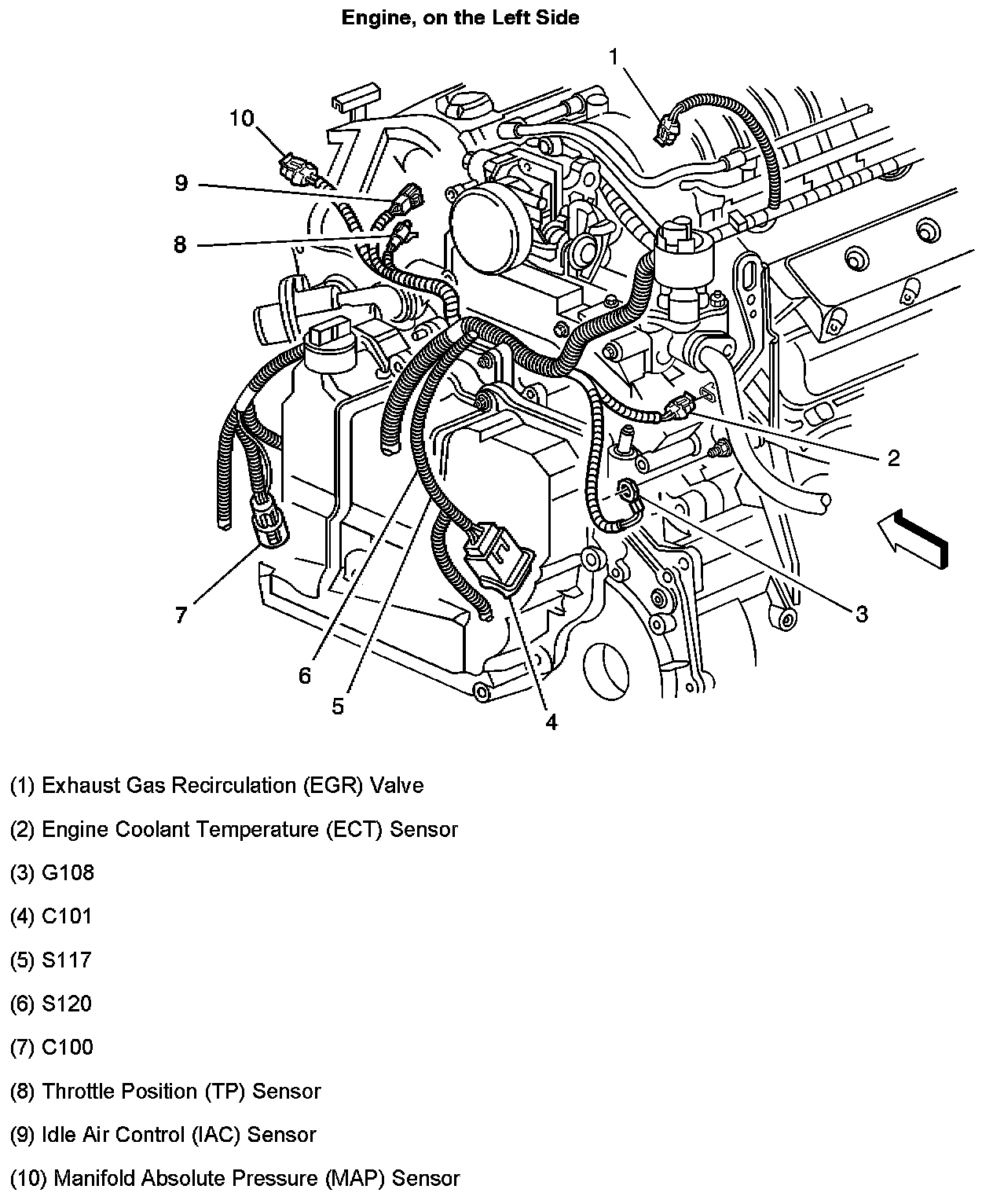

Engine, On The Left Side:
