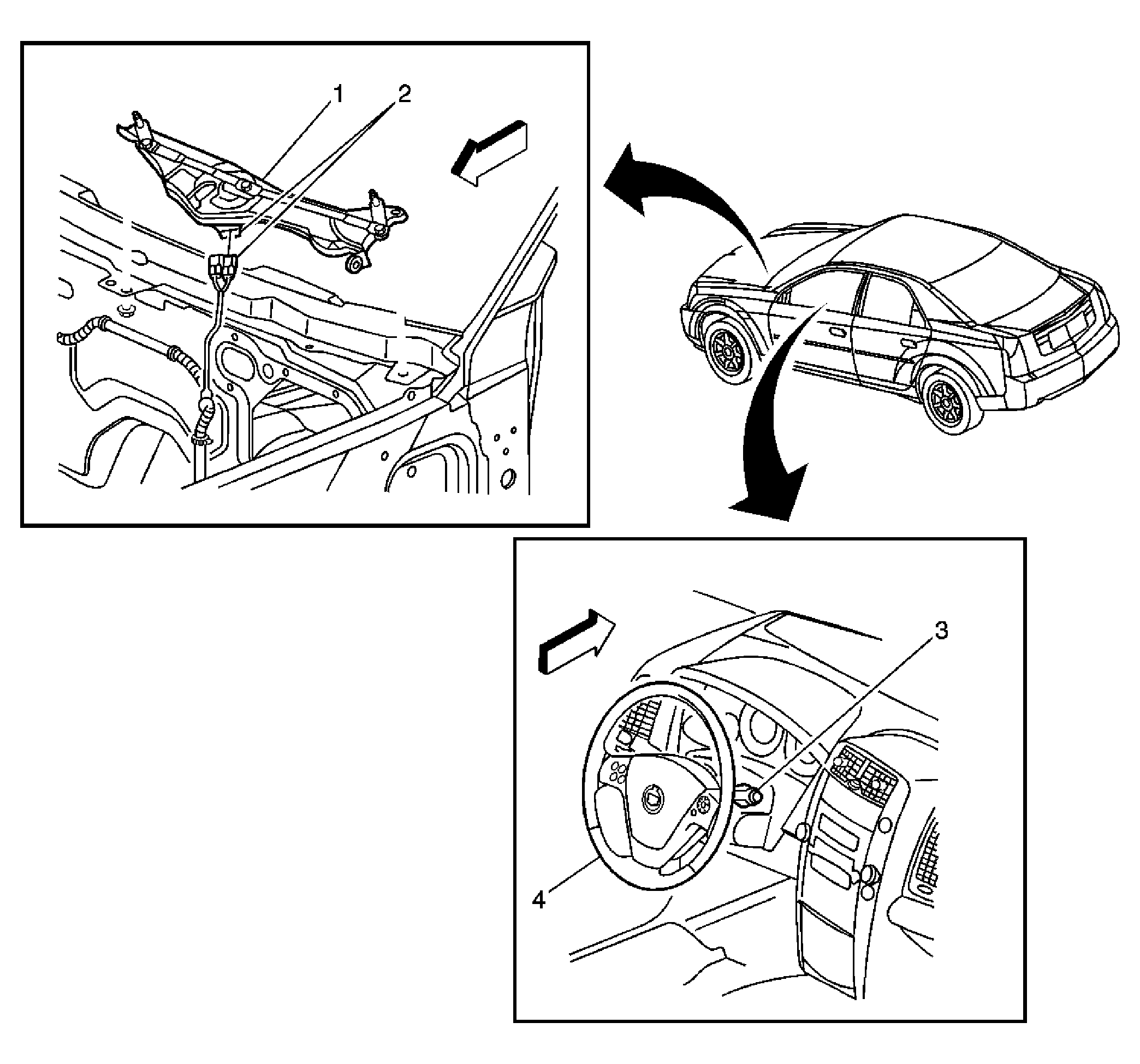

Wiper/Washer System Component Views
| Callout | Component Name |
|---|---|
| 1 | Windshield Wiper/Washer Module |
| 2 | Windshield Wiper/Washer Module Connector |
| 3 | Windshield Wiper/Washer Switch (LHD shown, RHD similar) |
| 4 | Steering Wheel (LHD shown, RHD similar) |

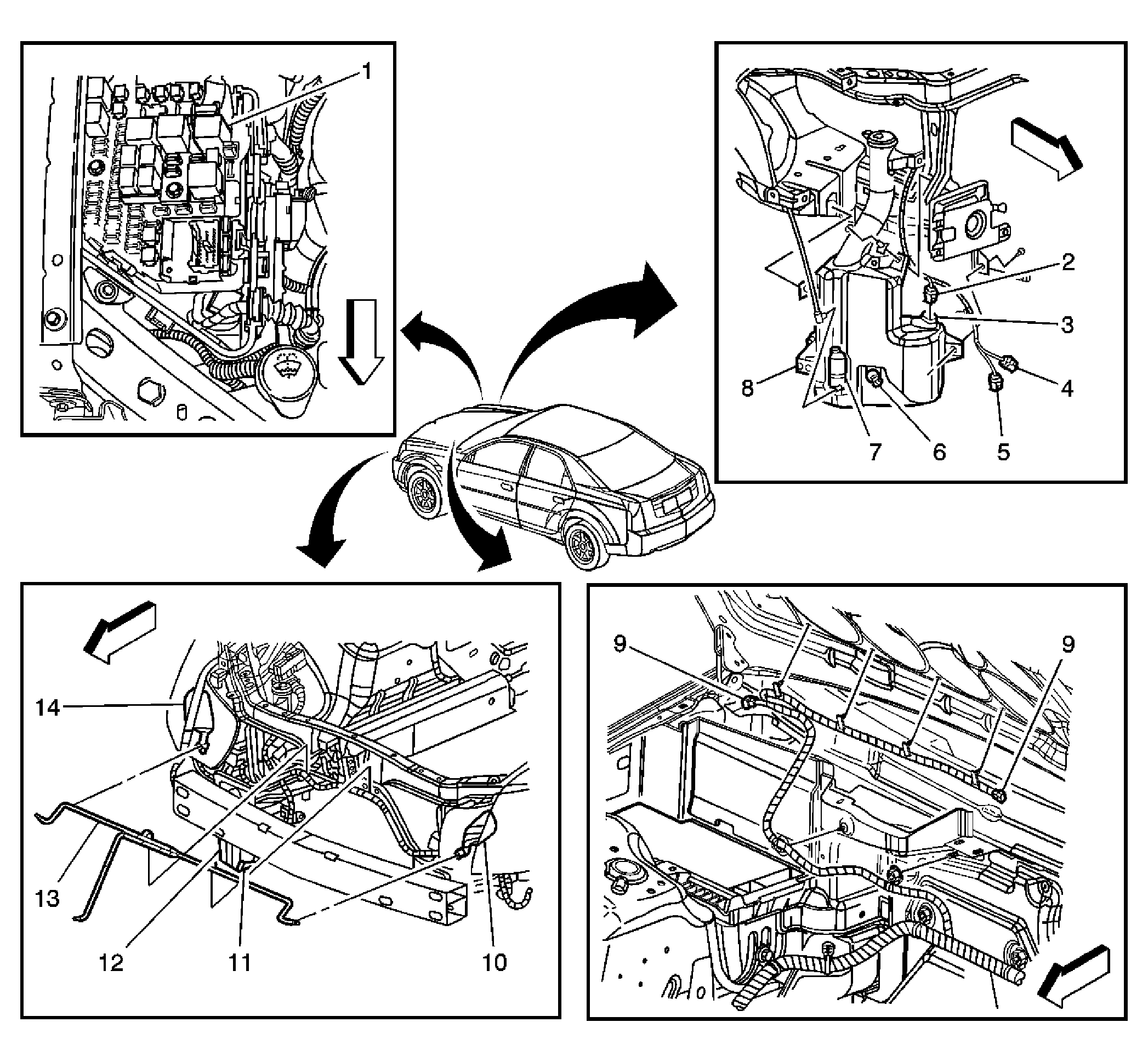

| Callout | Component Name |
|---|---|
| 1 | Headlamp Washer Relay (CE4) |
| 2 | Headlamp Washer Fluid Pump Connector (CE4) |
| 3 | Headlamp Washer Fluid Pump (CE4) |
| 4 | Washer Fluid Level Switch Connector |
| 5 | Windshield Washer Fluid Pump Connector |
| 6 | Washer Fluid Level Switch |
| 7 | Windshield Washer Fluid Pump |
| 8 | Washer Fluid Reservoir |
| 9 | Heated Washer Nozzles |
| 10 | Headlamp Washer Nozzle - Left (CE4) |
| 11 | Headlamp Washer Fluid Pump (CE4) |
| 12 | Washer Fluid Reservoir |
| 13 | Headlamp Washer Fluid Hose (CE4) |
| 14 | Headlamp Washer Nozzle - Right (CE4) |
