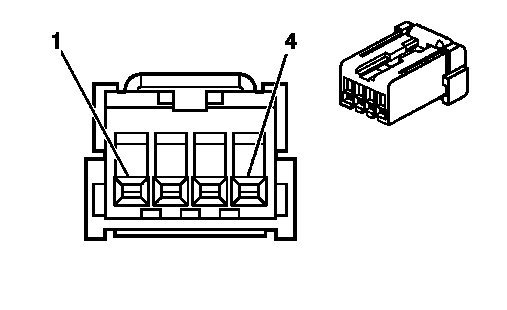

Memory/Personalization Function Switch (A45) Connector End View
Memory/Personalization Function Switch (A45) Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
YE |
1491 |
Backlight Lamps Control |
| 2 |
PU |
616 |
Memory 2 Switch Signal |
| 3 |
BK/WH |
351 |
Ground |
| 4 |
WH |
615 |
Memory 1 Switch Signal |
