Horns Component Views

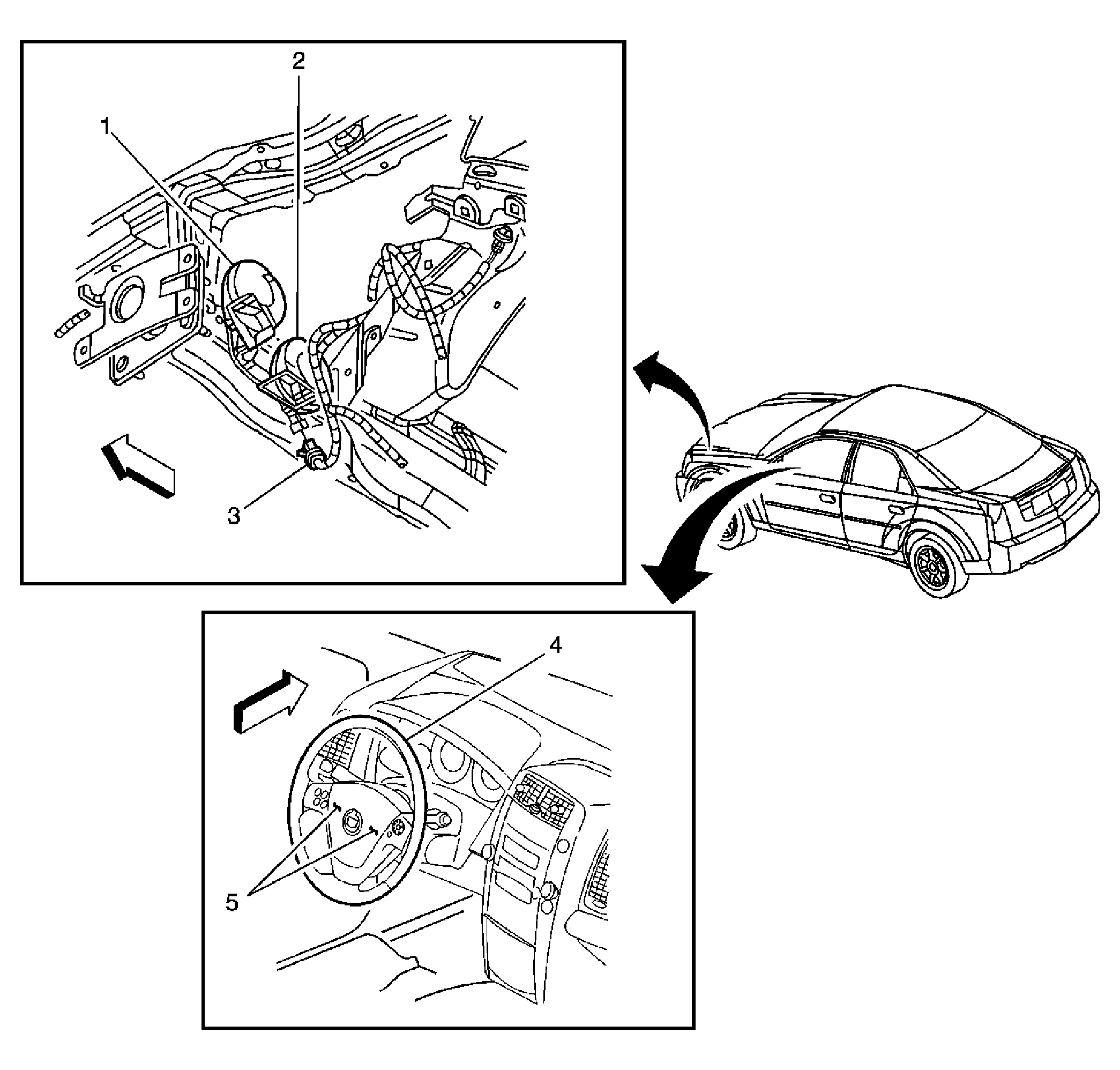

Fig 1: Horn Subsystem Components
GM1376896Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn - Low Note
2 Horn - High Note
3 Horn Assembly Connector
4 Steering Wheel (LHD shown, RHD similar)
5 Horn Switch (Part of Inflatable Restraint Steering Wheel Module)
