Power and Grounding Component Views

Fig 1: Battery and Fuse Blocks
GM1367736Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery Positive Cable Connection to Fuse Block - Underhood
3 Ground G105 (LHD)
4 Battery Positive Cable (LHD)
5 Battery (LHD)
6 Battery Negative Cable (LHD)
7 C103 (LHD)
8 Fuse Block - Right Rear
9 Fuse Block - Left Rear
10 Battery (RHD)
11 Battery Negative Cable (RHD)
12 Ground G105 (RHD)
13 C103 (RHD)
14 Battery Positive Cable (RHD)
Fig 2: Battery Positive Cable (LHD) - 2.6L/3.2L (LY9/LA3)
GM1368932Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Battery Positive Cable Connection to Generator
3 Battery Positive Cable Connection to Starter
4 Starter
Fig 3: Battery Positive Cable (RHD) - 2.6L/3.2L (LY9/LA3)
GM1368935Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator
2 Battery Positive Cable Connection to Generator
3 Battery Positive Cable Connection to Starter
4 Starter
5 Battery Positive Cable at Rear of Engine
Fig 4: Battery Positive Cable - 3.6L (LY7)
GM1368939Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Positive Cable Connection to Starter
2 Starter
3 Generator
4 Battery Positive Cable Connection to Generator
Fig 5: Battery Positive Cable - 5.7L (LS6)
GM1368946Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Positive Cable Connection to Starter
2 Starter
3 Battery Positive Cable Connection to Generator
4 Generator

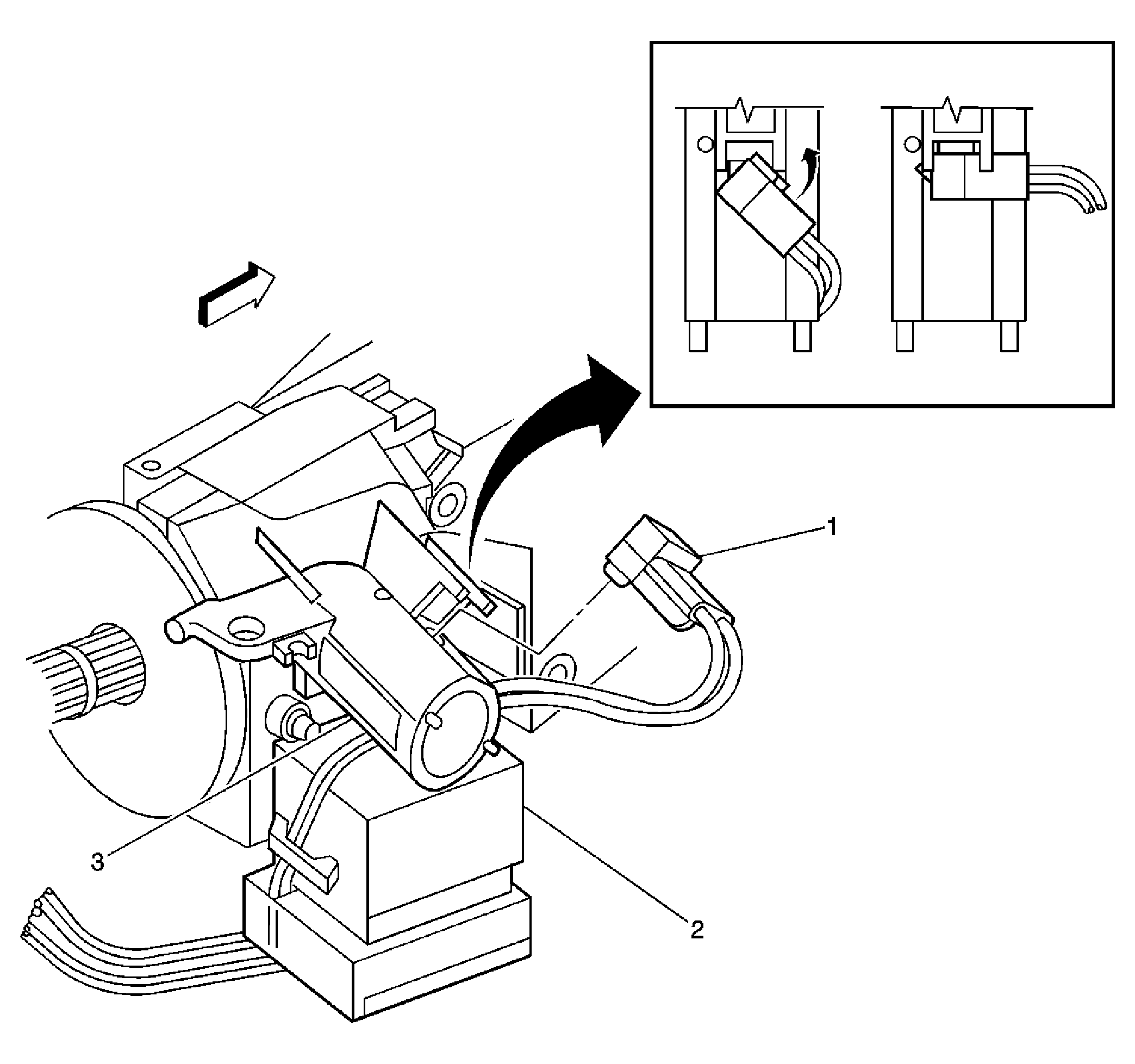

Fig 6: Ignition Switch
GM1347701Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Key Alarm Switch
2 Ignition Switch
3 Ignition Lock Cylinder Case

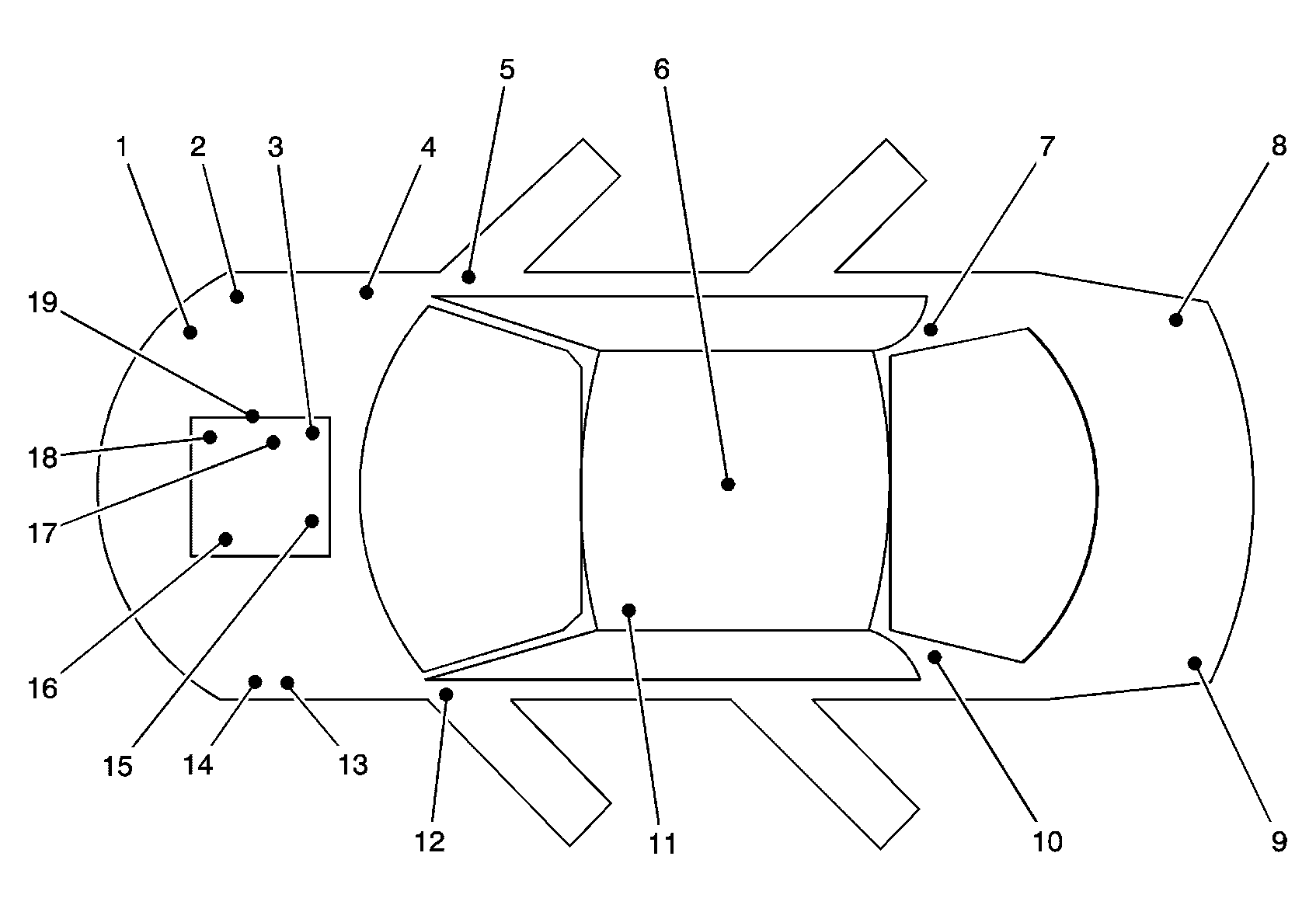

Fig 7: Ground Locations
GM1366689Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G104
2 G110
3 G130 (LY7), G142 (LS6)
4 G105 (LHD)
5 G201
6 G306
7 G303
8 G401
9 G402
10 G304
11 G307
12 G200
13 G101
14 G105 (RHD)
15 G100 (LY9/LA3), G107 (LY9/LA3), G131 (LY7), G141 (LS6), G140 (LS6)
16 G102 (RHD w/LY9/LA3)
17 G102 (LHD w/LY9/LA3)
18 G132 (LY7)
19 G133 (LY7)

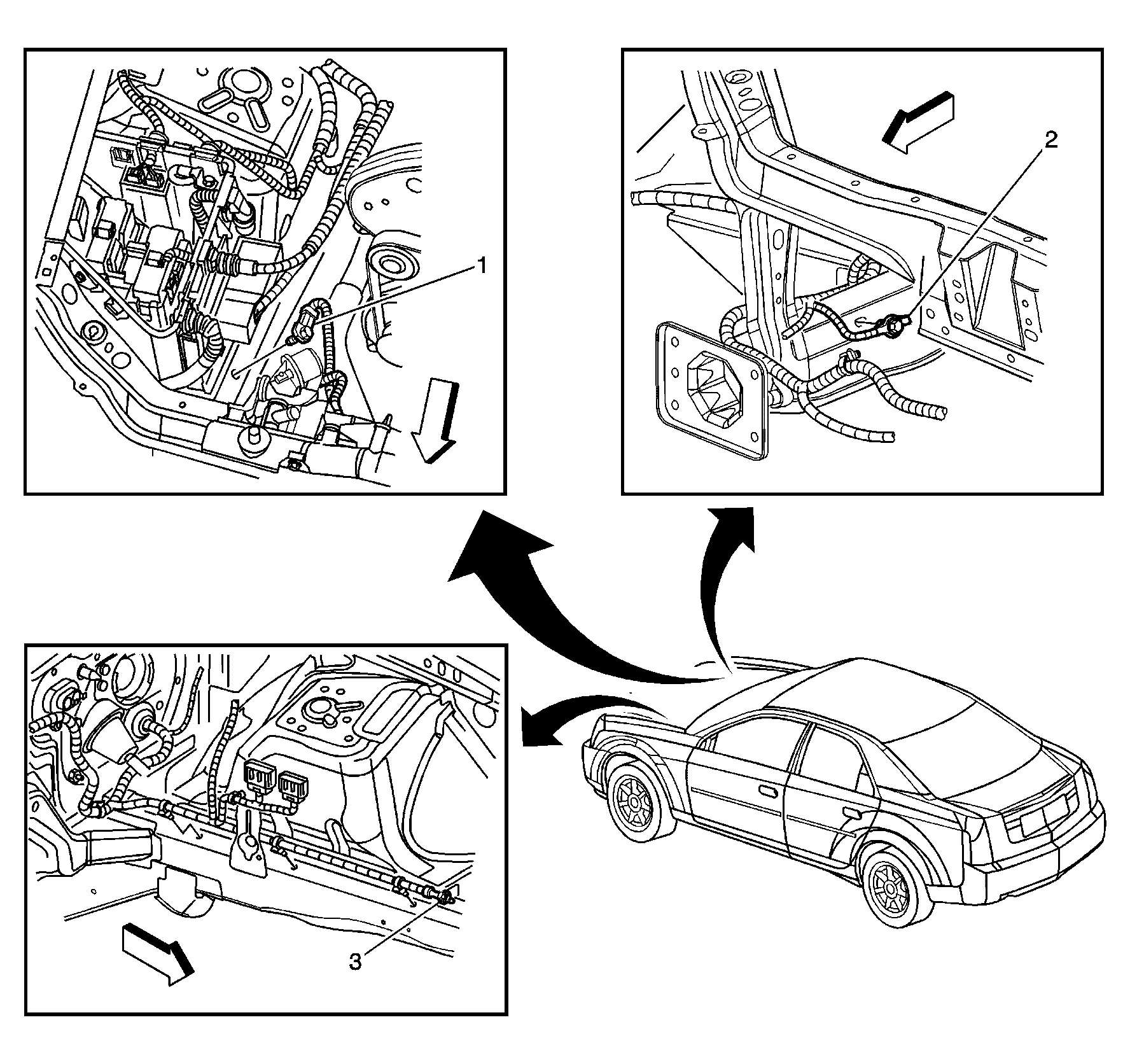

Fig 8: Forward Lamp, I/P and ABS Harness Grounds
GM1368979Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 ABS Ground G110
2 Forward Lamp Harness Ground G104
3 I/P Harness Ground G101
Fig 9: Battery Negative Cable (LHD) - 2.6L/3.2L (LY9/LA3)
GM1368951Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Negative Cable Connection to Battery
2 Ground G105
3 C103
4 Ground G102
Fig 10: Battery Negative Cable (RHD) - 2.6L/3.2L (LY9/LA3)
GM1368957Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ground G105
2 Battery Negative Cable Connection to Battery
3 C103
4 Ground G102

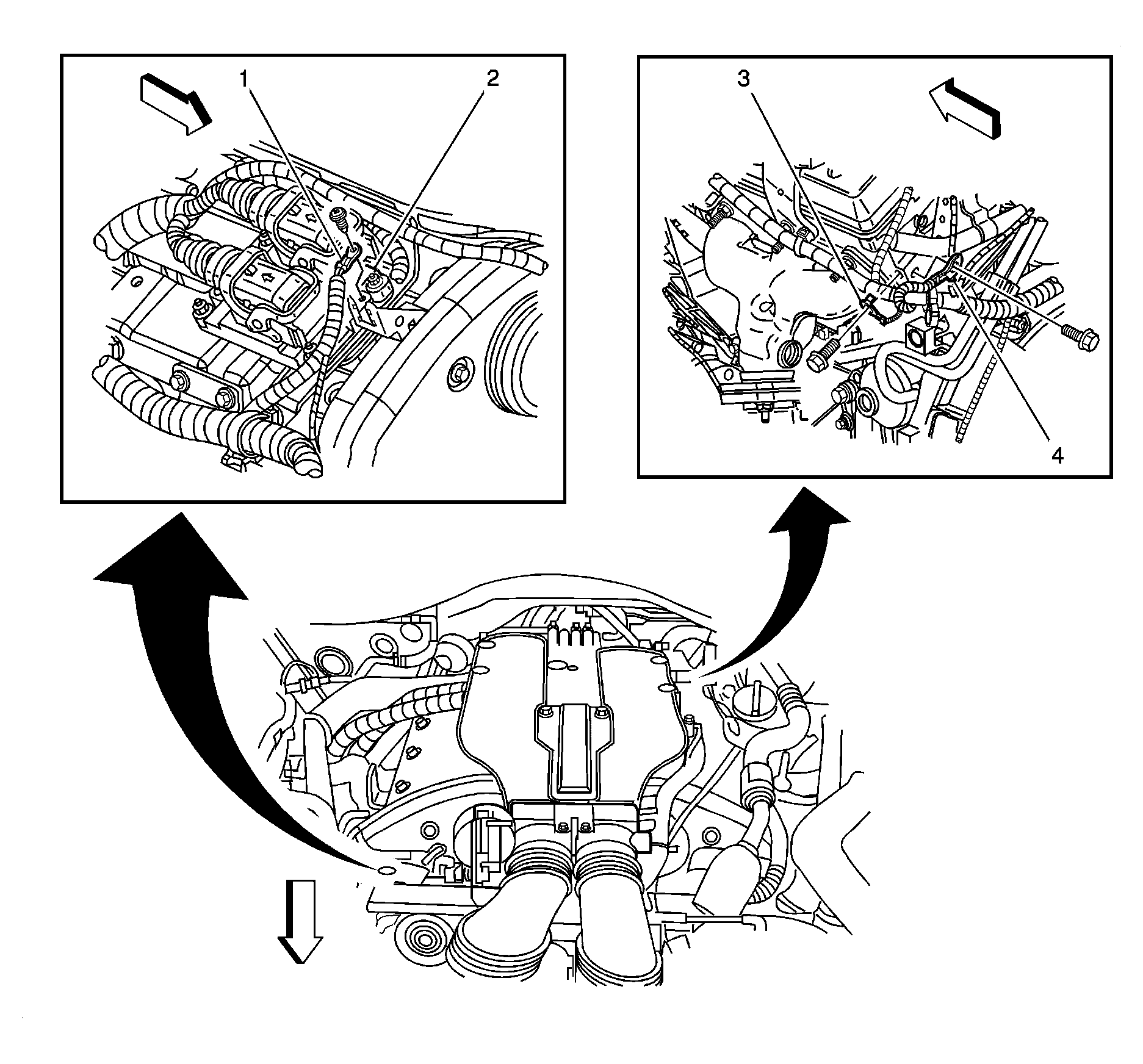

Fig 11: Engine Grounds - 2.6L/3.2L (LY9/LA3)
GM1368960Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 ECM Case Ground
2 Engine Control Module (ECM)
3 Ground G107
4 Ground G100
Fig 12: Battery Negative Cable - 3.6L (LY7)
GM1368965Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ground G102
2 Battery Negative Cable Connection to Battery
3 Ground G105
4 C103
Fig 13: Engine Grounds - 3.6L (LY7)
GM1368969Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ground G130
2 Ground G131
3 Engine Control Module (ECM)
4 Ground G132
5 ECM Case Ground
6 ECM Case Ground
7 Engine Control Module (ECM)
8 Ground G133
Fig 14: Battery Negative Cable - 5.7L (LS6)
GM1368972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Negative Cable Connection to Battery
2 C103
3 Ground G105
4 Ground G102
Fig 15: Engine Grounds - 5.7L (LS6)
GM1368977Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ground G141
2 Manifold Absolute Pressure (MAP) Sensor
3 Ground G142
4 Camshaft Position (CMP) Sensor
5 Engine Oil Pressure (EOP) Sensor
6 Ground G140
Fig 16: Passenger Compartment Grounds 1 of 2
GM1368983Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness Ground G201
2 Body Harness Ground G303
3 Body Harness Ground G304
4 Body Harness Ground G200
Fig 17: Passenger Compartment Grounds 2 of 2
GM1368984Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness Gound G307
2 Body Harness Gound G306
Fig 18: Rear Compartment Grounds
GM1368985Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness Ground G402
2 Body Harness Ground G401

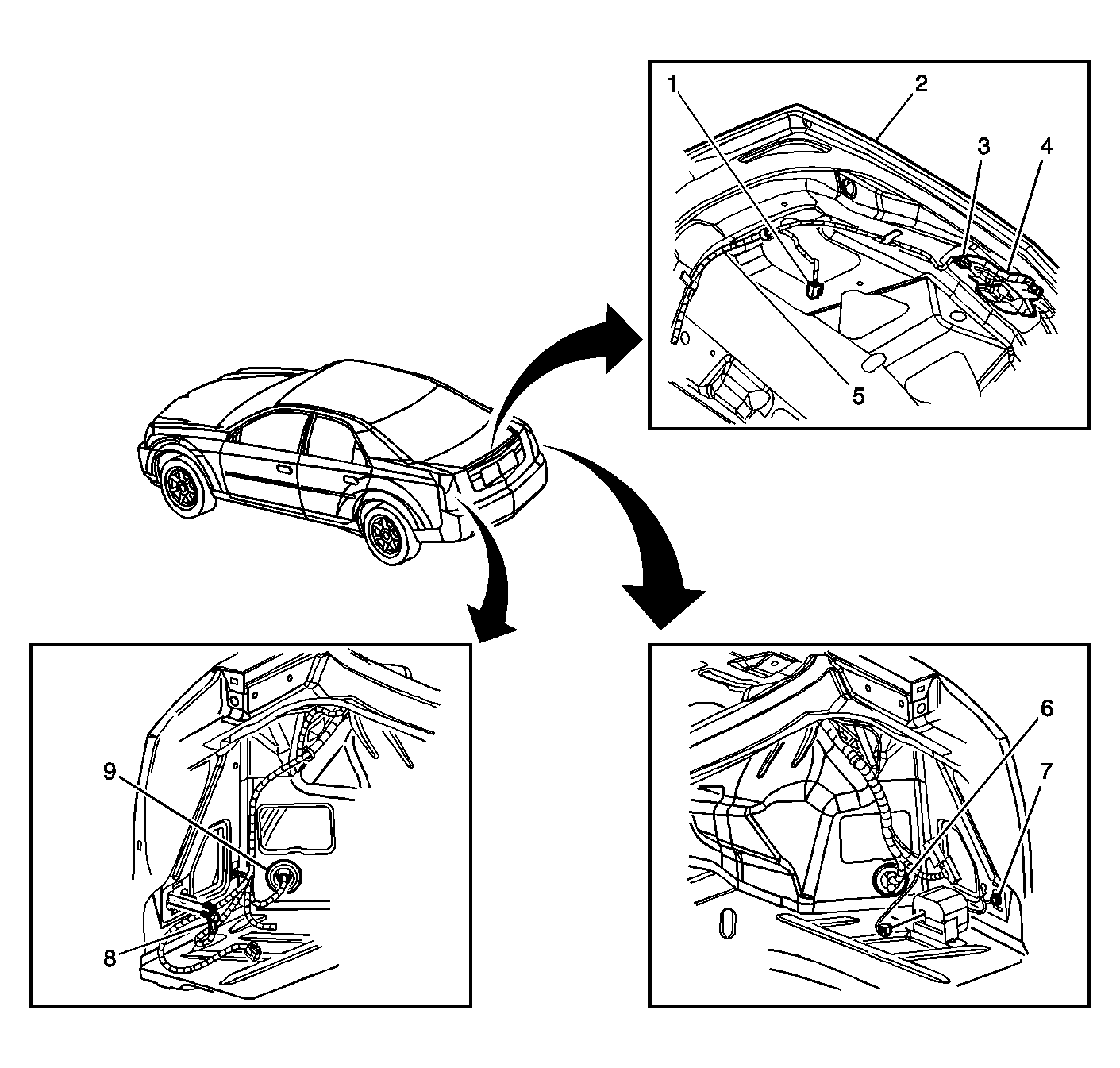

Fig 19: Rear of the Vehicle
GM803970Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C421
2 Rear Compartment Lid
3 Rear Compartment Lid Release Actuator Connector
4 Rear Compartment Lid Release Actuator
5 S400
6 Pass-through Grommet
7 G401
8 G402
9 Pass-through Grommet
