Coolant Temperature Sensor/Switch (For Computer): Locations

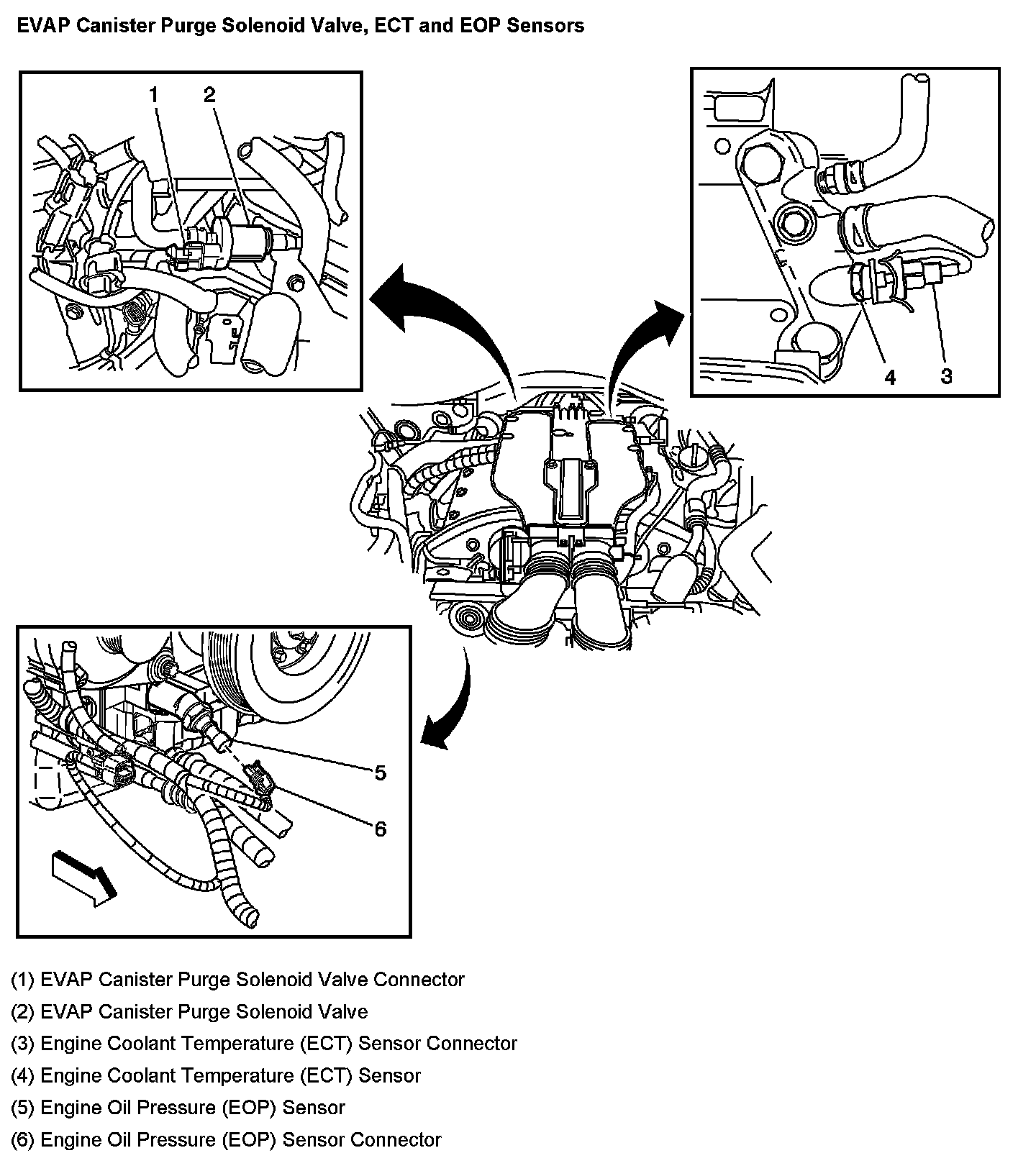

EVAP Canister Purge Solenoid Valve, ECT and EOP Sensors:

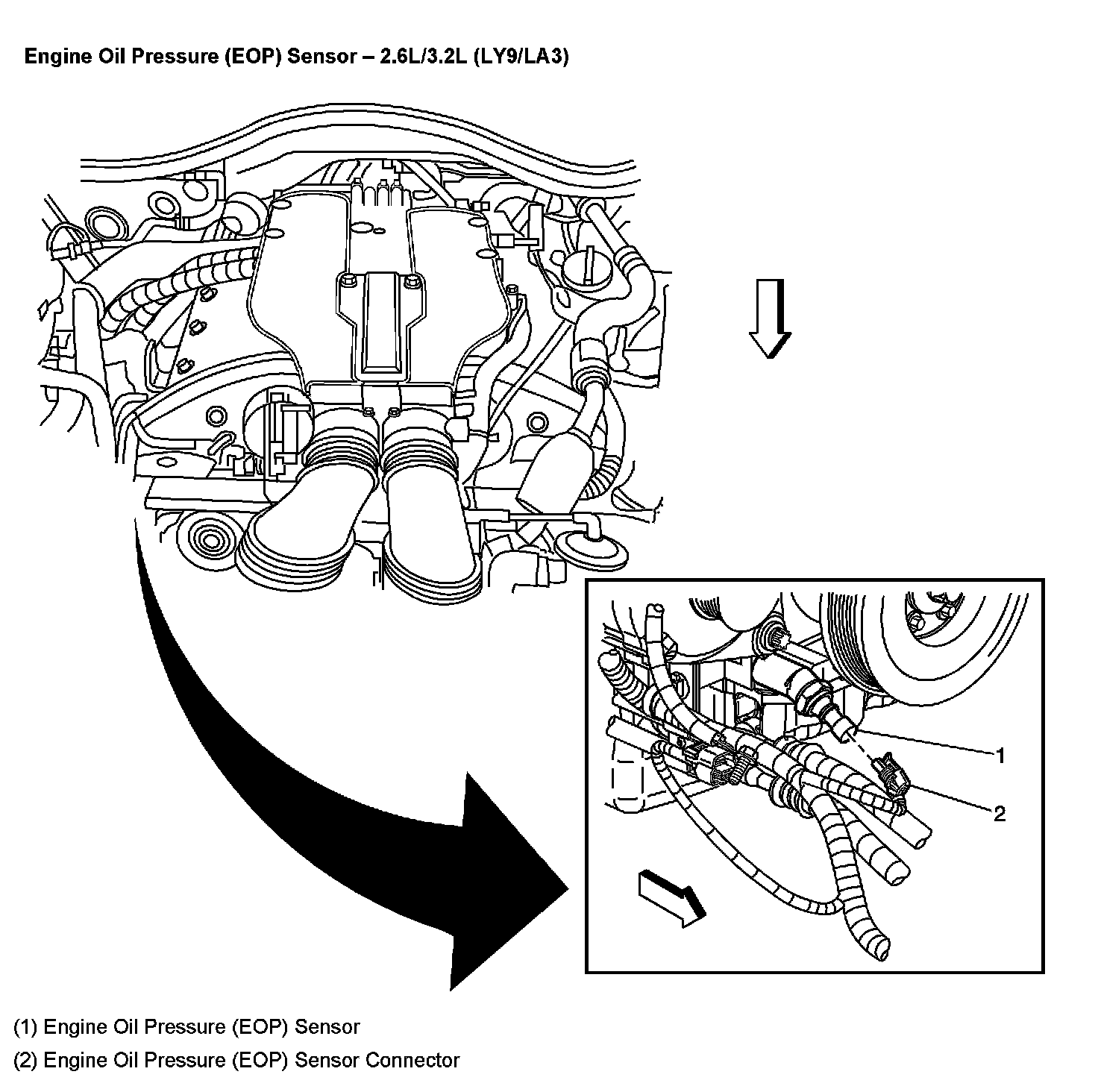

Engine Oil Pressure (EOP) Sensor:
