A/T Shift Indicator Module

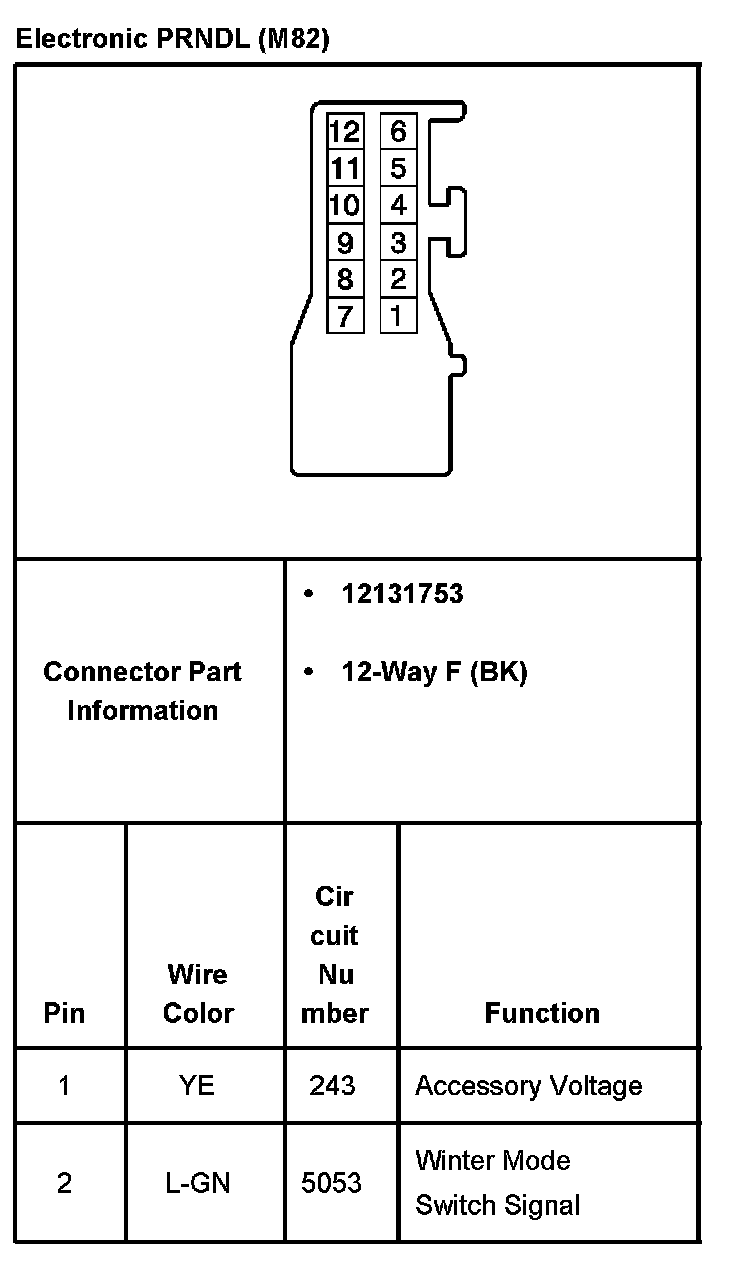

Electronic PRNDL (With RPO Code M82) Part 1:

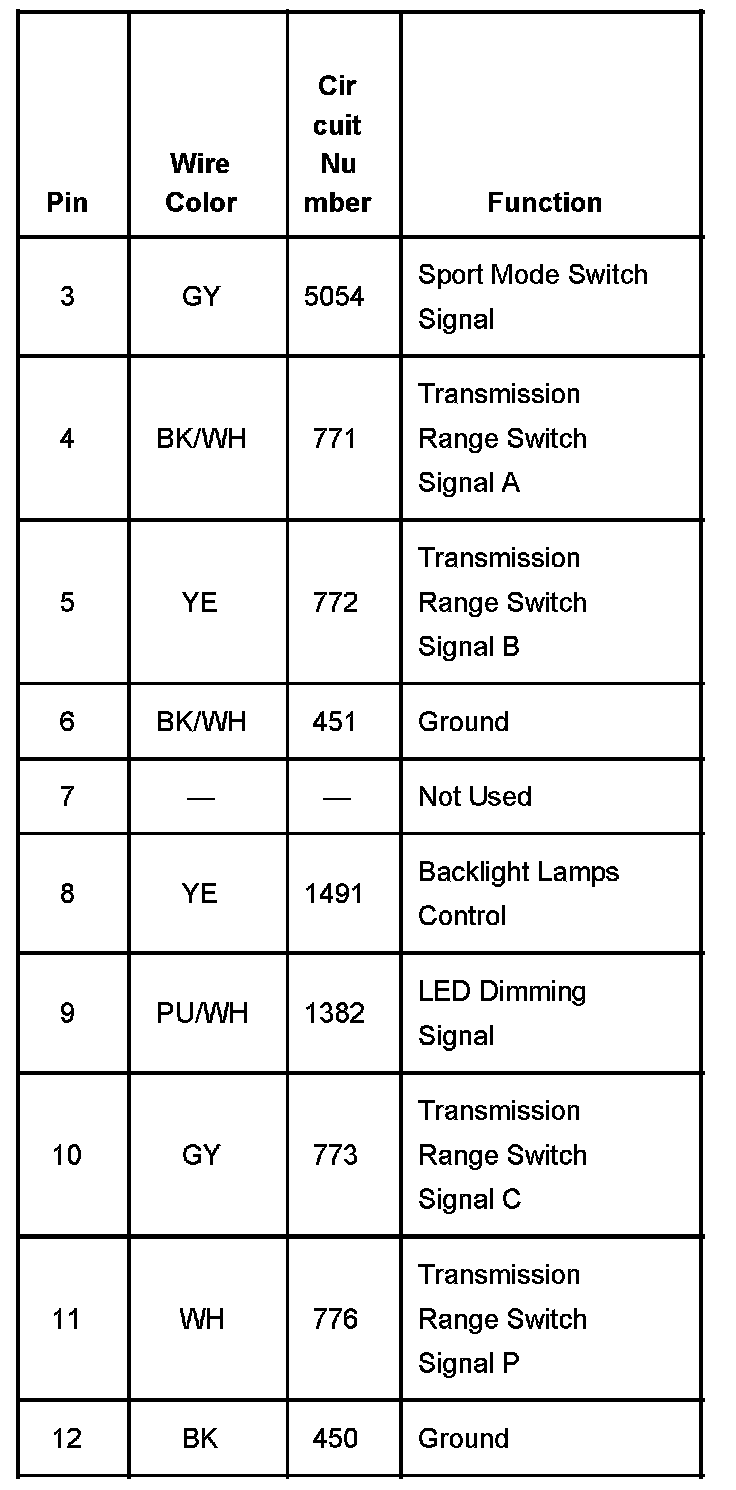

Electronic PRNDL (With RPO Code M82) Part 2:
