Control Module HVAC

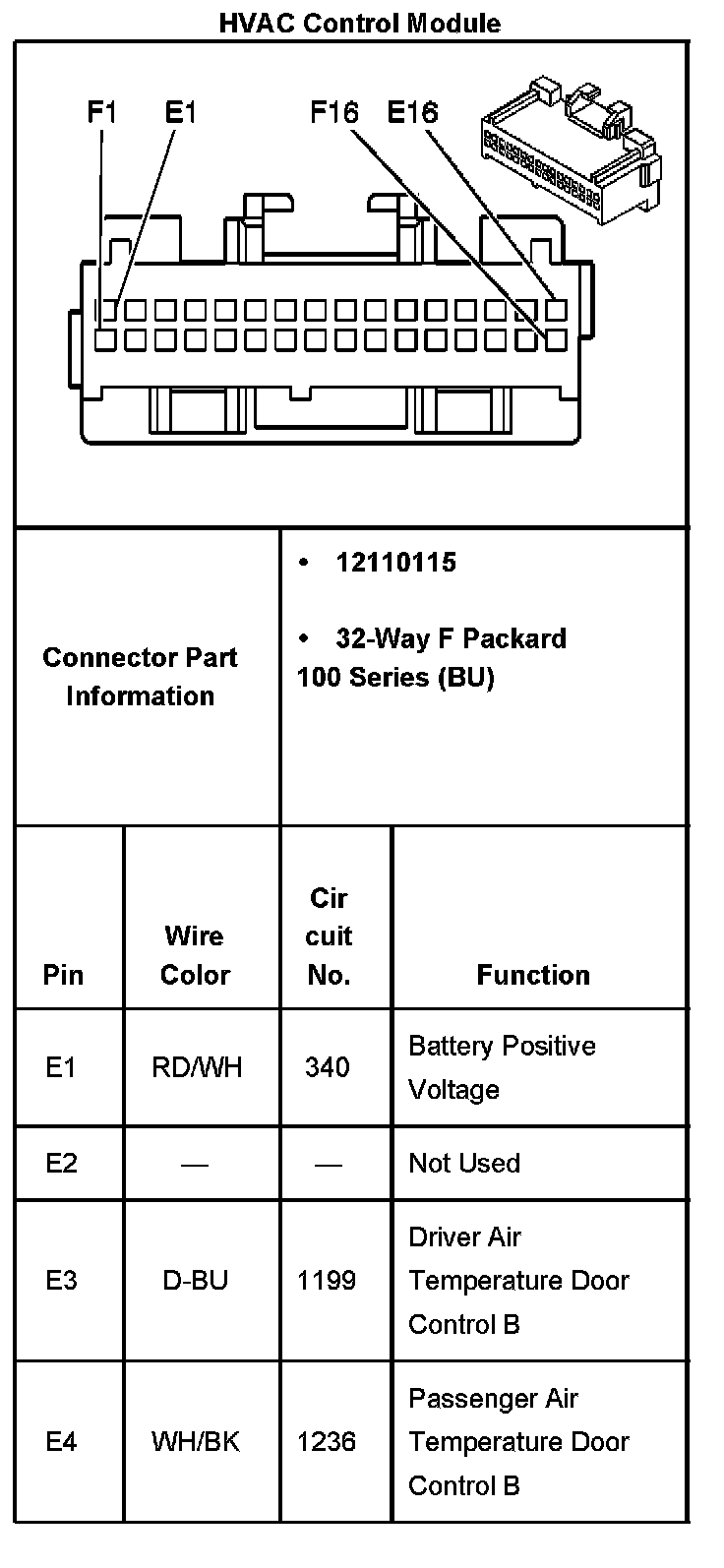

HVAC Control Module - Part 1:

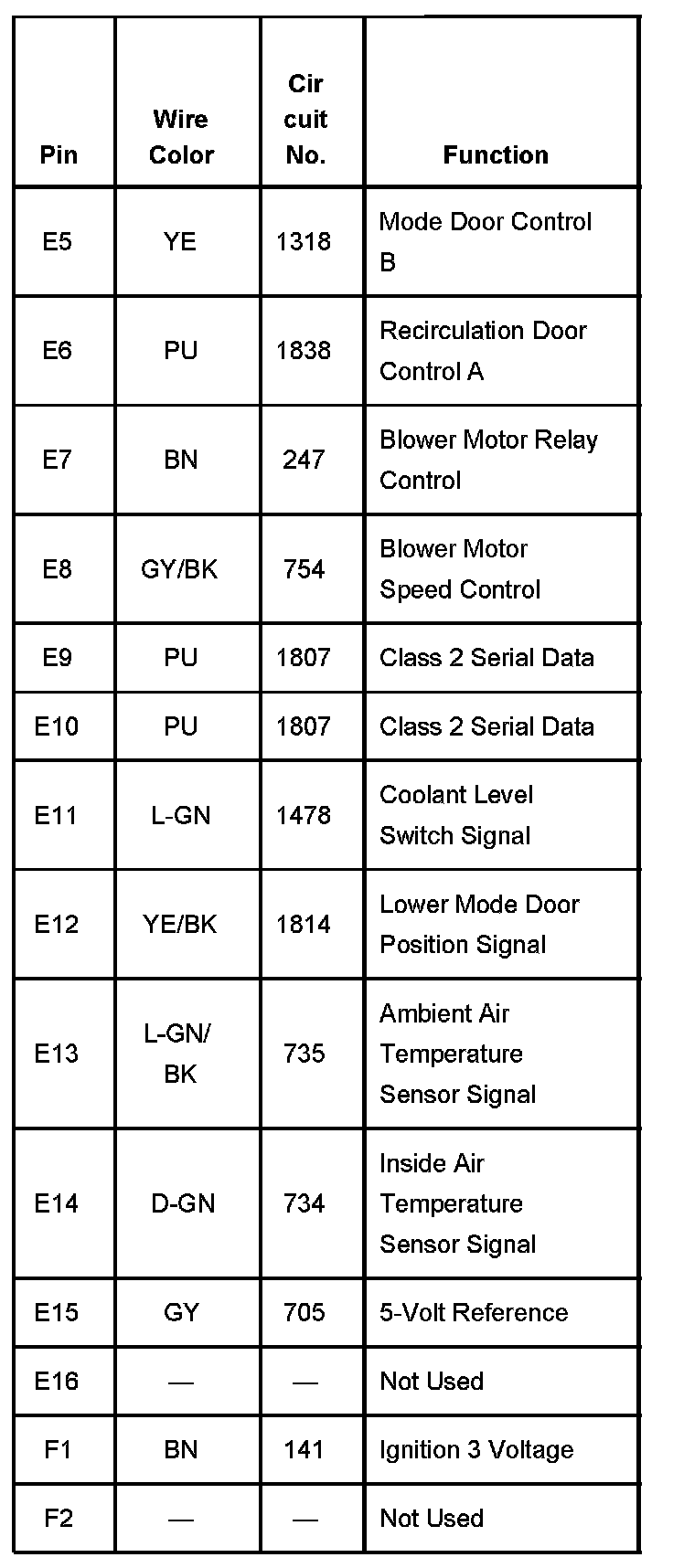

HVAC Control Module - Part 2:

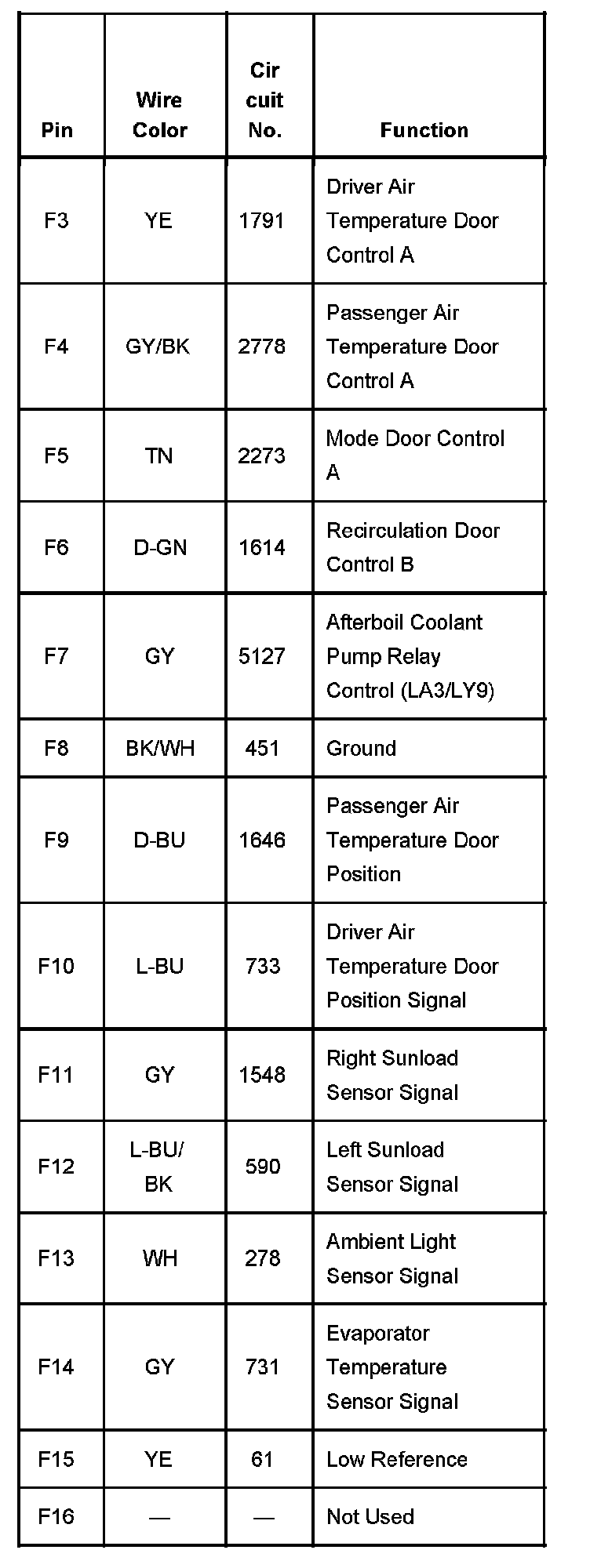

HVAC Control Module - Part 3:
