Powertrain Control Module (PCM) C1

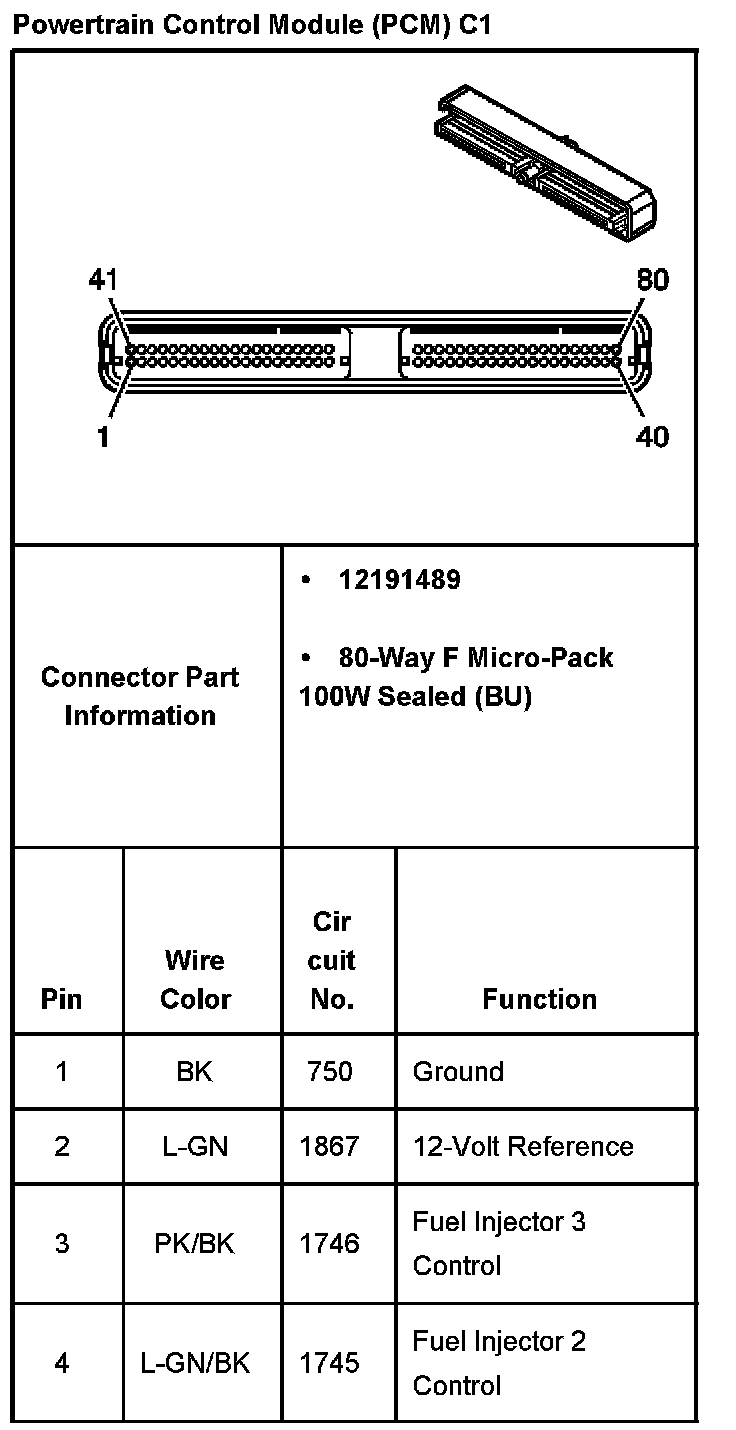

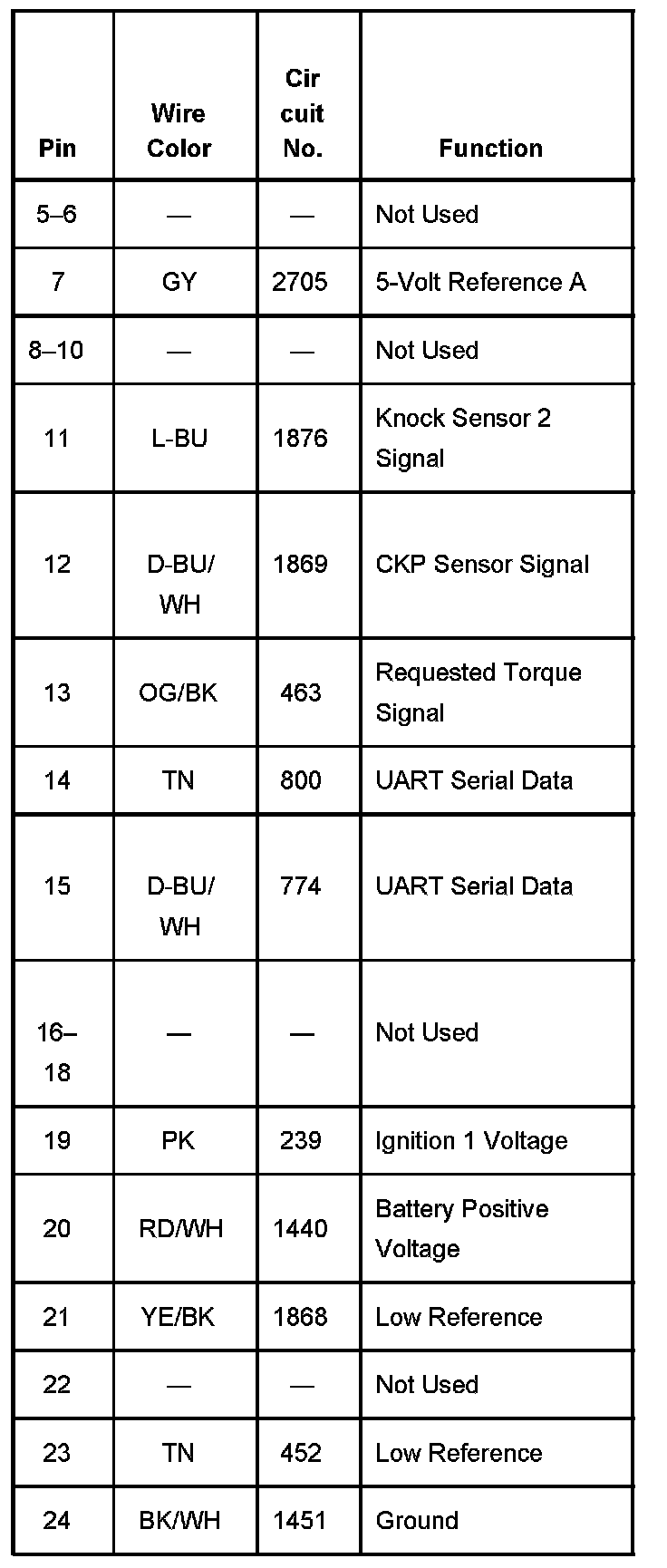

Powertrain Control Module (PCM) C1 Part 1:

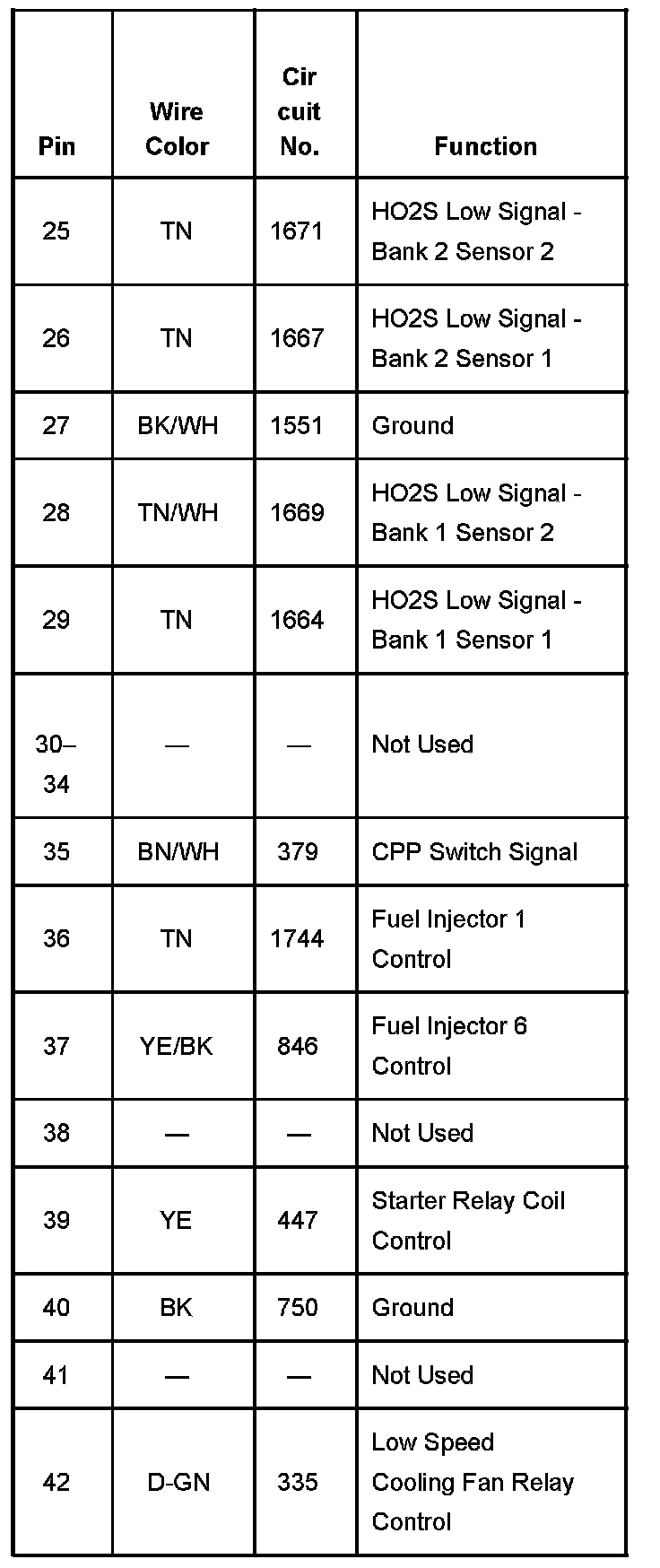

Powertrain Control Module (PCM) C1 Part 2:

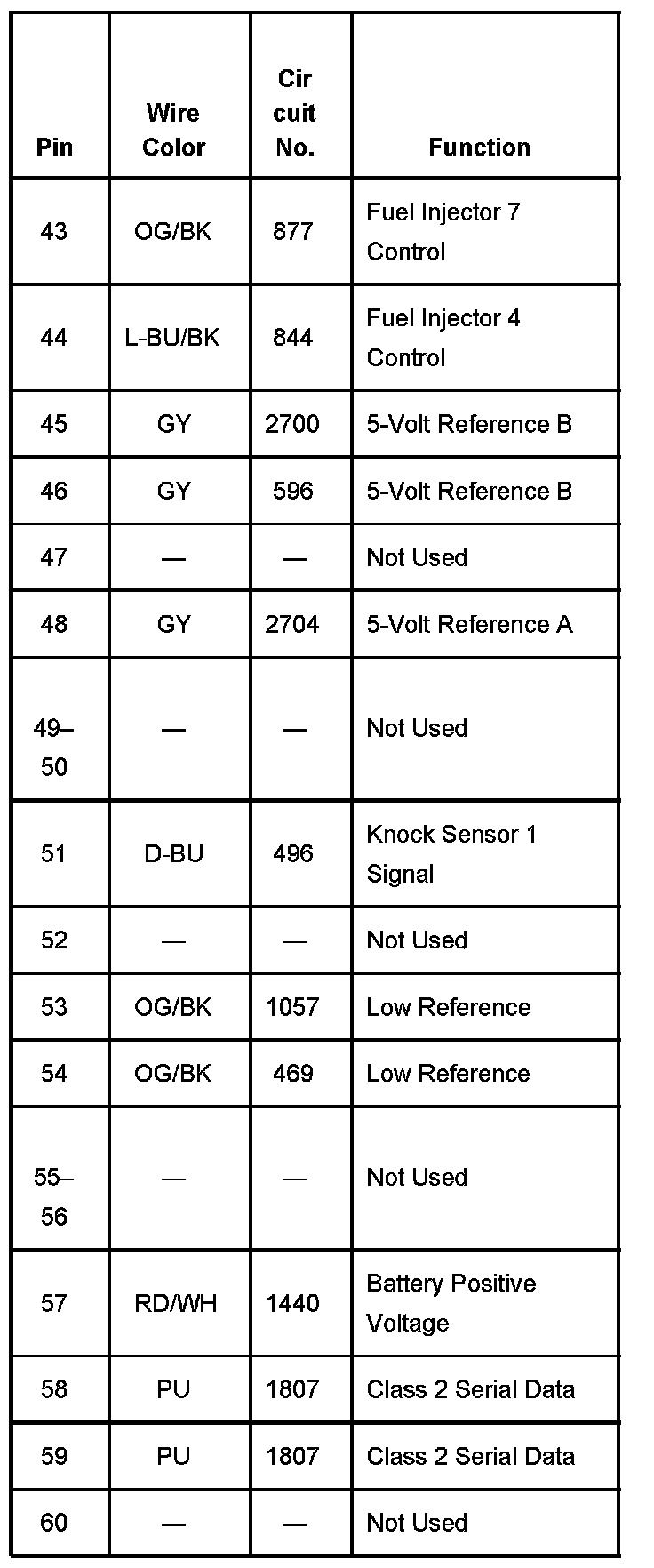

Powertrain Control Module (PCM) C1 Part 3:

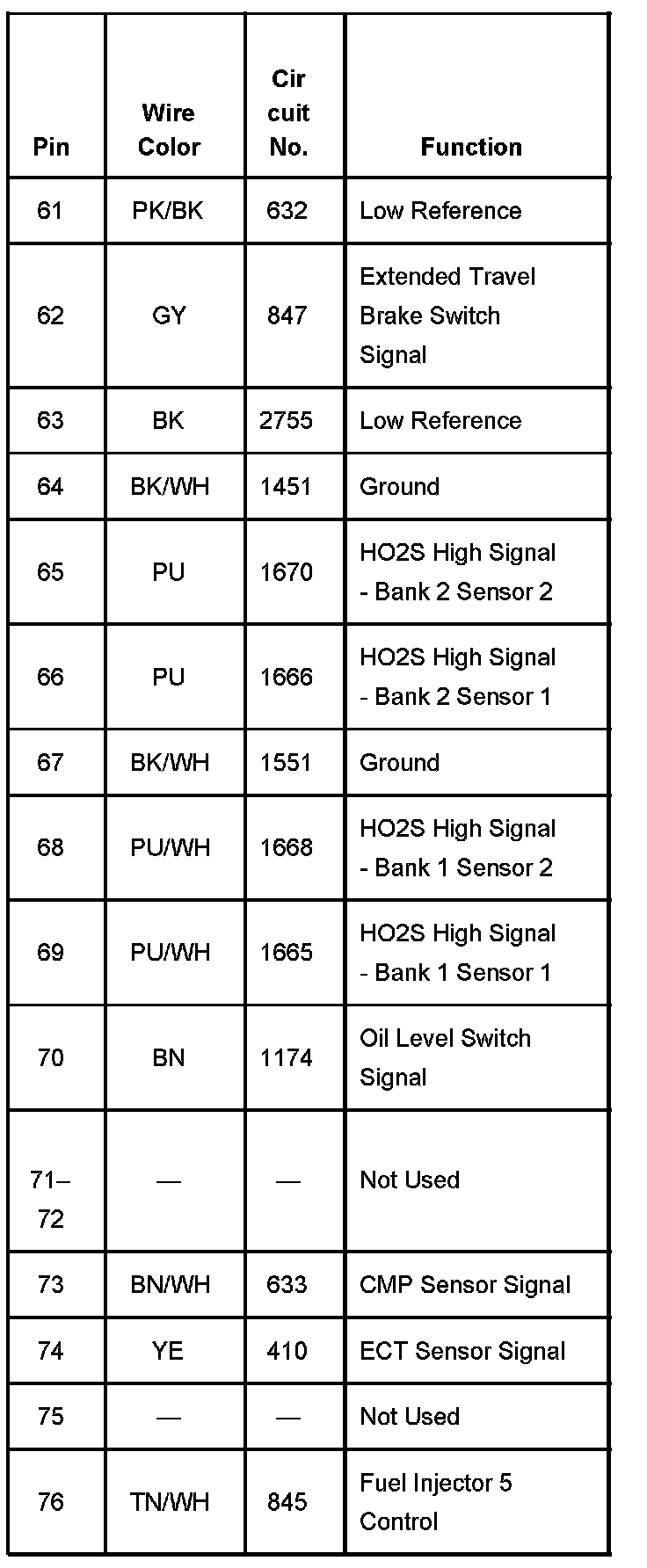

Powertrain Control Module (PCM) C1 Part 4:




Powertrain Control Module (PCM) C1 Part 5:

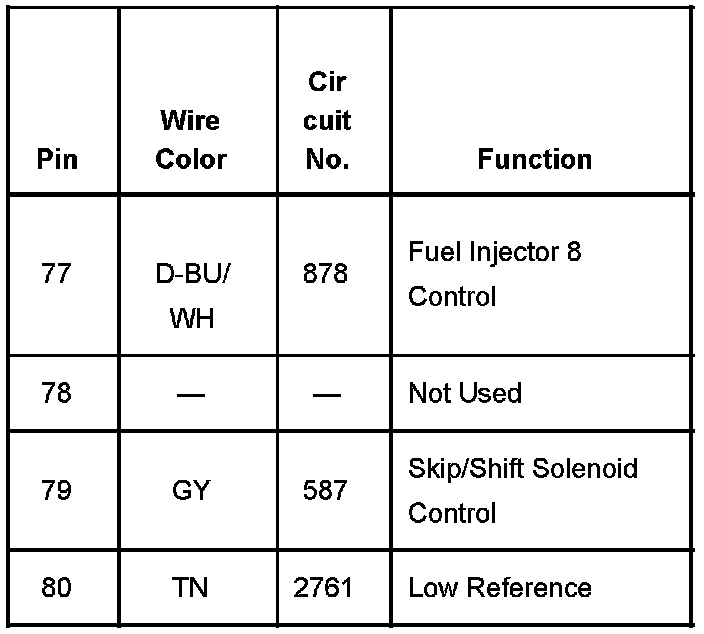

Powertrain Control Module (PCM) C1 Part 6:
