Control Module HVAC: Locations

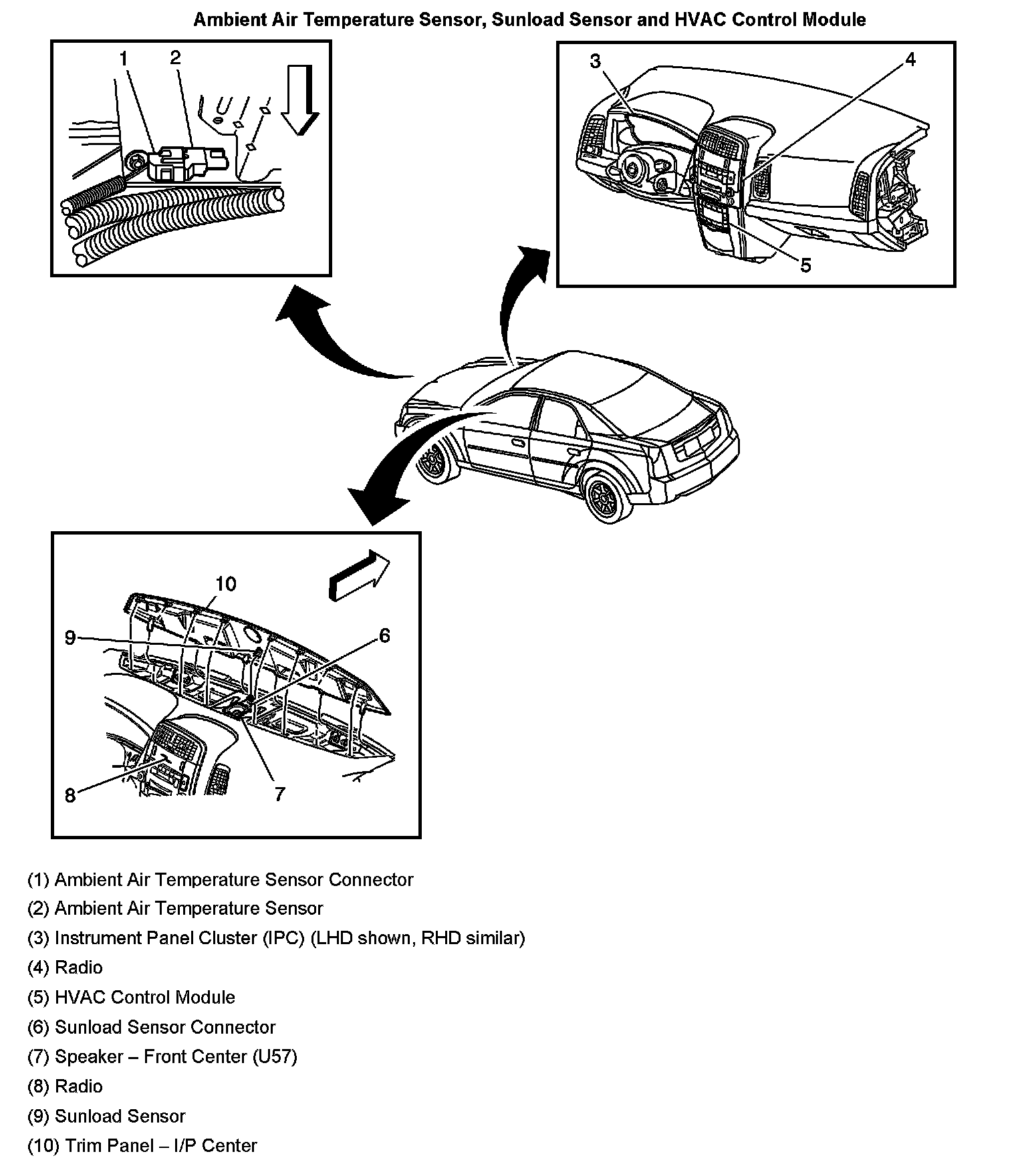

Ambient Air Temperature Sensor,Sunload Sensor And HVAC Control Module:
