Blower Motor Control Processor (LHD)

BLOWER MOTOR CONTROL PROCESSOR REPLACEMENT (LHD)

REMOVAL PROCEDURE
1. Remove the right sound insulator.

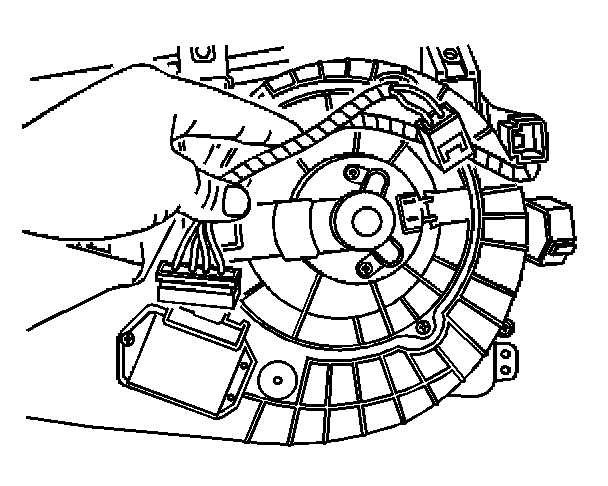

2. Disconnect the electrical connector from the blower motor control processor.

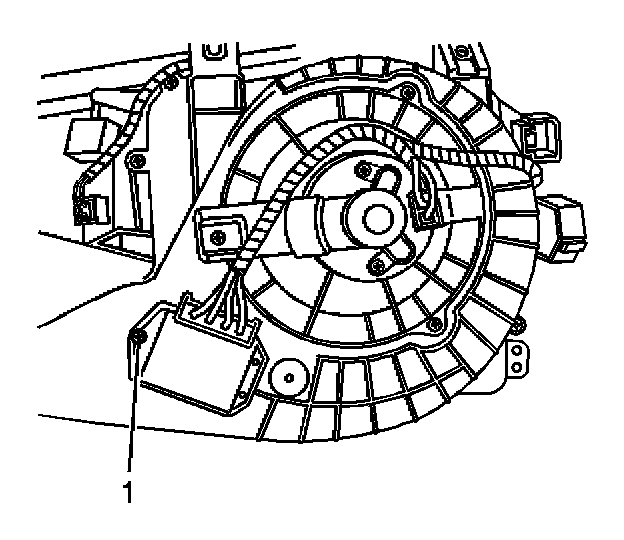

3. Remove the blower motor control processor retaining screw (1).
4. Remove the blower motor control processor from the vehicle.

INSTALLATION PROCEDURE
1. Install the blower motor control processor.

NOTE: Refer to Fastener Notice in Service Precautions.

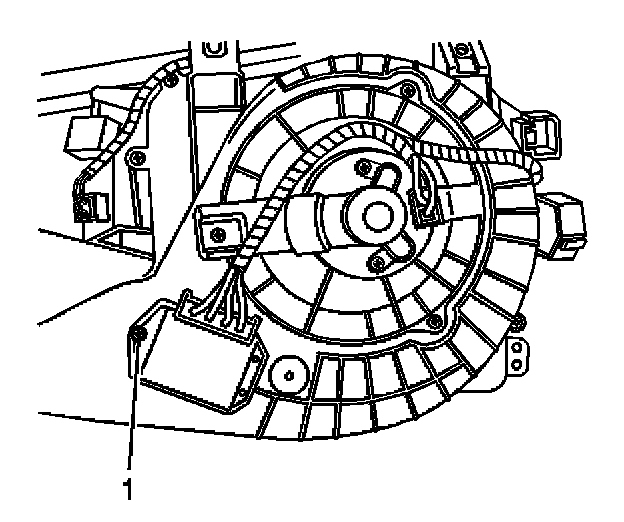

2. Install the blower motor control processor retaining screw (1).

Tighten
Tighten the screw to 1 N.m (9 lb in).

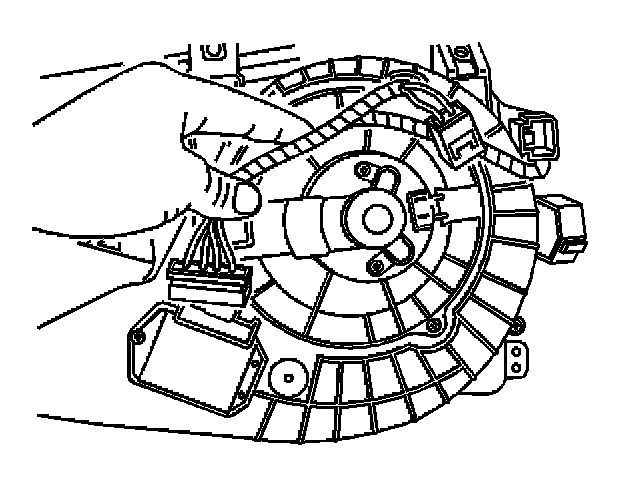

3. Connect the electrical connector to the blower motor control processor.
4. Install the right sound insulator.
