Engine Temperature Sensor: Locations

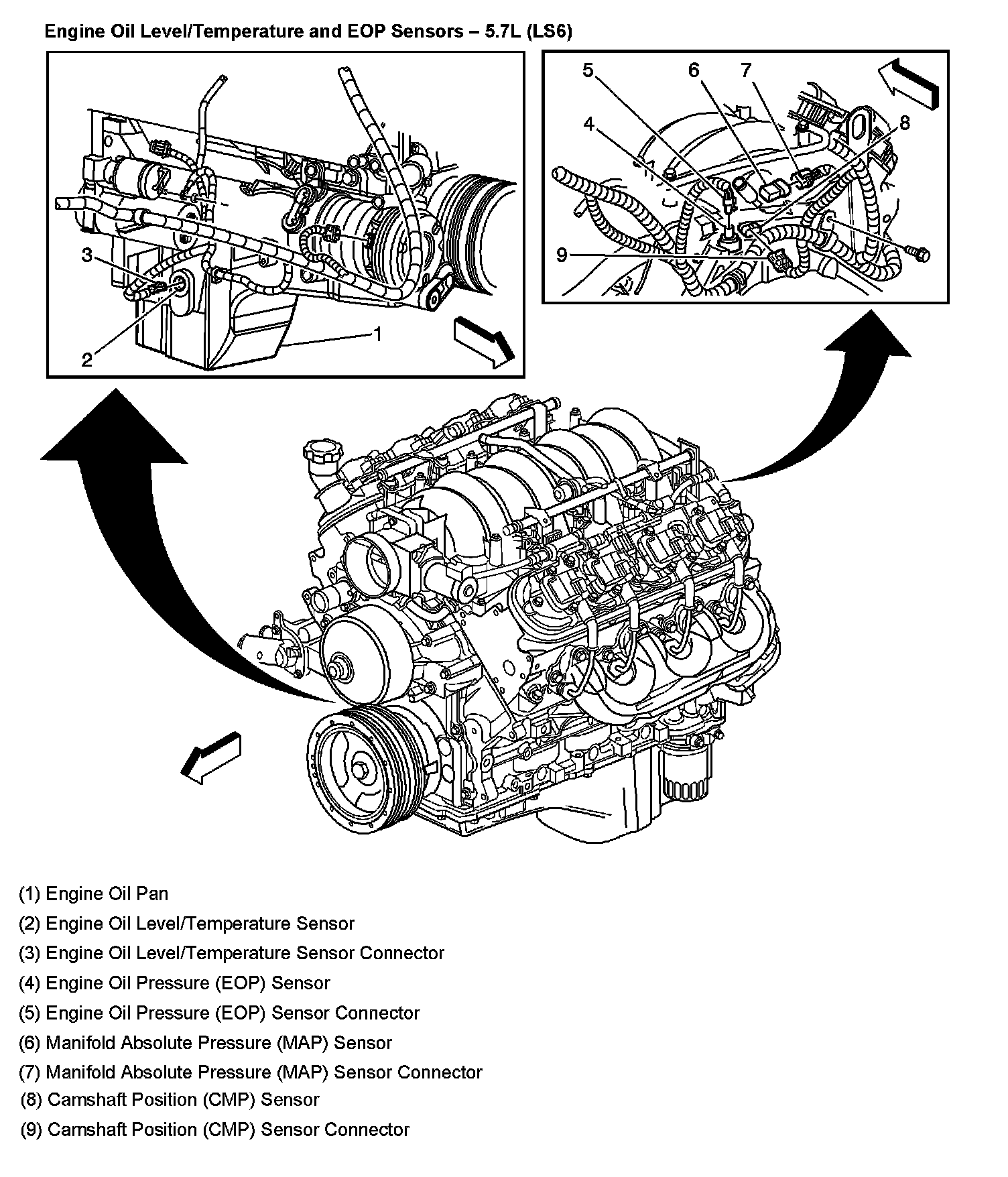

Engine Oil Level/Temperature And EOP Sensors:

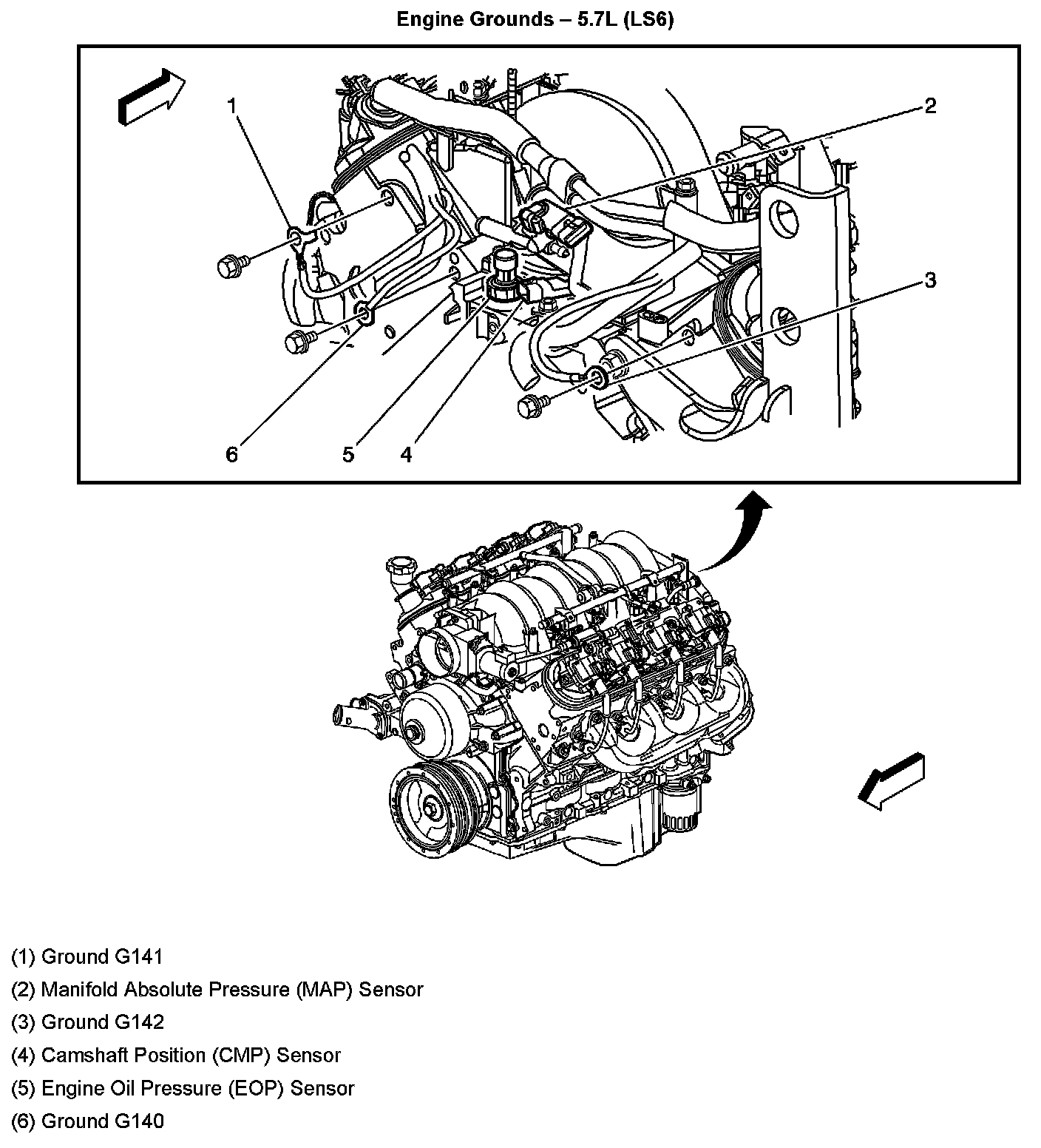

Engine Grounds:

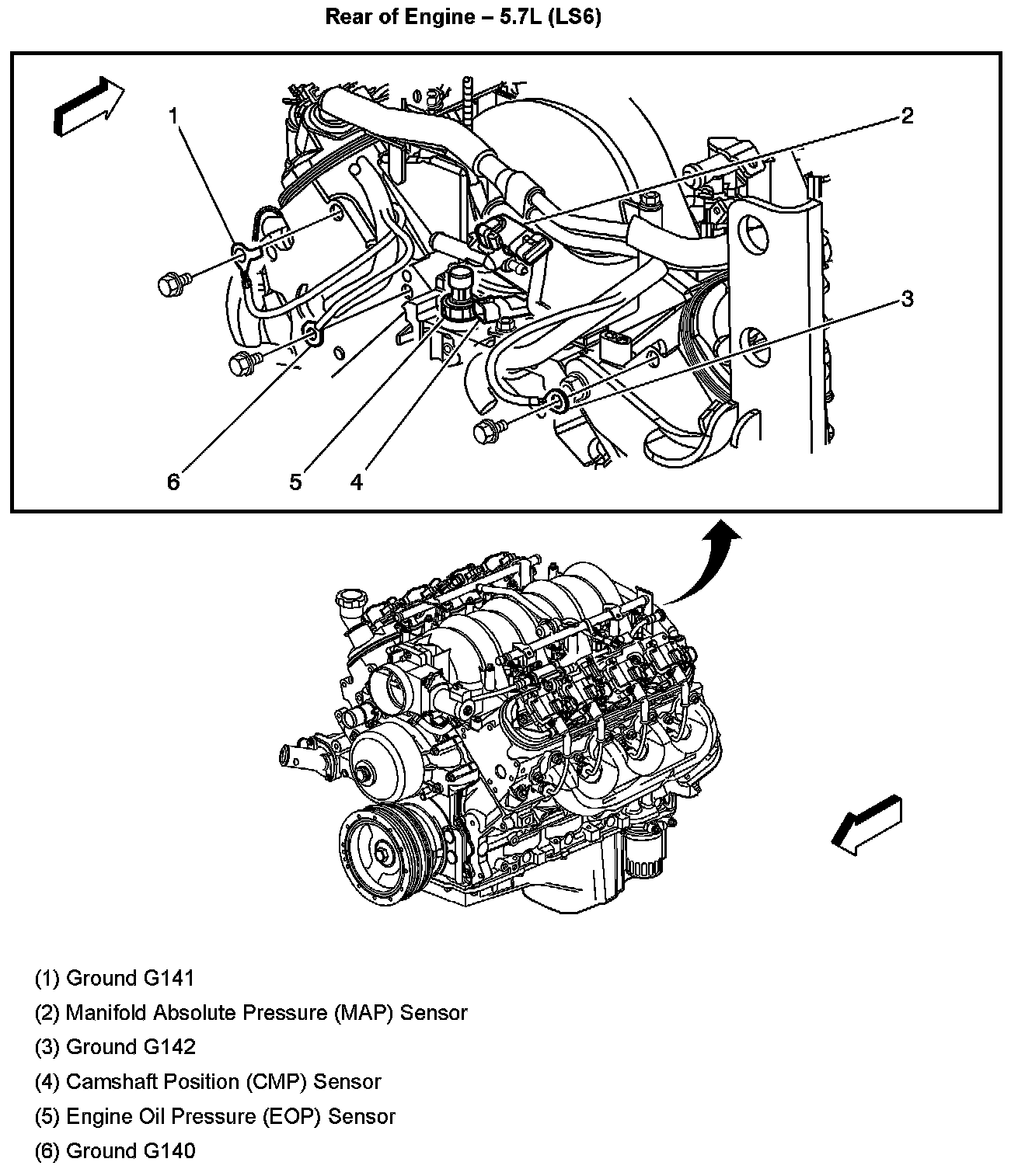

Rear Of Engine:
