Ignition Control Module: Diagrams

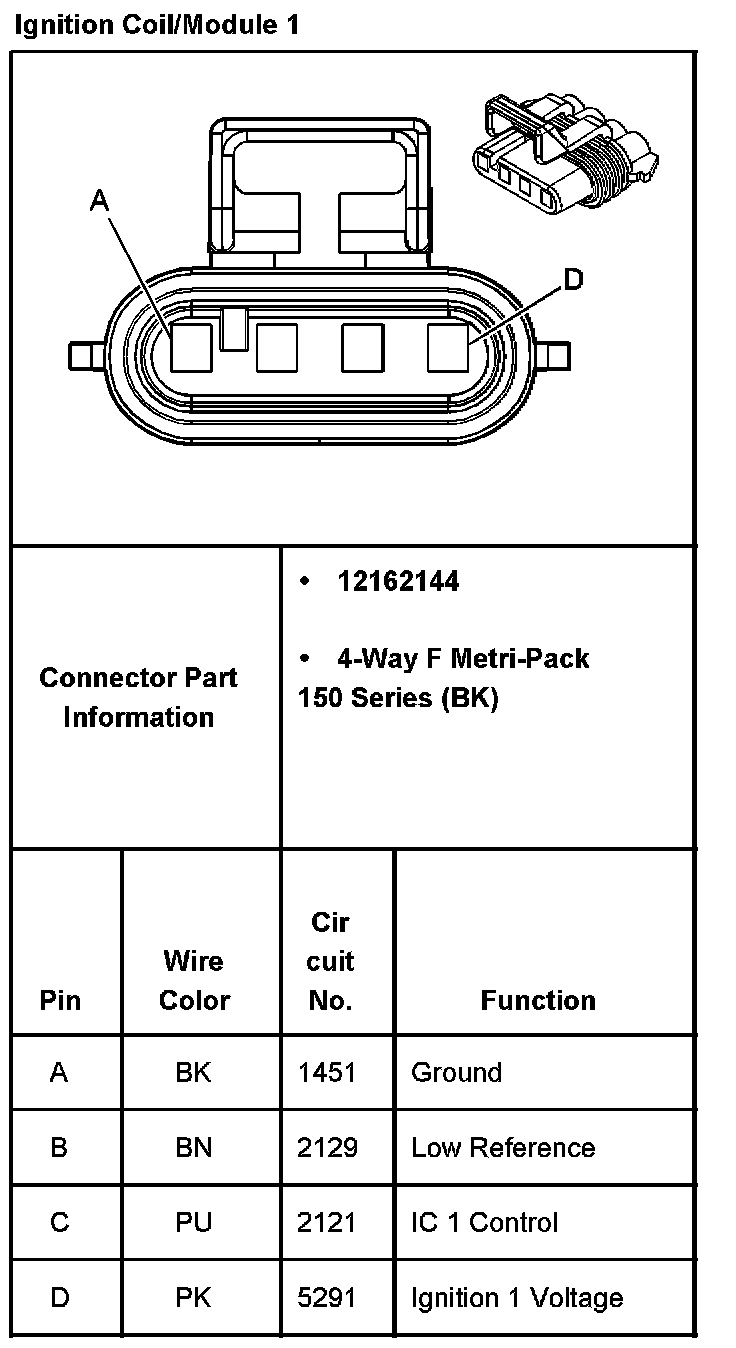

Ignition Coil/Module 1:




Ignition Coil/Module 2:

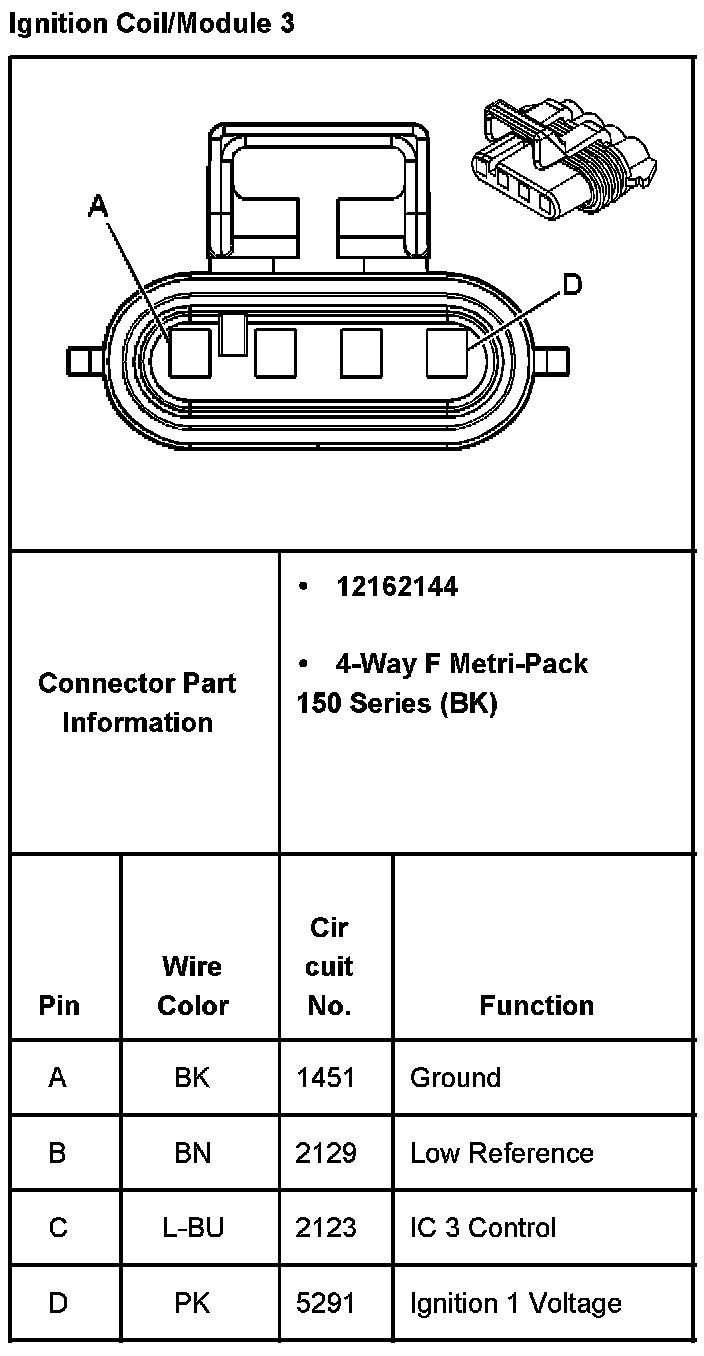

Ignition Coil/Module 3:

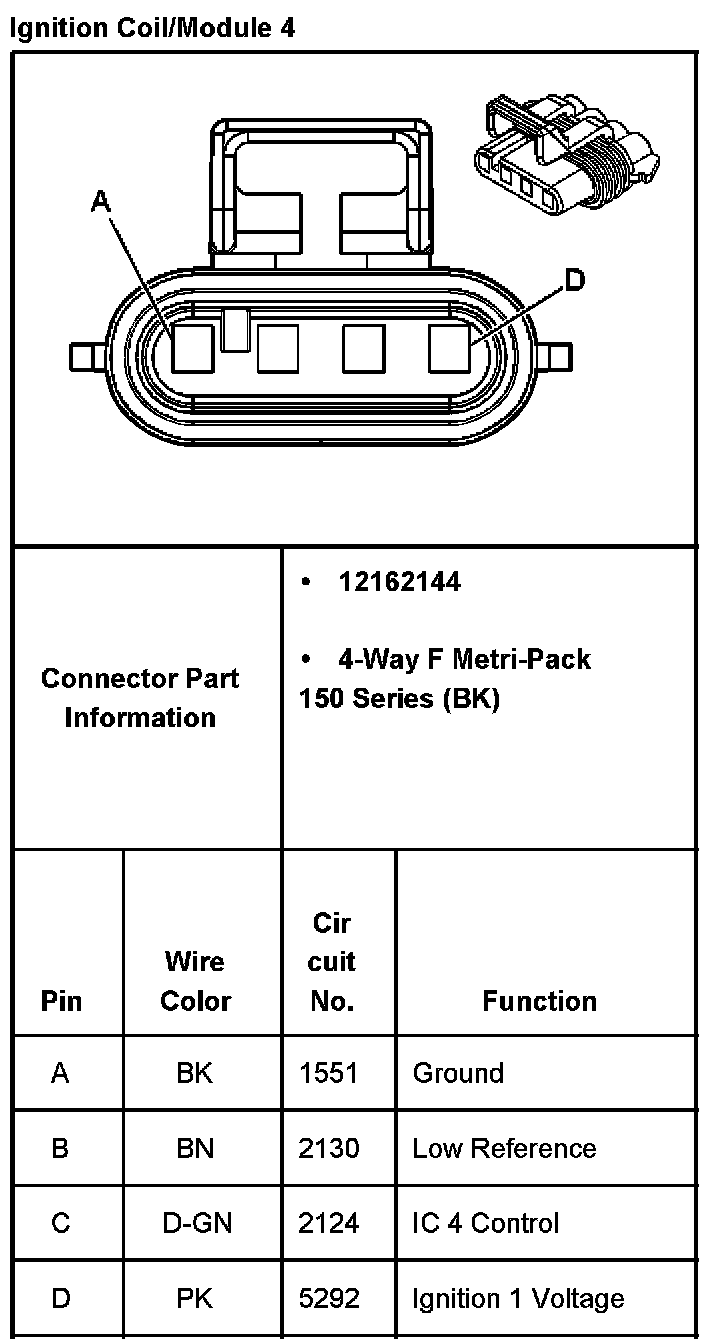

Ignition Coil/Module 4:

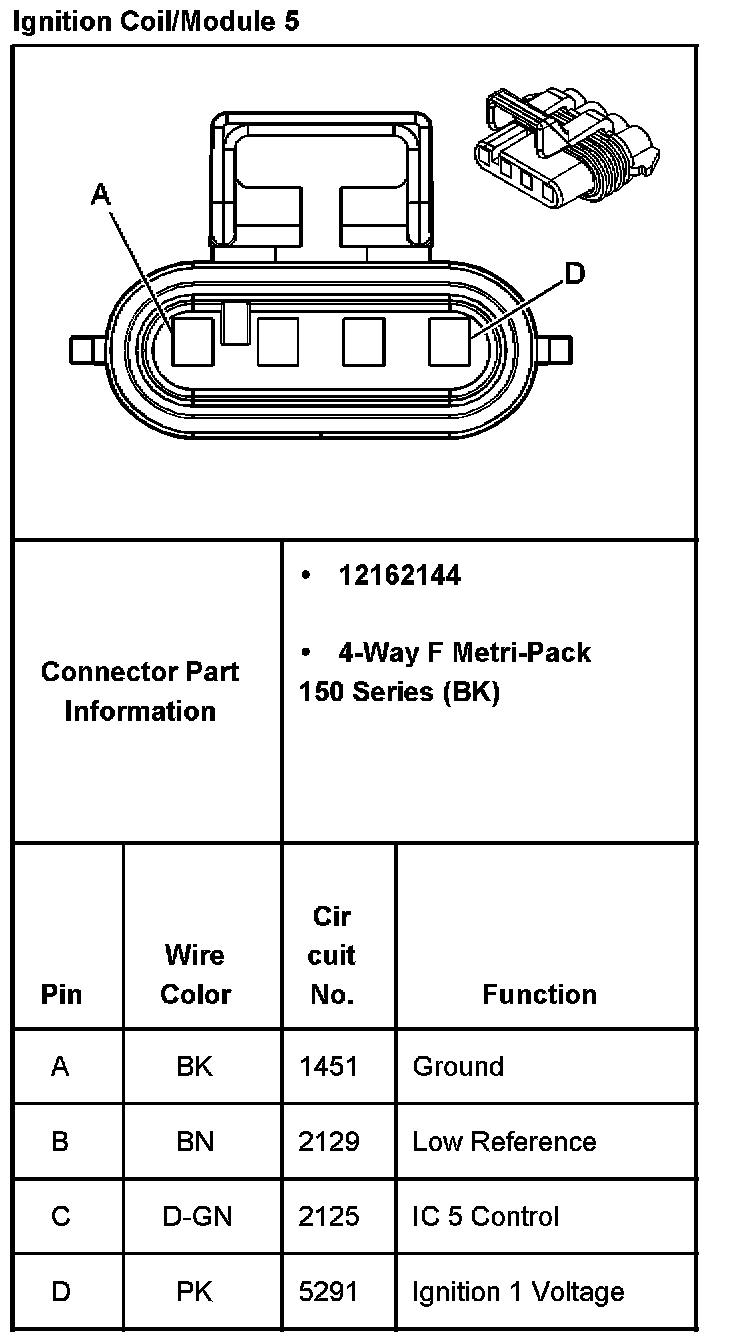

Ignition Coil/Module 5:

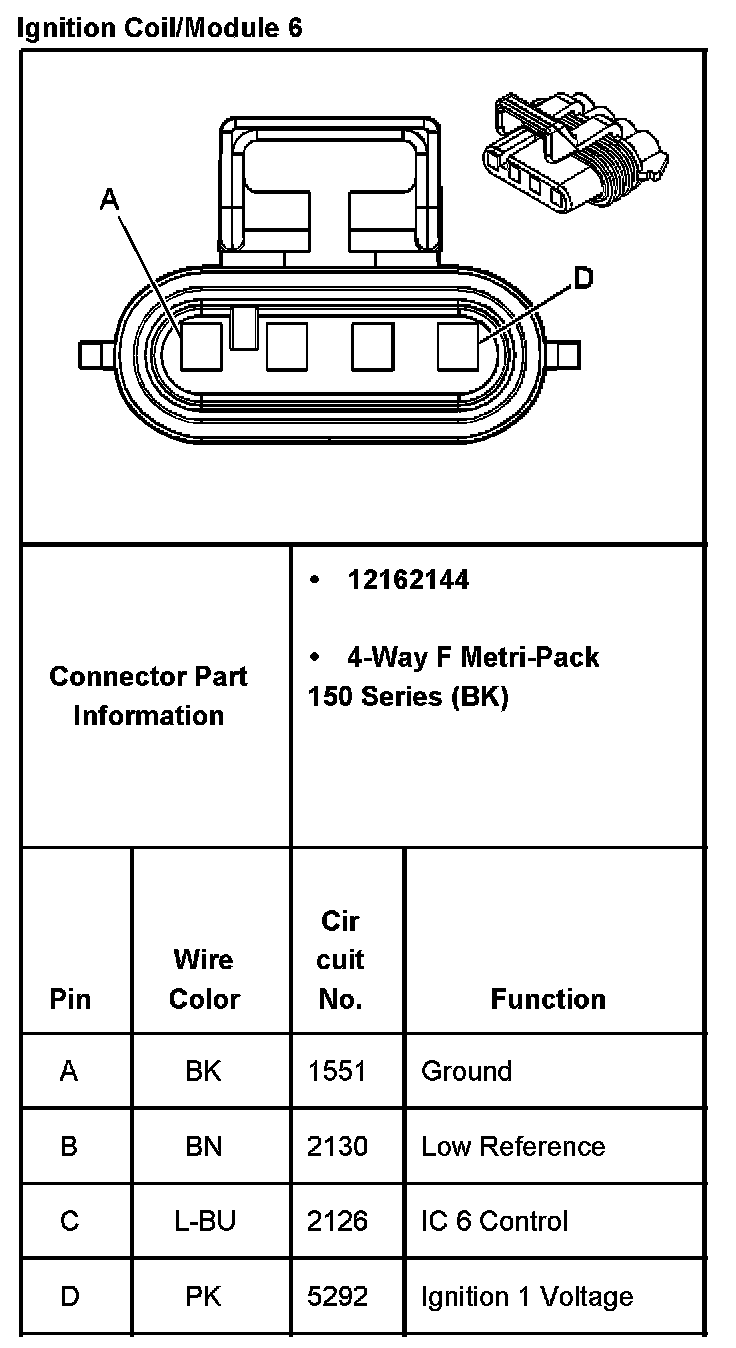

Ignition Coil/Module 6:

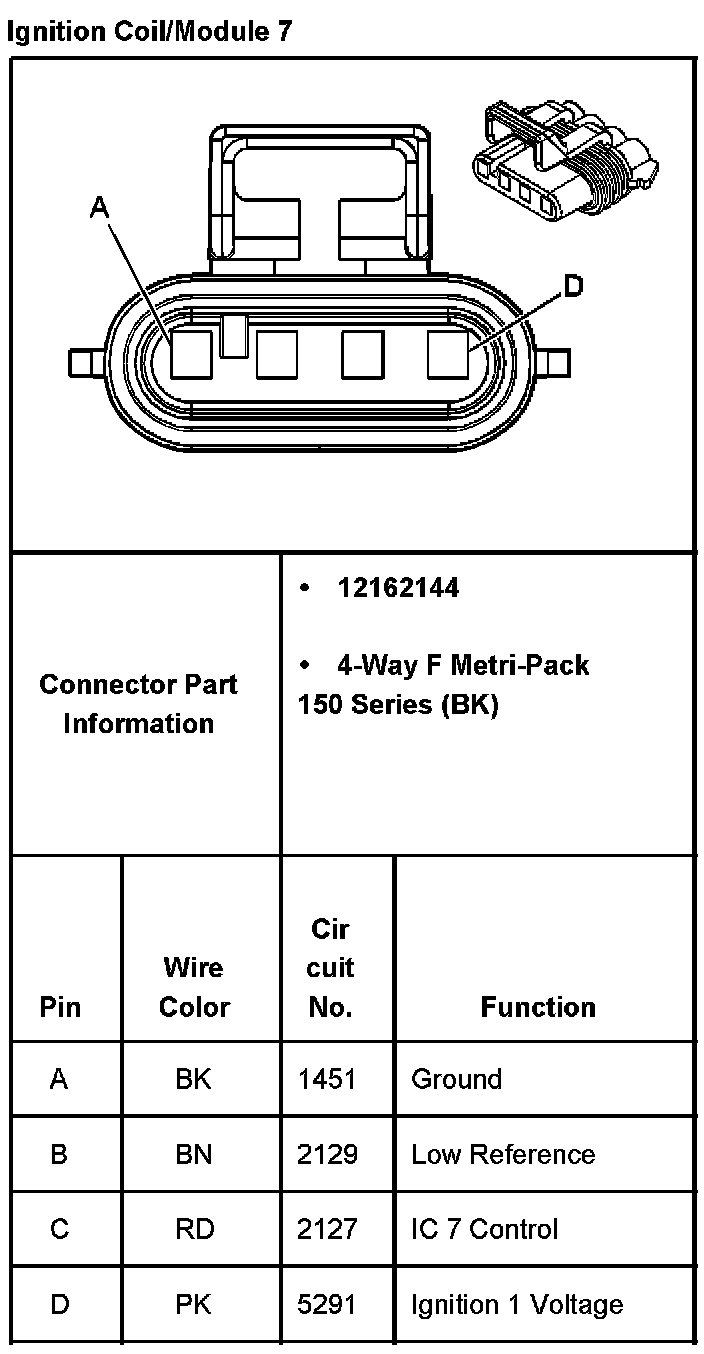

Ignition Coil/Module 7:

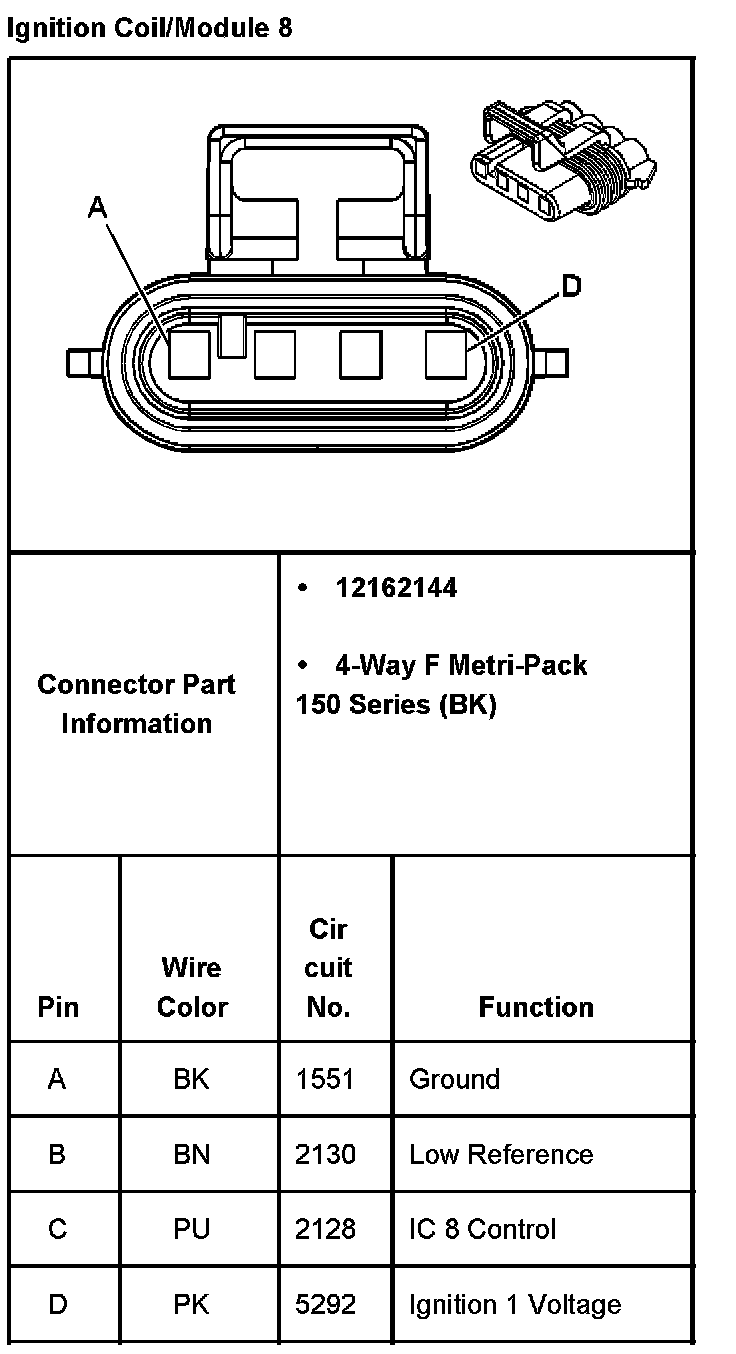

Ignition Coil/Module 8:
