Memory Positioning Module: Service and Repair

MEMORY SEAT CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to SIR Caution in Service Precautions.




1. Remove the front seat cushion.
2. Disconnect the electrical connectors from the heated seat module.

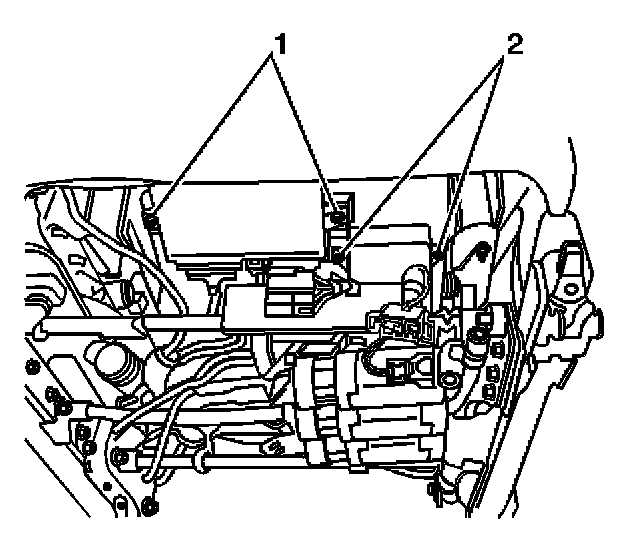

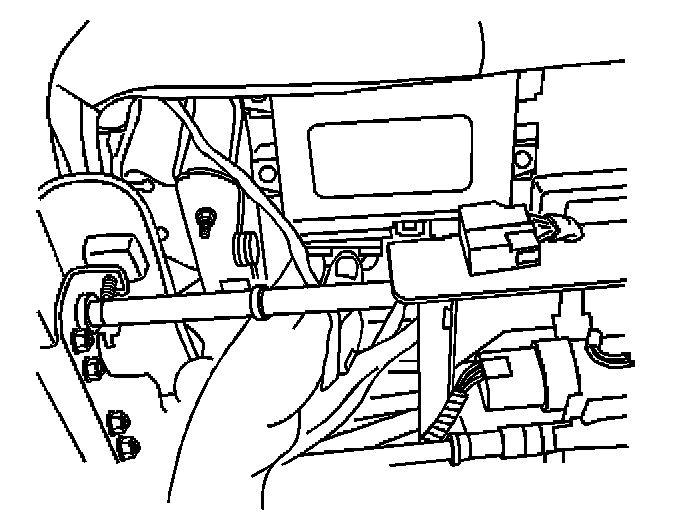

3. Remove the screws (1) retaining the memory seat module to the seat frame.
4. Remove the memory seat module.

INSTALLATION PROCEDURE
1. Install the memory seat module.

NOTE: Refer to Fastener Notice in Service Precautions.

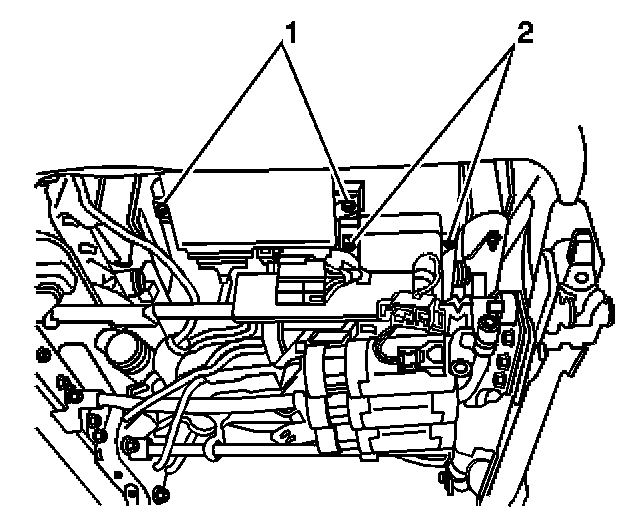

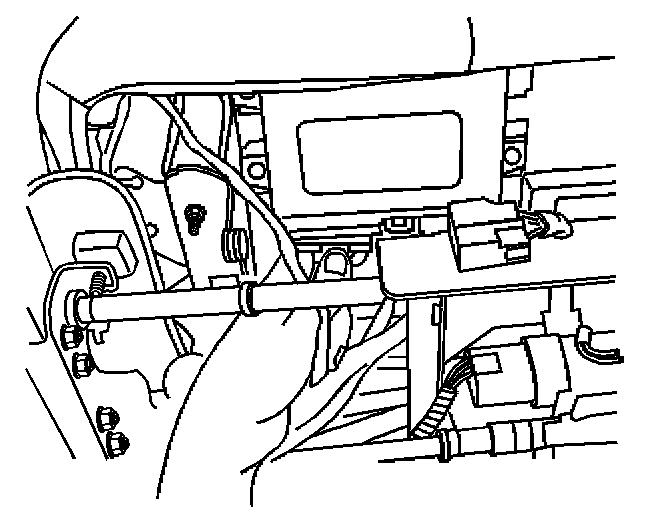

2. Install the memory seat module screws (1).

Tighten
Tighten the screws 2 N.m (18 lb in).




3. Connect the electrical connections to the module.
4. Install the front seat cushion.
5. Calibrate the seat. Refer to Memory Seat Calibration Procedure
