Fastener Tightening Specifications

TORQUE SPECIFICATIONS

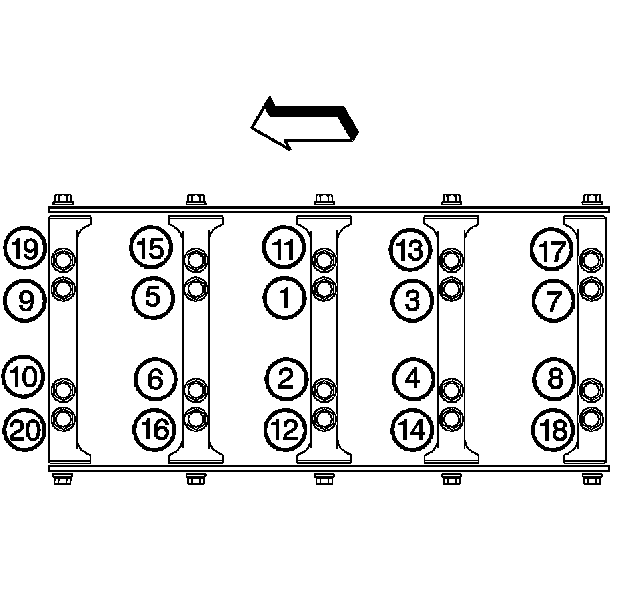

Crankshaft Bearing Cap Bolts
Inner Bolts - First Pass in Sequence 20 Nm (15 ft. lbs.)
Inner Bolts - Final Pass in Sequence 80 degrees
Side Bolts 25 Nm (18 ft. lbs.)
Studs
Outer Studs - First Pass in Sequence 20 Nm (15 ft. lbs.)
Outer Studs - Final Pass in Sequence 53 degrees
Crankshaft Balancer Bolt
Installation Pass to Ensure the Balancer is Completely Installed 330 Nm (240 ft. lbs.)
First Pass Install a NEW Bolt After the Installation Pass and Tighten as Described in the First and Final Passes 50 Nm (37 ft. lbs.)
Final Pass 140 degrees
