Cellular Communication Component Views

Fig 1: Under the Rear Compartment Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Telephone Module
2	Cellular Telephone Module Connector
3	Cellular Telephone Antenna Lead
4	Cellular Telephone Interface Board

Fig 2: Passenger Compartment, Center Front of the Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Slide Switch (Part of the Power Sunroof Switch Assembly)
2	Rear Window Sunshade Switch
3	Overhead Console Courtesy Lamp
4	Noise Compensation Microphone
5	Outside Moisture Sensor
6	Inside Rearview Mirror
7	Overhead Console Courtesy Lamp
8	Cellular Telephone Microphone
9	Garage Door Opener
10	Sunroof Vent Switch (Part of the Power Sunroof Switch Assembly)
11	Overhead Console

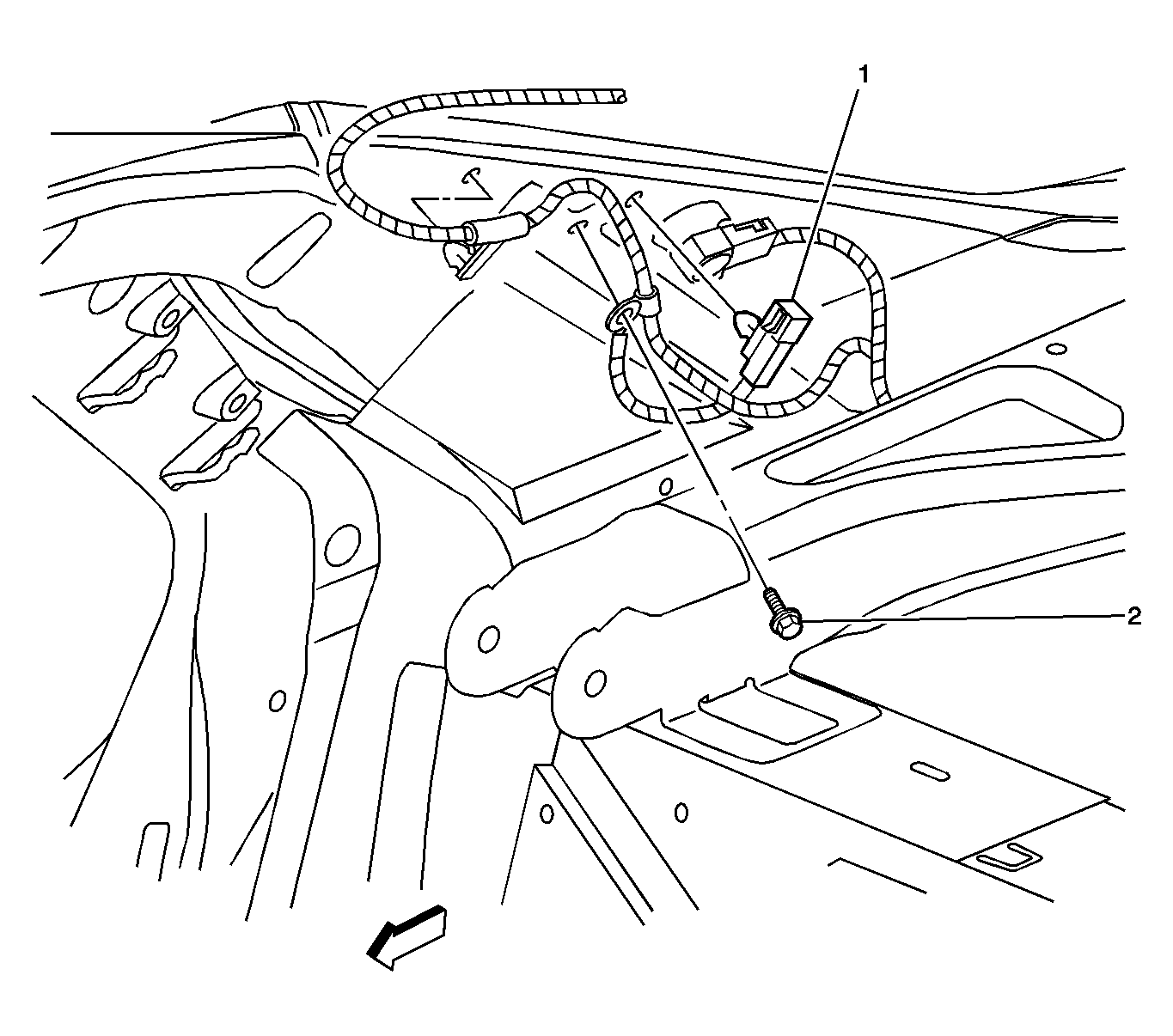

Fig 3: Right Rear Corner of Passenger Compartment, Above Rear Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Onstar® Cellular Antenna Connector
2	G304

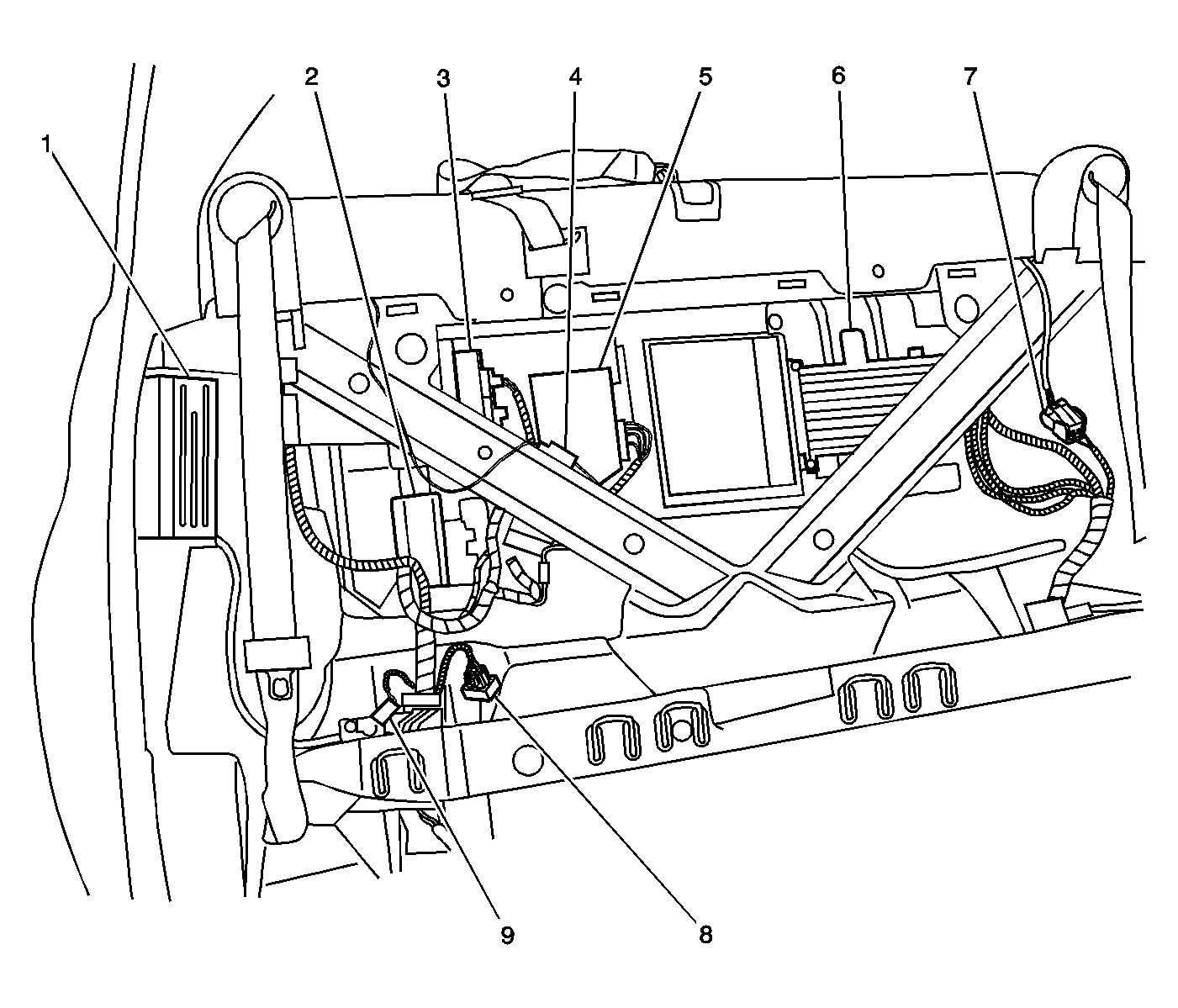

Fig 4: Behind Rear Seat Back Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RR Inflatable Restraint Side Impact Module
2	Rear Integration Module (RIM)
3	Electronic Suspension Control (ESC) Module
4	C205
5	Vehicle Communication Interface Module (VCIM)
6	Audio Amplifier
7	T.V. Antenna Module
8	Rear Door Lock Relay (w/B9Q)
9	RR Inflatable Restraint Side Impact Module Connector

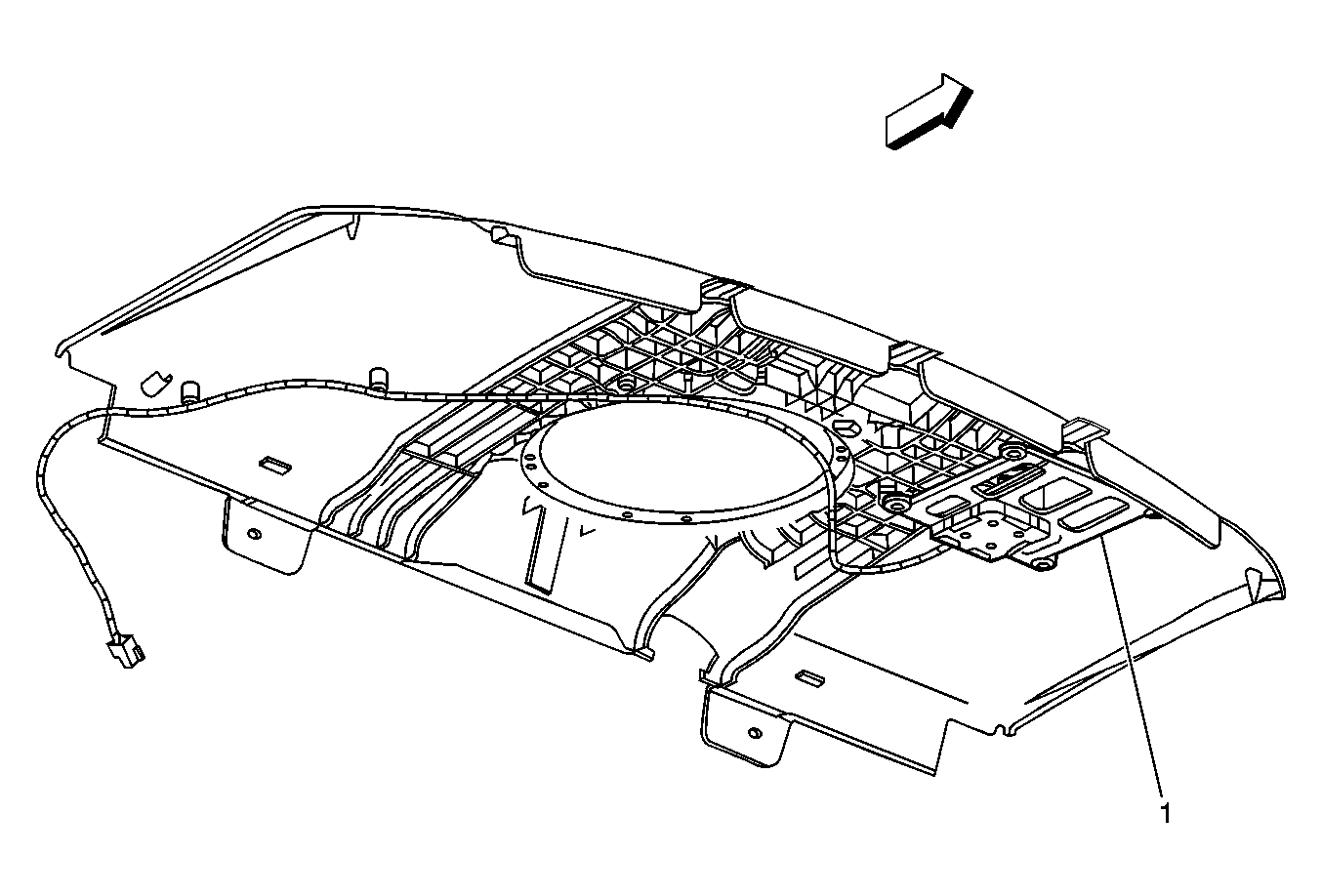

Fig 5: Front of Rear Compartment, Under Rear Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Onstar ® GPS Antenna
