Navigation System Component Views

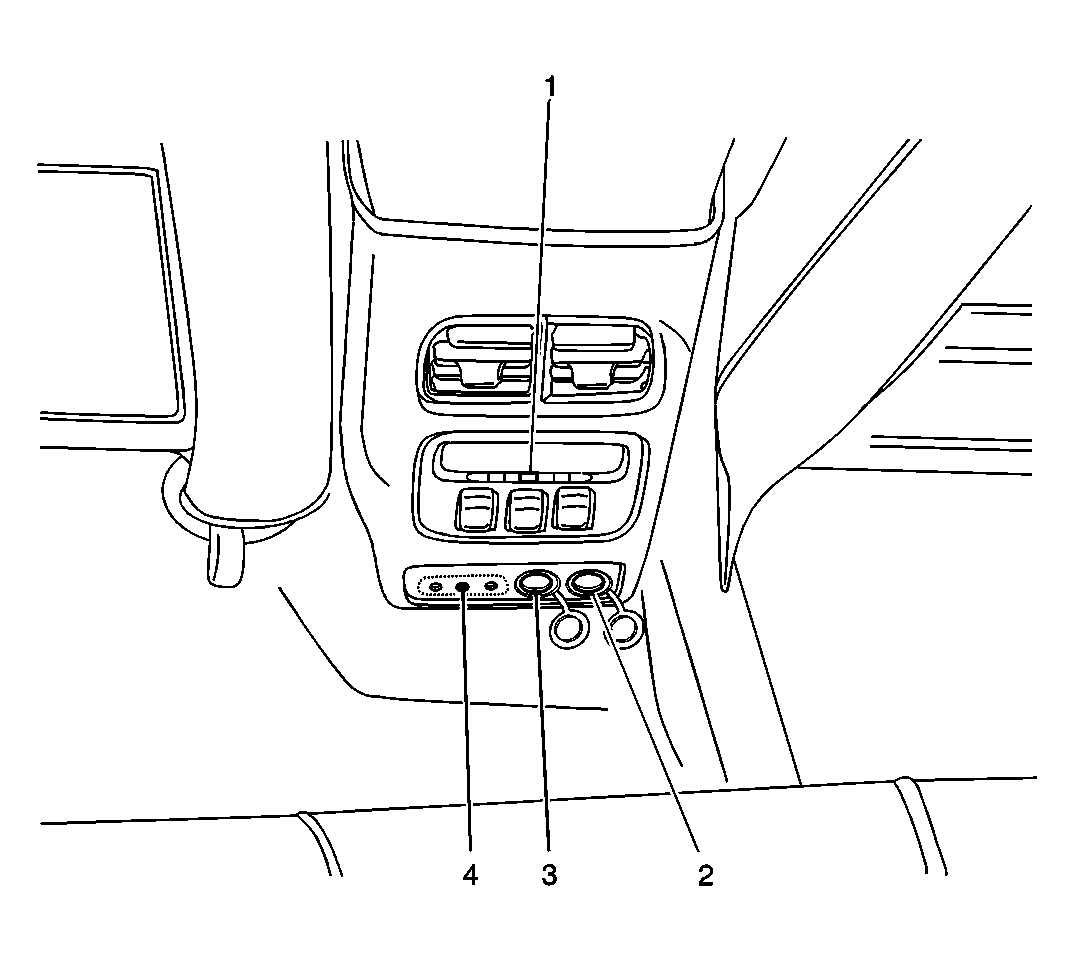

Fig 1: Center of the Passenger Compartment, Behind the Center Console Storage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module - Auxiliary
2	Auxiliary Power Outlet - RR
3	Auxiliary Power Outlet - LR
4	Auxiliary RCA Video Jacks

Fig 2: Right Corner of the Passenger Compartment, Above the Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

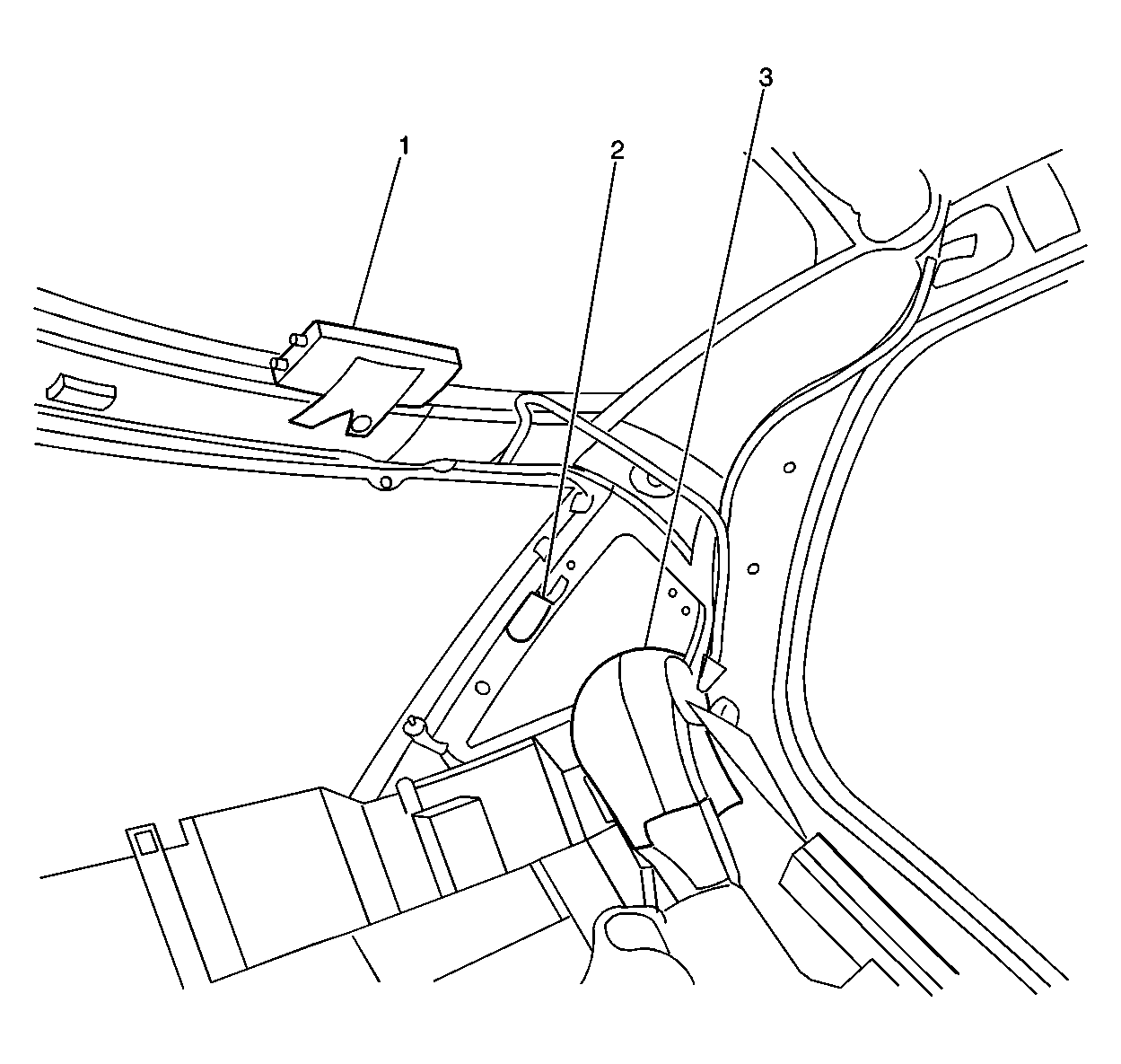

Fig 3: Left Rear Corner of the Passenger Compartment, Above the Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.
