Wiper/Washer System Component Views

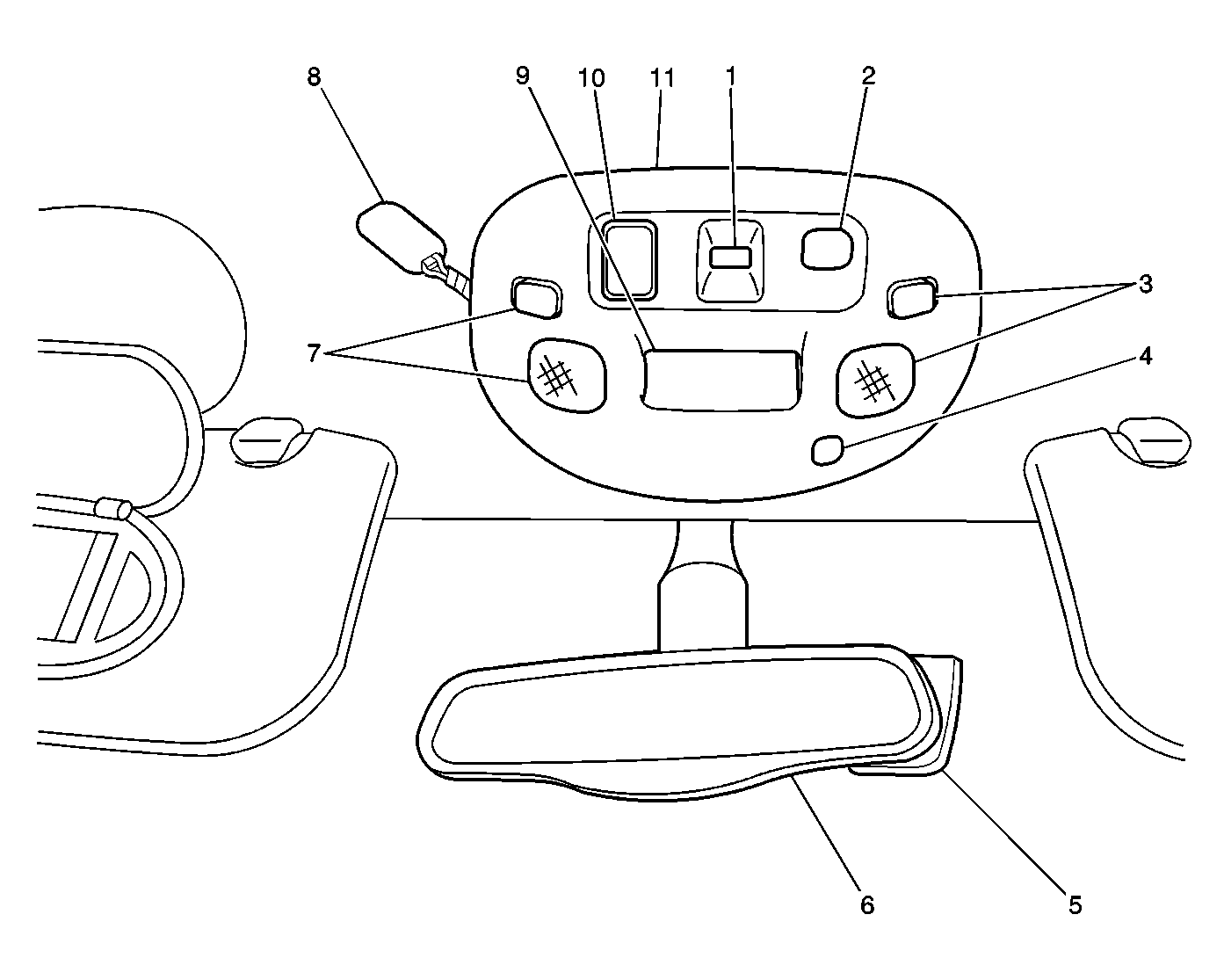

Fig 1: Overhead Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Slide Switch
2	Rear Window Sunshade Switch
3	Overhead Console Courtesy Lamp
4	Noise Cancellation Microphone
5	Outside Moisture Sensor
6	Inside Rearview Mirror
7	Overhead Console Courtesy Lamp
8	Cellular Telephone Microphone - (w/UE1)
9	Garage Door Opener
10	Sunroof Vent Switch
11	Overhead Console

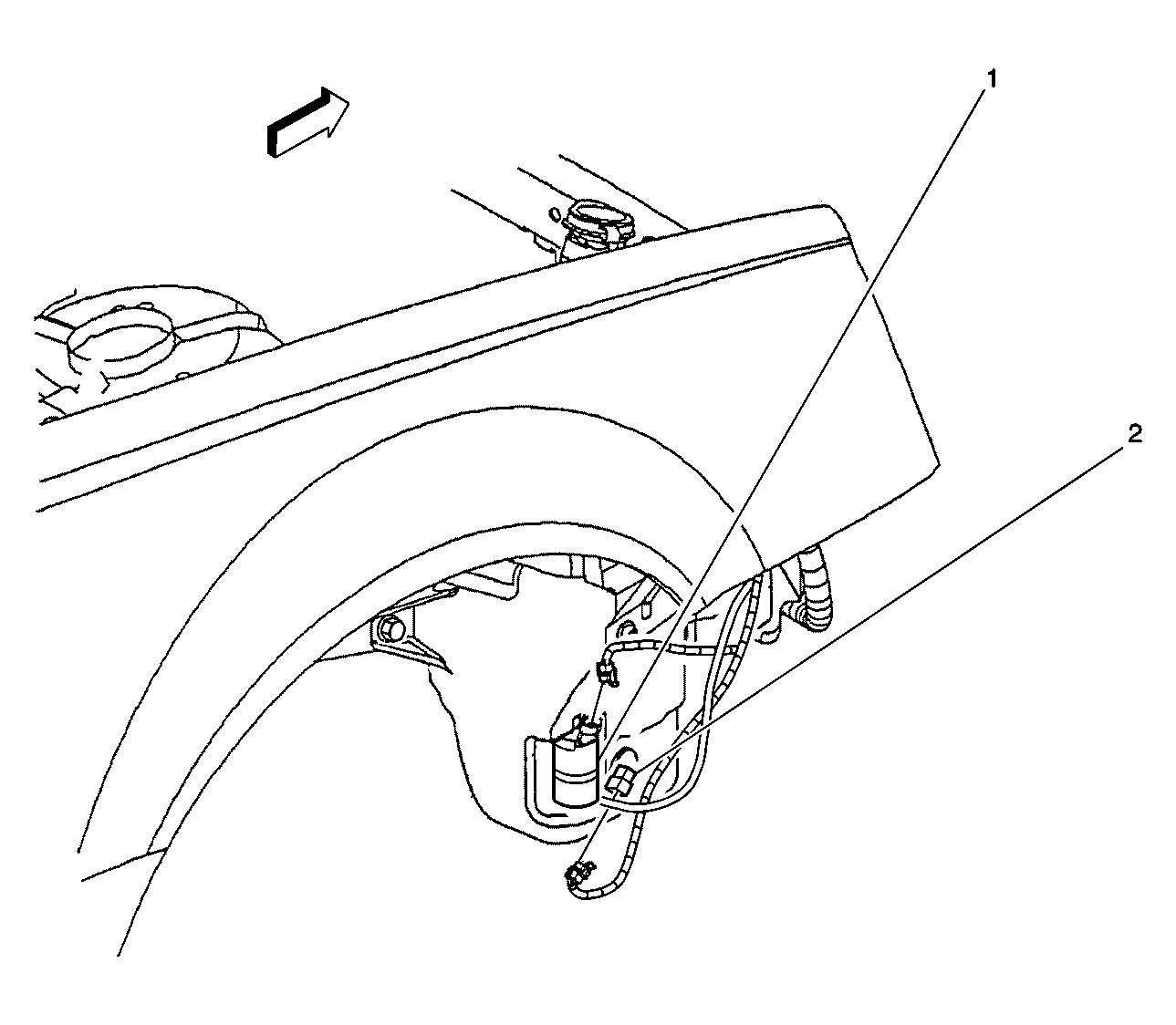

Fig 2: Windshield Washer Reservoir Component View (Right Side of the Engine Compartment)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Windshield Washer Solvent Level Switch

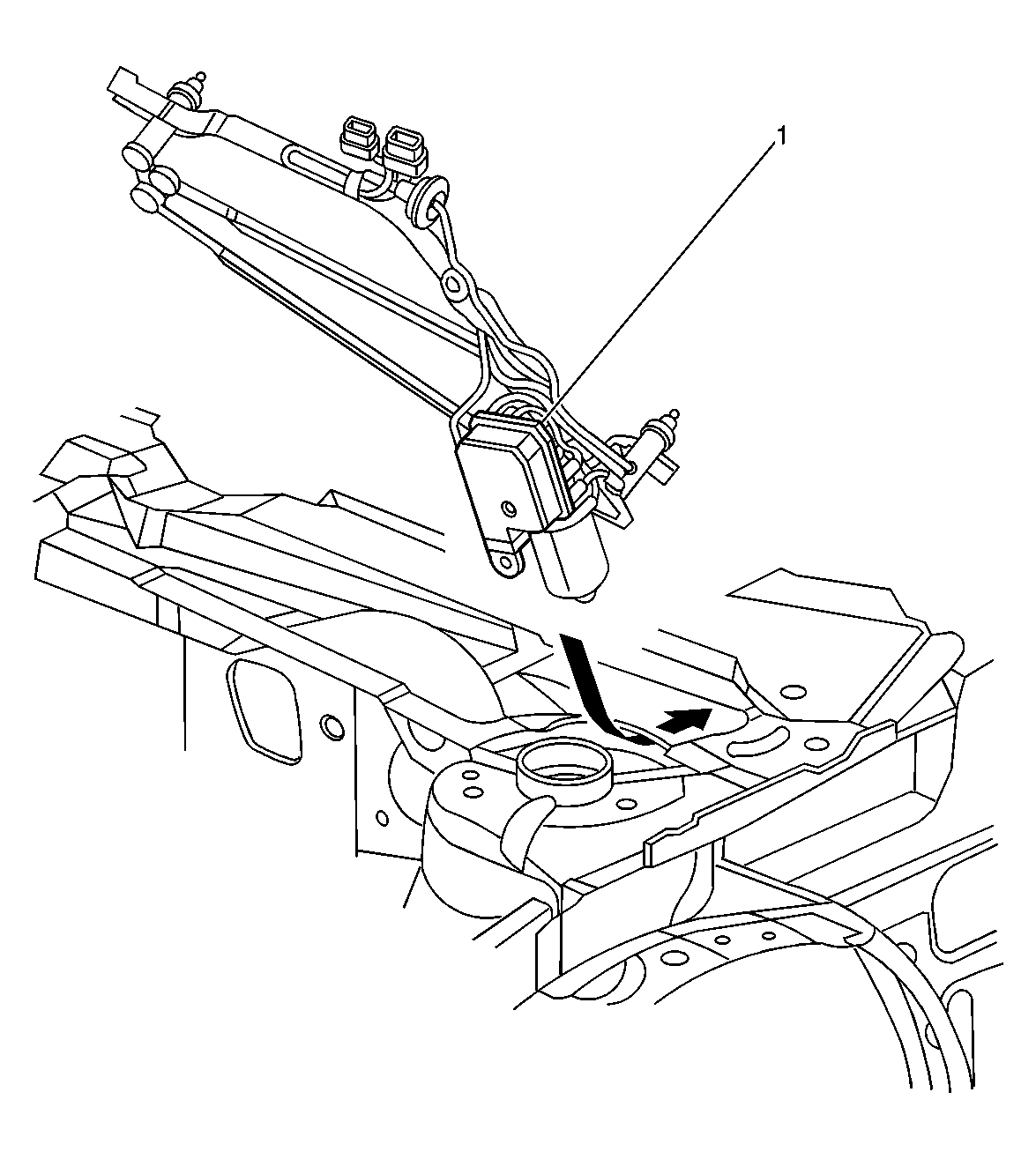

Fig 3: Wiper Motor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor

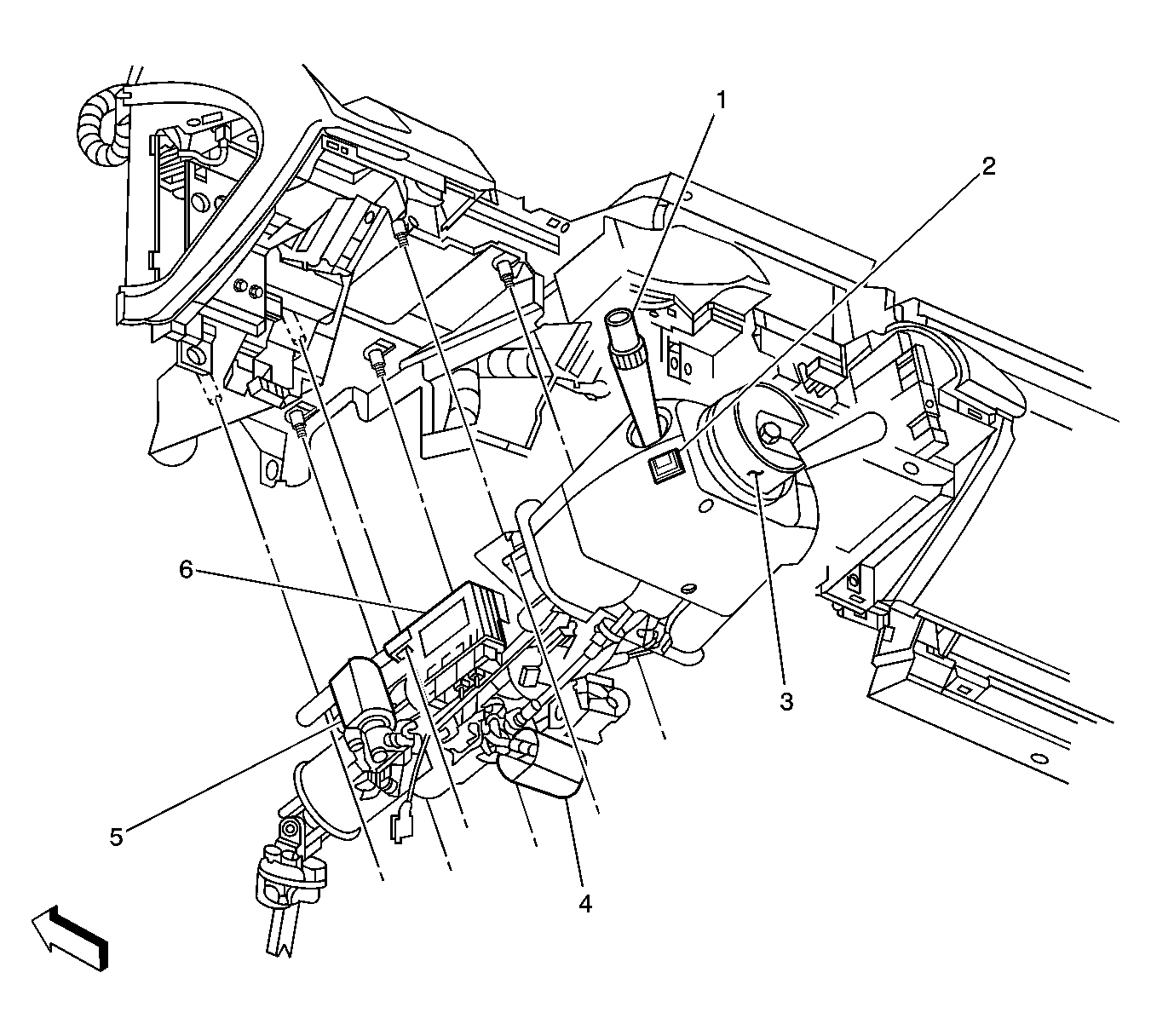

Fig 4: Under the Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.
