Steering Wheel and Column Component Views

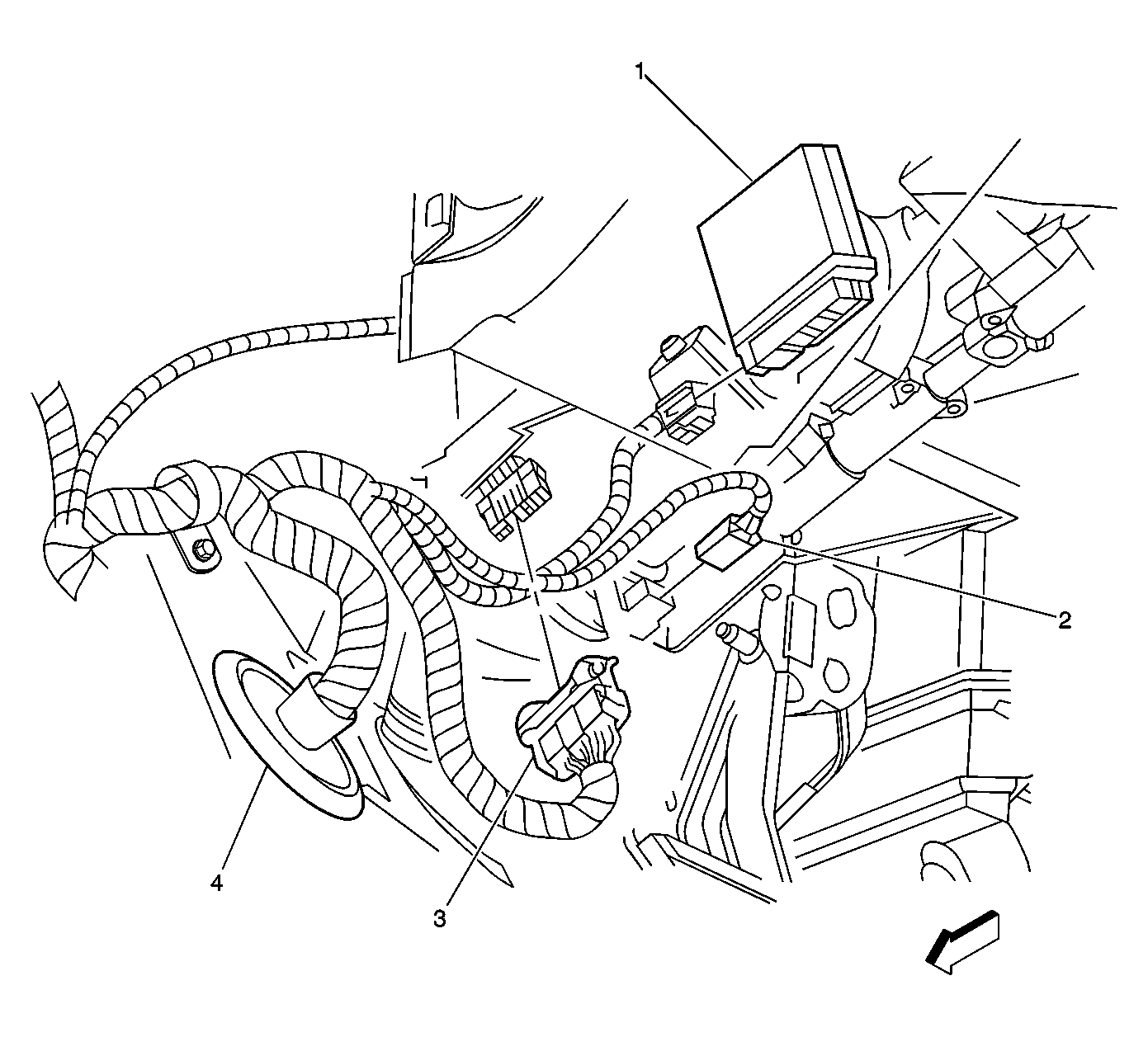

Fig 1: Passenger Compartment, at the Base of the Steering Column Component View
GM154378Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column Tilt / Telescoping Module
2 Steering Wheel Position Sensor (SWPS)
3 C202
4 P101
Fig 2: Under the Left Side of the Instrument Panel Component View
GM525005Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Multifunction Lever
2 Tilt/Telescope Switch
3 Horn Switch (Hidden)
4 Tilt Actuator
5 Telescope Actuator
6 Steering Column Module

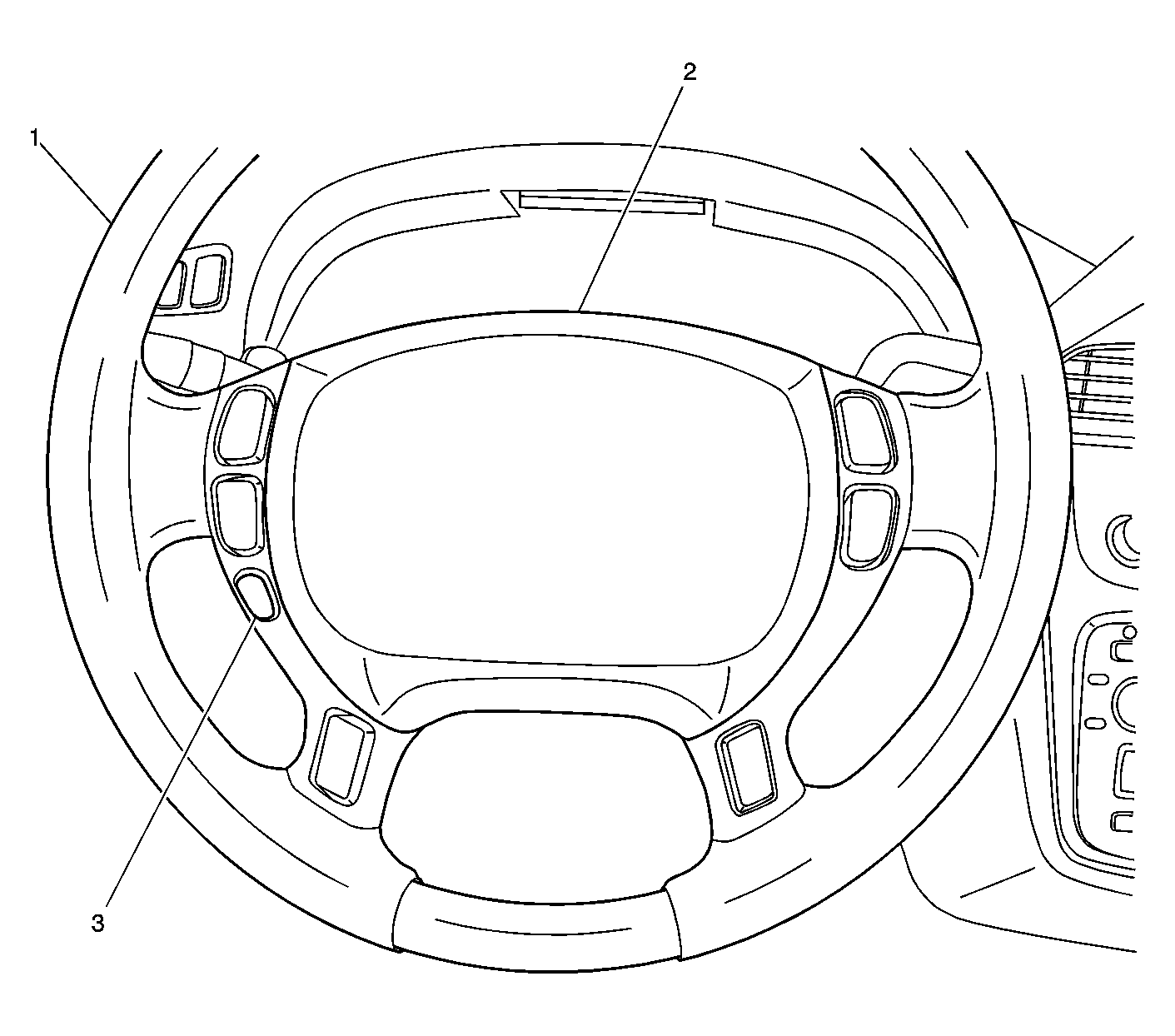

Fig 3: Steering Wheel Component View
GM1410237Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Steering Wheel
2 Heated Steering Wheel Control Module (Behind Inflatable Restraint Steering Wheel Module)
3 Heated Steering Wheel Switch
Fig 4: Left Front of the Passenger Compartment, in the Steering Column Component View
GM525021Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Theft Deterrent Control Module
3 Ignition Lock Cylinder Control Actuator
Fig 5: Beneath the Center Console Component View
GM338809Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Lock Cable Assembly
2 Shift Interlock Solenoid Connector
