Installation Procedure

  1. Install the module to the steering wheel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.

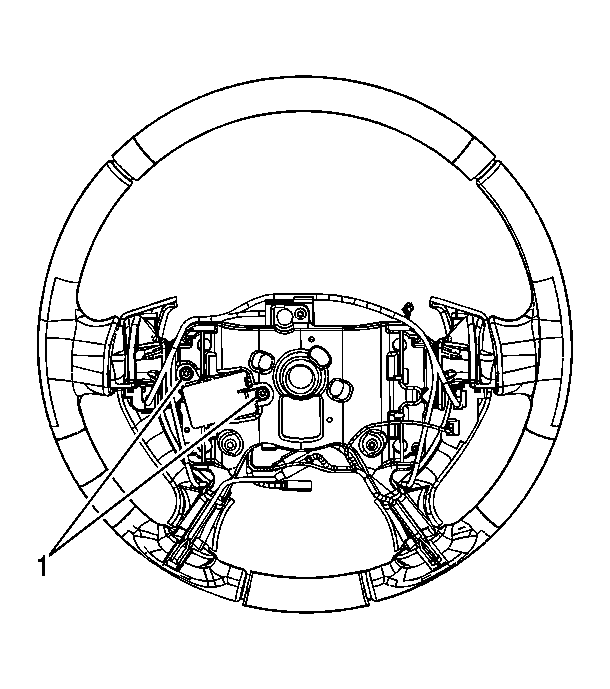

    Fig 1: View Of Steering Wheel Heat Module Retaining Screws
    GM1390625Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 retaining screws (1).

    Tighten:  Tighten the retaining screws to 5 N.m (44 lb in).

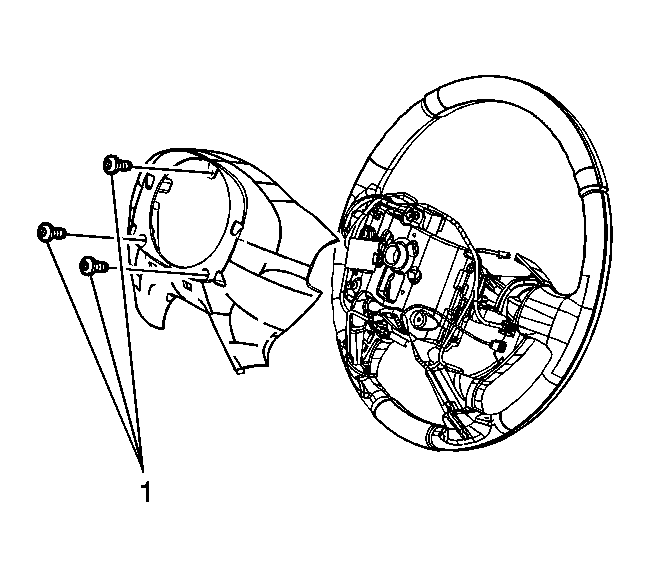

    3. Fig 2: View Of Steering Wheel Rear Shroud Screws
    GM1390622Courtesy of GENERAL MOTORS CORP.
  3. Install the rear shroud of the steering wheel.

    Tighten:  Tighten the retaining screws (1) to 4.5 N.m (40 lb in).

  4. Install the steering wheel. Refer to Steering Wheel Replacement .
