Installation Procedure

  1. Install the memory seat control module (2) to the driver side seat trim panel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners (3) that retain the memory seat control module to the driver side seat trim panel.

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

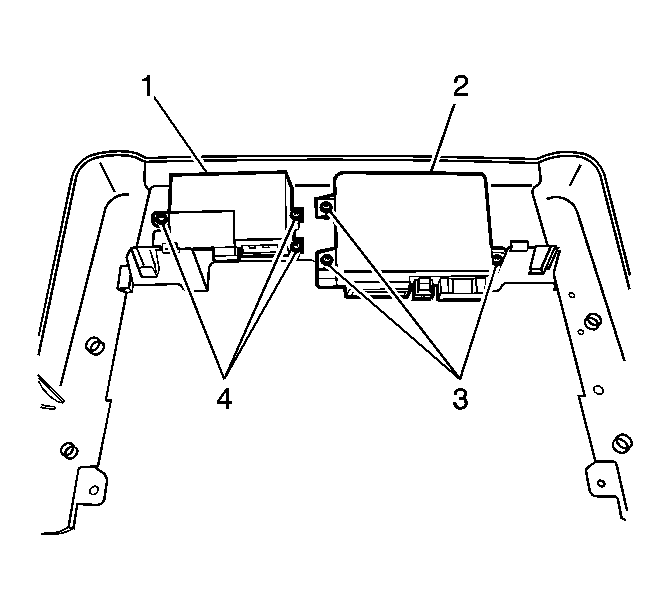

    3. Fig 1: View Of Memory Seat Control Module, Climate Control Seat Module & Fasteners
    GM1214084Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors to the memory seat control module.
  4. Install the driver side seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  5. Install the driver side front seat cushion assembly. Refer to Seat Cushion Replacement - Front .
  6. Calibrate the seat. Refer to Memory Seat Calibration Procedure .
