Power Door Systems Component Views

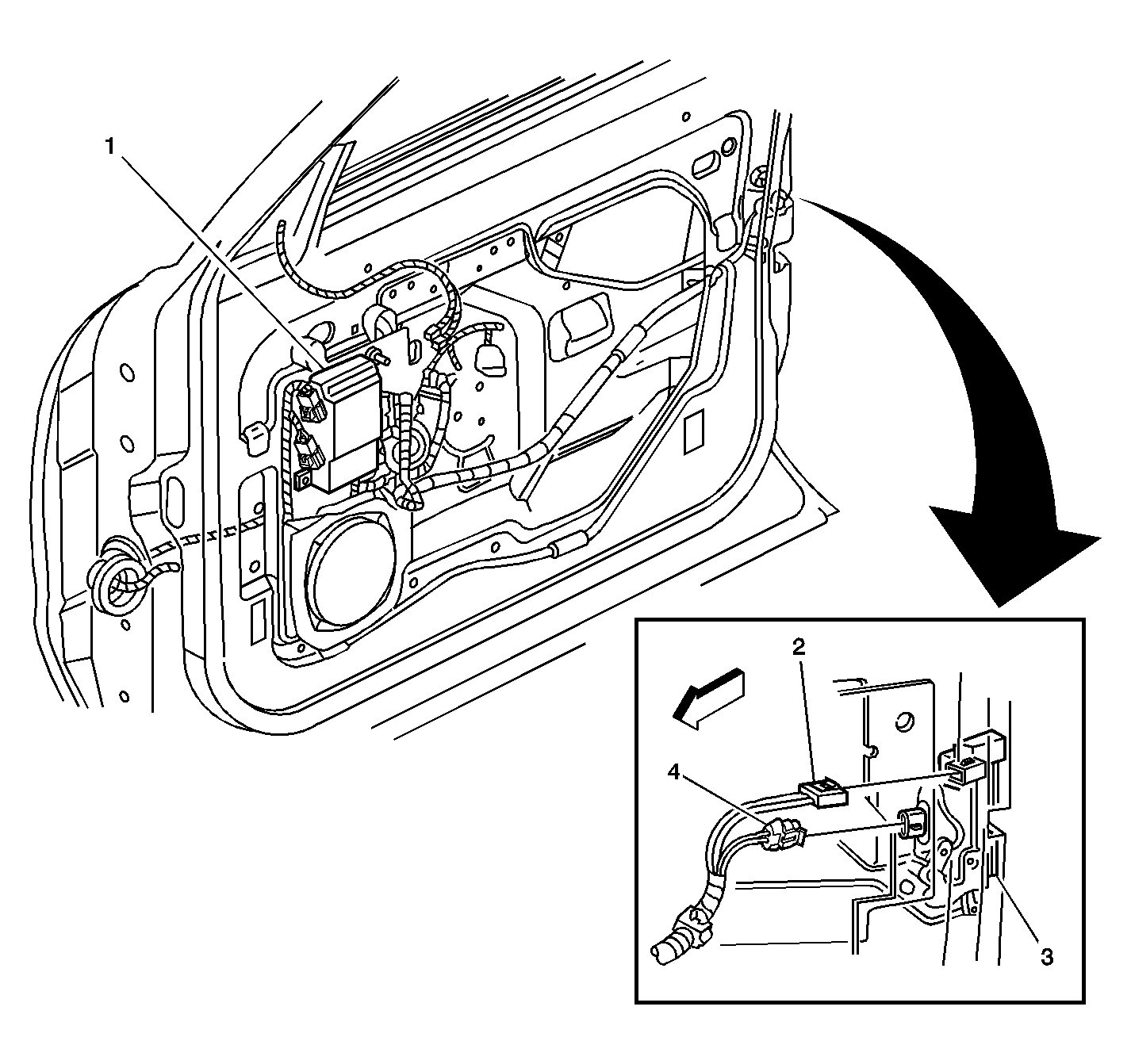

Fig 1: Front Door Lock Actuators Component View
GM788554Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Passenger Door Module (FPDM) (Driver Similar)
2 Front Passenger Door Lock Actuator C1 (Driver Similar)
3 Front Passenger Door Latch Assembly (Driver Similar)
4 Front Passenger Door Lock Actuator C2 (Driver Similar)

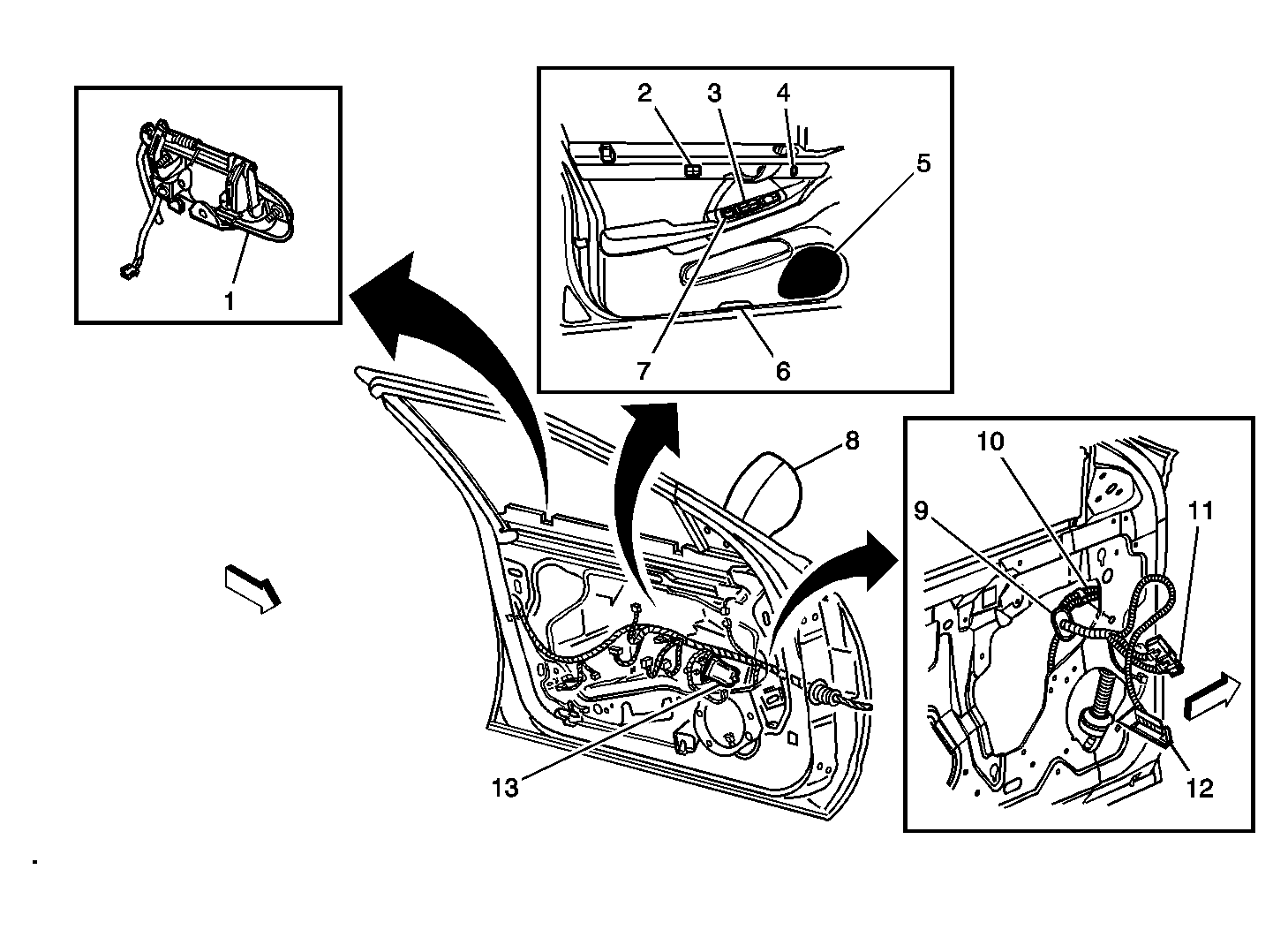

Fig 2: Front Door Component View
GM788551Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Cylinder Switch Driver, Attached to the Door Handle - Driver (Passenger Similar)
2 Memory/Personalization Function Seat Switch - Driver (Passenger Similar)
3 Driver Door Switch Assembly (Passenger Similar)
4 Door Lock Switch - Driver (Passenger Similar)
5 Speaker - LF Door (RF Similar)
6 LF Door Courtesy Lamp (RF Similar)
7 Heated Seat Switch - Driver (Passenger Similar)
8 Outside Rearview Mirror - Driver (Passenger Similar)
9 P501 - Driver/P601 Passenger
10 S501
11 Driver Door Module Connector (Passenger Similar)
12 C501 - Driver/C601 - Passenger
13 Window Motor - Driver (Passenger Similar)

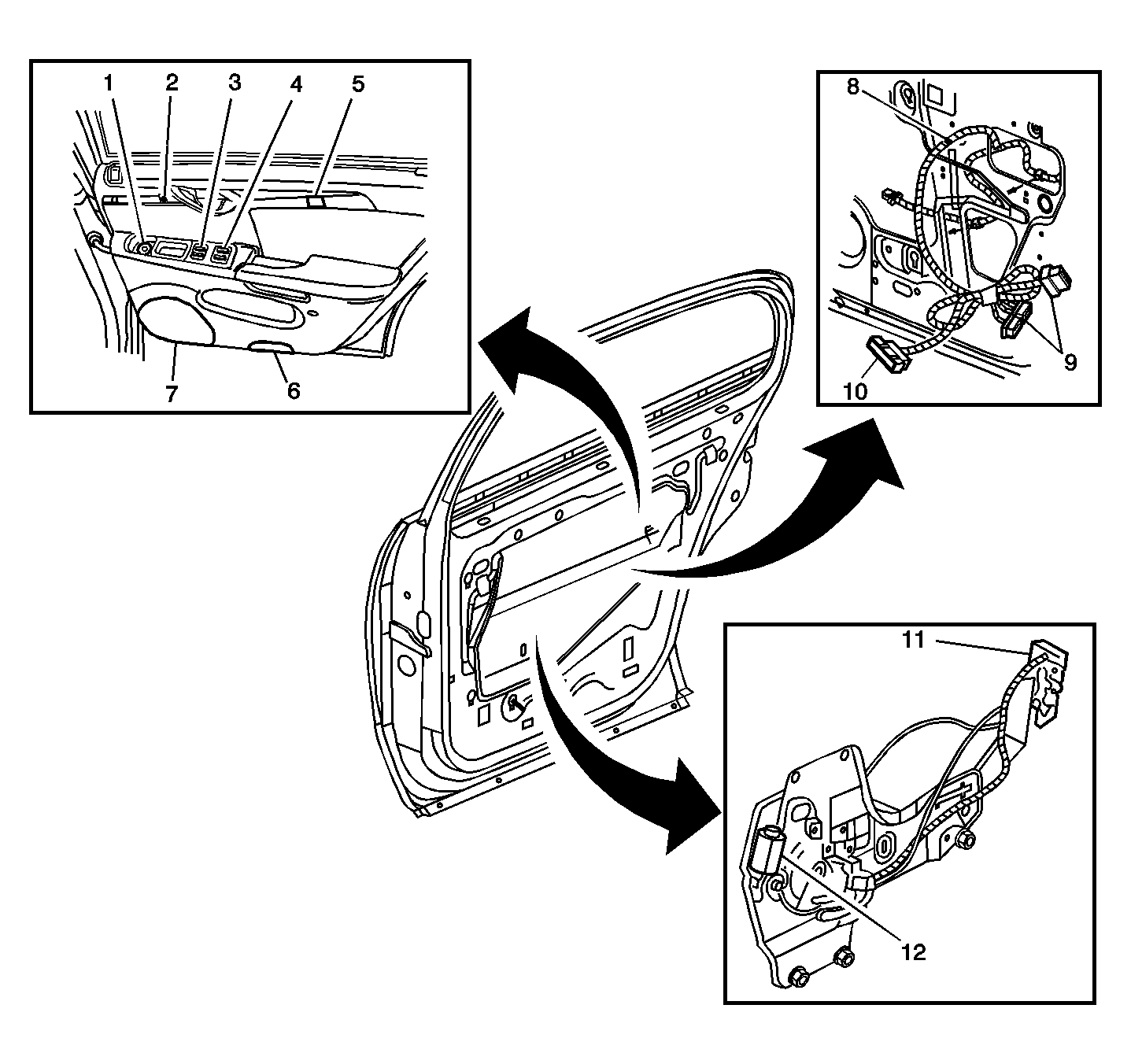

Fig 3: Rear Door Component View
GM788557Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RR Cigar Lighter (LR Similar)
2 Seat Lumbar Switch RR (LR Similar)
3 Heated Seat Switch - RR (LR Similar)
4 Window Switch - RR (LR Similar)
5 Door Lock Switch - RR (LR Similar)
6 Door Courtesy Lamp - RR (LR Similar)
7 RR Door Speaker (LR Similar)
8 S800 (RR Door)/S700 (LR Door)
9 C800 (RR Door)/C700 (LR Door)
10 C801 (RR Door)/C701 (LR Door)
11 Right Rear Door Module (RRDM) (LR Similar)
12 Window Motor RR (LR Similar)

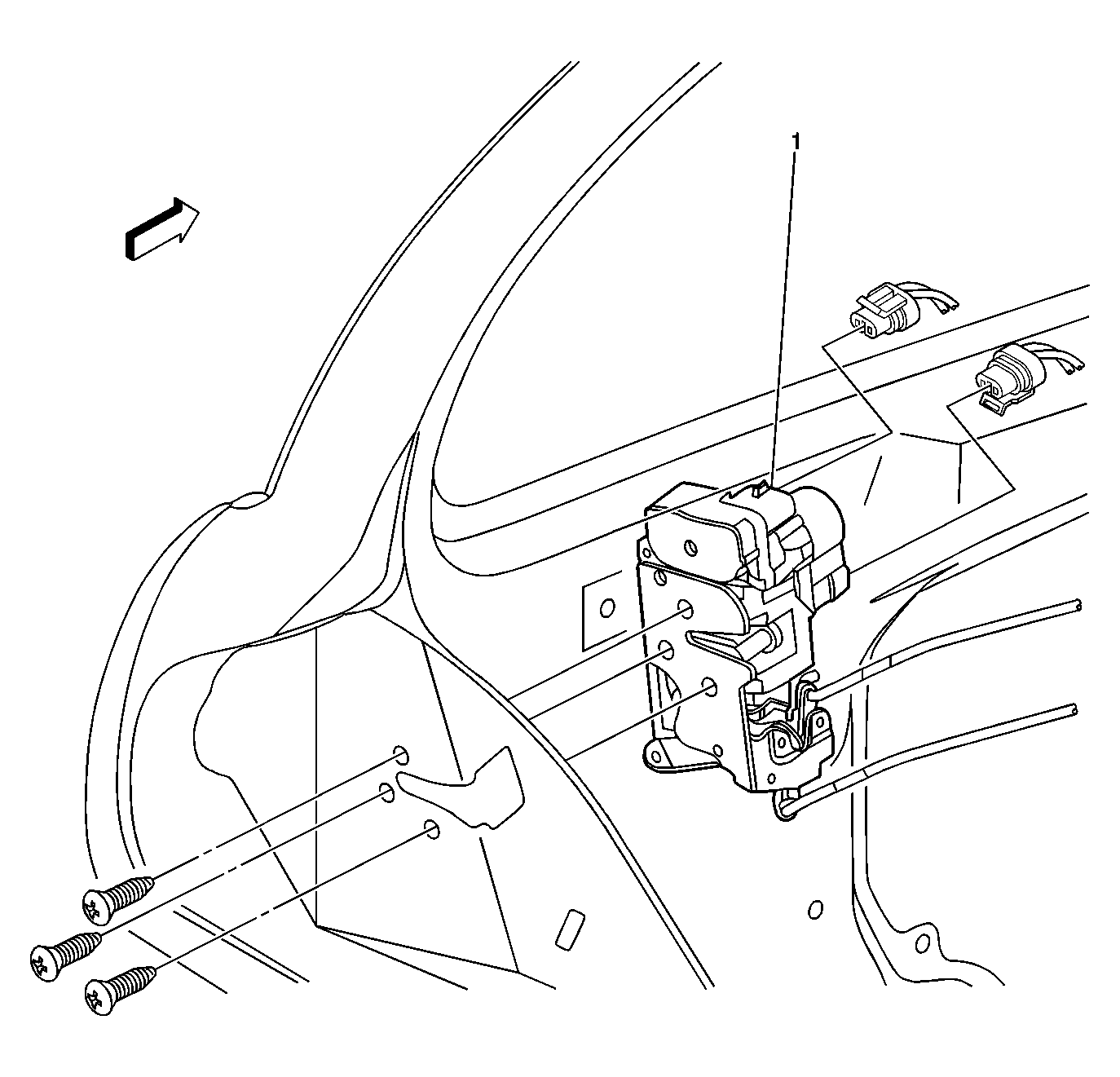

Fig 4: Rear Door Lock Actuators Component View
GM524992Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Actuator - LR (RR Similar)
Fig 5: Behind Rear Seat Back Component View
GM788556Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 RR Inflatable Restraint Side Impact Module
2 Rear Integration Module (RIM)
3 Electronic Suspension Control (ESC) Module
4 C205
5 Vehicle Communication Interface Module (VCIM)
6 Audio Amplifier
7 T.V. Antenna Module
8 Rear Door Lock Relay (w/B9Q)
9 RR Inflatable Restraint Side Impact Module Connector
