Engine Electrical Component Views

Fig 1: Right Rear of the Passenger Compartment, Under the Rear Seat Component View
GM524955Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery (Positive Terminal)
2 Battery (Negative Terminal)
3 G300
4 SP300
5 G301 (SP301)
6 Fuse Block - Rear
7 S322 (w/V4U)
8 S323 (w/B9Q)
9 SP308
10 SP307

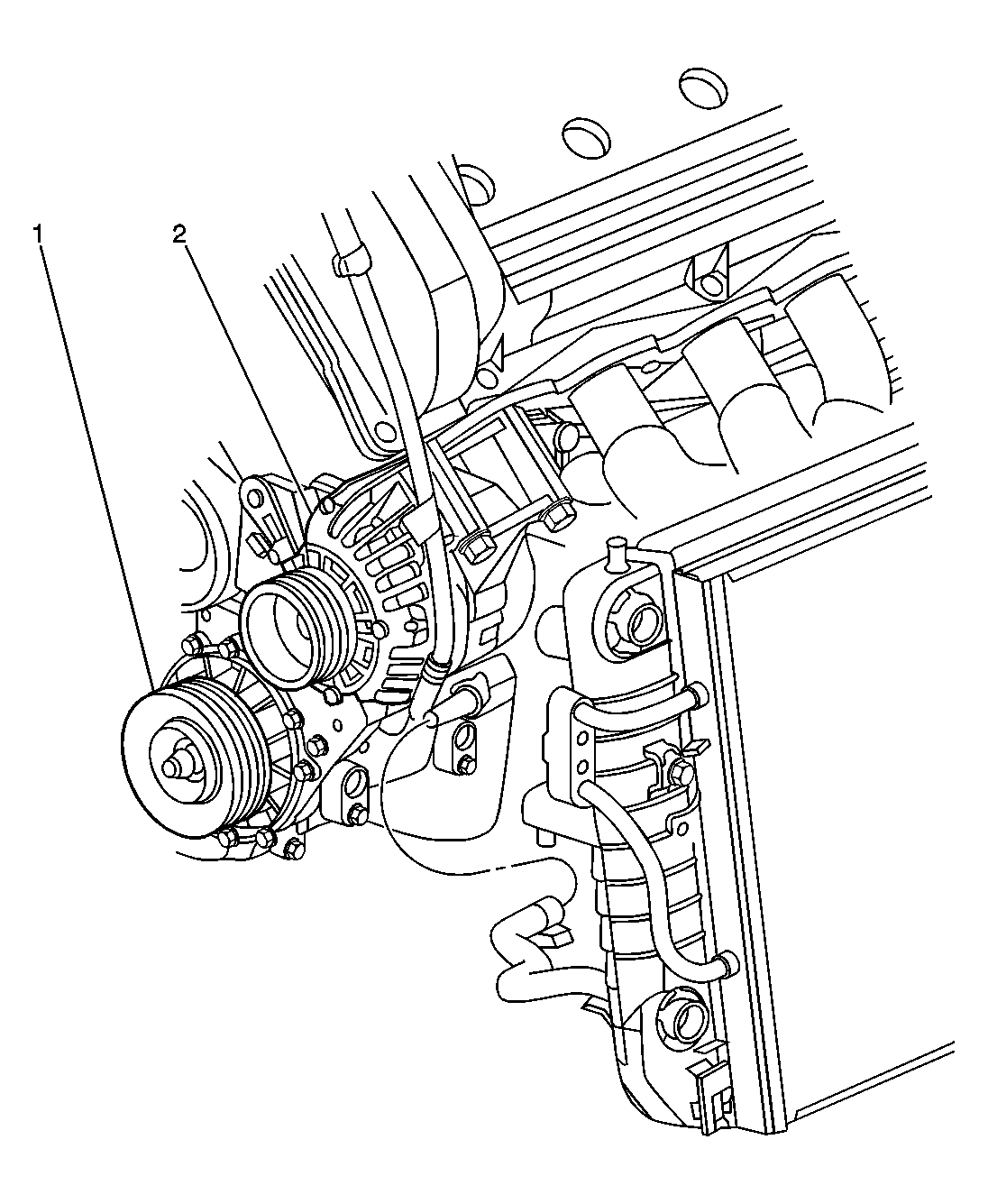

Fig 2: Engine Compartment, Lower Right Side of the Engine Component View
GM524982Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor Clutch
2 Generator

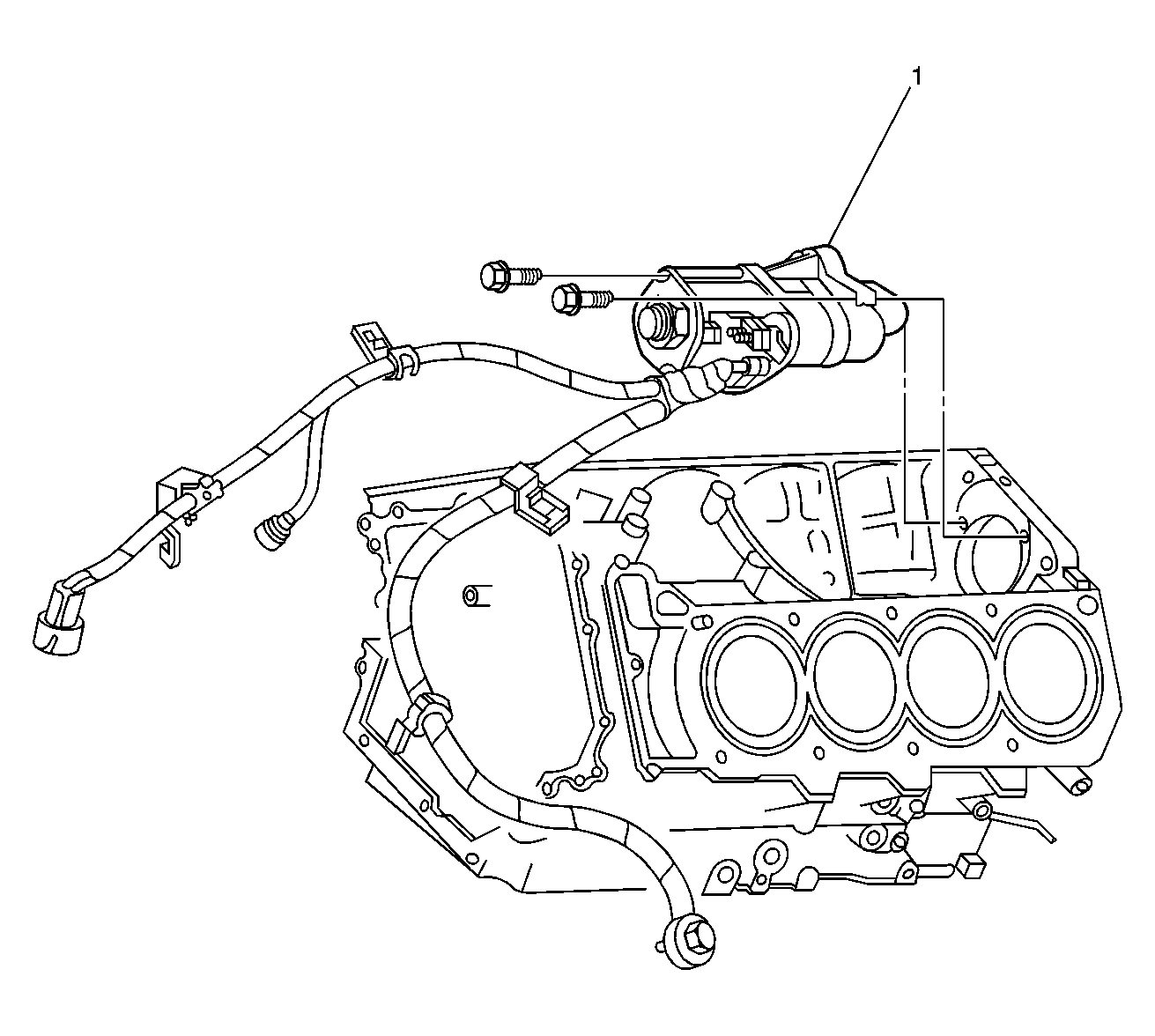

Fig 3: Engine Compartment, Under the Intake Manifold Center Component View
GM525025Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Solenoid

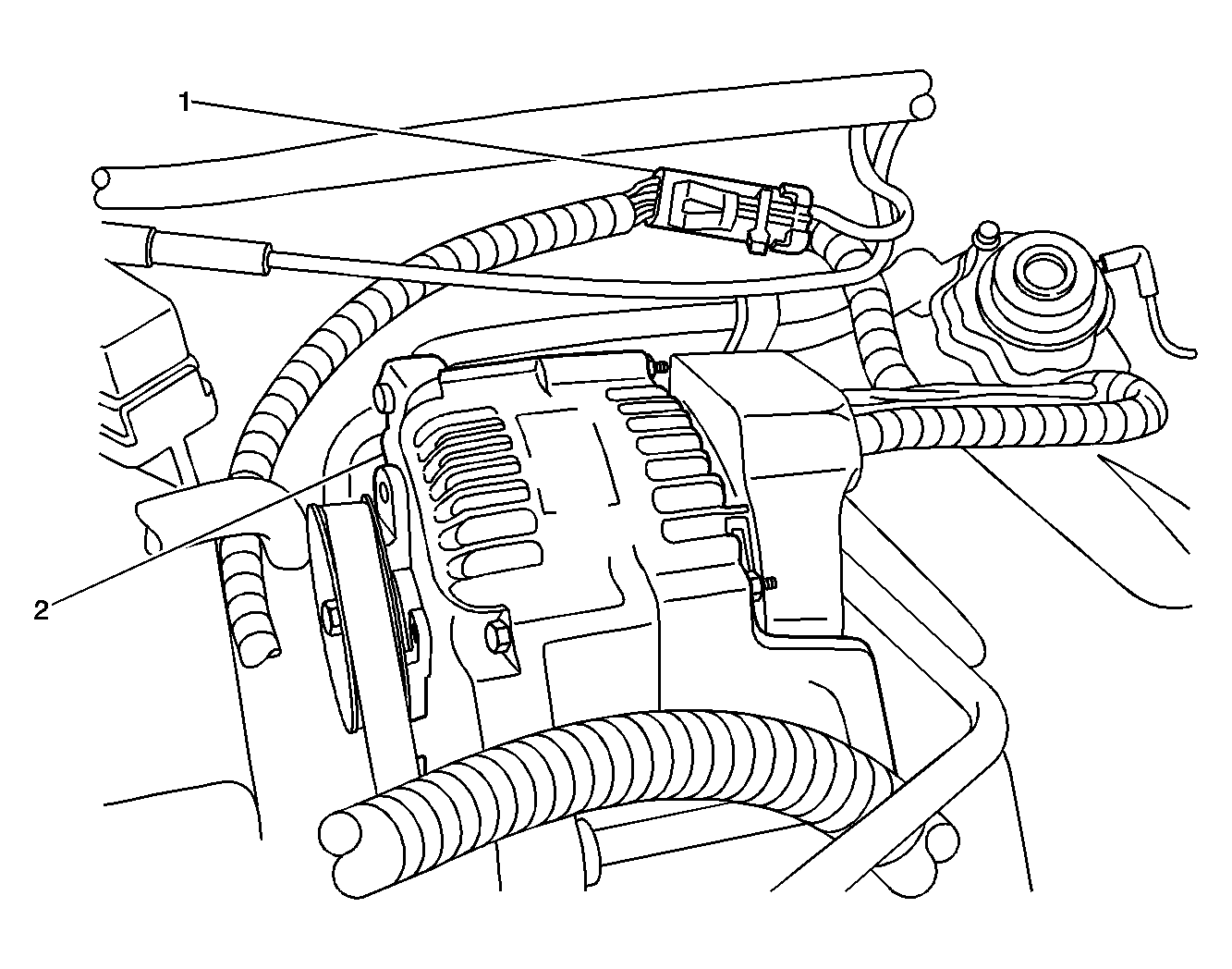

Fig 4: Auxiliary Generator Component View (V4U Only)
GM757064Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Test Connector
2 Auxiliary Generator
