Steering Column Fuse Holder

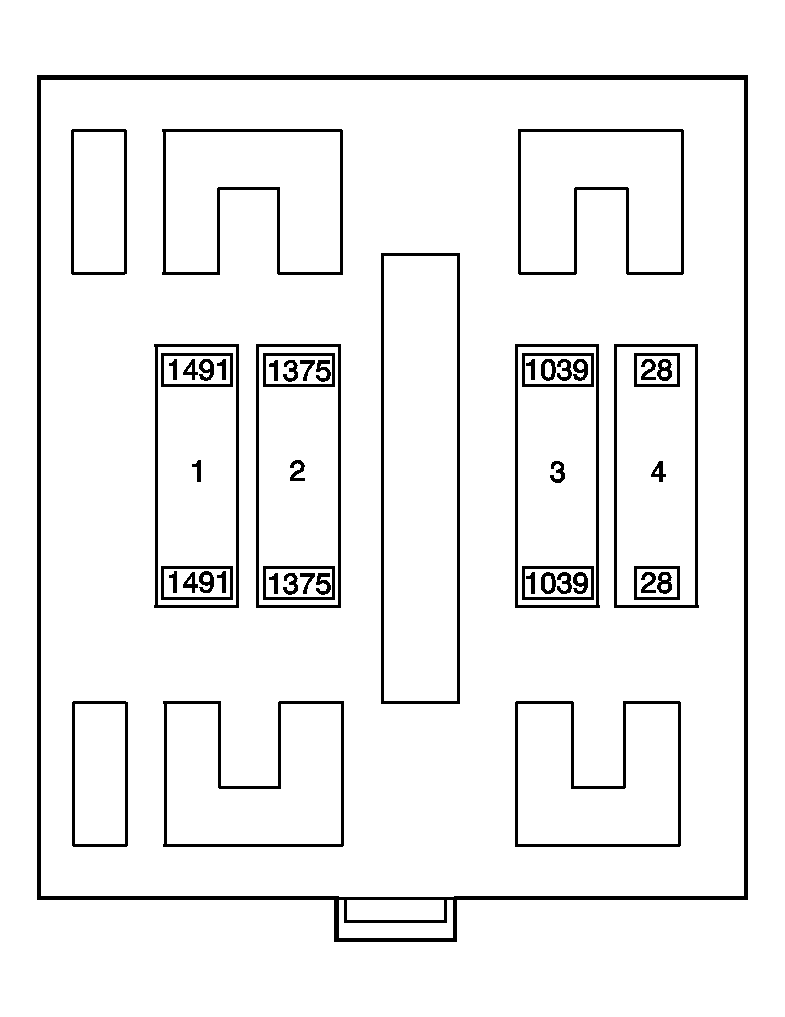

Fig 1: Steering Column Fuse Holder Identification View
GM599553Courtesy of GENERAL MOTORS CORP.
Steering Column Fuse Holder

Fuse Rating Description
Dimming Fuse (1) 2A Steering Wheel Controls Illumination
Radio Fuse (2) 2A Steering Wheel Audio Controls
Cruise Fuse (3) 2A Steering Wheel Cruise Controls
Horn Fuse (4) 2A Horn Switch
