Power and Grounding Component Views

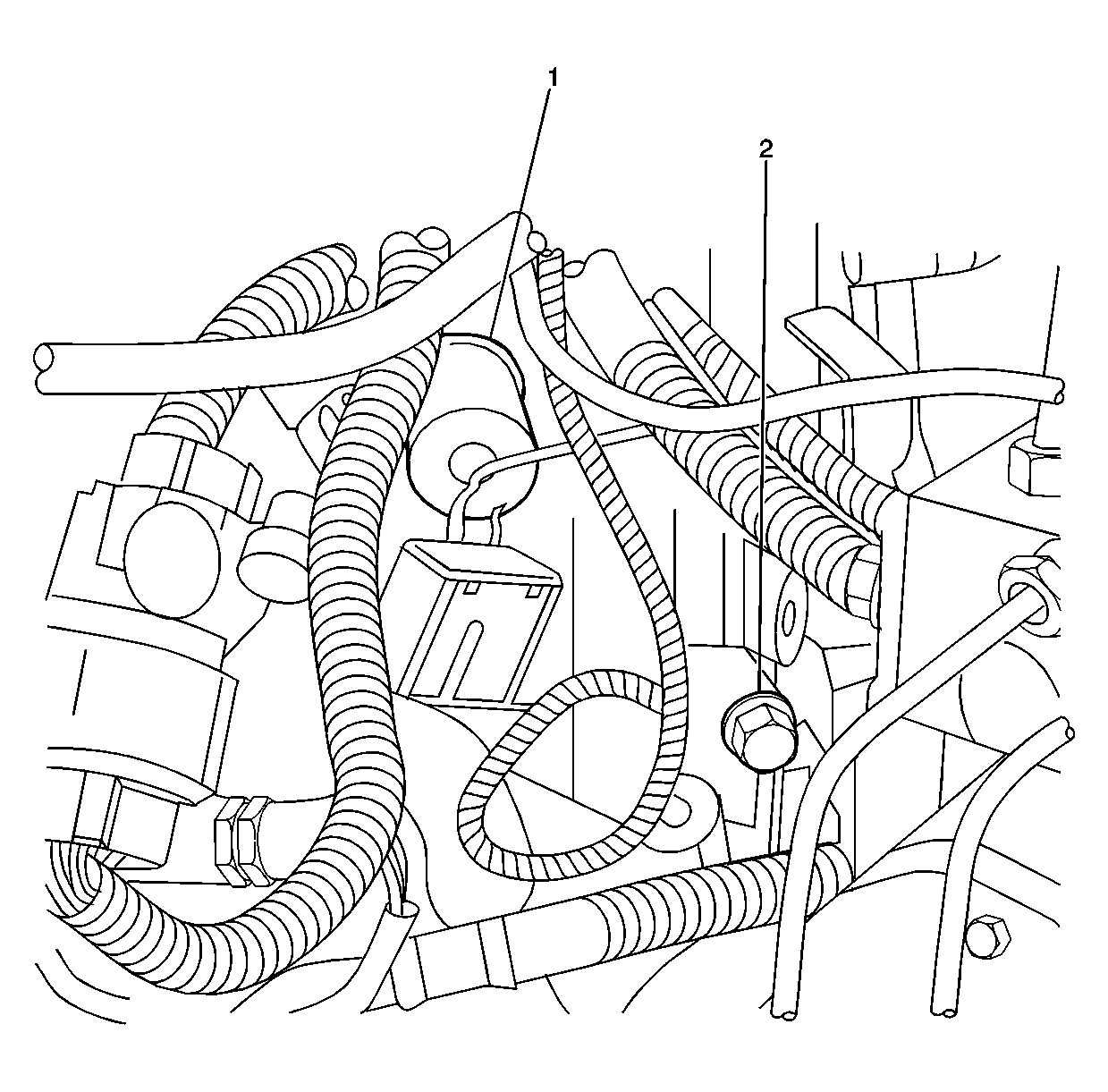

Fig 1: Left Front Corner of the Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G100 and G110
2	G102

Fig 2: Left Front of the Engine Compartment, on the Left Side of the Radiator Support Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101

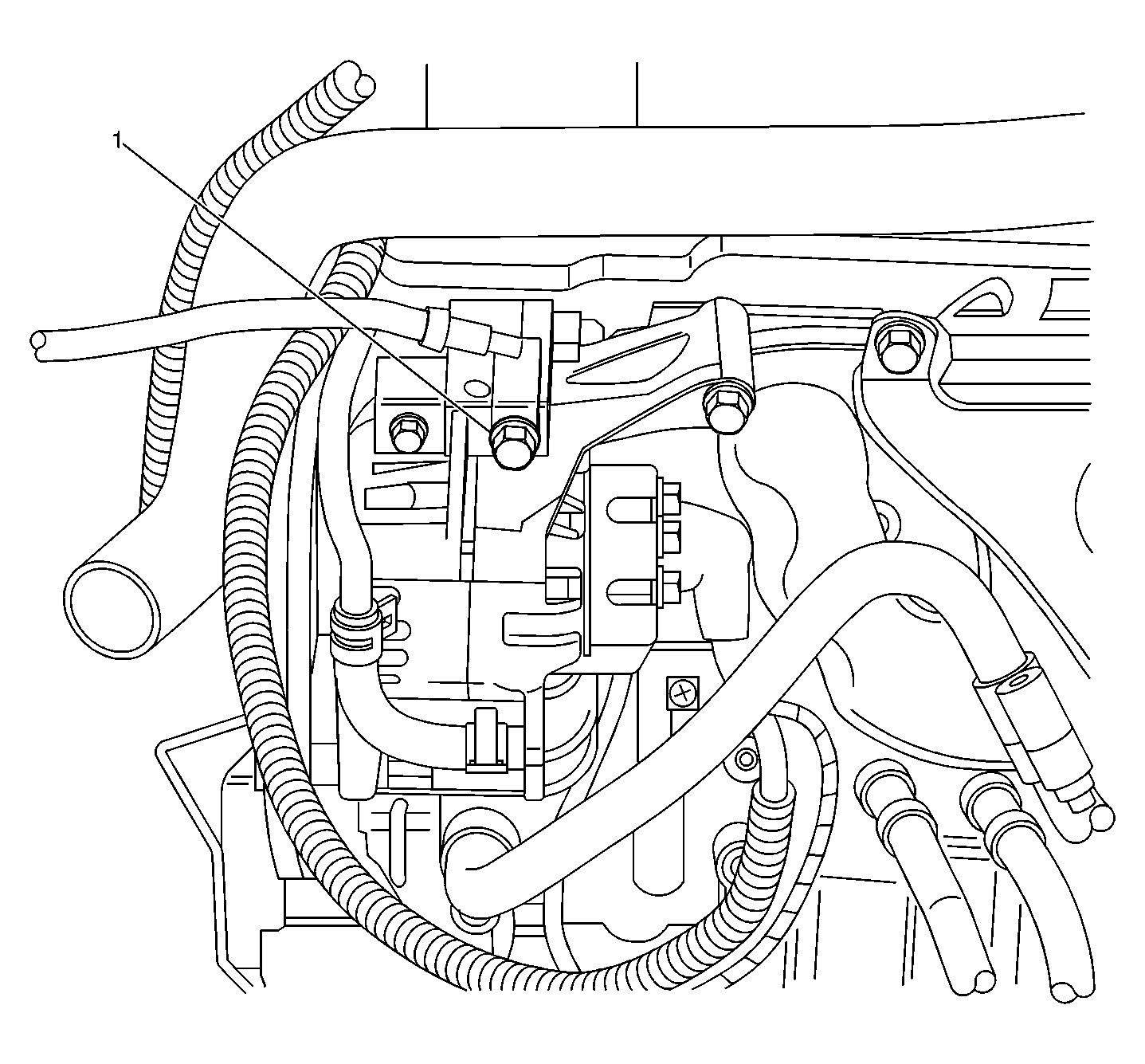

Fig 3: Right Front of the Engine Compartment, Above the Generator Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G105

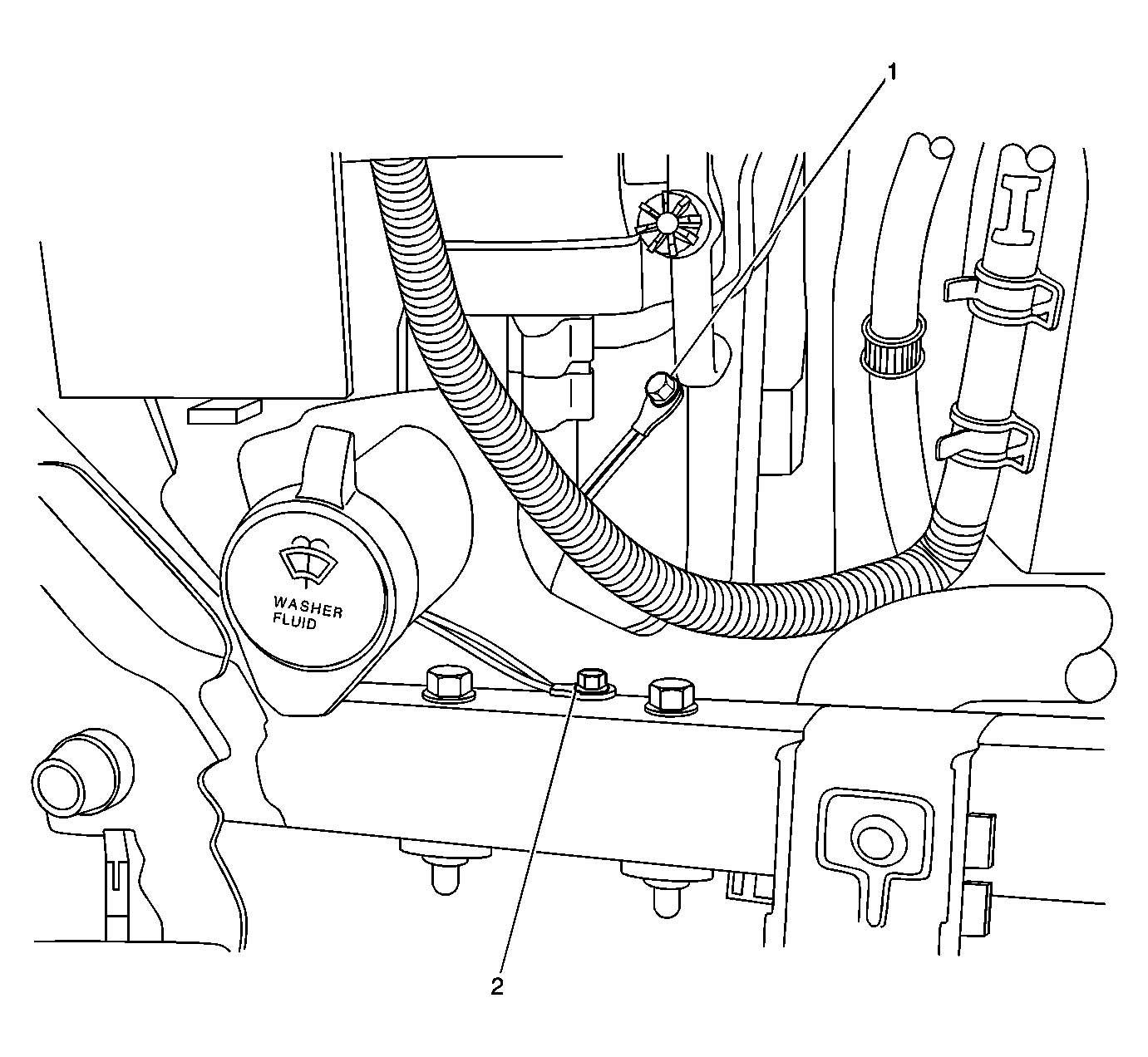

Fig 4: Right Front of the Engine Compartment, Near the Windshield Washer Fluid Reservoir Filler Neck Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G106
2	G104

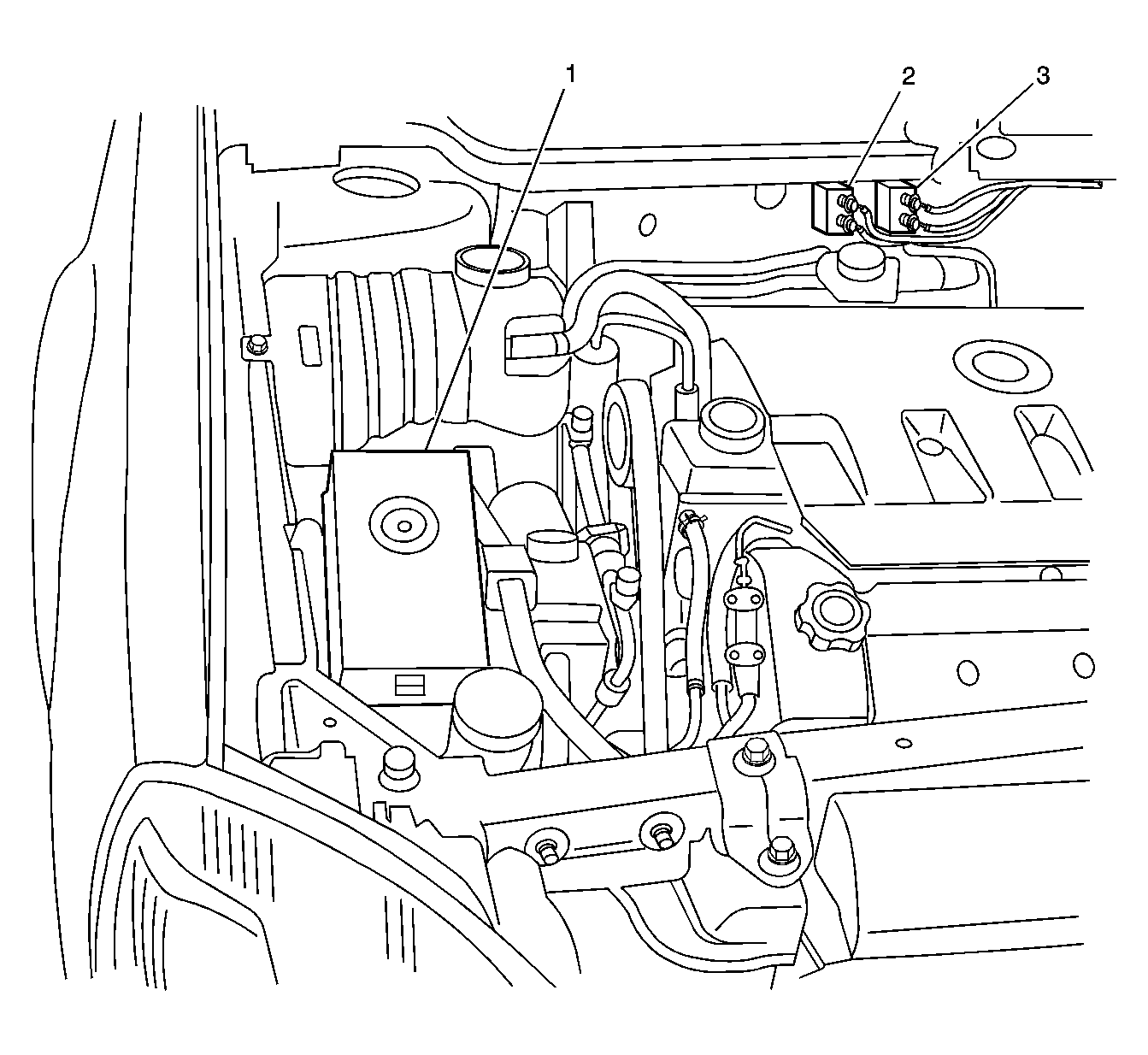

Fig 5: RR Corner of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Passenger Defog Circuit Breaker (w/WC2/WC8)
3	Driver Defog Circuit Breaker (w/WC2/WC8)

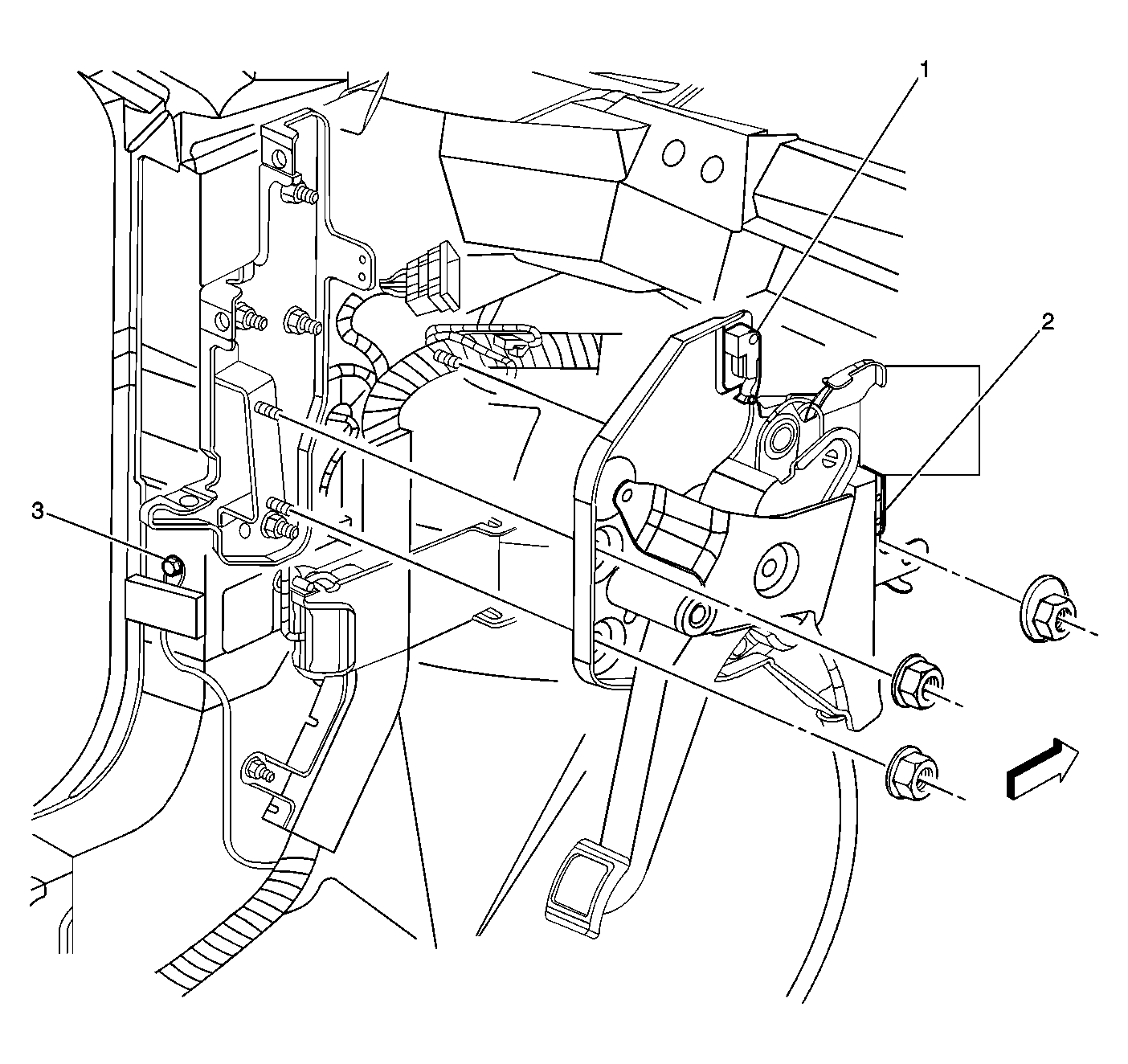

Fig 6: Passenger Compartment, Below the Instrument Panel, Left Side Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Park Brake Bracket
3	G200

Fig 7: Passenger Compartment, Below the Instrument Panel, Left Side Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Park Brake Release Actuator
3	G200

Fig 8: Left Side of the I/P, near the Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S219
2	Inline Fuse Holder (Hidden)
3	C202
4	C312
5	S220
6	S222
7	S221
8	Driver and Passenger Defog Relays (Hidden)

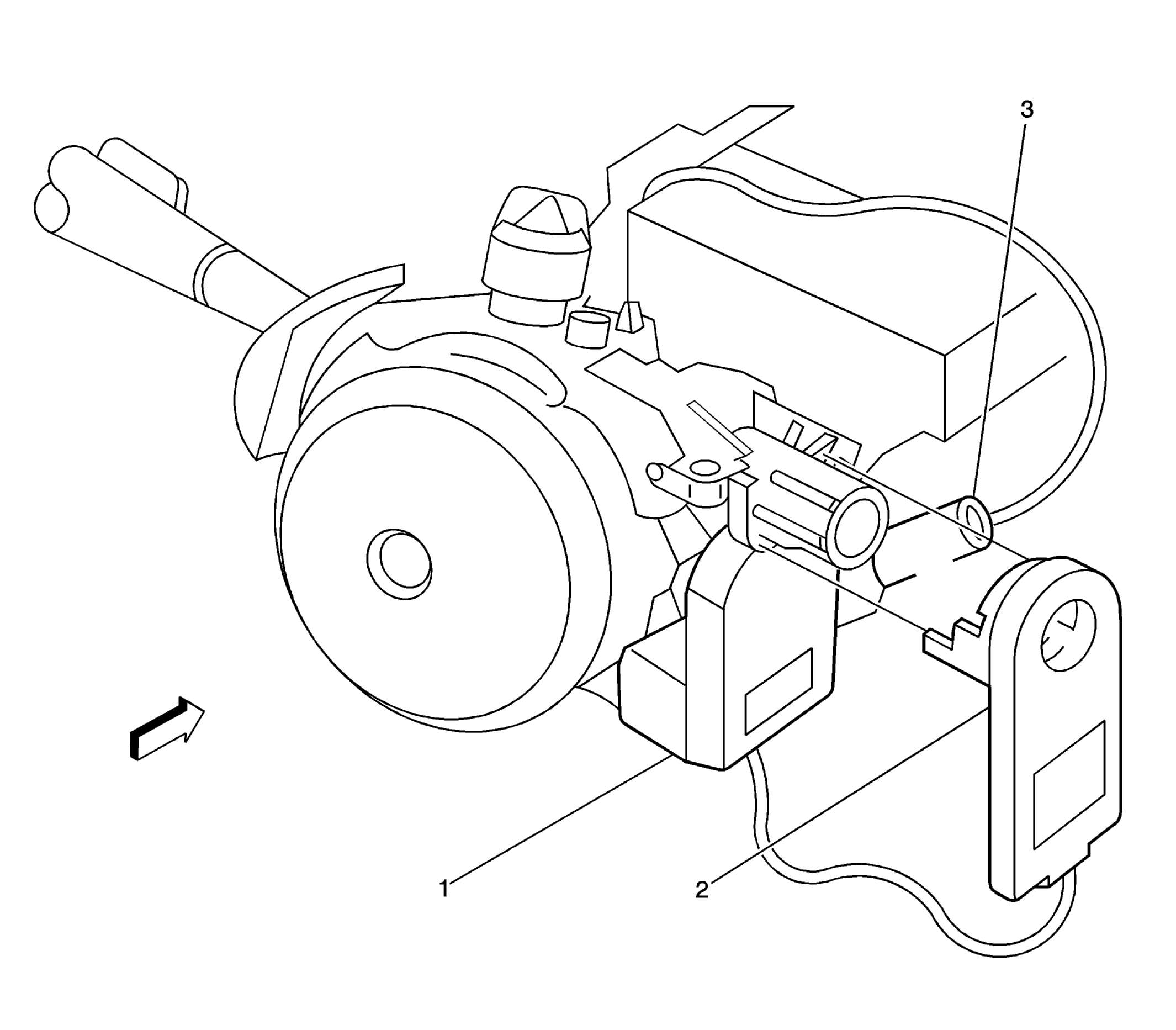

Fig 9: Left Front of the Passenger Compartment, in the Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Theft Deterrent Control Module
3	Ignition Lock Cylinder Control Actuator

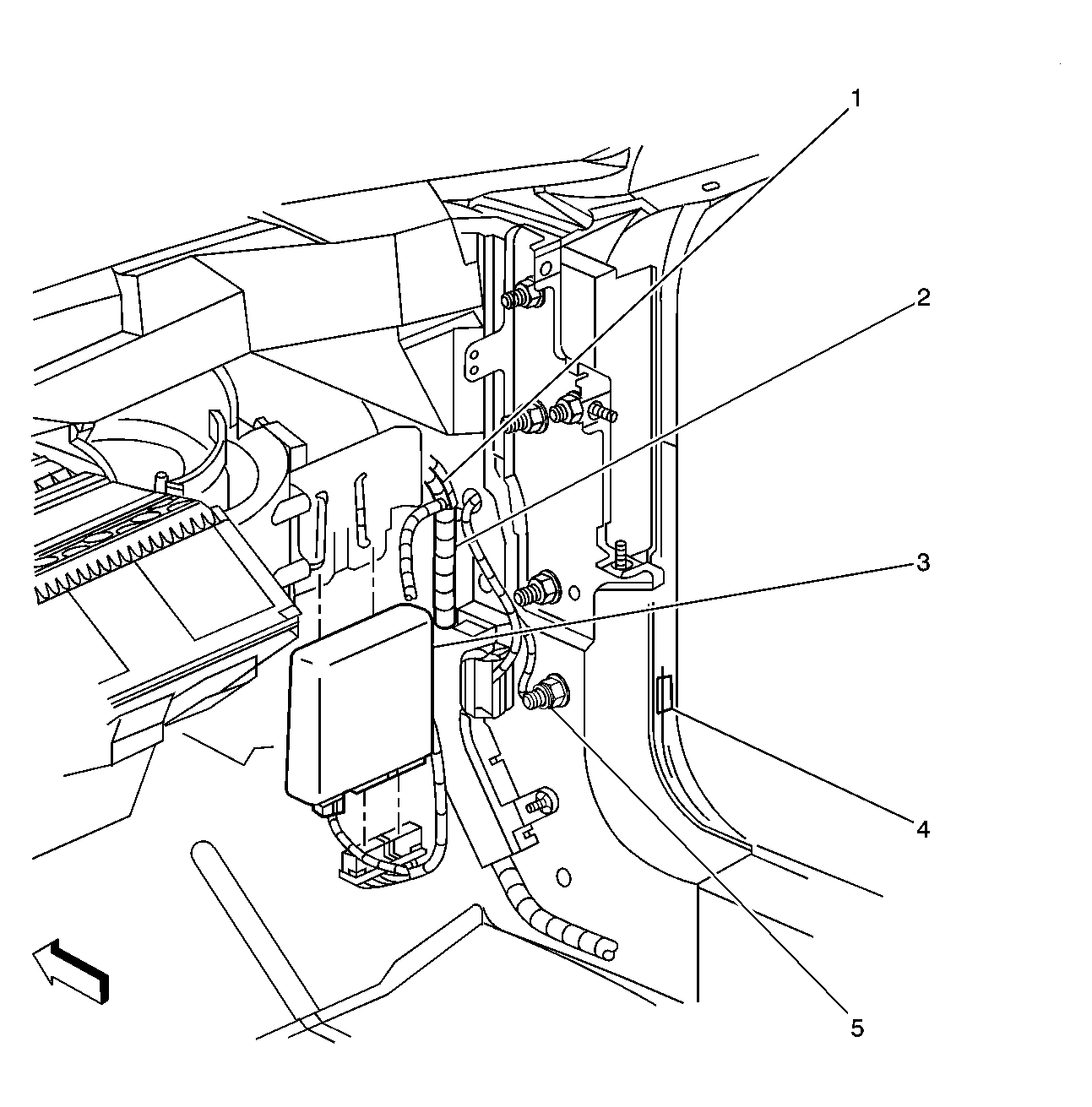

Fig 10: Passenger Compartment, behind RF Kick Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S216
2	S217
3	Dash Integration Module (DIM)
4	G201
5	G204 (w/WC2/WC8)

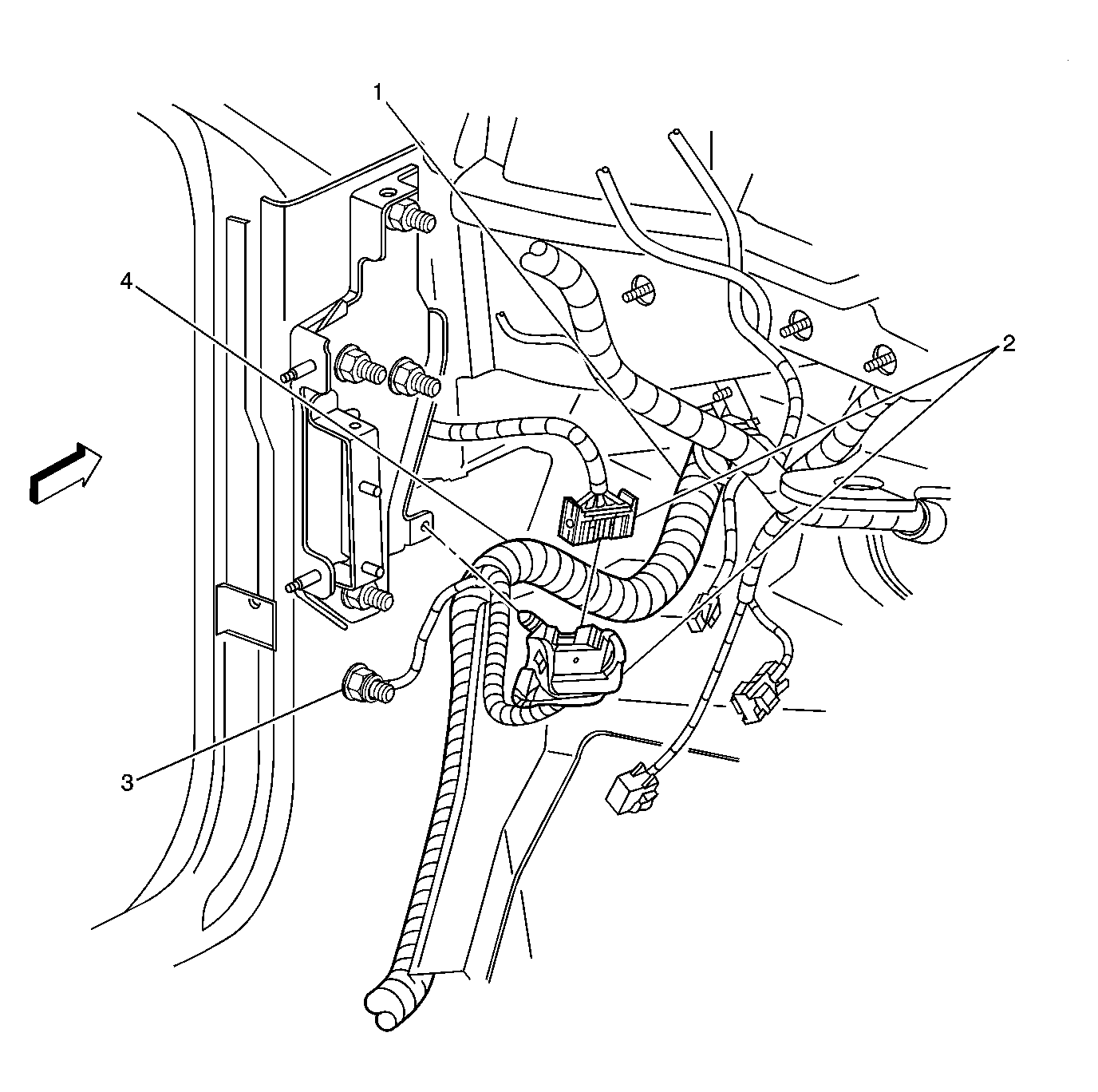

Fig 11: Passenger Compartment, Behind LF Kick Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S212
2	C500 (C600 Similar)
3	G203 (w/WC2/WC8)
4	S213

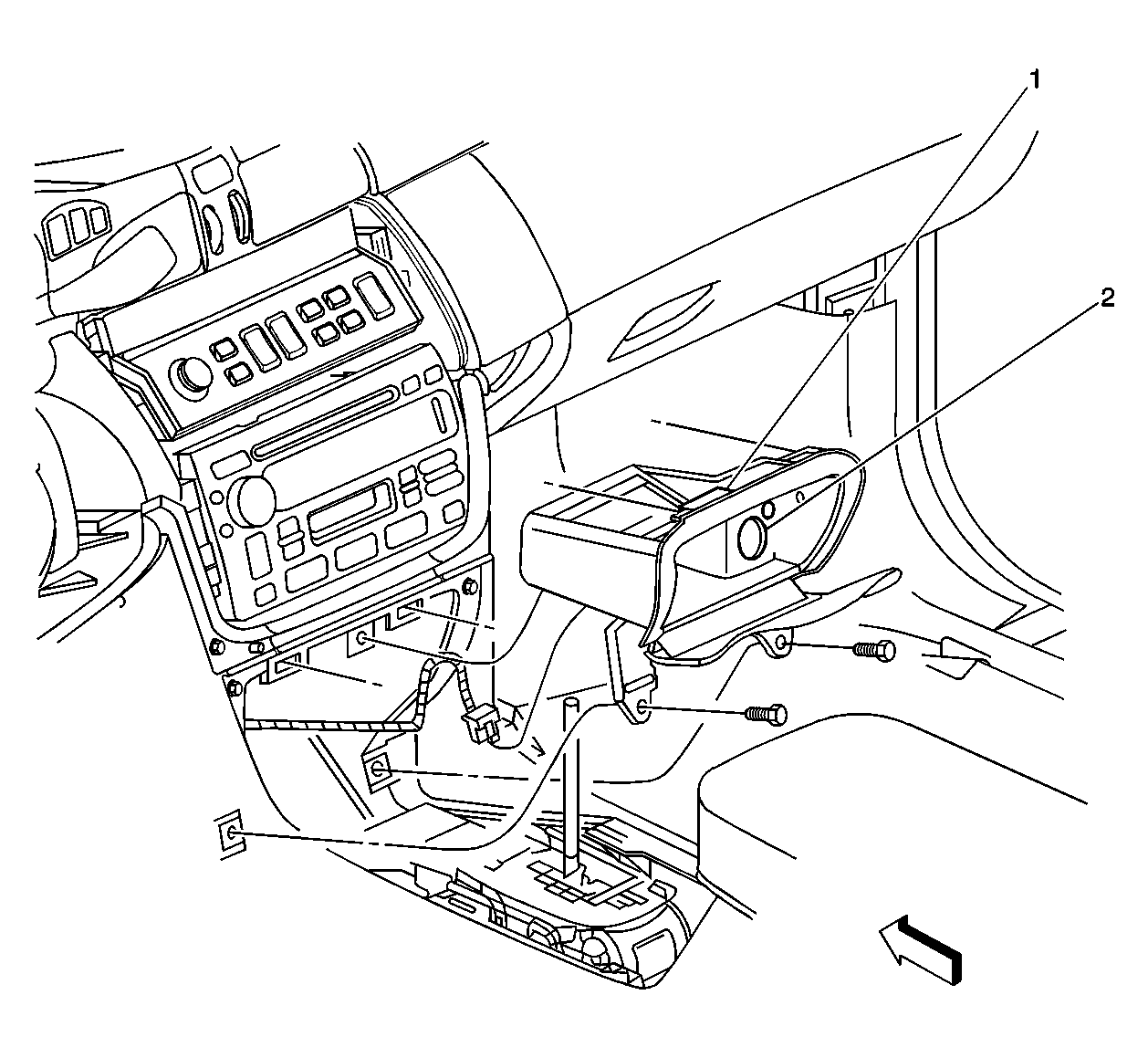

Fig 12: Center Front of the Passenger Compartment, Front of the Center Console, in the Ashtray Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ashtray Lamp
2	Cigar Lighter Front

Fig 13: Center of the Passenger Compartment, Behind the Center Console Storage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module - Auxiliary
2	Right Rear Auxiliary Outlet
3	Left Rear Auxiliary Outlet
4	Audio/Video Harness

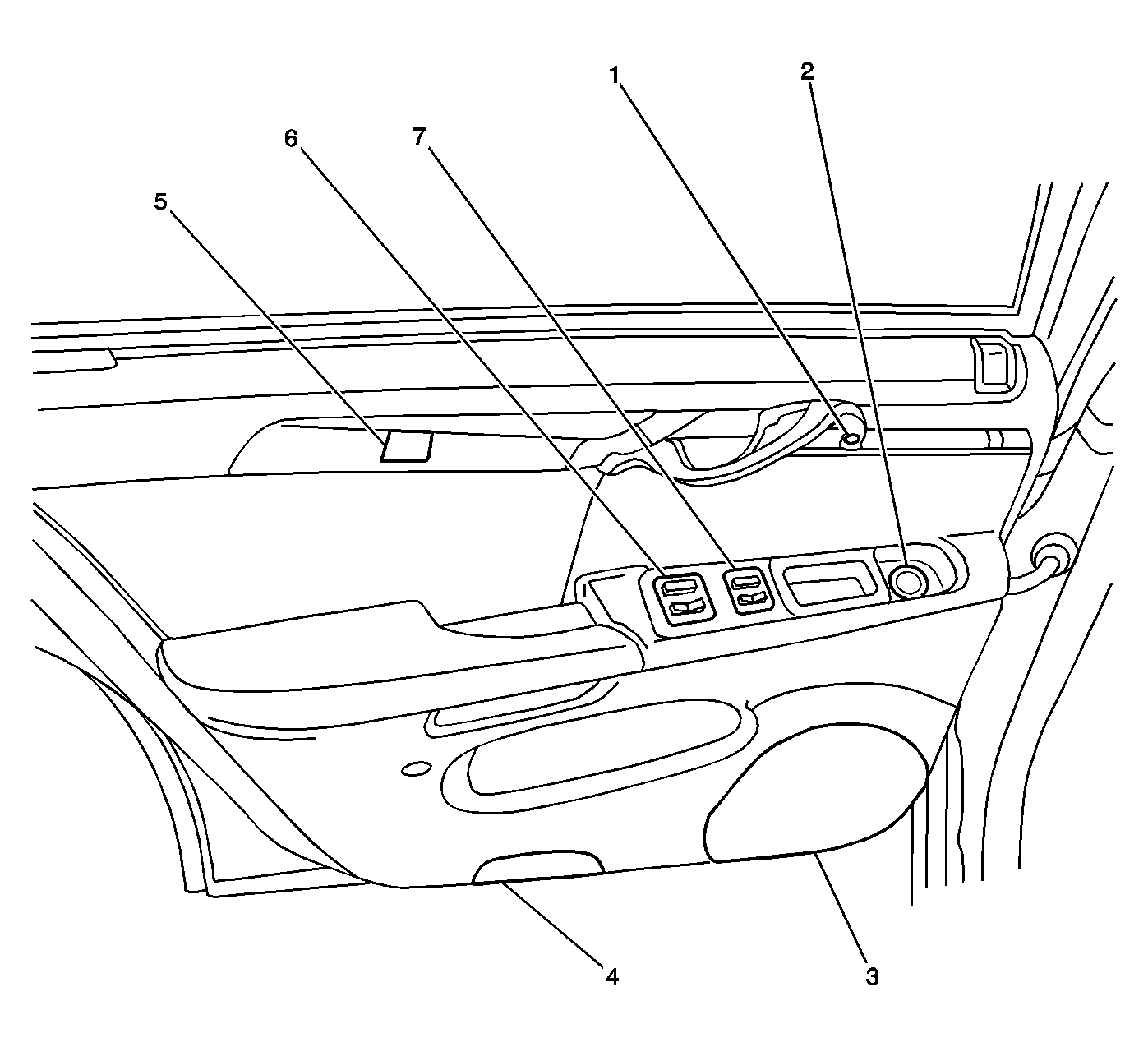

Fig 14: Front of the Left Rear Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - LR, RR Similar
2	Cigar Lighter - LR, RR Similar
3	Speaker - LR Door, RR Similar
4	Door Courtesy Lamp - LR Door, RR Similar
5	Seat Lumbar Switch - LR, RR Similar
6	Heated Seat Switch - LR, RR Similar
7	Window Switch - LR, RR Similar

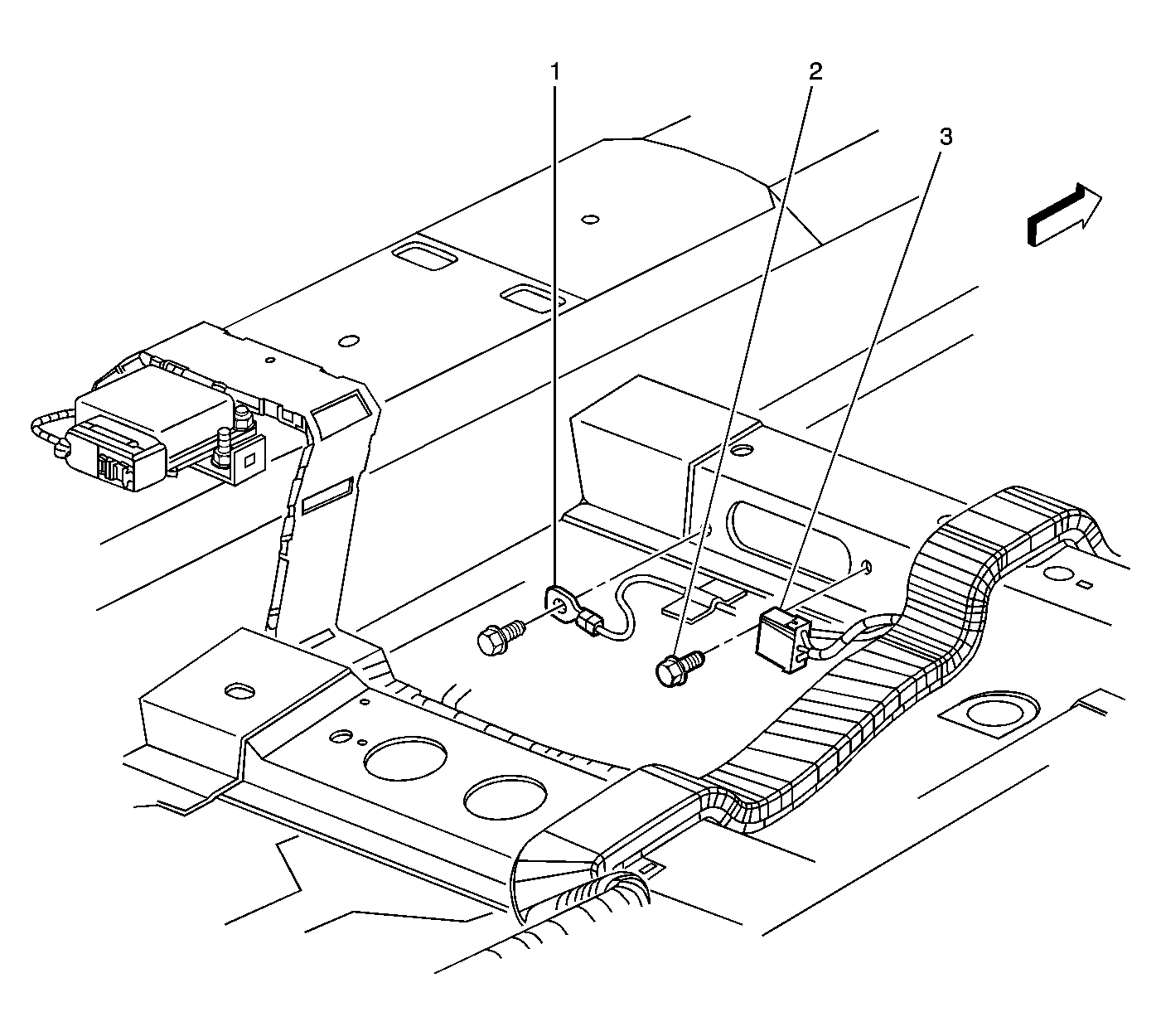

Fig 15: Passenger Compartment, Under the Right Front Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G306
2	G302
3	SP302

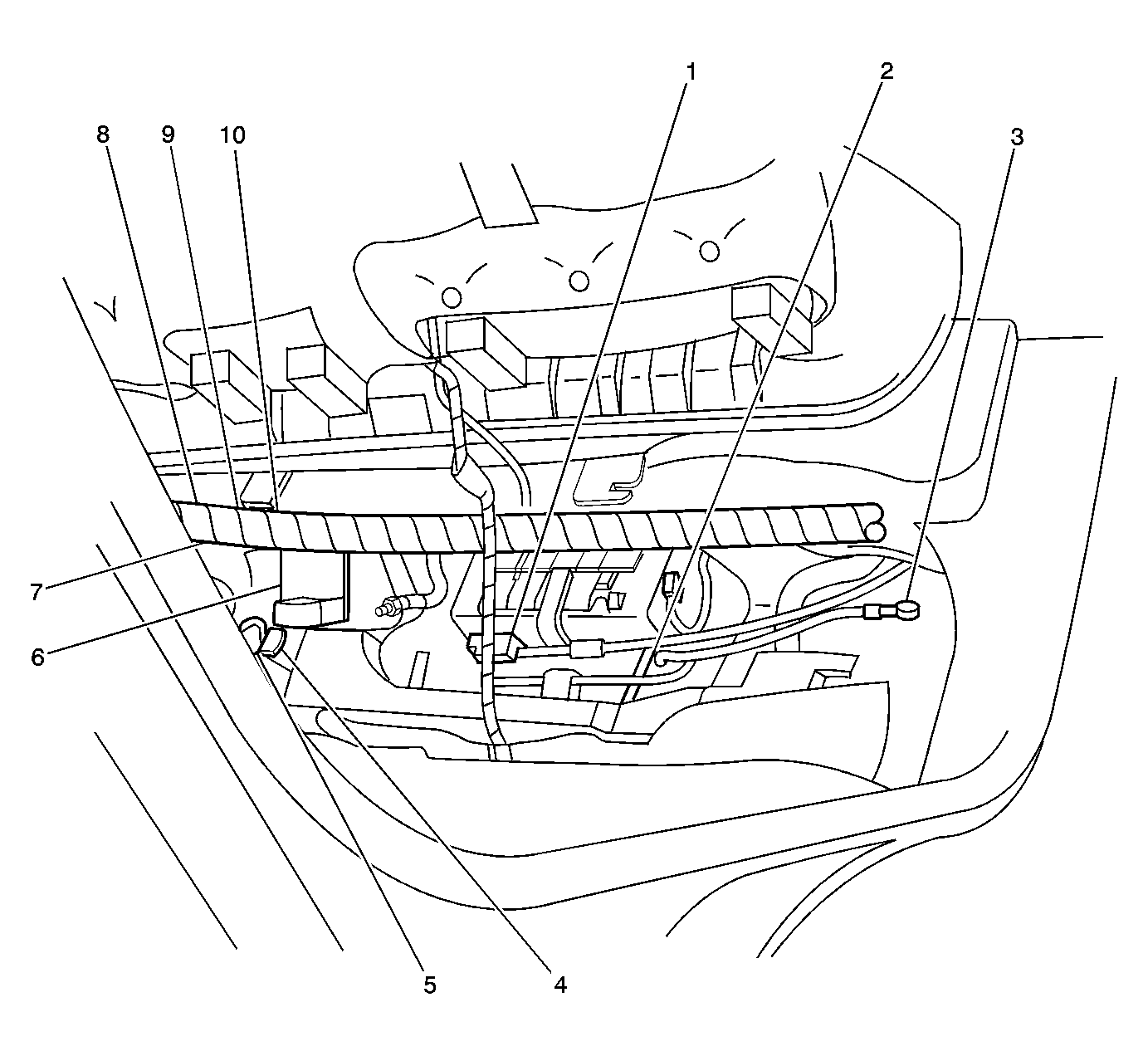

Fig 16: Right Rear of the Passenger Compartment, Under the Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery (Positive Terminal)
2	Battery (Negative Terminal)
3	G300
4	SP300
5	G301 (SP301)
6	Fuse Block- Rear
7	S322 (w/V4U)
8	S323 (w/B9Q)
9	SP308
10	SP307

Fig 17: Left Rear of the Passenger Compartment, Above the Rear Shelf Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wavetrap/Rear Defogger
2	C327 (w/V4U/B9Q)
3	C329 (w/V4U/B9Q)
4	G303

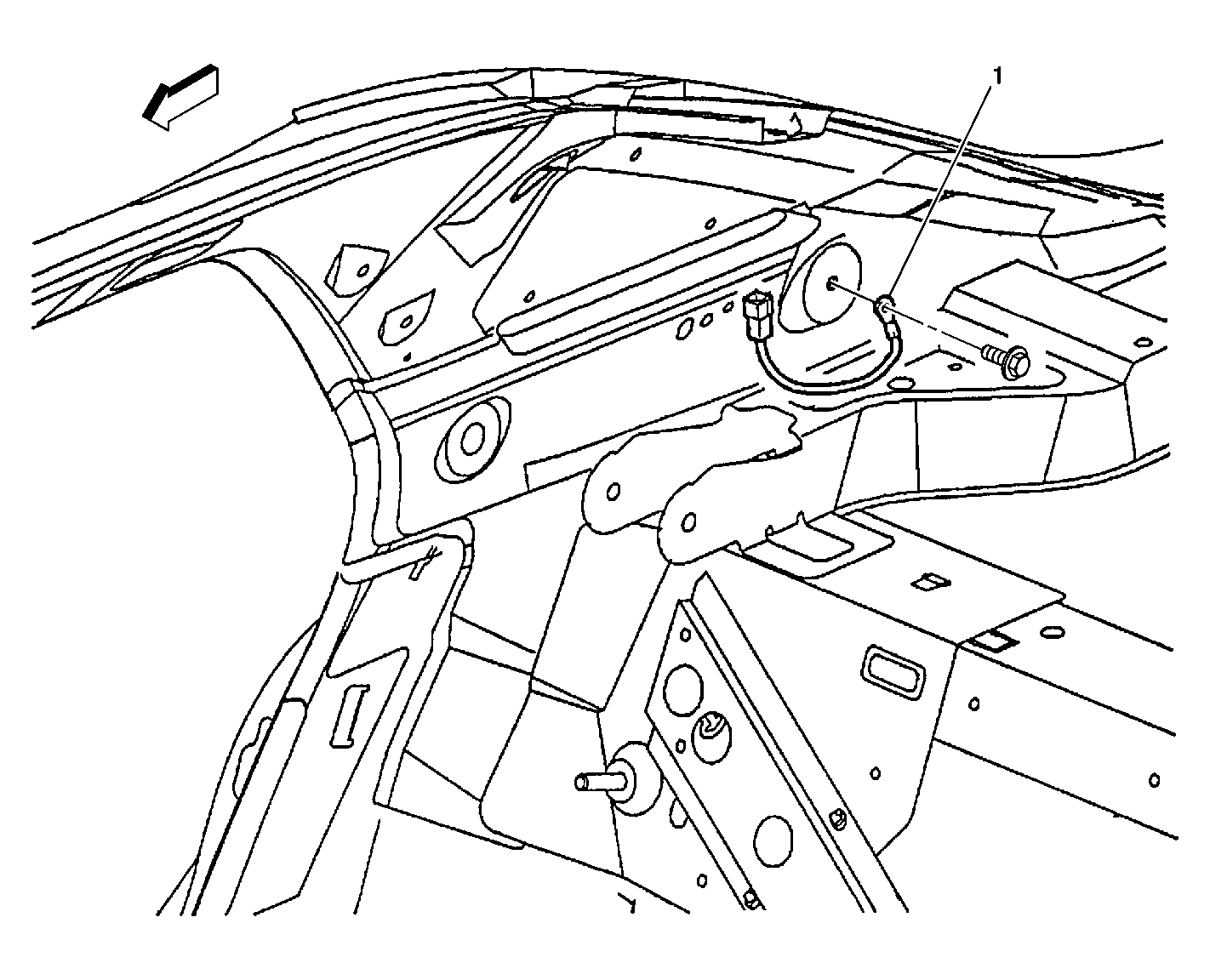

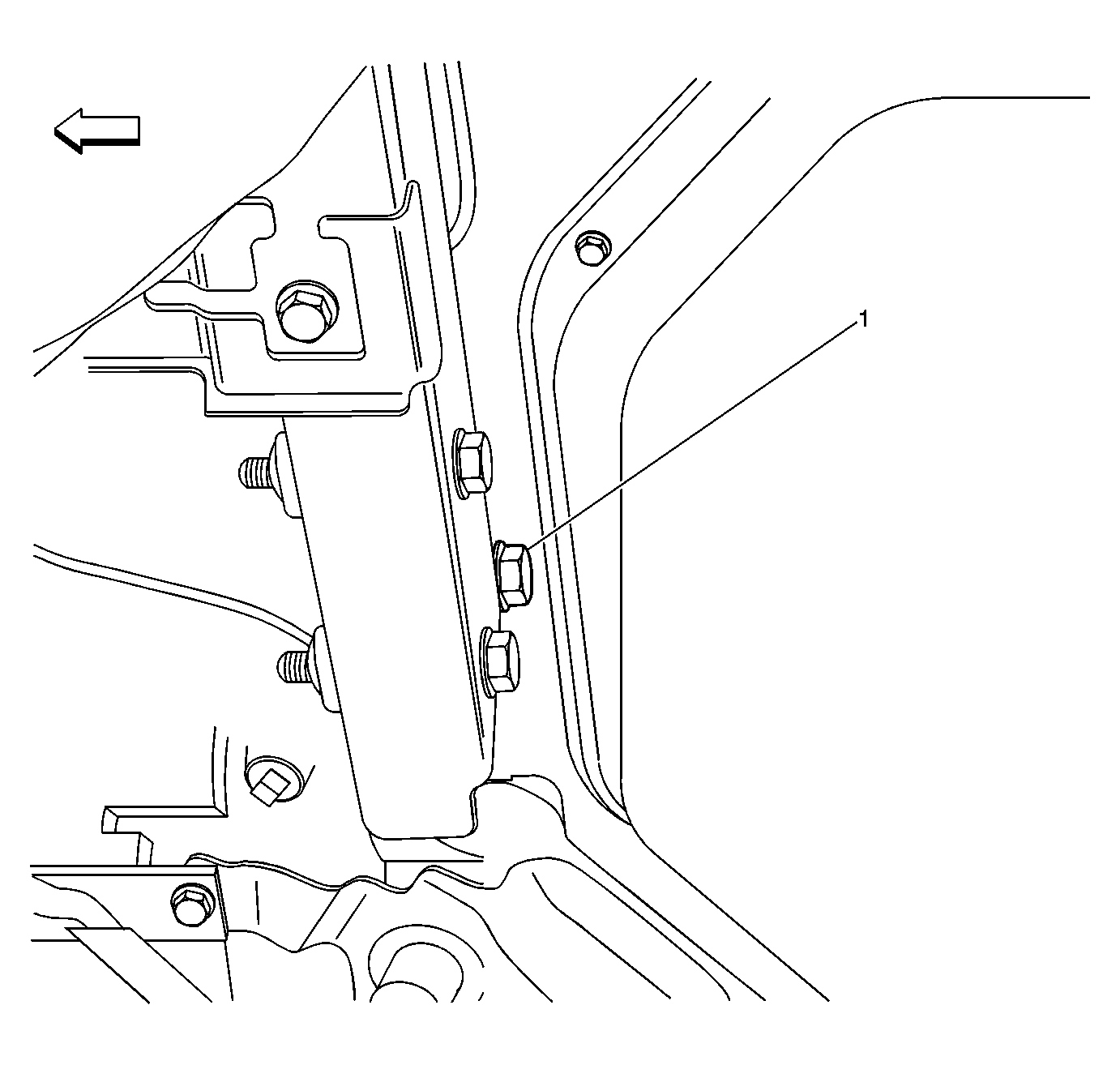

Fig 18: Right Rear Corner of the Passenger Compartment, Above the Rear Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G304

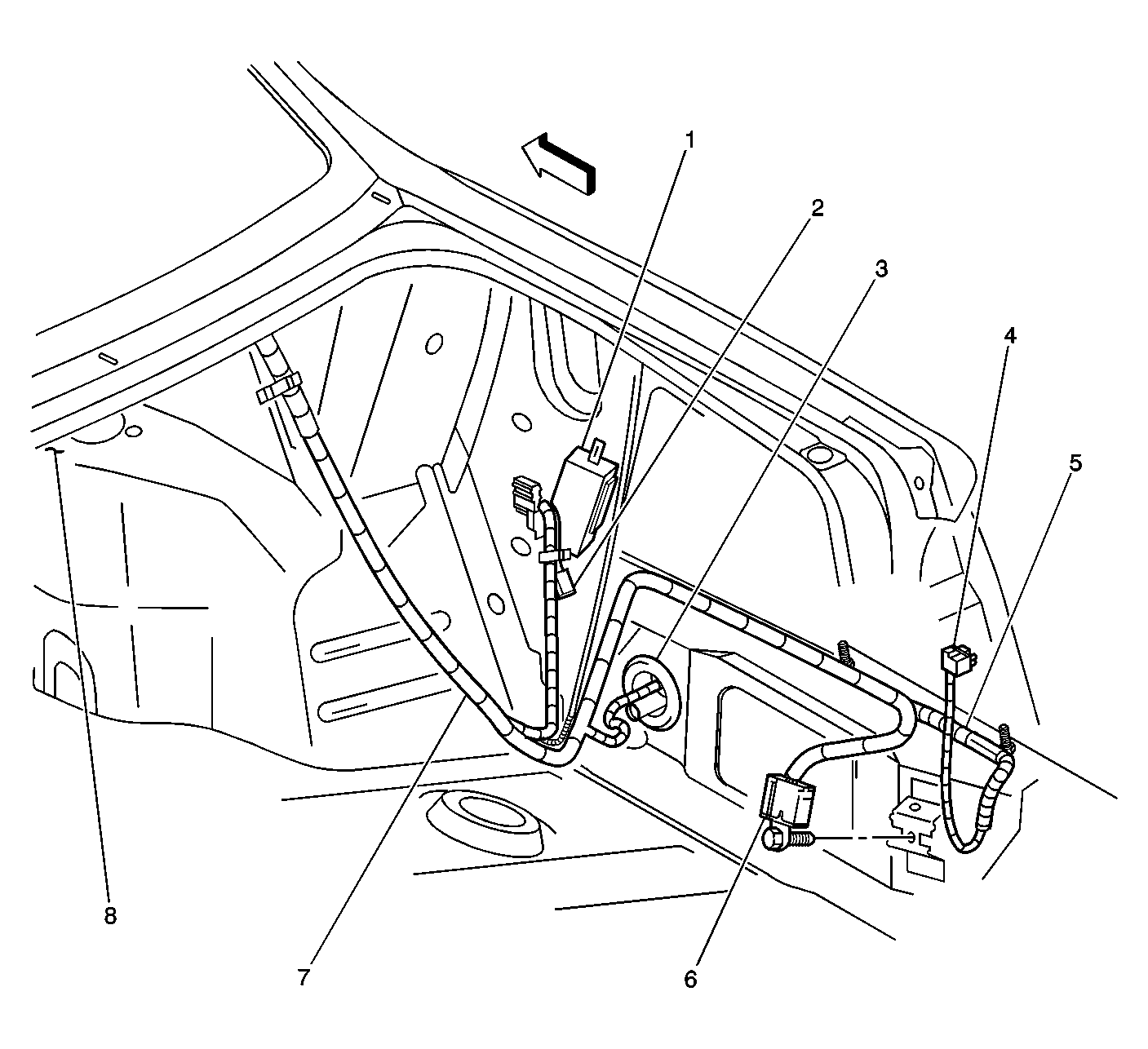

Fig 19: Right Side of the Rear Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Object Sensor Control Module
2	Rear Parking Assist Diagnostic Connector
3	P401
4	Tail Lamp Connector
5	S406
6	G401
7	S405
8	Rear Compartment Lamp

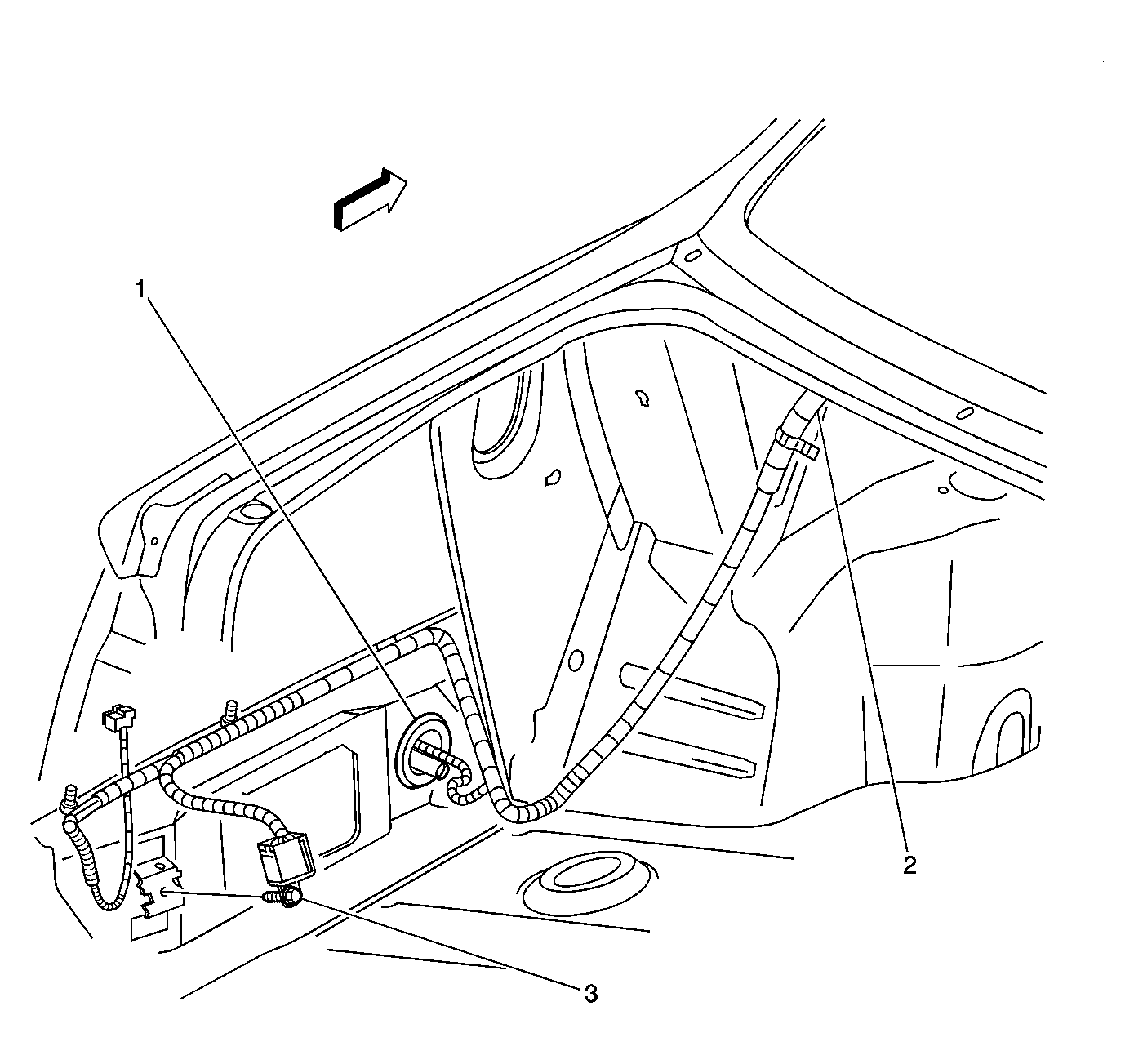

Fig 20: LF Corner of Rear Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	P400
2	G402
3	S411 (w/WC2/WC8)
