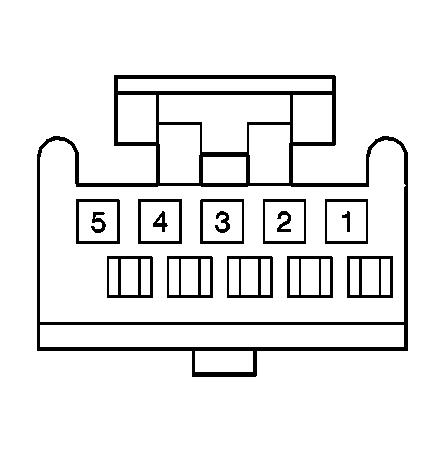

Memory/Personalization Function Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064983 5-Way F Metri-Pack 100 Series (WHT)
Pin	Wire Color	Circuit No.	Function
1	BLK/WHT	351	Ground
2	YEL	1491	Backlight Lamps Control
3	ORN	614	Memory Set Switch Signal
4	PPL	616	Memory 2 Switch Signal
5	WHT	615	Memory 1 Switch Signal
