Stationary Windows Component Views

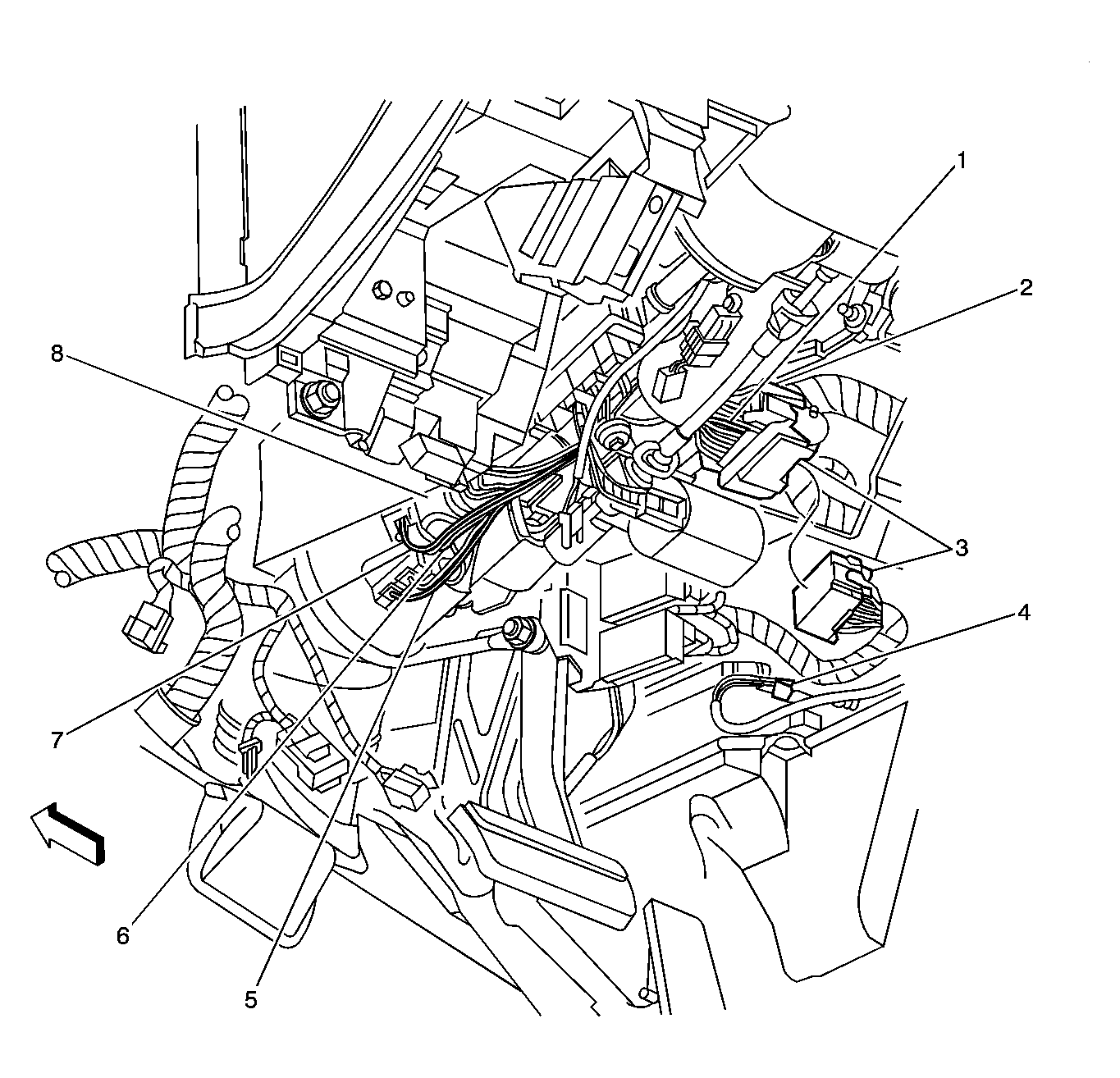

Fig 1: Left Side of the I/P, near the Steering Column Component View
GM1404802Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S219
2 Inline Fuse Holder (Hidden)
3 C202
4 C312
5 S220
6 S222
7 S221
8 Driver and Passenger Defog Relays (Hidden)

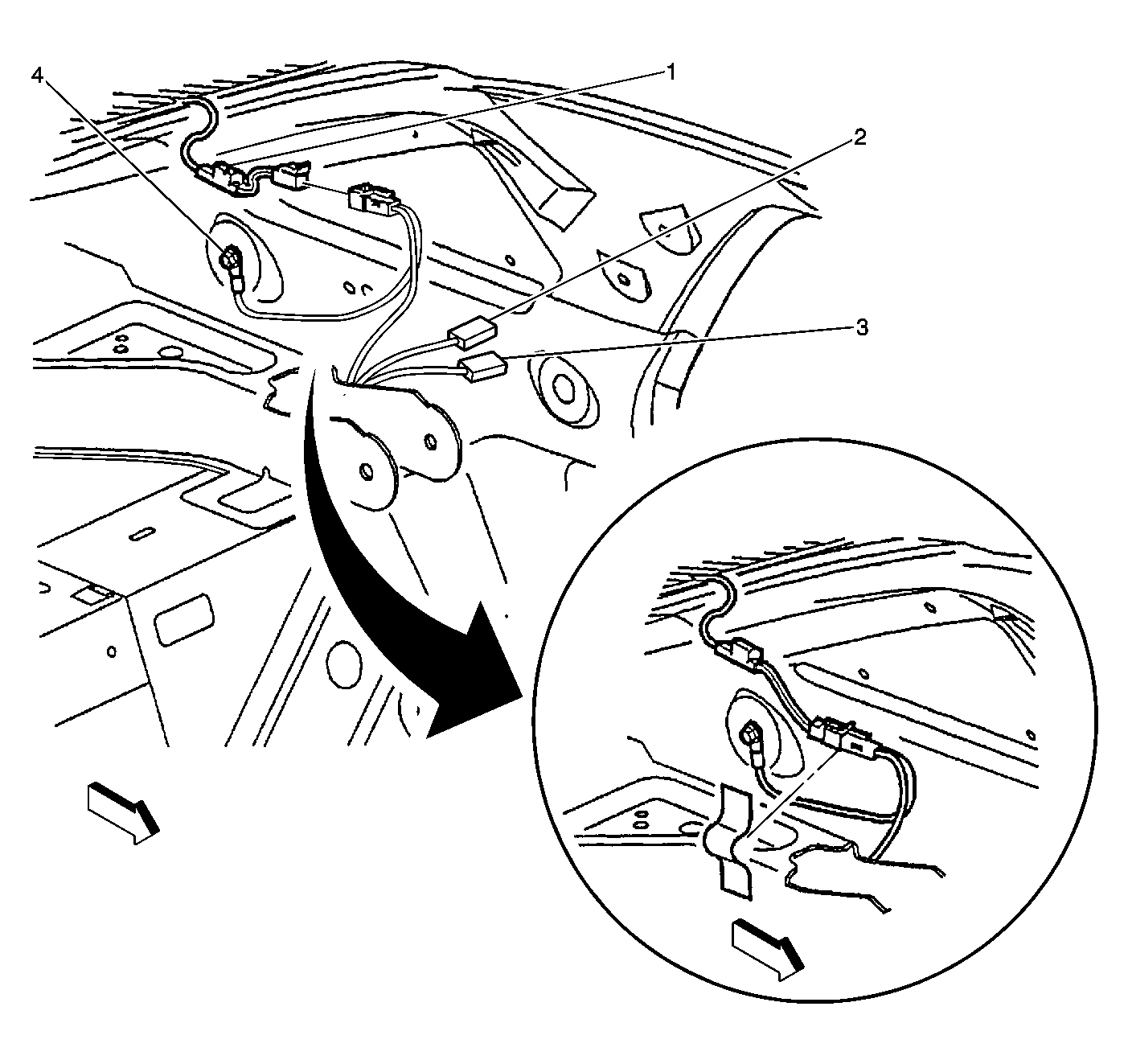

Fig 2: Left Rear of the Passenger Compartment, Above the Rear Shelf Panel Component View
GM525033Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wavetrap/Rear Defogger
2 C327 (w/V4U/B9Q)
3 C329 (w/V4U/B9Q)
4 G303
Fig 3: Passenger Compartment, Center Front of the Headliner Component View
GM524995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Slide Switch (Part of the Power Sunroof Switch Assembly)
2 Rear Window Sunshade Switch
3 Overhead Console Courtesy Lamp
4 Noise Compensation Microphone
5 Outside Moisture Sensor
6 Inside Rearview Mirror
7 Overhead Console Courtesy Lamp
8 Cellular Telephone Microphone
9 Garage Door Opener
10 Sunroof Vent Switch (Part of the Power Sunroof Switch Assembly)
11 Overhead Console
