Stationary Windows Connector End Views

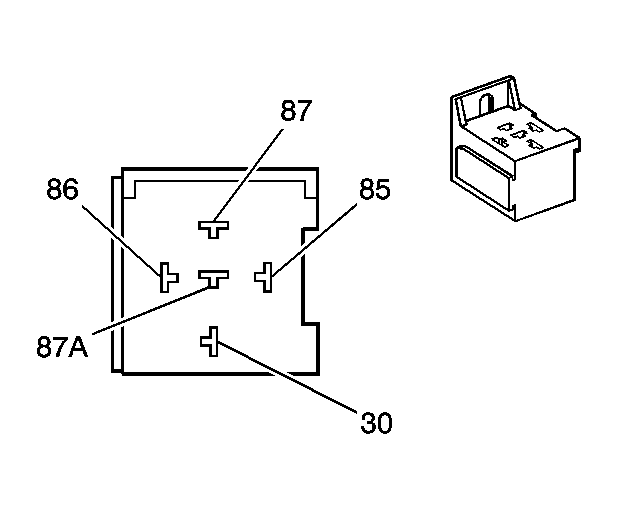

Driver and Passenger Defog Relays Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		3334485008 5-Way Bosch (BLK)
Pin	Wire Color	Circuit No.	Function
30	RED	1	Battery Positive Voltage
85	PPL	293	Rear Defog Element Supply Voltage
86	BLK	350	Ground
87	PPL	-	Windshield Defogger Supply Voltage
87A	-	-	Not Used

Inside Rearview Mirror Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12124782 16-Way F Metri-Pack 100 Series (BLK)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	BARE	814	Drain Wire
3	YEL	-	Not Used
4	ORN/BLK	-	Not Used
5	GRY	1690	Automatic Day/Night Mirror Signal
6-7	-	-	Not Used
8	BLK/WHT	851	Ground
9	LT GRN	24	Backup Lamp Supply Voltage
10	GRY	655	Cellular Microphone Signal
11	DK GRN/WHT	2514	Keypad Signal
12	LT GRN/BLK	2515	Keypad Supply Voltage
13	BRN	1039	Ignition 1 Voltage
14	YEL/BLK	2516	Keypad Green LED Signal
15	BRN/WHT	2517	Keypad Red LED Signal
16	PNK	1691	Automatic Day/Night Mirror Low Reference

Radio TV Antenna Signal Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064750 2-Way M Metri-Pack 480 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	293	Rear Defog Element Supply Voltage
B	BLK	1850	Ground

Rear Window Defogger Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064750 2-Way M Metri-Pack 480 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	293	Rear Defog Element Supply Voltage
B	BLK	1850	Ground

Windshield Connector End View C1 (w/ WC2/WC8)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12004267 1-Way F56 Series Lock Type (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	-	Driver Defog Element Supply Voltage

Windshield Connector End View C2 (w/ WC2/WC8)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12004267 1-Way F56 Series Lock Type (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	350	Ground

Windshield Connector End View C3 (w/ WC2/WC8)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12004267 1-Way F56 Series Lock Type (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	-	Passenger Defog Element Supply Voltage

Windshield Connector End View C4 (w/ WC2/WC8)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12004267 1-Way F56 Series Lock Type (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	350	Ground
