ABS Component Views

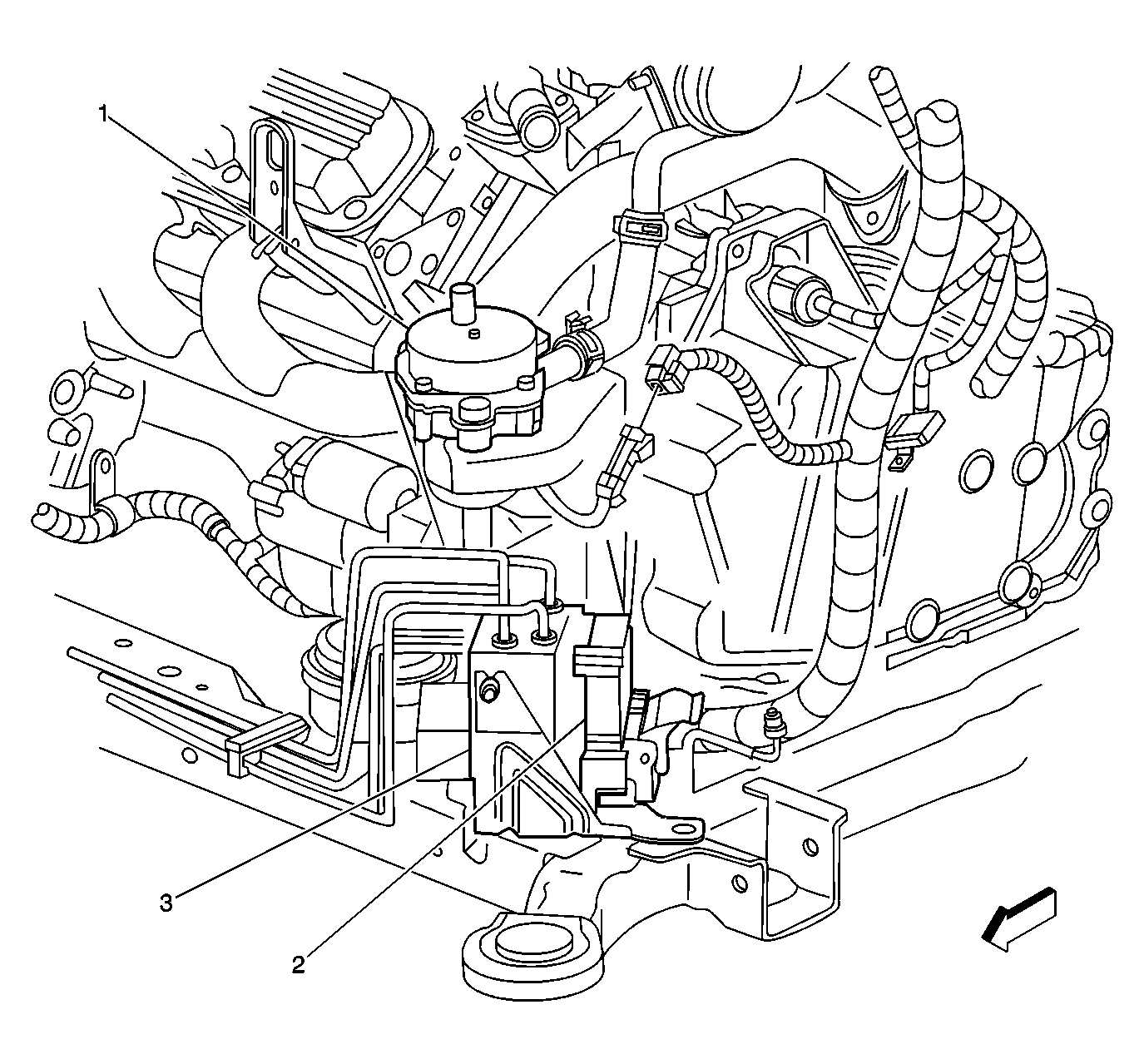

Fig 1: Left Front of the Engine Compartment, on the Frame Rail Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Secondary Air Injection (AIR) Pump Motor 1
2	Electronic Brake Control Module (EBCM)
3	Brake Pressure Modulator Valve (BPMV)

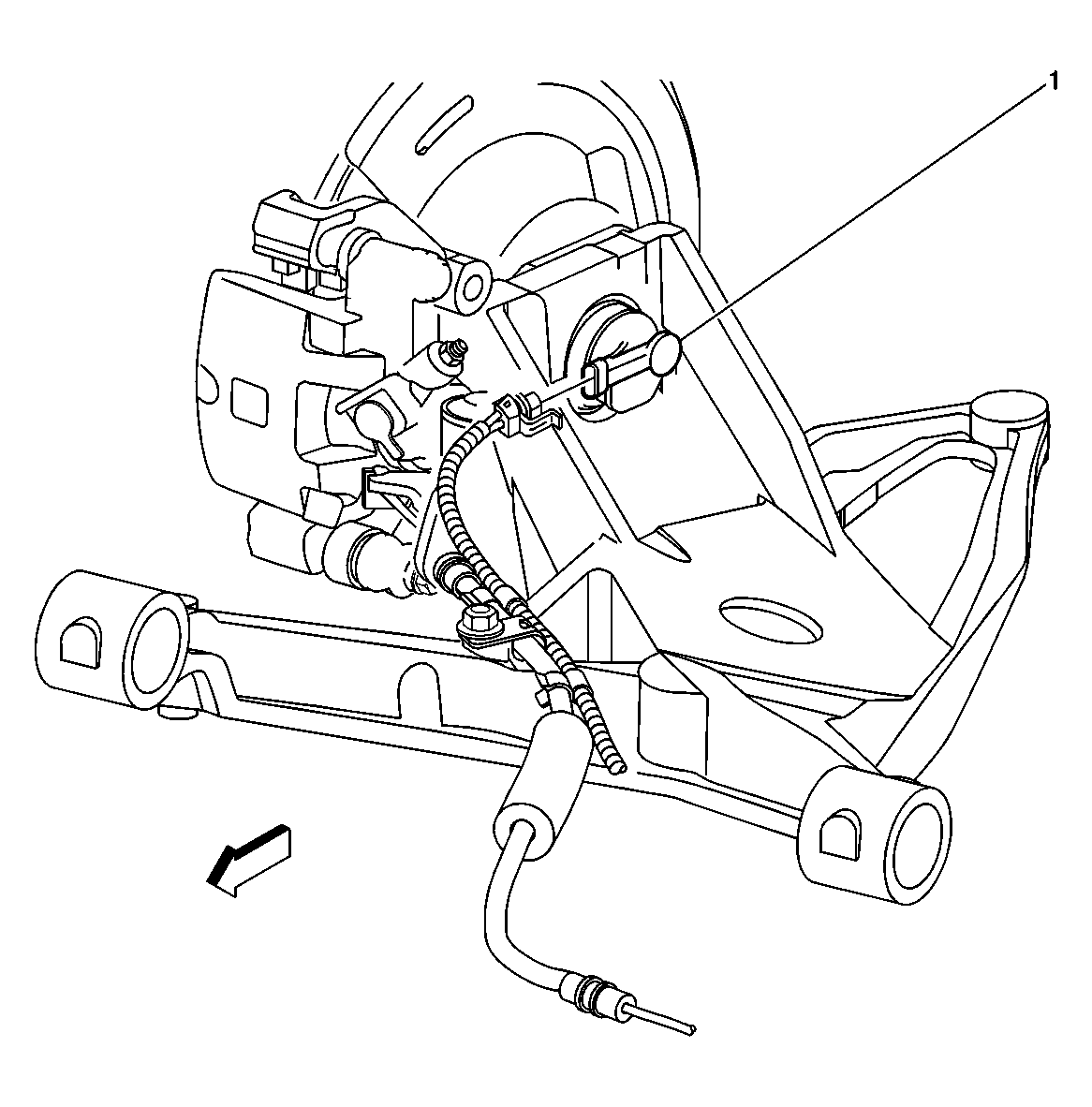

Fig 2: Front Wheel Speed Sensor, Under the Left Front of the Vehicle, above the Front Axle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor - LF, RF Similar

Fig 3: Below the Left of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	Steering Wheel Position Sensor

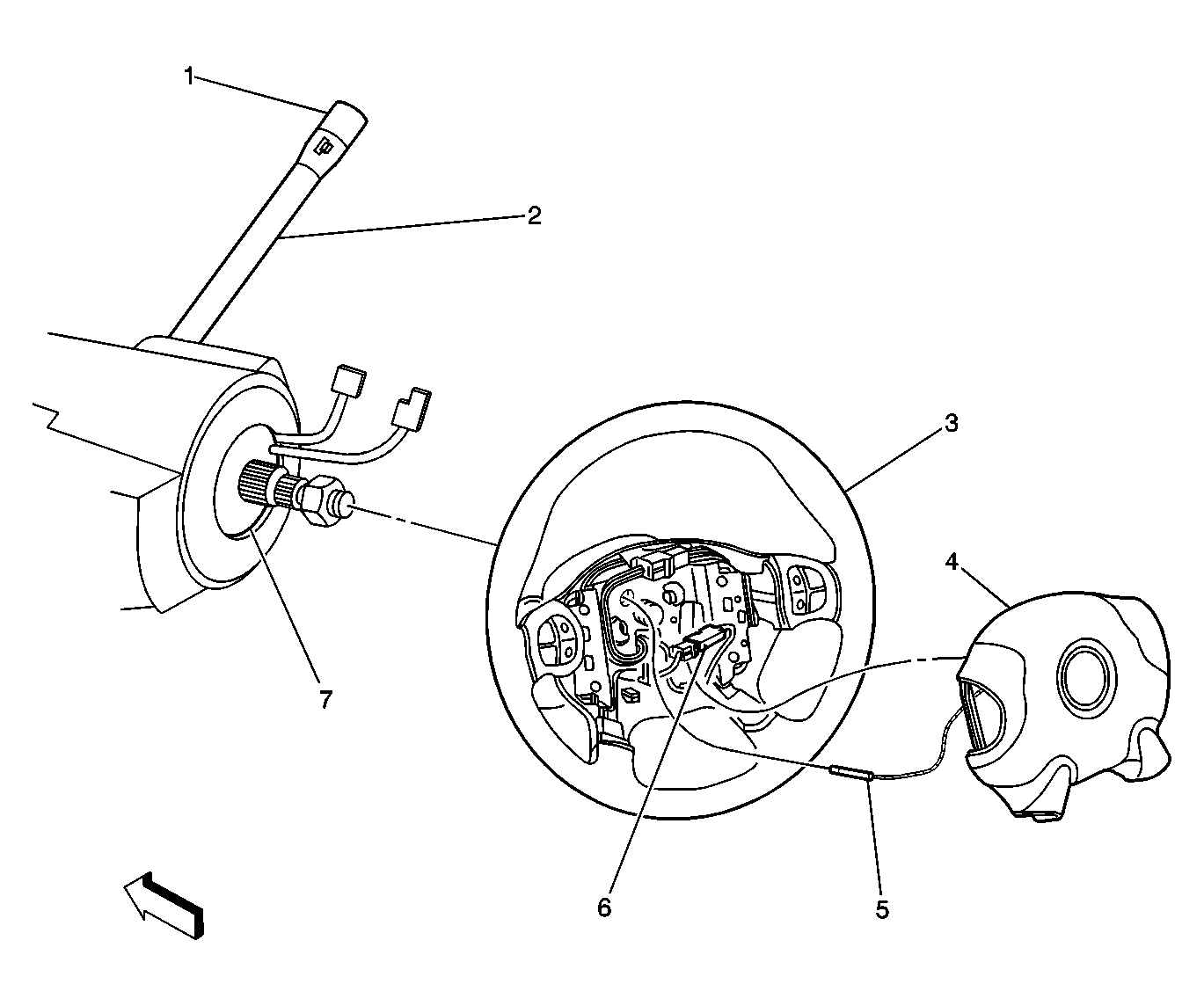

Fig 4: Steering Wheel and Inflator Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch (w/o F45)
2	Gear Shift Lever (w/o F45)
3	Steering Wheel
4	Inflatable Restraint Steering Wheel Inflator Module
5	Horn Switch Contact
6	Inflatable Restraint Steering Wheel Inflator Module Connector
7	Inflatable Restraint Steering Wheel Module Coil

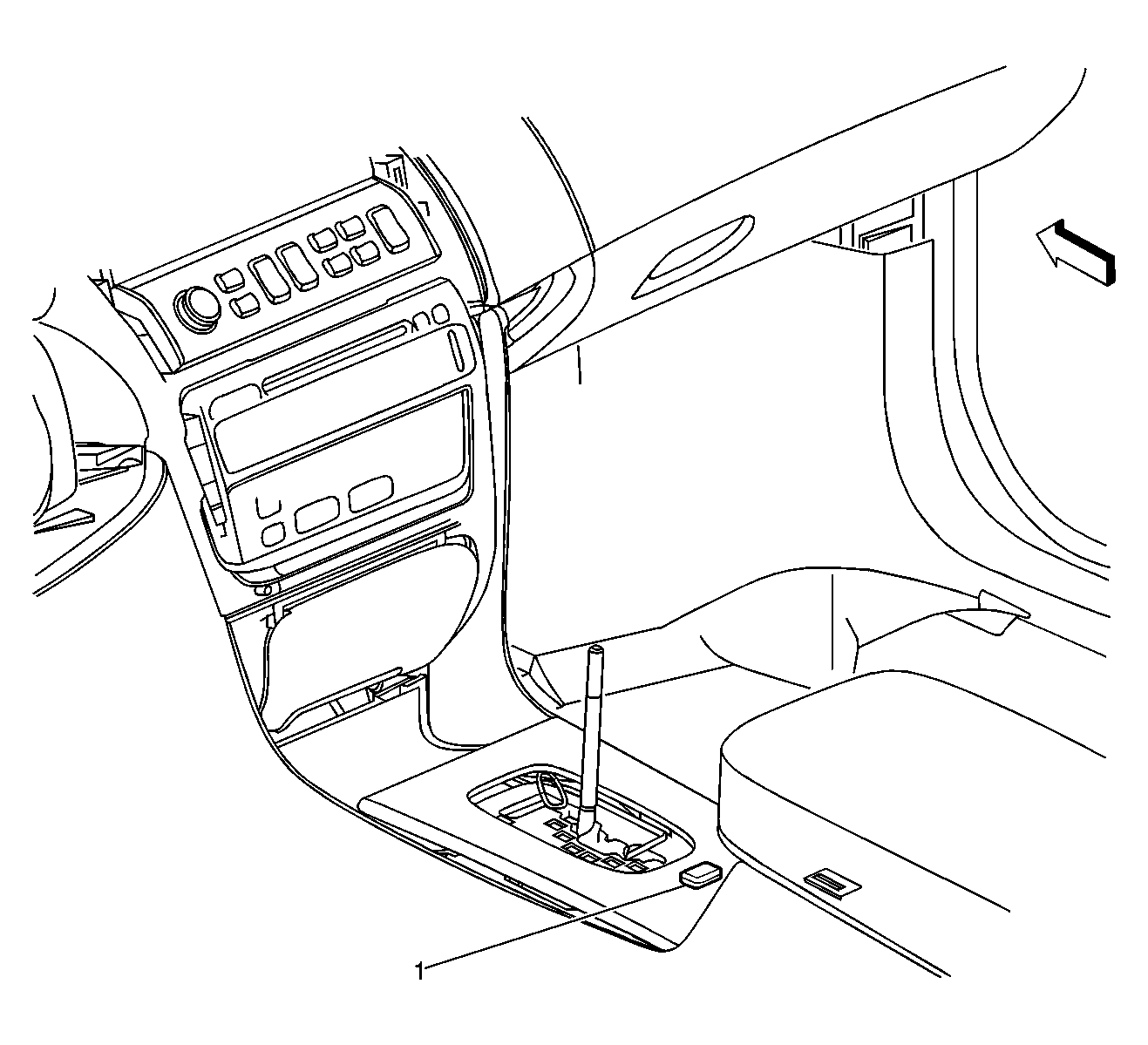

Fig 5: Front Center of the Passenger Compartment, On the Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch (w/F45)

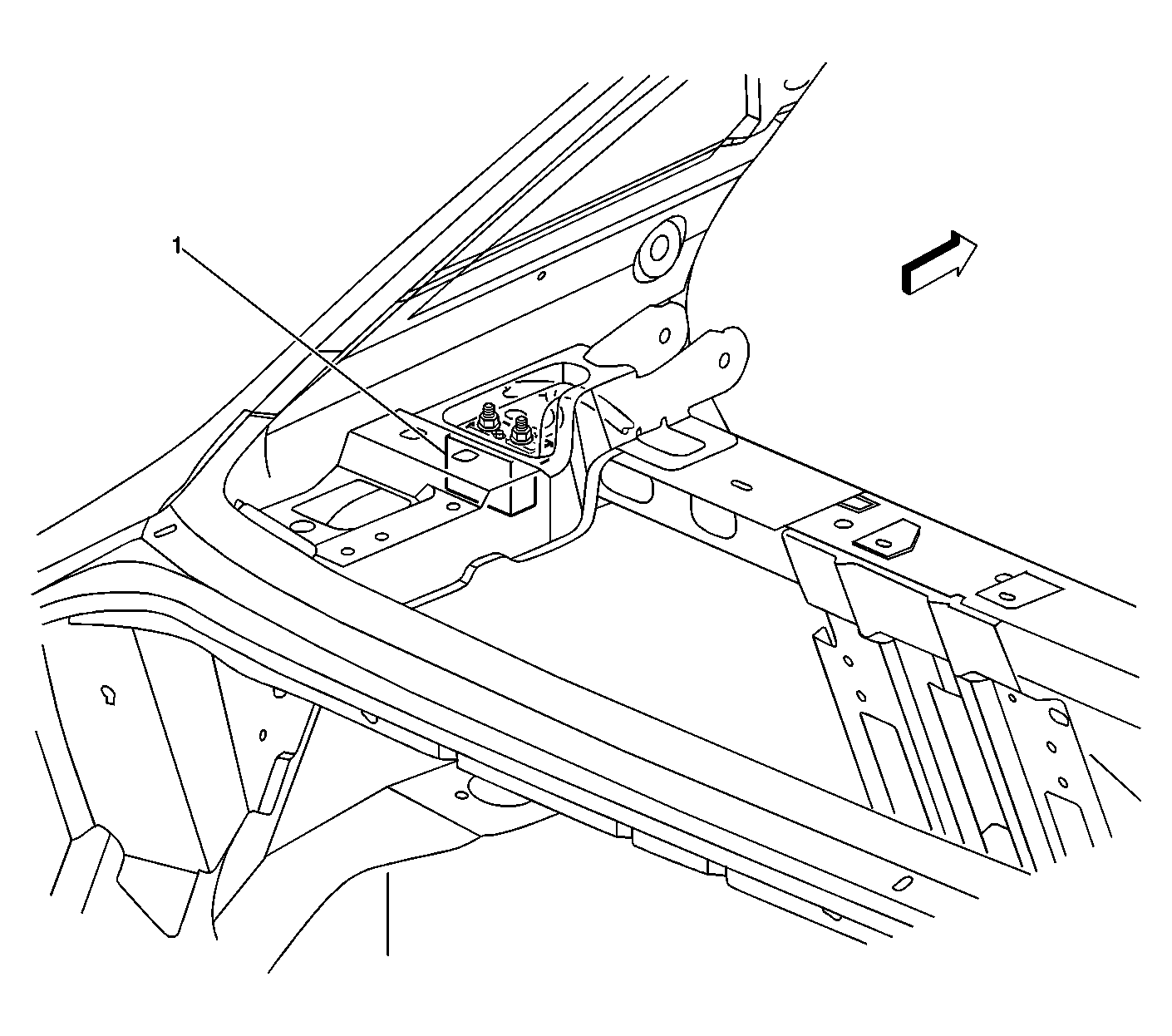

Fig 6: Left Rear of the Passenger Compartment, Under the Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lateral Accelerometer Sensor
2	Fuse Block - Rear

Fig 7: Left Corner of the Rear Compartment, In the Rear Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Yaw Rate Sensor

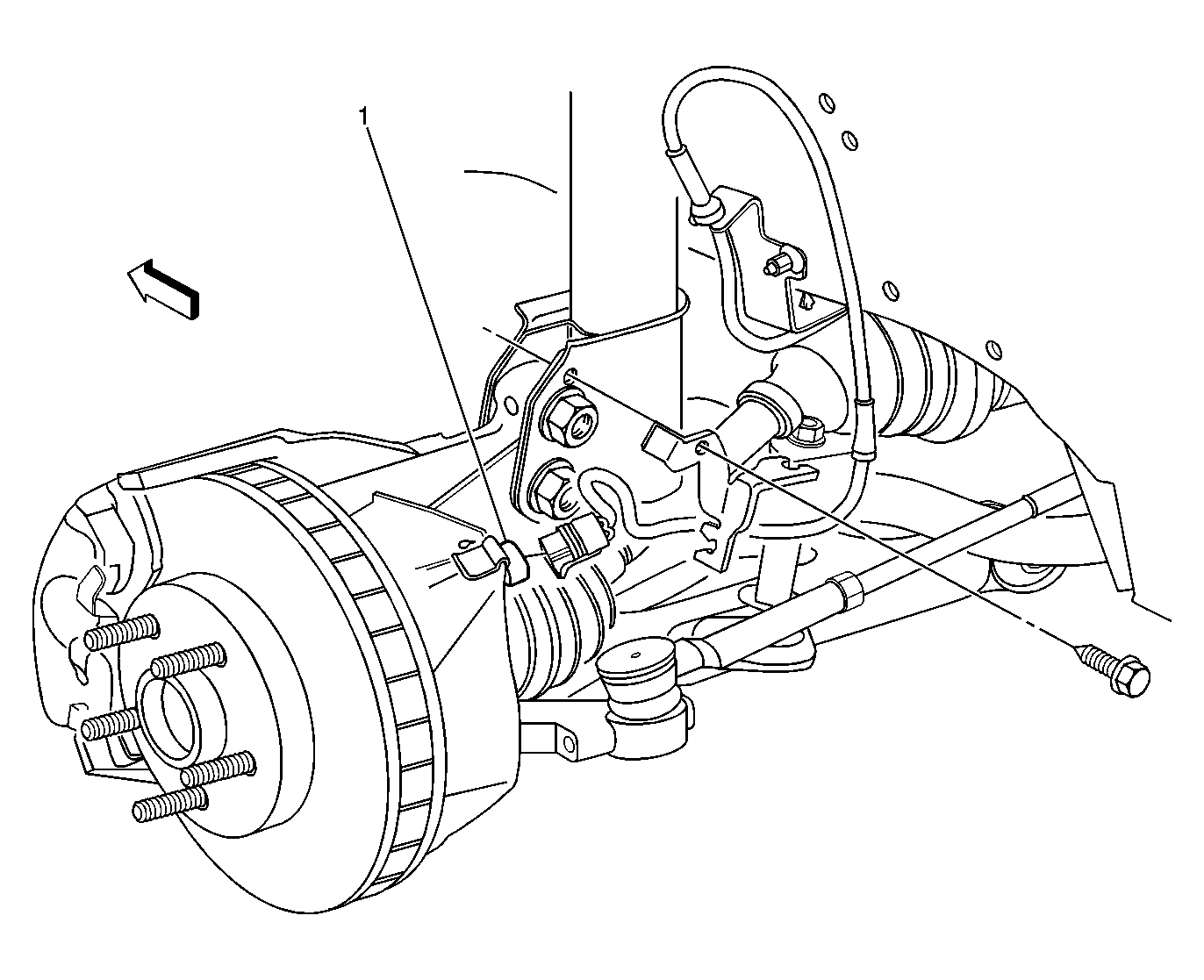

Fig 8: Under the Right Rear of the Vehicle, above the Rear Axle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor - RR, LR Similar
