Fuel Sender Assembly

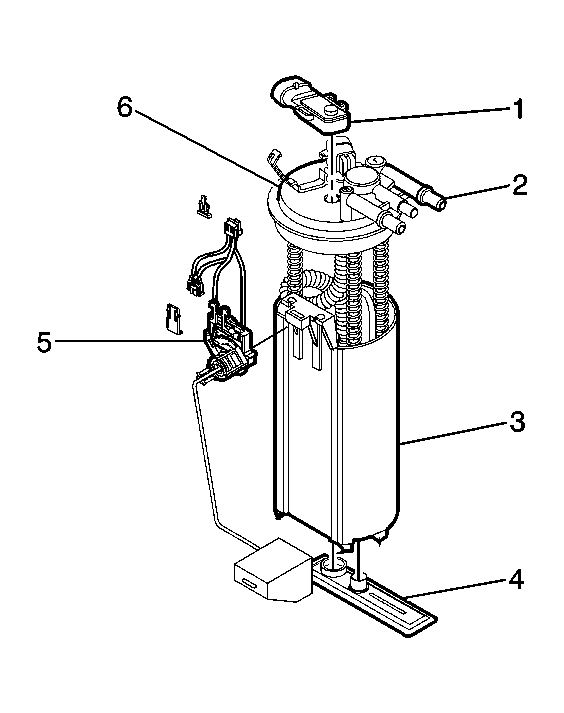

Fig 1: Identifying Fuel Sender Assembly Components

Courtesy of GENERAL MOTORS CORP.

The fuel sender assembly consists of the following major components:

• The fuel level sensor (5)
• The fuel tank pressure sensor (1)
• The fuel tank fuel pump module (3)
• The fuel strainer (4)
