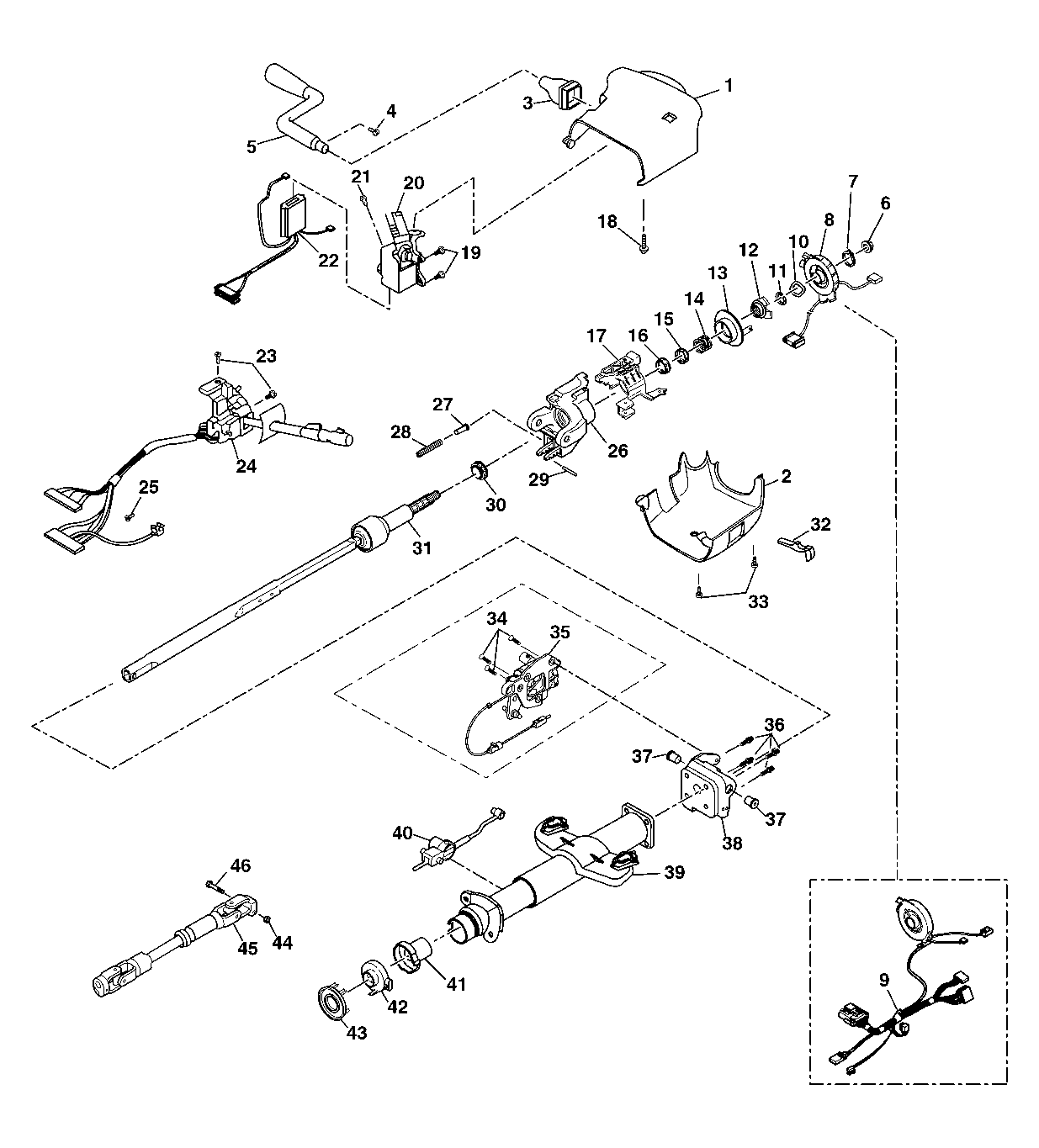

| 1 |
Upper Trim Cover |
| 2 |
Lower Trim Cover |
| 3 |
Shift Lever Seal |
| 4 |
Shift Lever Screw |
| 5 |
Shift Lever |
| 6 |
Flanged Prevailing Torque Nut |
| 7 |
Retaining Ring |
| 8 |
SIR Coil |
| 9 |
SIR Coil and Harness Assembly |
| 10 |
Wave Washer |
| 11 |
Bearing Retainer |
| 12 |
Cam Orientation Plate |
| 13 |
Turn Signal Cancel Cam Assembly |
| 14 |
Upper Bearing Spring |
| 15 |
Upper Bearing Inner Race Seat |
| 16 |
Inner Race |
| 17 |
Turn Signal Switch Housing |
| 18 |
TORX® Head Screw |
| 19 |
Pan Head Tapping Screws |
| 20 |
Ignition Lock Cylinder Case Assembly |
| 21 |
Pan Head Tapping Screw |
| 22 |
Ignition Switch Assembly |
| 23 |
Pan Head Tapping Screws |
| 24 |
Turn Signal and Multifunction Switch Assembly |
| 25 |
Axial Position Assurance Connector |
| 26 |
Steering Column Tilt Head Assembly |
| 27 |
Spring Guide |
| 28 |
Tilt Spring |
| 29 |
Release Lever Pin |
| 30 |
Bearing Assembly |
| 31 |
Steering Column Shaft Assembly |
| 32 |
Pan Head Tapping Screws |
| 33 |
Tilt Knob |
| 34 |
Oval Head Soc Tap Screws |
| 35 |
Linear Shift Assembly |
| 36 |
TORX® Head Screws |
| 37 |
Pivot Pins |
| 38 |
Steering Column Support Assembly |
| 39 |
Steering Column Jacket Assembly |
| 40 |
Automatic Transmission Shift Lock Control |
| 41 |
Adapter and Bearing Assembly |
| 42 |
Steering Wheel Position Sensor Assembly |
| 43 |
Sensor Retainer |
| 44 |
Hexagon Head Nut |
| 45 |
Intermediate Shaft |
| 46 |
Bolt and Retainer Assembly |
